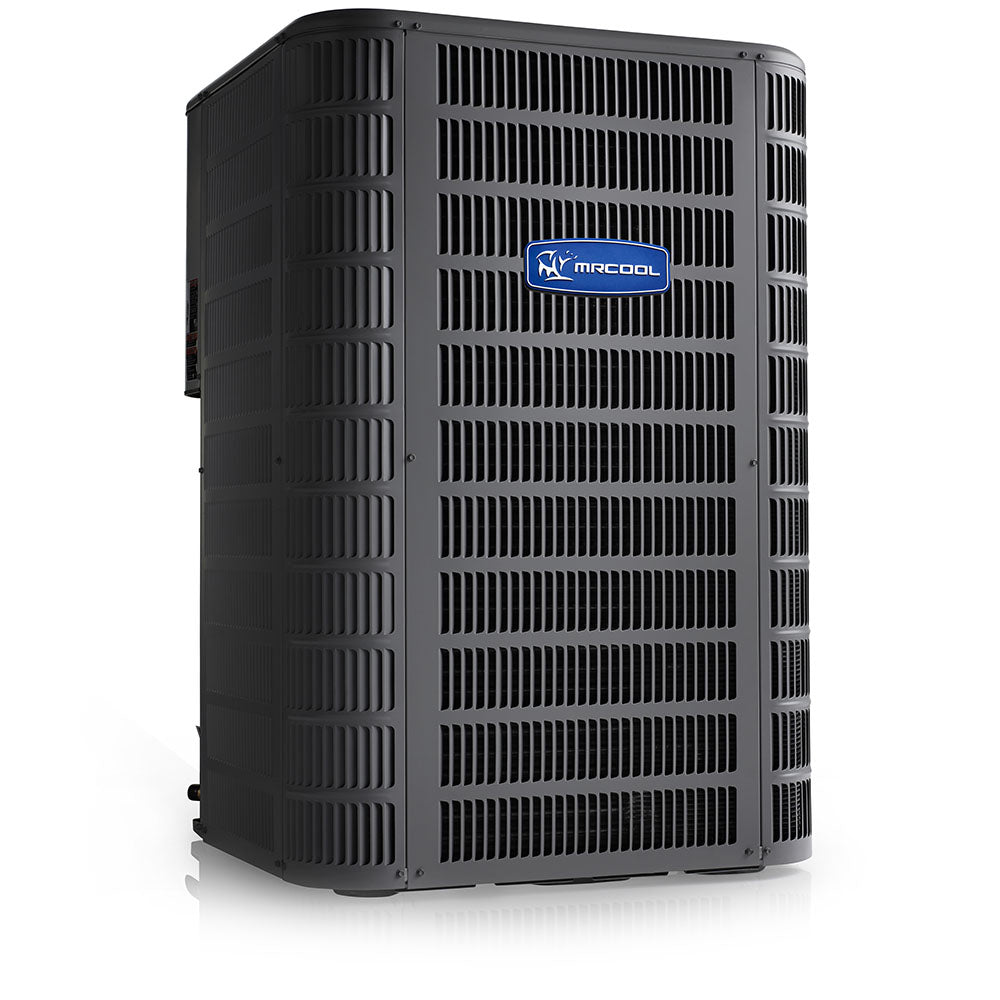

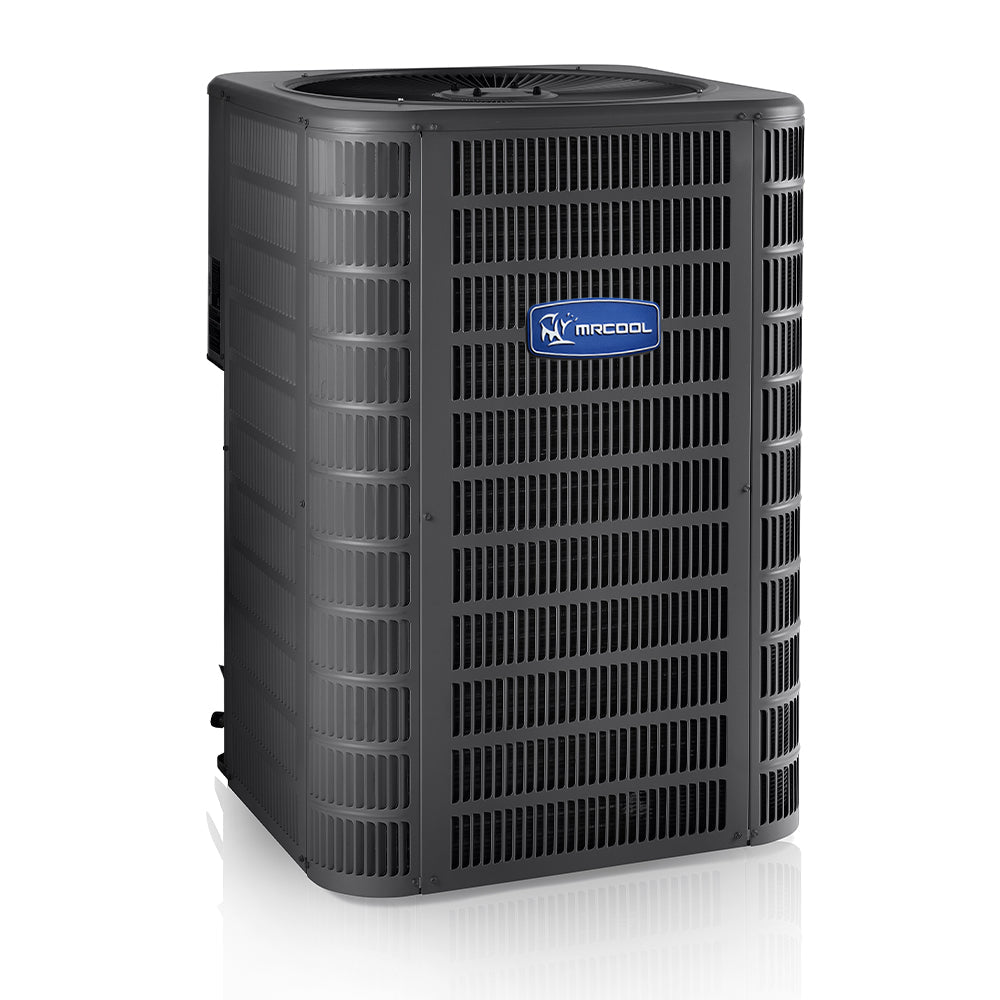

MRCOOL® Signature Series 24,000 BTU 2 Ton 15 SEER Central Split System Heat Pump Condenser - MHP15024A
The MRCOOL® Signature Series 24,000 BTU 2 Ton 15 SEER Central Split System Heat Pump Condenser works diligently to make your home a comfortable space. This product gives you total energy efficiency with it's enhanced tube-and-fin coil design, allowing you to get more bang for your buck. You can have peace-of-mind with this product due to its affordability, quality, efficiency, and comfort. Look no further for your family's next home central heating and air system.
Features:
- Louvered construction with baked polyester finish over galvanized steel to withstand bad weather
- Raised coil to prevent debris blockage
- CoolGuard advanced corrosion resistant coil
- 4-screw louver panels, corner-mounted controlsand 45-degree offset valves for easy service.
- Enhanced tube-and-fin coil design featuring high efficiency heat transfer technology
- Thread-on pressure switches for simple, quick replacement
- Charged for 15 feet of line set
- Heavy-duty compressor sound blanket forquiet operation
- Internally protected against high temperature motor overload conditions
- Ships with filter drier
- All units ETL and ETLC approved and AHRI Certified
- 10 year registered parts warranty
Specifications:
| BRAND | MRCOOL |
| MODEL | MHP15024A |
| SERIES | Signature Split Heat Pump |
| UNIT TYPE |
Split System Heat Pump |
| GTIN | 00810512031016 |
| UPC | 810512031016 |
| SEER | 15 |
| MAX SEER |
14-15 |
| EER | 11.5 |
| COP 47 |
3.4 |
| COP 47 PART LOAD |
2.4 |
| HSPF | 8.2-8.5 |
| CFM | 850-875 |
| TONNAGE | 2 |
| COOLING CAPACITY (BTU) |
23400-24000 |
| HEATING CAPACITY (BTU) |
21000-21600 |
| VOLTAGE (V) |
208-230 |
| PHASE | 1 |
| CYCLE | 60 |
| STAGE | Single |
| MAX FUSE BREAKER (A) |
30 |
| MIN CIRCUIT AMPACITY (A) |
17.9 |
| COLOR | Gray |
| COLOR FAMILY |
Gray |
| RATED LOAD |
13.5 |
| MAX COVERAGE AREA |
1000 |
| REFRIGERANT TYPE |
R-410A |
| REFRIGERANT VOLUME (OZ) |
94 |
| DECIBEL RATING (DBA) |
76 |
| INVERTER | No |
| MIN AMBIENT COOL (F) |
55 |
| LINESET INCLUDED |
No |
| LINE SET LENGTH |
15, 25, 35, 50 |
| MAX LINESET LENGTH (FT) |
50 |
| LINESET FITTING TYPE |
Sweat |
| LIQUID LINE SIZE |
3/8 |
| SUCTION LINE SIZE |
3/4 |
| COMPRESSOR MOTOR TYPE |
Scroll |
| CONDENSER FAN MOTOR TYPE |
Direct Drive |
| CONDENSER FAN MOTOR HP |
1/6 |
| CONDENSER FAN MOTOR RPM |
825 |
| METERING DEVICE |
TXV |
| AUXILIARY HEATER INCLUDED |
No |
| AUXILIARY HEATER AVAILABLE |
Yes |
| AUXILIARY HEATER SIZES |
7.5kw, 10kw |
| UL RECOGNIZED |
No |
| UL LISTED |
No |
| ETL LISTED |
Yes |
| ETL CERTIFIED |
No |
| LEED CERTIFIED |
No |
| ENERGY STAR COMPLIANT |
No |
| ENERGY STAR CERTIFIED |
No |
| AHRI CERTIFIED |
Yes |
| REGISTERED WARRANTY |
Registered 10 Year Parts Warranty |
| BASE WARRANTY |
5 Year Parts Warranty |
| REGISTERED PARTS WARRANTY |
Registered 10 Year Parts Warranty |
| BASE PARTS WARRANTY |
5 Year Parts Warranty |
| HAS BATTERIES |
No |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
Yes |
| CONTAINS AEROSOL |
Yes |
| CONTAINS COMPRESSED GAS |
Yes |
| PROPOSITION 65 WARNING |
Yes |
| RESTRICTED STATES |
No |
| NET DEPTH (IN) |
28.25 |
| NET HEIGHT (IN) |
37.00 |
| NET WIDTH (IN) |
28.25 |
| NET WEIGHT (LBS) |
177.00 |
| GROSS DEPTH (IN) |
30.50 |
| GROSS HEIGHT (IN) |
37.50 |
| GROSS WIDTH (IN) |
31.00 |
