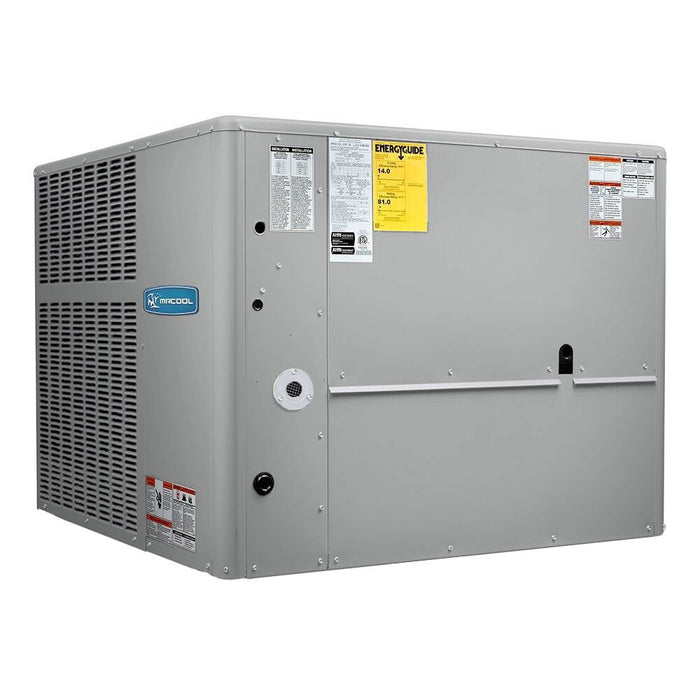

MRCOOL® Signature Series 60K BTU 5 Ton 14 SEER Louvered Air Conditioner Package Unit - Multiposition

SKU: MPC601M414A
  • END OF THE YEAR FLASH SALE GOING ON NOW! Save An Extra 5% OFF with Code: FLASH5 (Applies at checkout)
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source

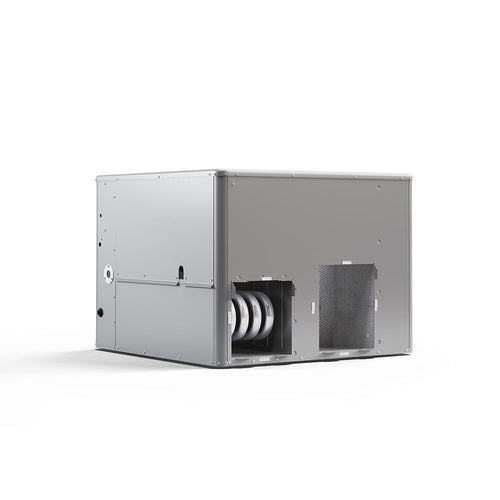

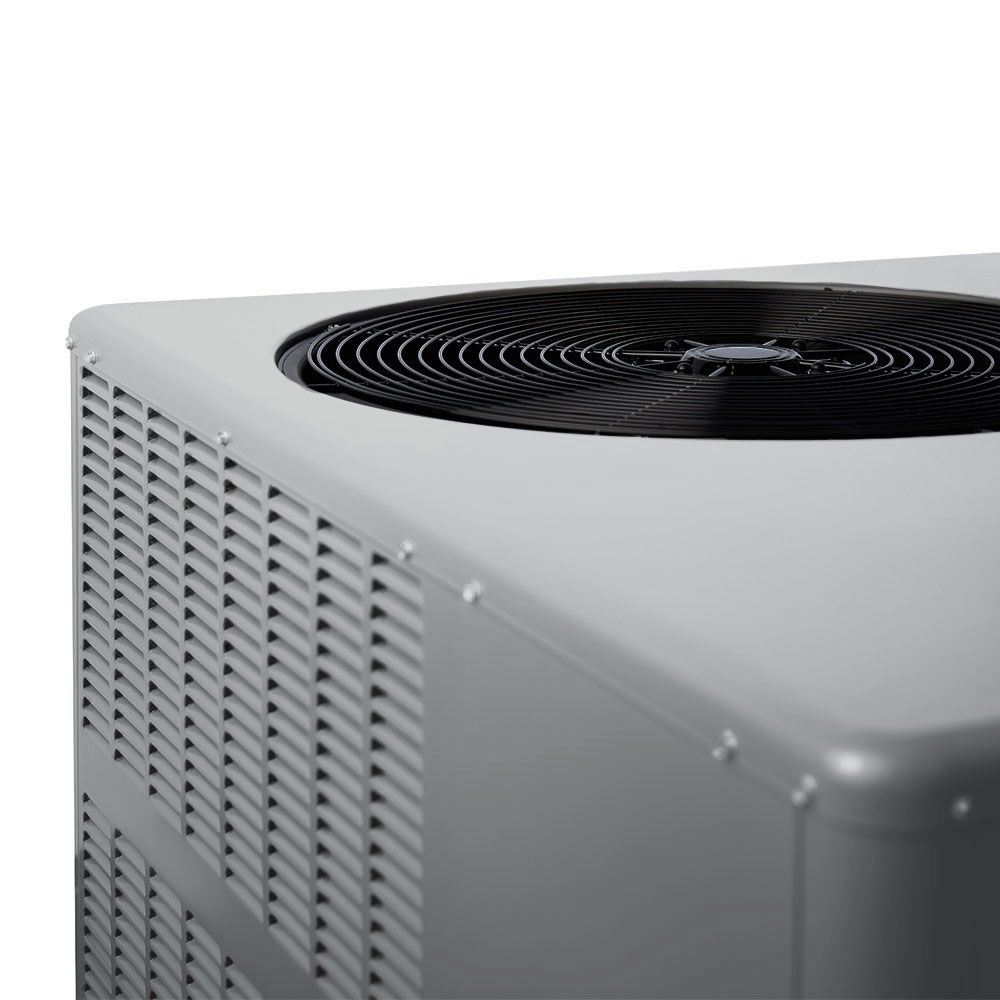

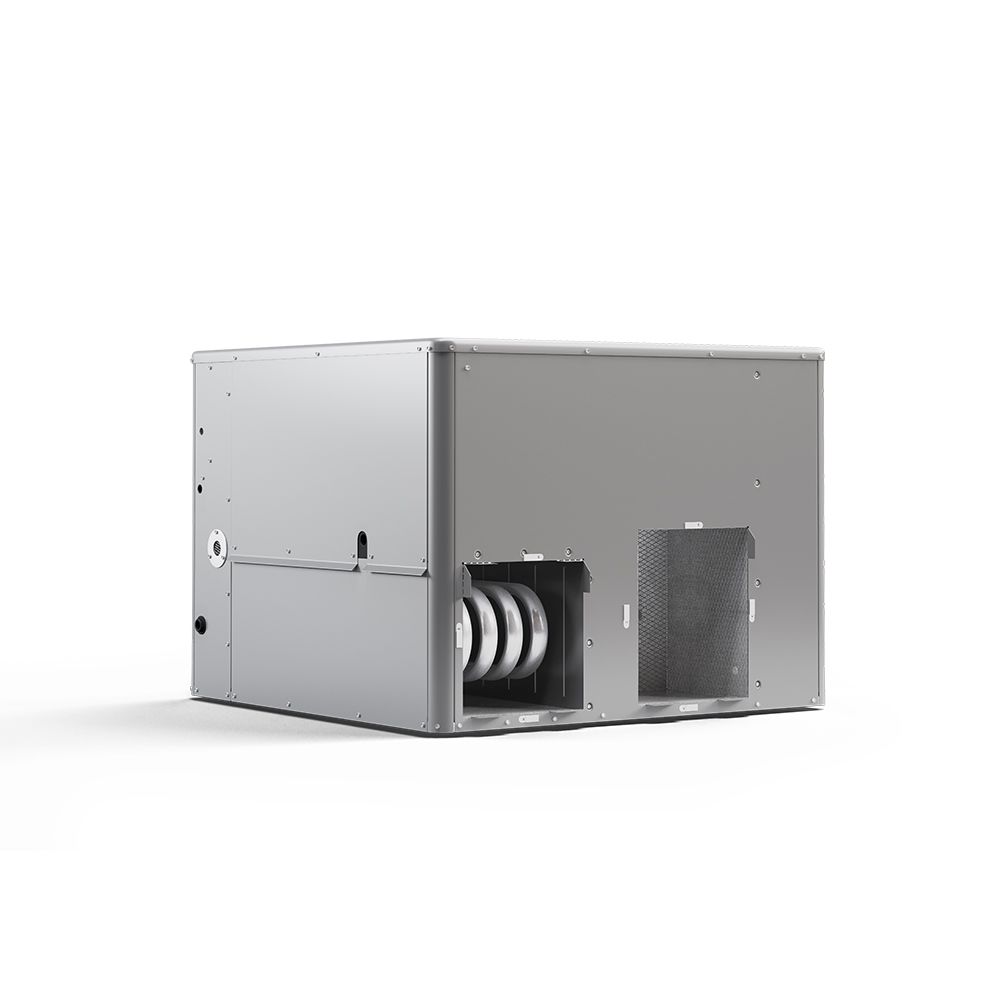

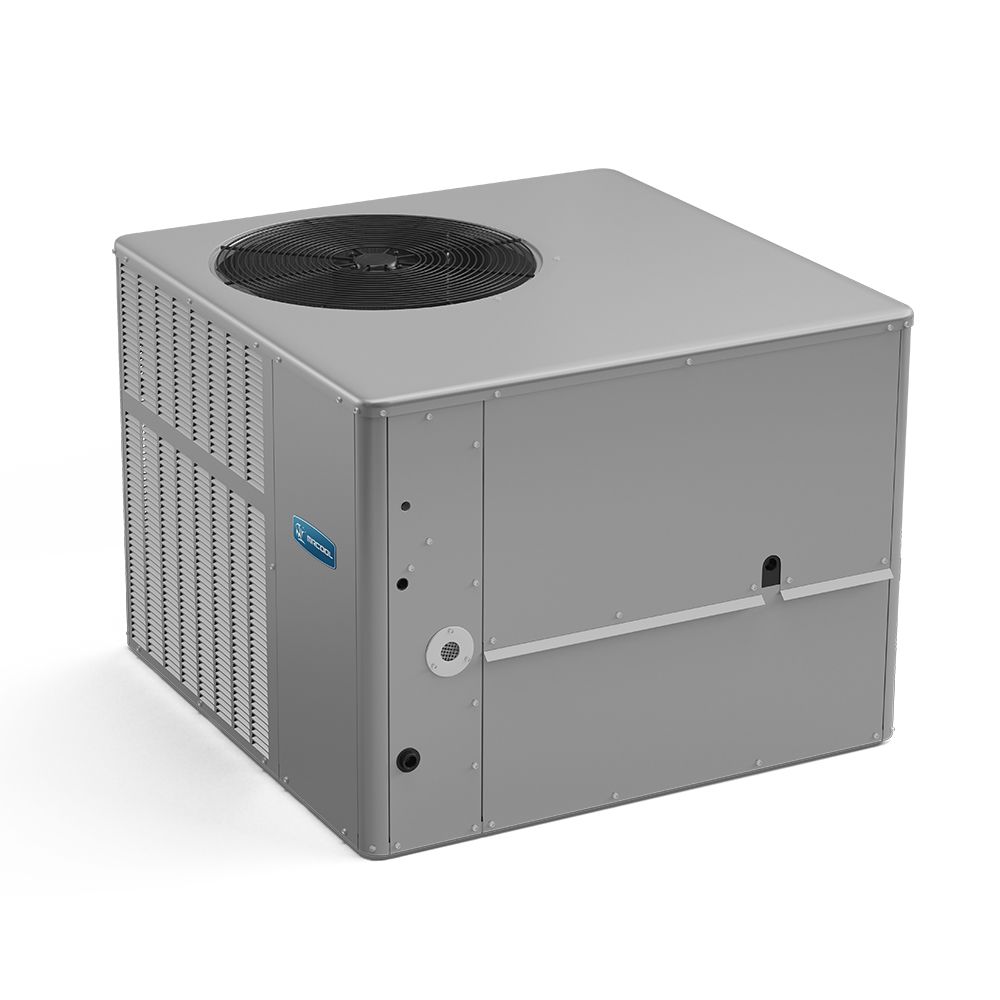

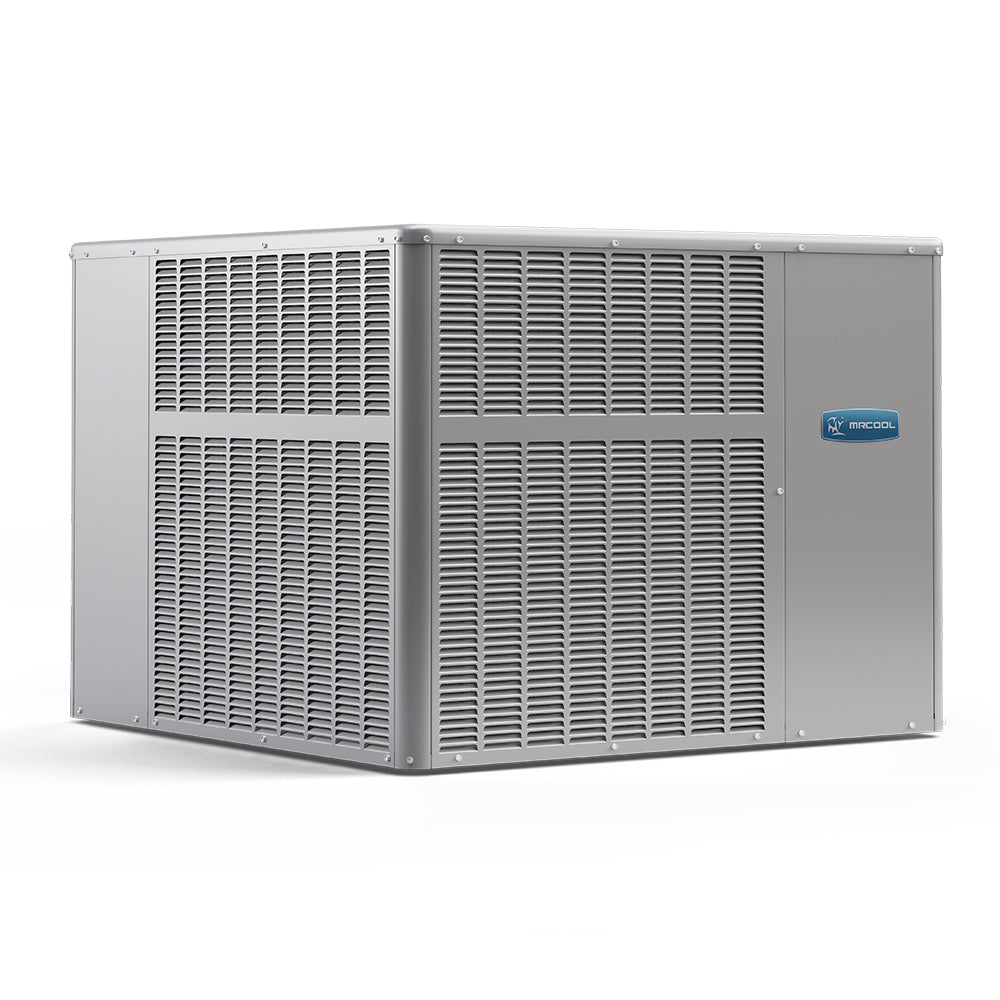

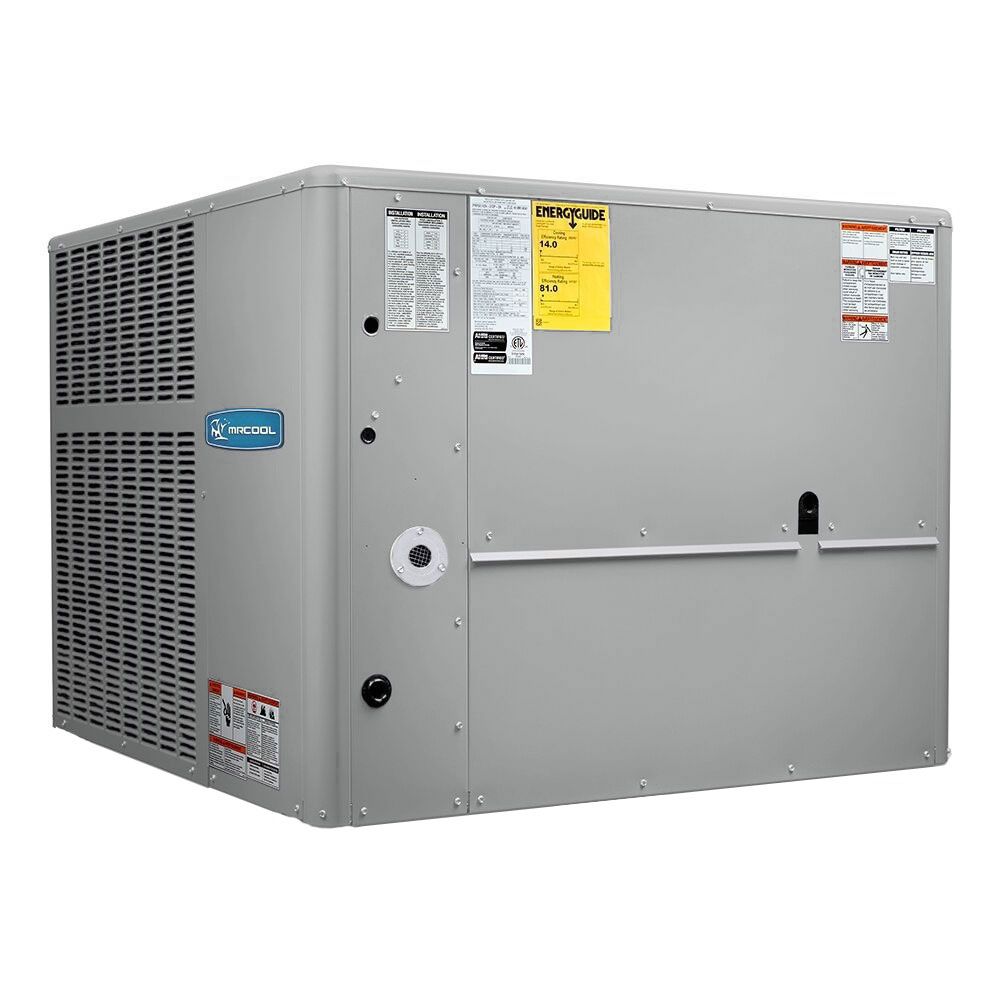

MRCOOL® Signature Series 60K BTU 5 Ton 14 SEER Louvered Air Conditioner Package Unit - Multiposition

This is a brand new 5 ton, 208-230 volt, R410-A refrigerant, MRCOOL packaged air conditioning. This air conditioner unit has a seasonal energy efficiency rating of 14 SEER, providing maximum comfort cooling. This unit only provides "cooling" (this is NOT a heat pump).

Key Features

  • Approved for installation in manufactured housing and mobile homes
  • Multi-Positional Application
  • Environmentally friendly R410A refrigerant
  • Insulated to minimize heat loss and reduce sound
  • Efficient multispeed motor for wide airflow range
  • Low ambient kits available
  • Utility connections on right side
  • One piece base design for strength and stability
  • Rounded corners for safety and an attractive, clean appearance
  • Available in 2, 2.5, 3, 3.5, 4, and 5 TON capacities
  • All units ETL and ETLC approved and AHRI Certified
  • One piece no leak top design

Specifications:

Model MPC601M414A
Product Dimensions 46.8"W x 55.27"D x 40.88"H
Product Weight 445 lbs
Unit Type Package AC
SEER 14
EER 11
CFM 1800
Tonnage 5
Cooling Capacity 57000
Voltage Requires a minimum of 208V-230V/60HZ/ 60A (please check your home meets this electrical requirement prior to purchase)
Phase 1
Cycle 60
Max Fuse Breaker 60
Min Circuit Ampacity 6.4
Color Gray
Rated Load 16.9
Max Coverage Area 2500
Refrigerant Type R-410A
Refrigerant Volume 125
Decibel Rating 78
Min Ambient Heat 0
Compressor Motor Type Single Stage

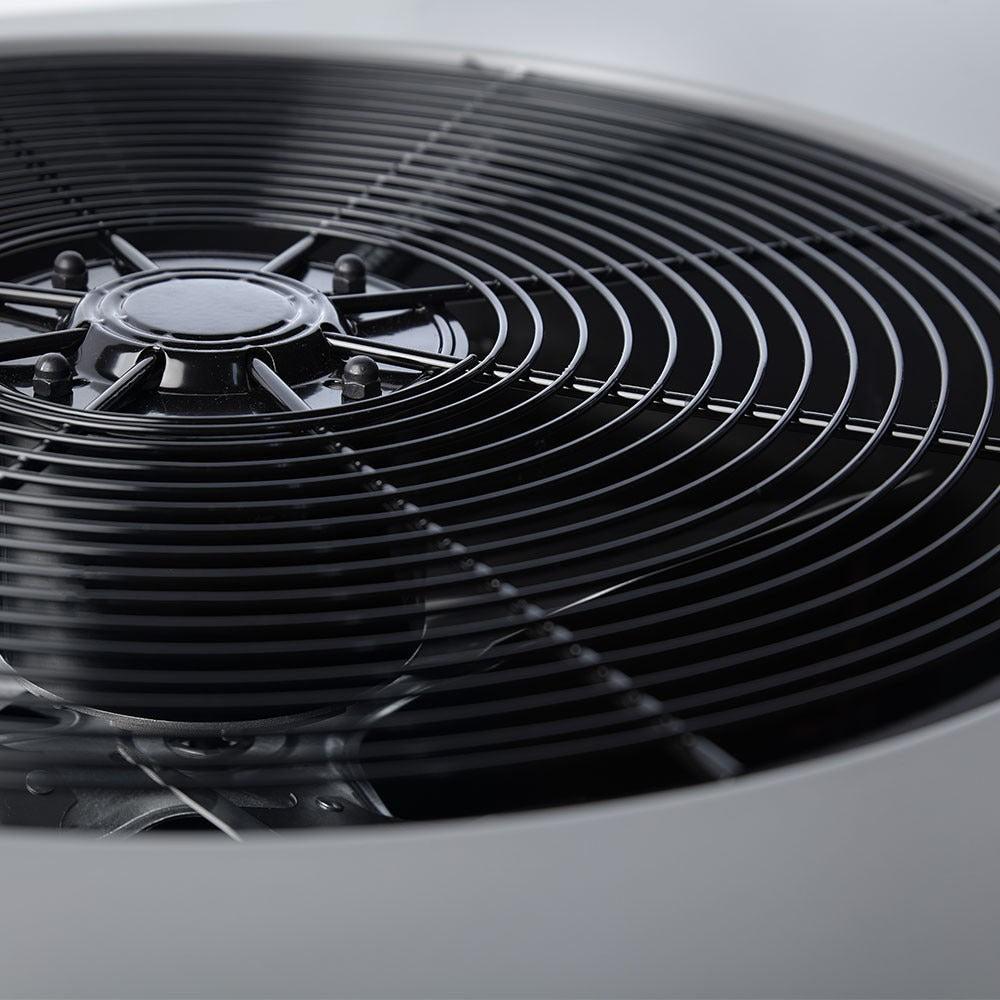

Condenser Fan Motor Type ECM
Condenser Fan Motor HP 1/4
Blower Motor Type ECM
Blower Motor HP 1
Blower Motor Speeds Multi-Speed
Blower Motor RPM 1120-2090
Filter Type Replaceable
Filter Size 20 x 20
Metering Device TXV
Auxiliary Heater Yes
Auxiliary Heater Sizes 5kw, 7.5kw, 10kw, 15kw, 20kw
Certifications ETL
AHRI
Warranty 10-Year Parts Limited Warranty
Base Warranty 5 year base limited parts warranty
