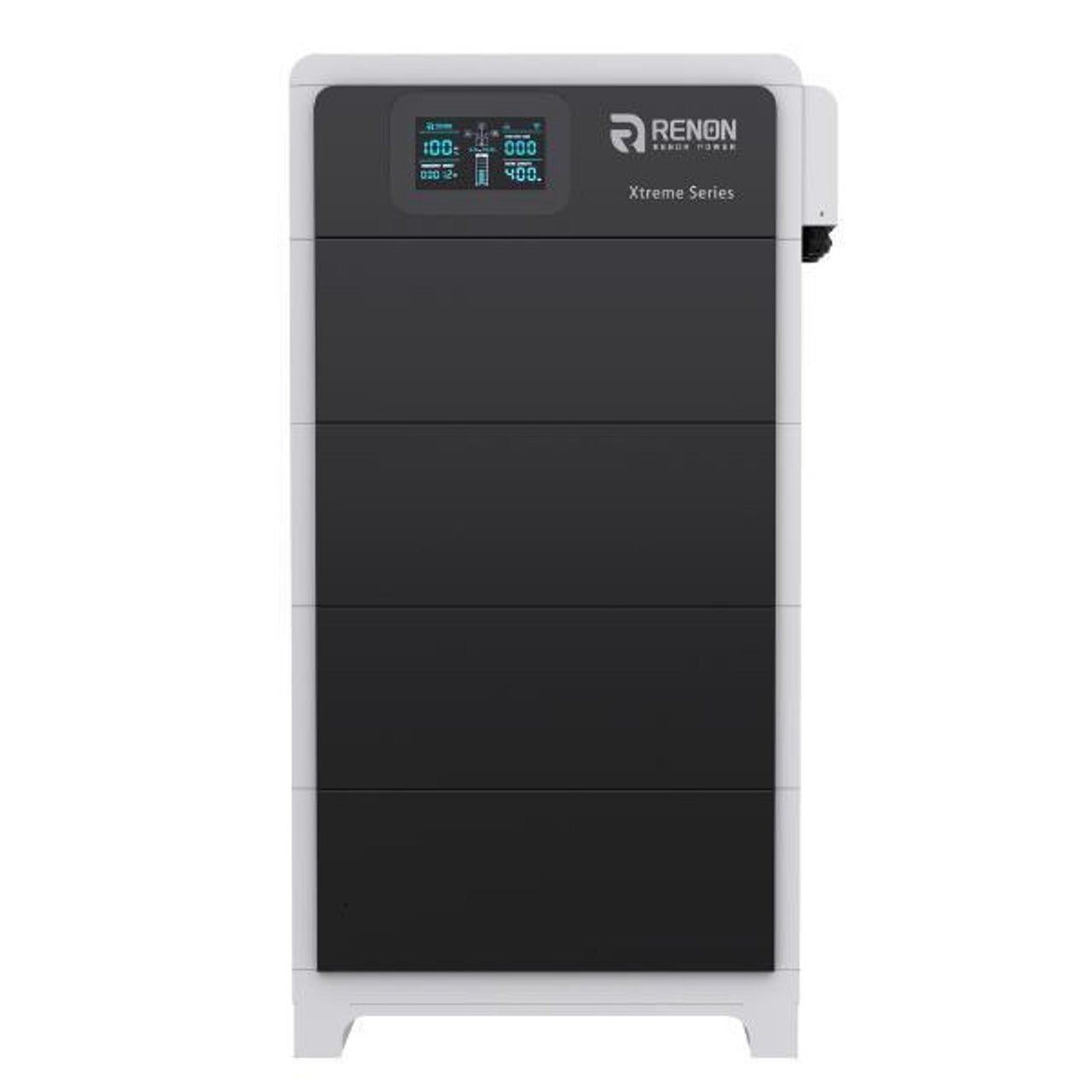

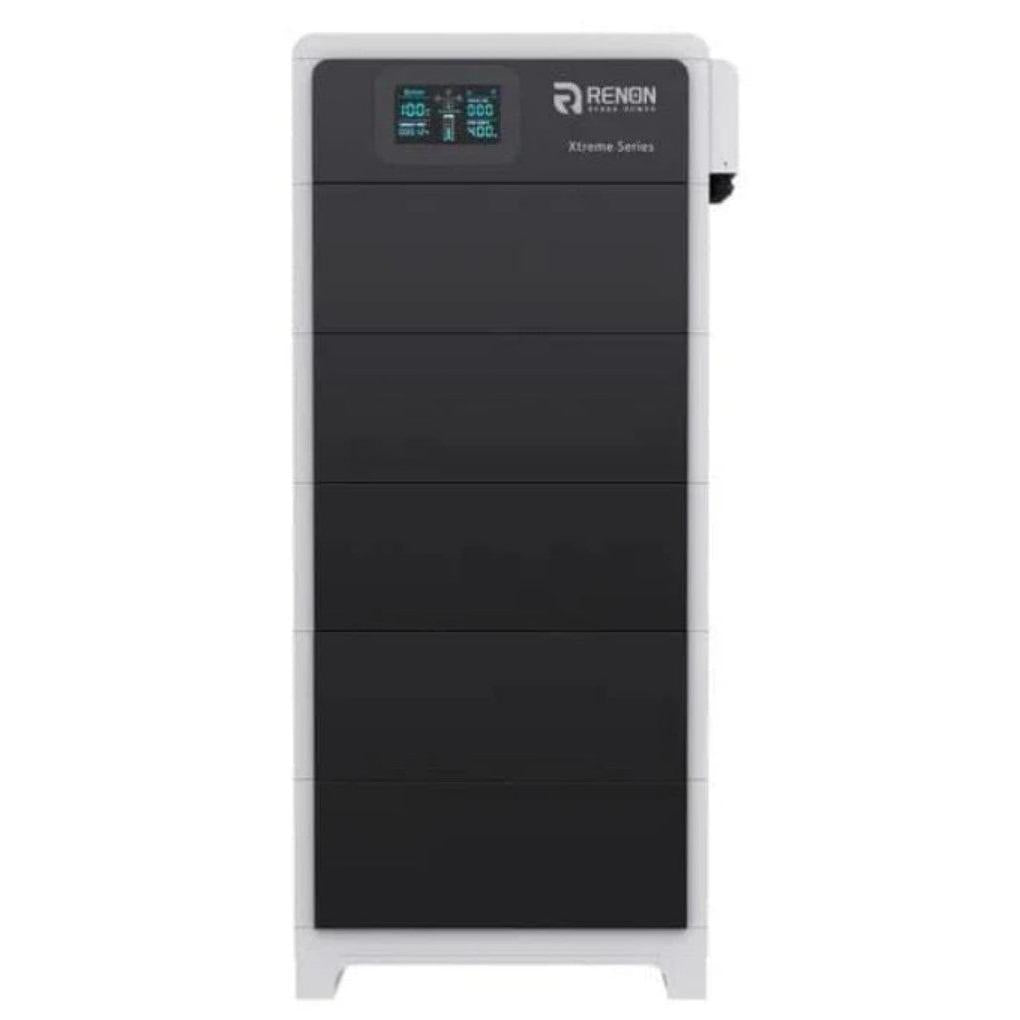

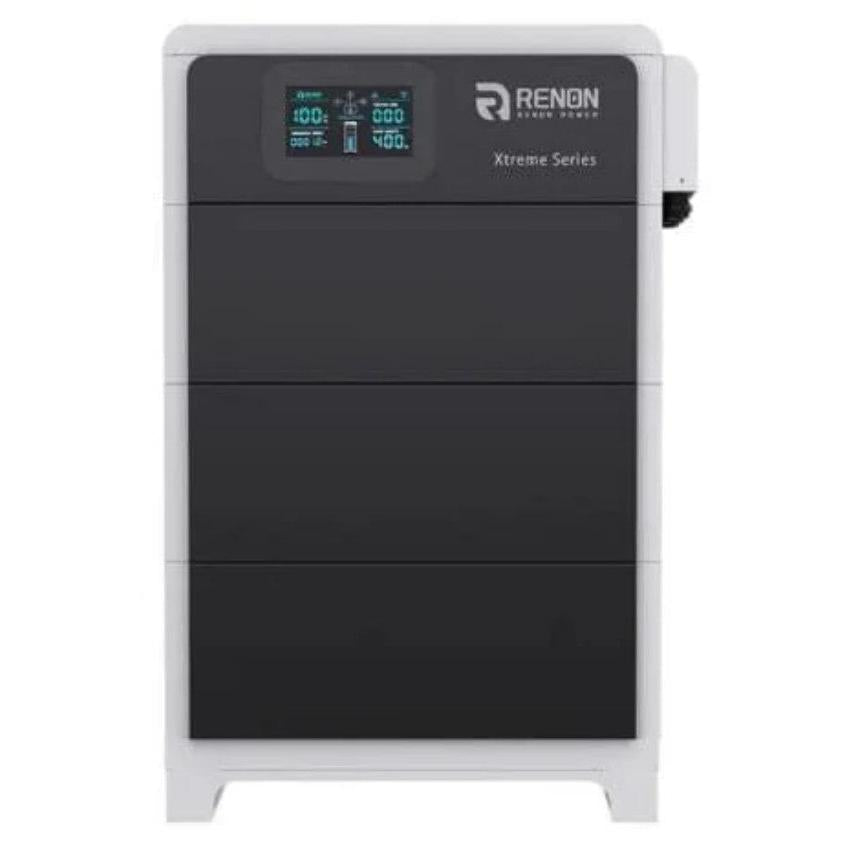

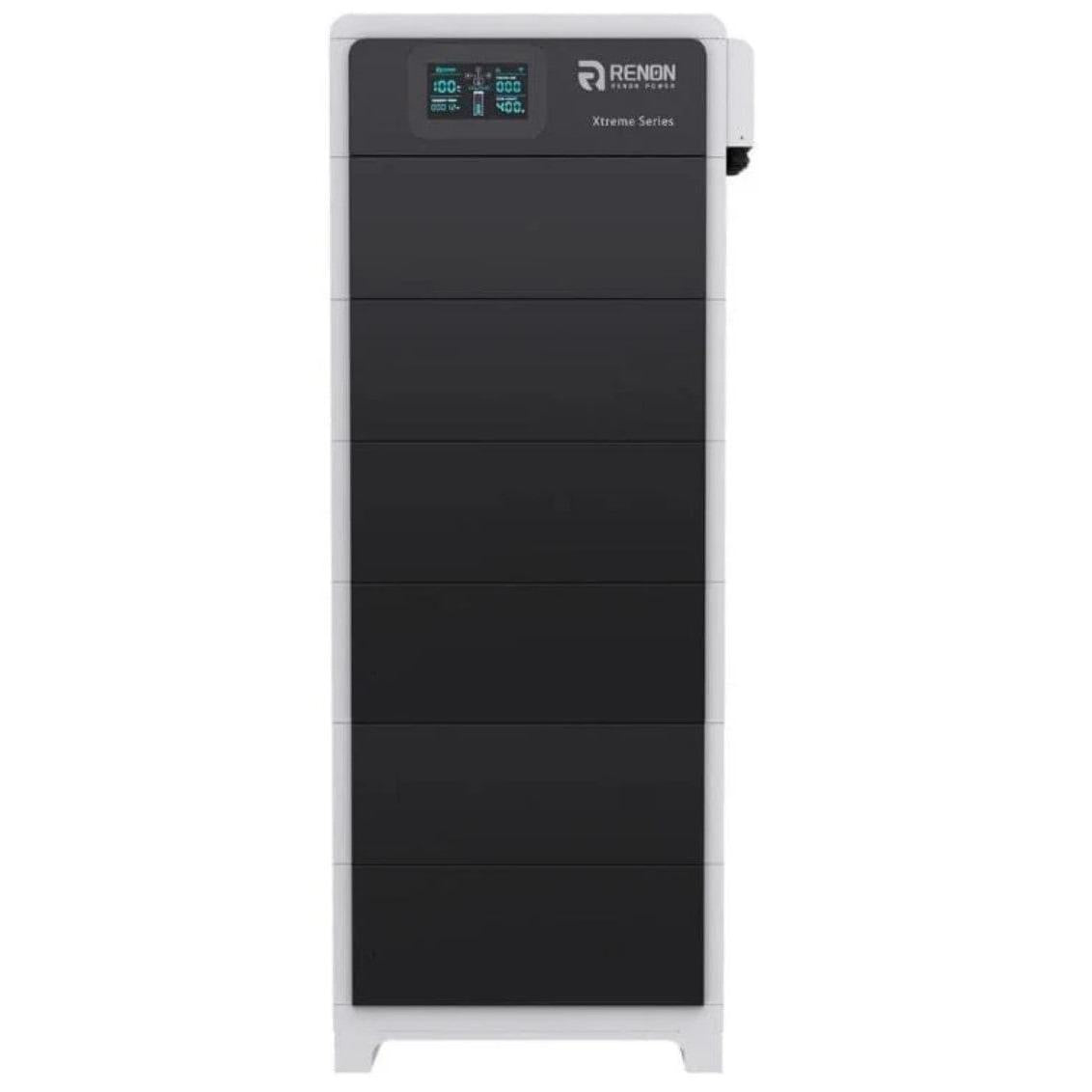

Renon Xtreme LV Modular LV Battery System | 10.24 - 40.96 kWh | Stackable LiFePO4 | WiFi EMS | Plug & Play | 10-Year Warranty
The Renon Xtreme LV combines a compact design with robust performance, suitable for 10.24kWh to 40.96kWh configurations. It meets diverse energy needs with over 8000 cycles, temperature adaptability from –20°C to 50°C, and multiple communication options (RS485 CAN WiFi). Supported by a 10-year warranty.
Key Features:
-
High Output Power: Up to 300A discharge capability
-
Wide Operating Range: Charge from 32°F–122°F, discharge down to -4°F
-
Advanced BMS: Built-in protections against overcharge, over-discharge, overcurrent, and extreme temps
-
Modular Scalability: Expandable up to 15 clusters in parallel
-
Smart Monitoring: WiFi-enabled with Renon Smart App for real-time tracking and system diagnostics
-

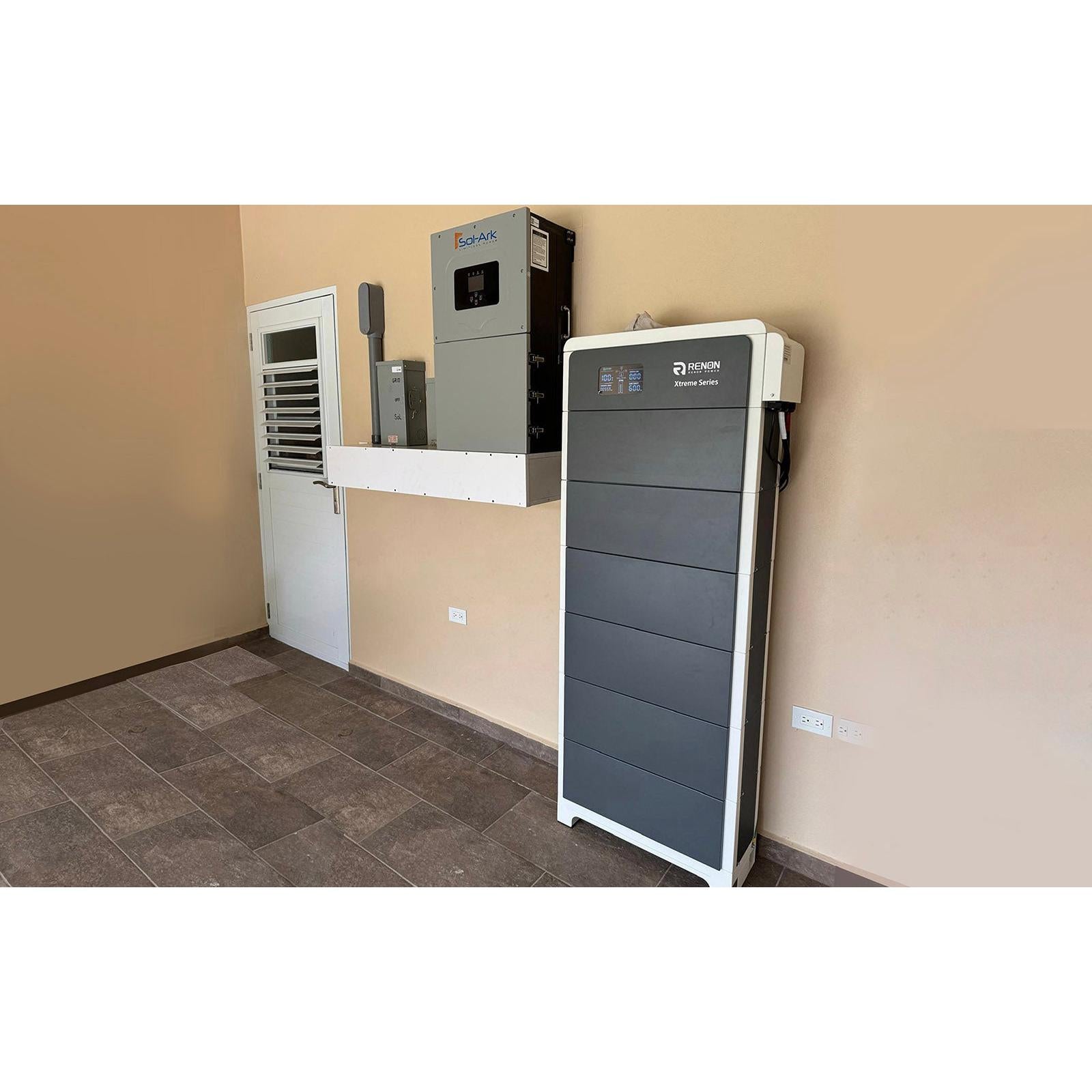

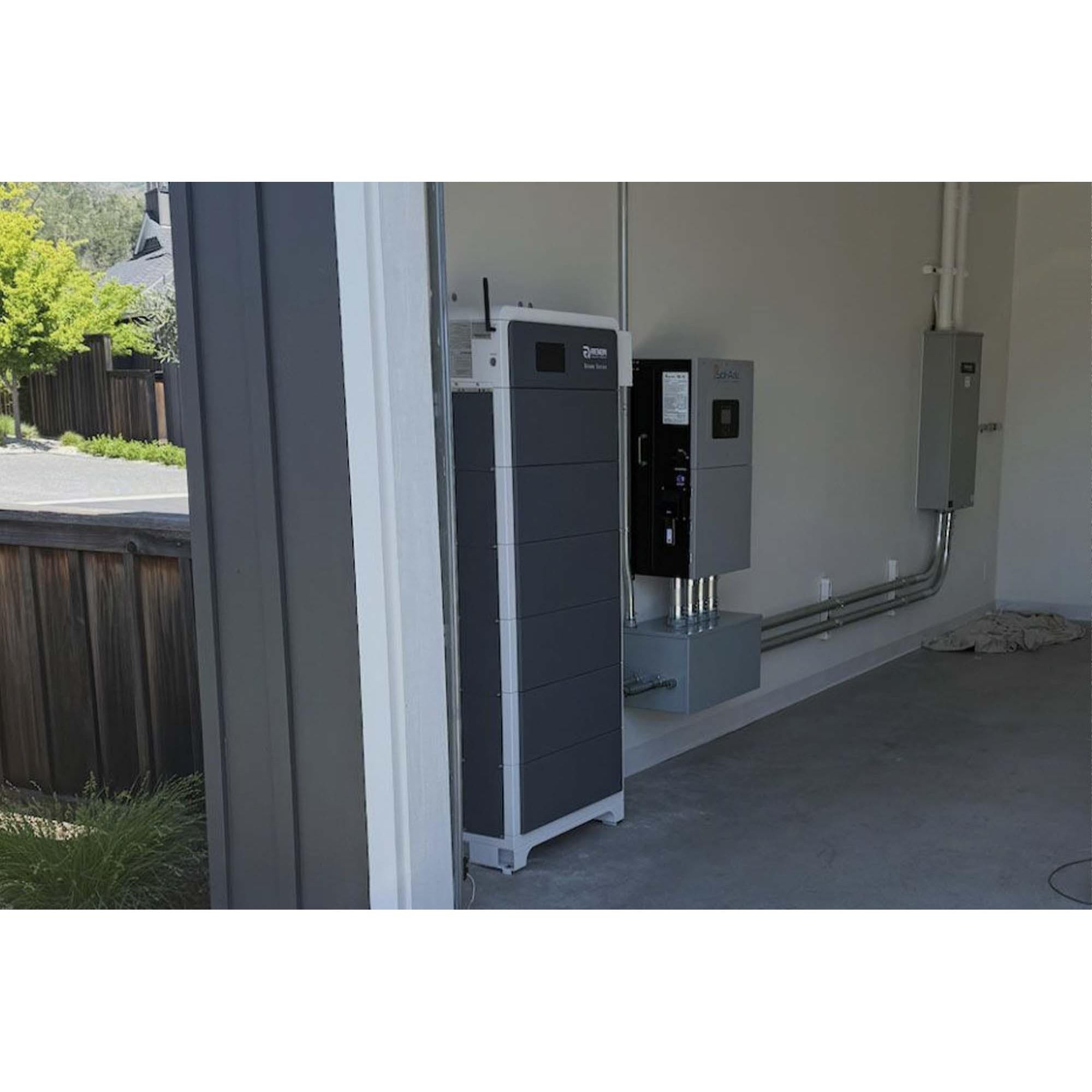

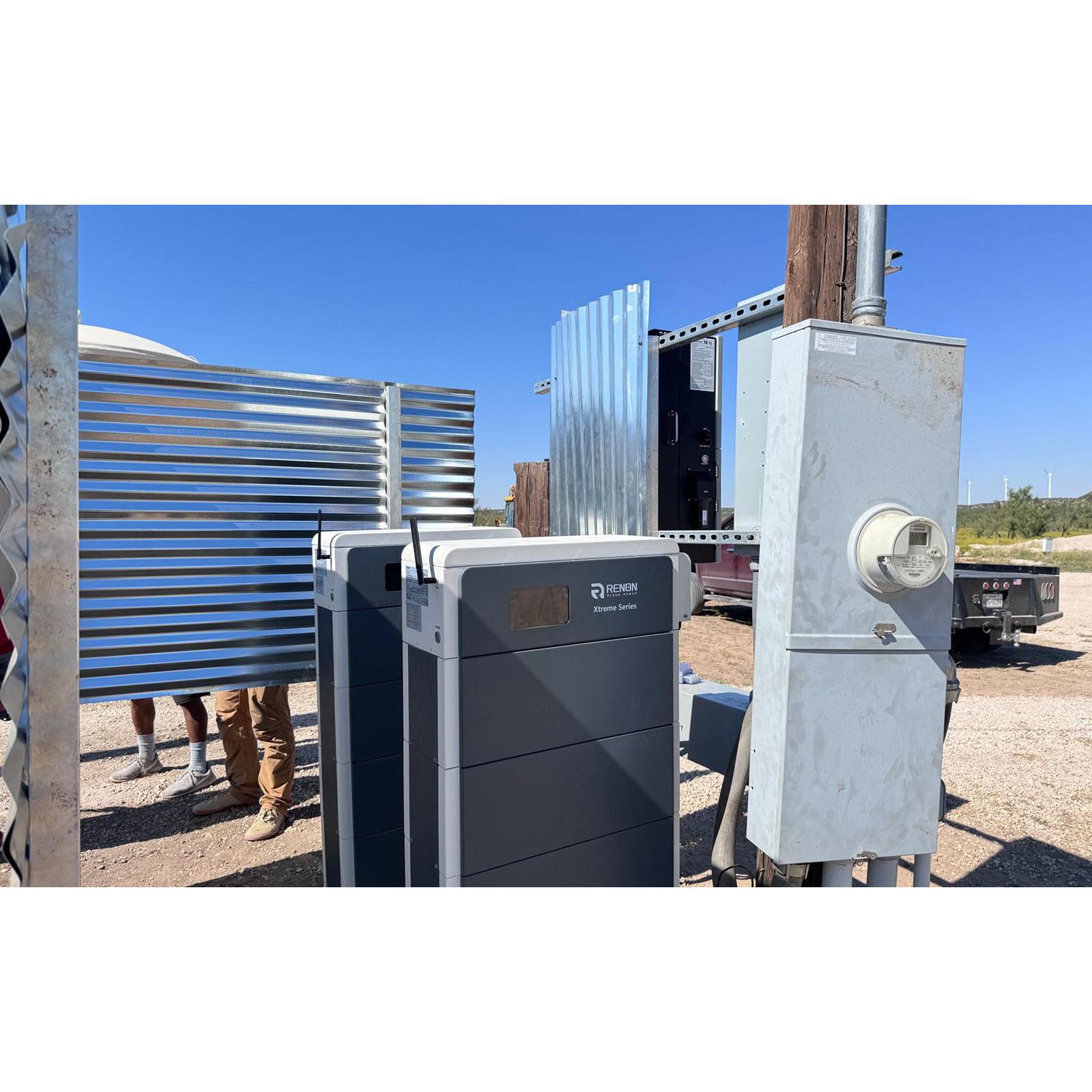

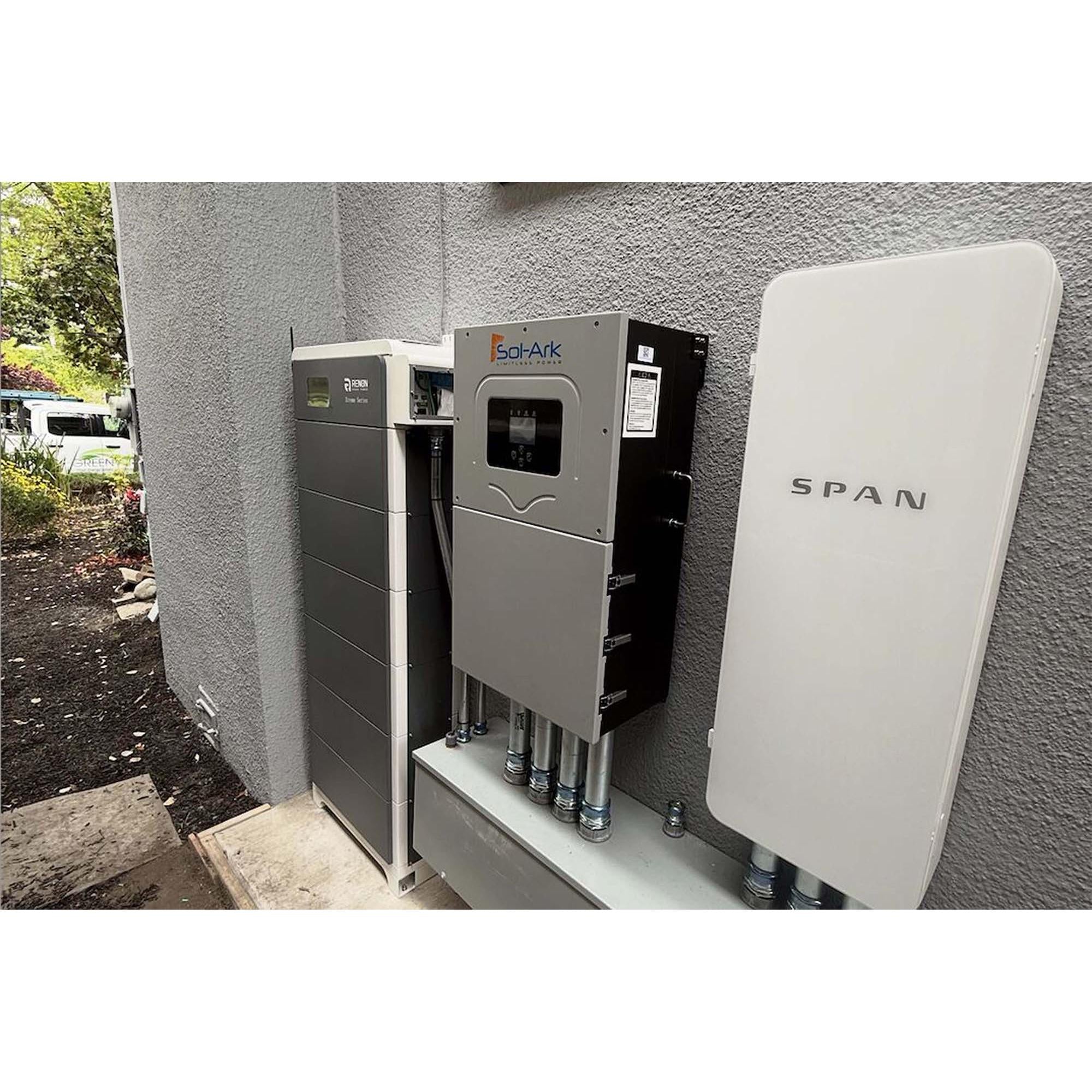

Outdoor-Ready: IP65-rated enclosure, suitable for garage or utility area installations
-
Broad Inverter Compatibility: Sol-Ark, Schneider, Victron, Growatt, SMA, Deye, and more
Each package includes:
-
Battery modules (Non-Heated, and Heated packages are available):
-
Non-Heated: R-EM51100-XTL01 (each ~5.12kWh)
- Heated: R-EM51100-XTL01 (-H) (each ~5.12kWh)
-
-
Master control unit (R-MC300-XTL01)
-
Metal base + mounting hardware
-
Side plates and safety hardware
-
RJ45 communication cable
-
User manual and labels
-
Optional busbars (depending on configuration)
Package Options:
-
2 Modules – 10.24kWh
-
3 Modules – 15.36kWh
-
4 Modules – 20.48kWh
-
5 Modules – 25.60kWh
-
6 Modules – 30.72kWh
-
7 Modules – 35.84kWh
-
8 Modules – 40.96kWh
Ideal for:
-
Residential solar storage
-
Backup power systems
-
Off-grid and hybrid applications
-
EV charging integration
Cold Climate Ready – Optional Heated Modules:
Live in a cold climate? Upgrade to the Xtreme LV (Heated) Module version for enhanced winter performance.
Integrated Heating Film in Each Module:
-
Automatically activates when battery temperature drops below 41°F (5°C)
-
Keeps internal cell temperature within optimal range during charging
-
Heating deactivates once cells reach 59°F (15°C)
Benefits of Heated Modules:
-
Safe and reliable charging in sub-freezing conditions
-
Protects battery lifespan by avoiding cold-related stress
-
No need for external heaters or insulated enclosures
-
Fully controlled by the battery’s built-in BMS
Important: The heated function requires a grid-connected inverter to power the heating circuit. If you're installing off-grid, ensure your inverter supports low-voltage activation.
Choose the heated version if your region experiences freezing temperatures during winter or if your battery will be installed in unheated garages or sheds.

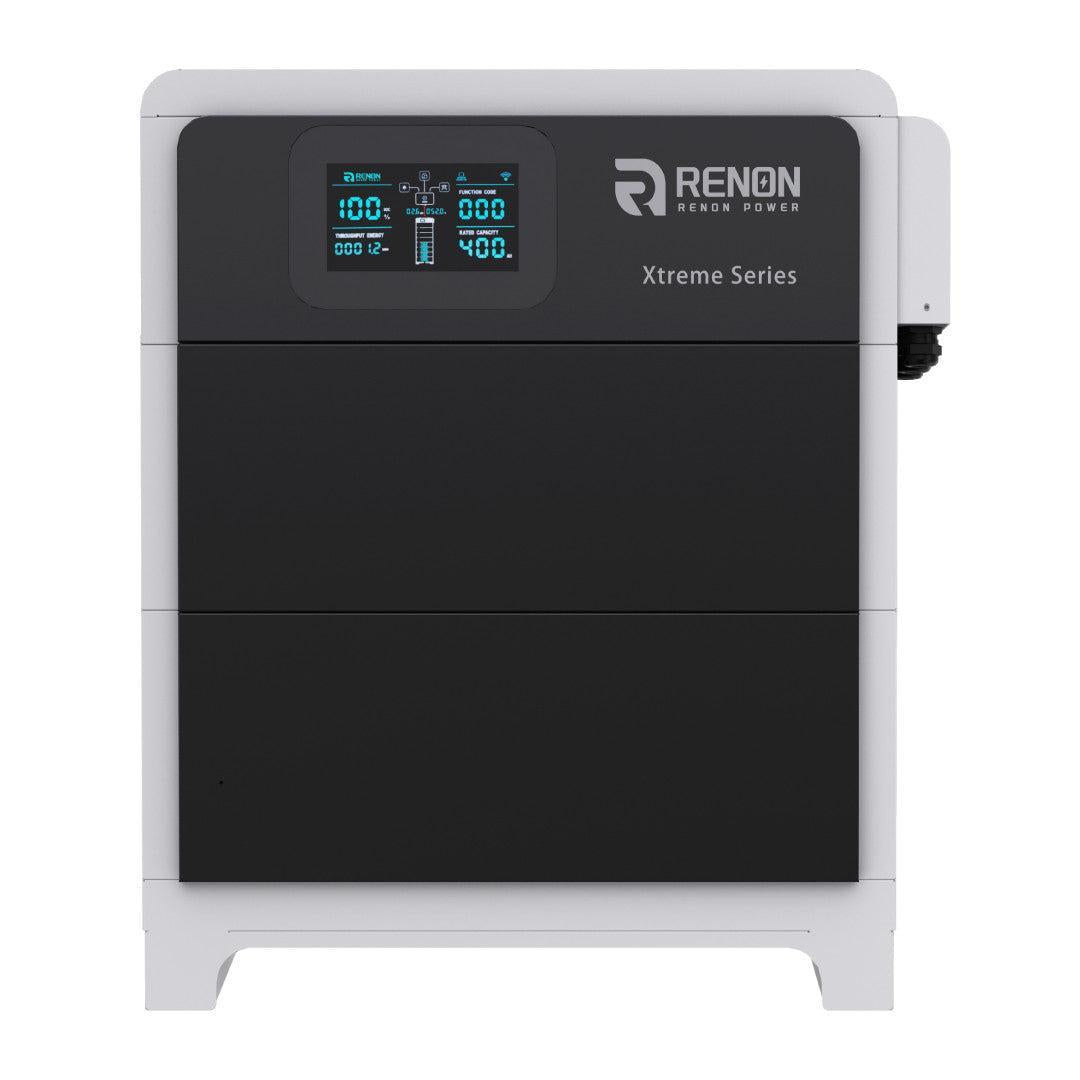

Specifications (2 Modules):
- Nominal Energy (kWh): 10.24
- Output Power (kW): 9.7
- Nominal Voltage (V): 51.2
- Dimensions - W*D*H (in): 25*10.6*31.3
- Weight (lb): ~311
- Certifications: UL1973,UL9540, UL9540A, UKCA, IEC 62619, IEC62040, CEI 0-21, UN 38.3, EN-61000, EN-62311
- Resources:
Specifications (3 Modules):
- Nominal Energy (kWh): 15.36
- Output Power (kW): 14.6
- Nominal Voltage (V): 51.2
- Dimensions - W*D*H (in): 25*10.6*40.3
- Weight (lb): ~428
- Certifications: UL1973,UL9540, UL9540A, UKCA, IEC 62619, IEC62040, CEI 0-21, UN 38.3, EN-61000, EN-62311
- Resources:
Specifications (4 Modules):
- Nominal Energy (kWh): 20.48
- Output Power (kW): 15.4
- Nominal Voltage (V): 51.2
- Dimensions - W*D*H (in): 25*10.6*49.2
- Weight (lb): ~545
- Certifications: UL1973,UL9540, UL9540A, UKCA, IEC 62619, IEC62040, CEI 0-21, UN 38.3, EN-61000, EN-62311
- Resources:
Specifications (5 Modules):
- Nominal Energy (kWh): 25.6
- Output Power (kW): 15.4
- Nominal Voltage (V): 51.2
- Dimensions - W*D*H (in): 25*10.6*58.2
- Weight (lb): ~661
- Certifications: UL1973,UL9540, UL9540A, UKCA, IEC 62619, IEC62040, CEI 0-21, UN 38.3, EN-61000, EN-62311
- Resources:
Specifications (6 Modules):
- Nominal Energy (kWh): 30.72
- Output Power (kW): 15.4
- Nominal Voltage (V): 51.2
- Dimensions - W*D*H (in): 25*10.6*67.1
- Weight (lb): ~778
- Certifications: UL1973,UL9540, UL9540A, UKCA, IEC 62619, IEC62040, CEI 0-21, UN 38.3, EN-61000, EN-62311
- Resources:
Specifications (7 Modules):
- Nominal Energy (kWh): 35.84
- Output Power (kW): 15.4
- Nominal Voltage (V): 51.2
- Dimensions - W*D*H (in): 25*10.6*76
- Weight (lb): ~895
- Certifications: UL1973,UL9540, UL9540A, UKCA, IEC 62619, IEC62040, CEI 0-21, UN 38.3, EN-61000, EN-62311
- Resources:
Specifications (8 Modules):
- Nominal Energy (kWh): 40.96
- Output Power (kW): 15.4
- Nominal Voltage (V): 51.2
- Dimensions - W*D*H (in): 25*10.6*85
- Weight (lb): ~1012
- Certifications: UL1973,UL9540, UL9540A, UKCA, IEC 62619, IEC62040, CEI 0-21, UN 38.3, EN-61000, EN-62311
- Resources:
