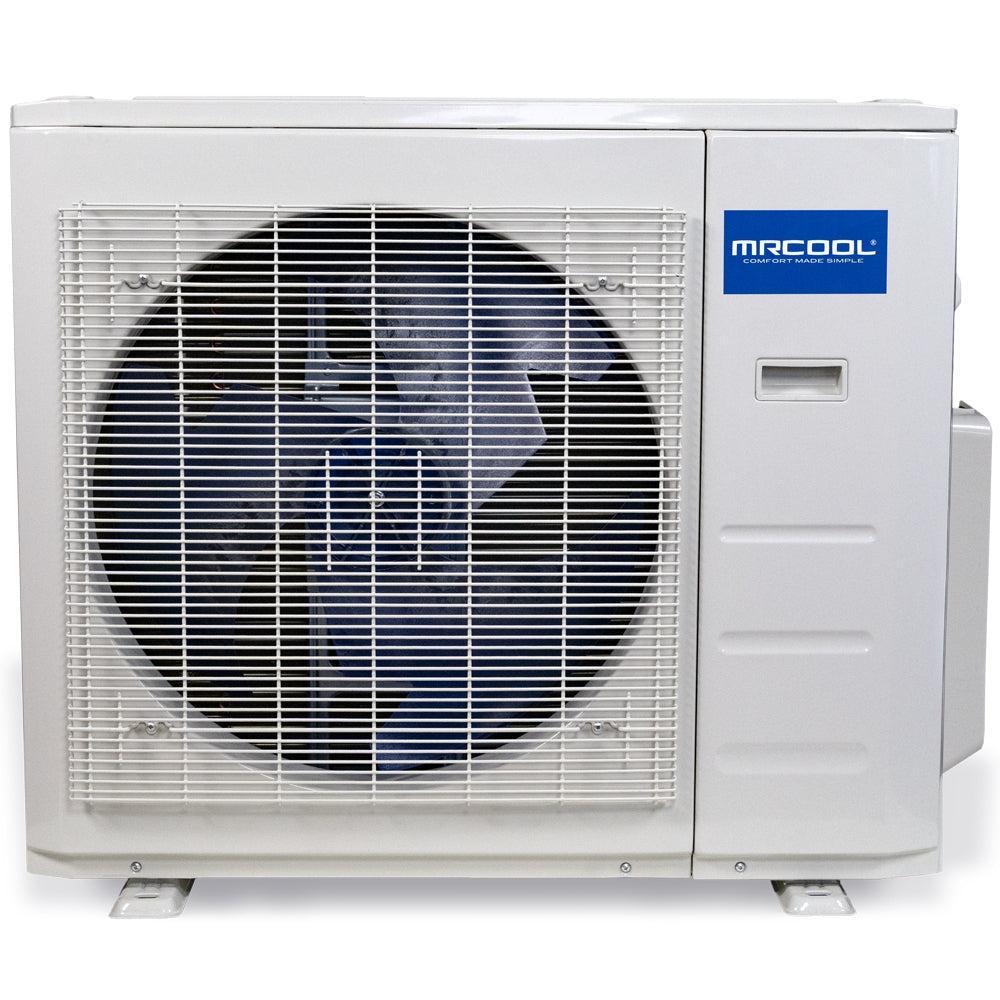

MRCOOL® Olympus Hyper Heat 9,000 BTU 0.75 Ton 25 Seer Ductless Mini Split Air Conditioner and Heat Pump Condenser 230V/60Hz (O-HH-09-HP-C-230)
Olympus Hyper Heat 9,000 BTU 0.75 Ton Ductless Mini Split Air Conditioner and Heat Pump Condenser- 230V/60Hz
NOTE: This item is the Condenser only. Browse our complete Mini Split systems here.
Key Features
- Installation by a licensed professional required where applicable
- 7-Year Compressor, 5-Year Parts and 1-Year Remote warranty when registered and when installed by a licensed professional
- High efficient 25 SEER 11.20 HSPF performance
- R-410A environmentally friendly refrigerant
- Energy Star certified: estimated national average annual operating cooling cost is 45 dollars based on AHRI certificate #204783915
- Inverter variable speed compressor
- The new Olympus Hyper Heat systems include our SmartHVAC WiFi Control Module with improved setup and enhanced functionality for Apple and Android smart devices. Works with Amazon Alexa. Works with Google Assistant.
Specifications & Dimensions
| MODEL | O-HH-09-HP-C-230 |
| SEER | 25 |
| EER | 14.5 |
| HSPF | hspf4/hspf5 : 11.2/8.6 |
| CFM | 1176.47 |
| COOLING CAPACITY |
9000 BTU |
| HEATING CAPACITY |
10900 BTU |
| VOLTAGE | 208-230 V |
| PHASE |
1 |
| CYCLE | 60 Hz |
| MAX FUSE BREAKER |
15 A |
| MIN CIRCUIT AMPACITY |
9 A |
| COLOR | White |
| COLOR FAMILY |
White |
| REFRIGERANT TYPE |
R-410A |
| REFRIGERANT VOLUME |
52.9 oz |
|
DECIBEL RATING |
55.5 dBA |
|
INVERTER |
Yes |
|
LINE SET LENGTH |
16ft or 25 |
|
MAX LINESET LENGTH |
82.02 ft |
| LIQUID LINE FITTING |
3/8 in |
| LIQUID LINE SIZE |
1/4 in |
| SUCTION LINE FITTING |
1/2 in |
| SUCTION LINE SIZE |
3/8 in |
|
CONDENSER FAN MOTOR RPM |
810/700/450 |
|
UL LISTED |
Yes |
|
ETL LISTED |
Yes |
|
ENERGY STAR COMPLIANT |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
5-year Parts/7-year Compressor/1-year Remote |
| REGISTERED PARTS WARRANTY |
5-year |
|
REGISTERED COMPRESSOR WARRANTY |
7-year |
| REGISTERED REMOTE WARRANTY |
1-year |
| HAS BATTERIES |
Yes |
| CONTAINS ELECTRONICS |
Yes |
| CONTAINS CHEMICALS |
Yes |
| CONTAINS AEROSOL |
Yes |
| CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
No |
|
RESTRICTED STATES |
GU, PR, VI |
|
NET DEPTH |
13.11 in |
|
NET HEIGHT |
21.81 in |
|
NET WIDTH |
31.5 in |
|
NET WEIGHT |
88.18 lbs |
|
GROSS DEPTH |
15.35 in |
|
GROSS HEIGHT |
24.61 in |
|
GROSS WIDTH |
36.22 in |
|
GROSS WEIGHT |
93.7 lbs |
|
FREIGHT CLASS |
125 |
