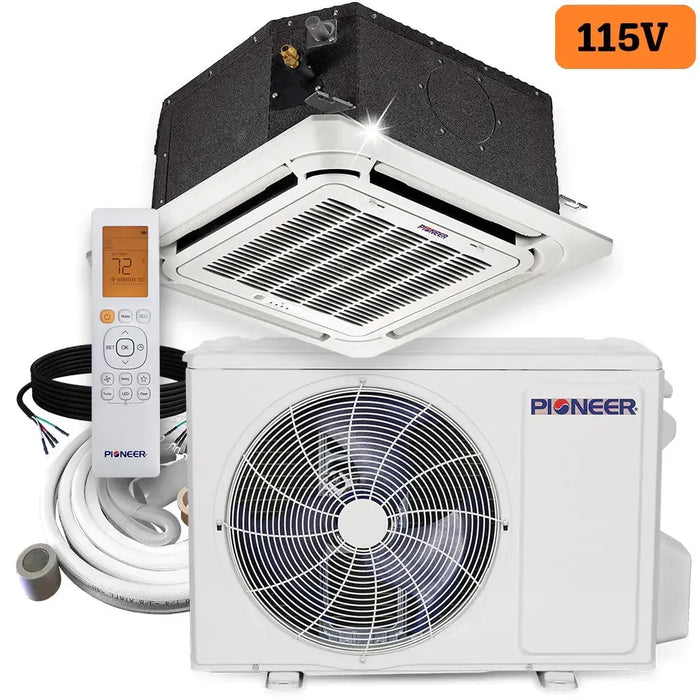

Pioneer® 12,000 BTU 21.5 SEER 115V SEER 8-Way Compact Cassette Mini-Split Air Conditioner Heat Pump System Full Set
Summary
- Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
- Cooling capacity: 12,000 BTU/H with 21.5 SEER efficiency
- Heating capacity: 12,000 BTU/H with 10.5 HSPF efficiency
- Voltage: 110~120V, 60 Hertz, 1 Ph
- Ceiling Compact Cassette Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
- AHRI Estimated Annual Operating Costs:
- Cooling: $70.00
- Heating: $231.00
REFRIGERANT
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.
IMPORTANT

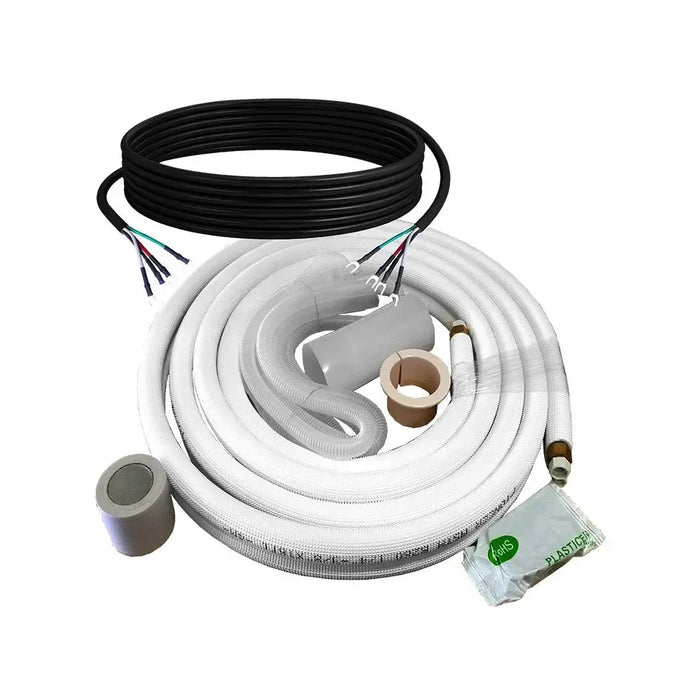

The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
Ceiling Cassette Mini Split
Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Pioneer® ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Pioneer® ceiling mini split systems also come with remote supply ducting and fresh air intake options. Pioneer® ceiling ductless mini splits come in a variety of combinations, which you can mix and match to meet your needs. The ceiling-mounted mini split system comes in a wide range of capacities ranging from 9000 to 48000 BTU. Check out our selection today!
More details about Pioneer® CYB Series
What's Included
- Indoor Unit

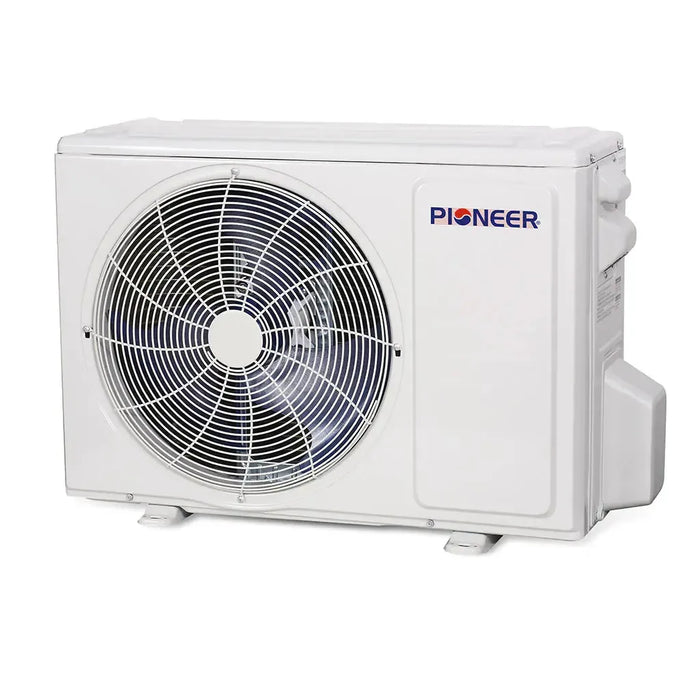

- Outdoor Unit

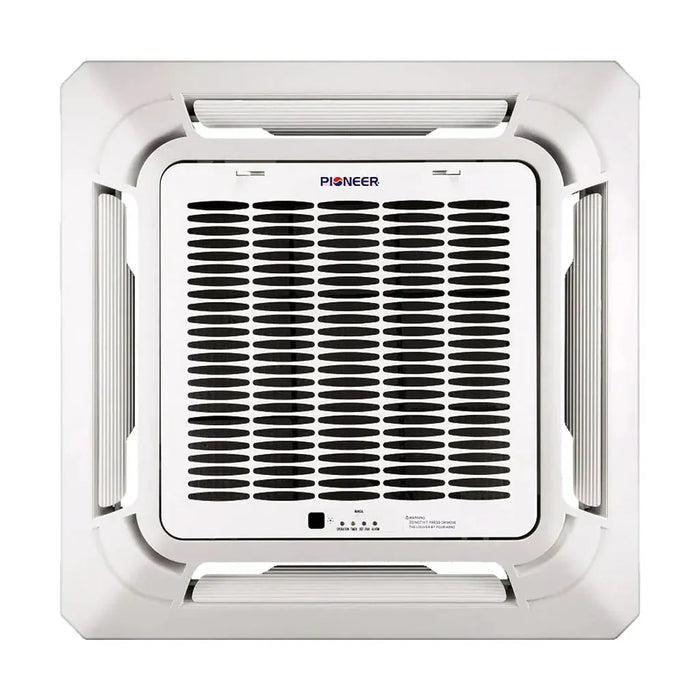

- Panel

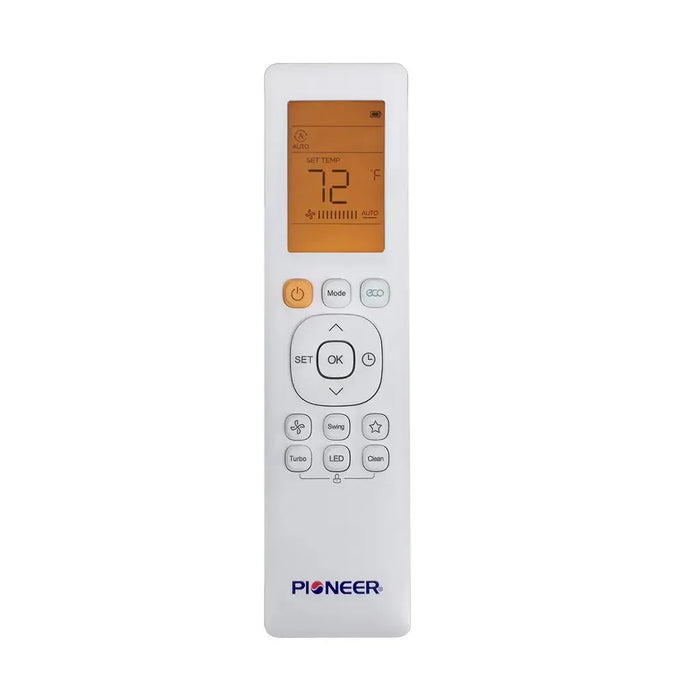

- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Features
Fresh Air Intake
The Pioneer CYB series cassette offers a provision of fresh-air intake via an optional reserved 65-75 mm port. New outdoor air can be easily brought inside to replace stale room air.
Built-in Drain Pump
Every cassette includes a condensate pump that is capable of vertically lifting drainage water up to 30 inches for 9-18K models, and 40 inches for 24K and above models.
8-Way, 360° Airflow
Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the room, thanks to an innovative design featuring 4 sides and 4 corners of airflow.
Programmable Wired Controller Option
The system can be operated by a wired controller (part number: TST-MLW-I-X2) which enables programming of weekly schedules, and usage without the handheld remote.
Wi-Fi Controllable via Free App
Control your new Pioneer CYB system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world. Requires separate purchase of the Smart Wi-Fi Kit (part number: TST-LCACWIFIKP).
Provision for Auxiliary Duct
A great benefit of the CYB cassette system is the option for connecting a small auxiliary duct to the side of the indoor unit for cooling a small nearby room, like a closet or bathroom. This air outlet connection must be cut-out manually on the 9K-18K BTU size systems and is pre-made and reserved on the 24K BTU and above sized units.
Technical Information
Certifications
Performance Data
- Power Supply: 110~120V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 4,200~17,000 BTU/h
- Cooling SEER: 21.5 BTU/w
- Heating Rated Capacity: 12,000 BTU/h
- Heating Capacity Range: 4,300~17,100 BTU/h
- Heating HSPF: 10.5 BTU/w
- Refrigerant Type: R410a
- Suitable Area: 350~450 Sq.F
Indoor Unit Data
- Model: CB012GMFILCFHD
- Air Flow (Hi/Med/Lo): 379 / 309 / 261 CFM
- Sound Level (Hi/Med/Lo): 43.0 / 39.0 / 36.0 dB(A)
- Net Dimensions (WDH): 22.5 x 22.5 x 10.3 Inches
- Carton Dimensions (WDH): 25.8 x 25.8 x 11.5 Inches
- Net / Gross Weight: 35 / 41 Lbs
Panel Data
- Net Dimensions (WDH): 25.5 x 25.5 x 2.0 Inches
- Carton Dimensions (WDH): 28.0 x 28.0 x 5.0 Inches
- Net / Gross Weight: 6 / 10 Lbs
Outdoor Unit Data
- Model: YN012AMFI22RPD
- Sound Level: 57.5 dB(A)
- Net Dimensions (WDH): 31.5 x 13.2 x 21.7 Inches
- Carton Dimensions (WDH): 36.2 x 15.4 x 24.3 Inches
- Net / Gross Weight: 81 / 88 Lbs
