Pioneer® 18,000 BTU 21.8 SEER2 One-Way Ceiling Cassette Mini-Split Air Conditioner Heat Pump System Full Set 230V
Summary
- Ultra High Efficiency Inverter++ ceiling cassette split heat pump system
- Cooling capacity: 18,000 BTU/H with 21.8 SEER2 / 12.5 EER2 efficiency
- Heating capacity: 19,000 BTU/H with 10.7 HSPF2 / 3.30 COP2 efficiency
- Voltage: 208~230 V, 60 Hertz, 1 Ph
- One-Way Ceiling Cassette Air Conditioning & Heating System
- Variable Speed DC Inverter Operation Mode
- Customizable length copper line set with flare connections
- Energy-Star Certified
REFRIGERANT
R410A Pre-Charged Outdoor Unit, accommodating refrigerant line lengths up to 25 ft. per circuit.
IMPORTANT

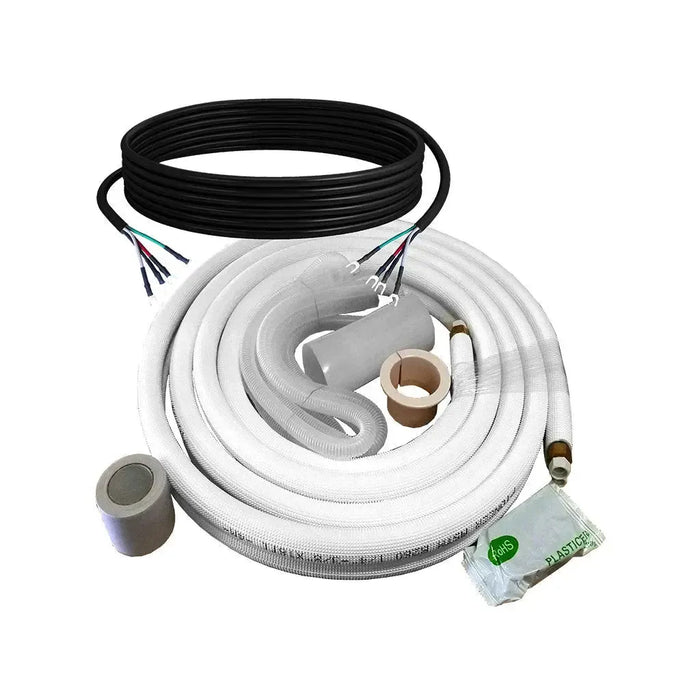

The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.
One-Way Cassette Mini Split
Introducing the Pioneer® CYK-22 single-way cassette series, a revolutionary ductless ceiling cassette system from Pioneer® that combines groundbreaking technology with architectural prowess to offer unprecedented control over your indoor environment. Engineered to seamlessly integrate into the structural standards of most homes and establishments, the rectangular, less than 14-inch depth design slots effortlessly between 16-inch on-center joists or rafters, eliminating the need for intrusive and costly modifications. The unit has been meticulously designed to offer only the utmost convenience, and installation is simply a breeze.
At the heart of the CYK-22 series is a series of technological advancements designed to enhance your living experience. The motorized filter panel is a game-changer, offering easy access as it lowers to the ground by up to 80 inches for hassle-free maintenance, promising a healthier and cleaner indoor atmosphere at all times. The built-in condensate pump is capable of lifting drainage water vertically by 30 inches to ensure optimal functionality and a moisture-free environment. Coupled with a range of smart features that allow for intuitive control and personalization, such as easier to install Wi-Fi control capabilities, the CYK-22 series offers a system that is at the crossroads of efficiency, innovation, and design. Step into the future of indoor climate control with the Pioneer CYK-22 series.

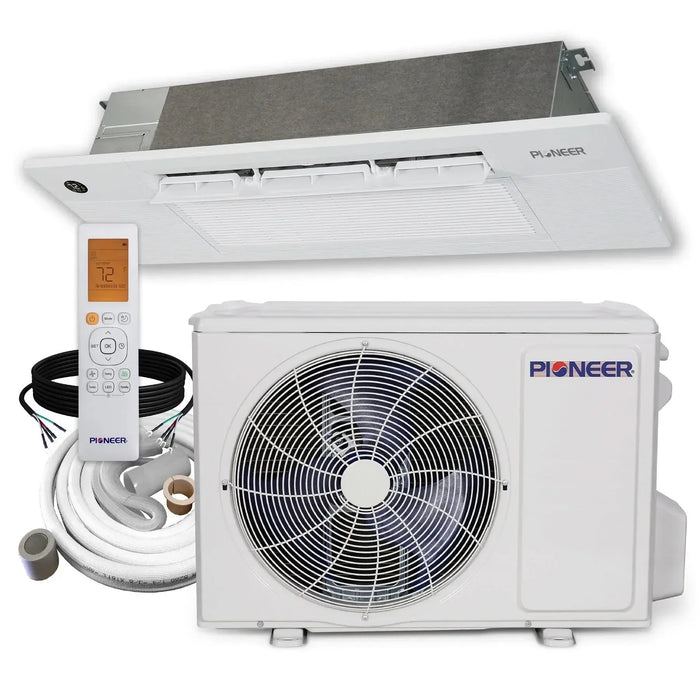

What's Included
- Indoor Unit

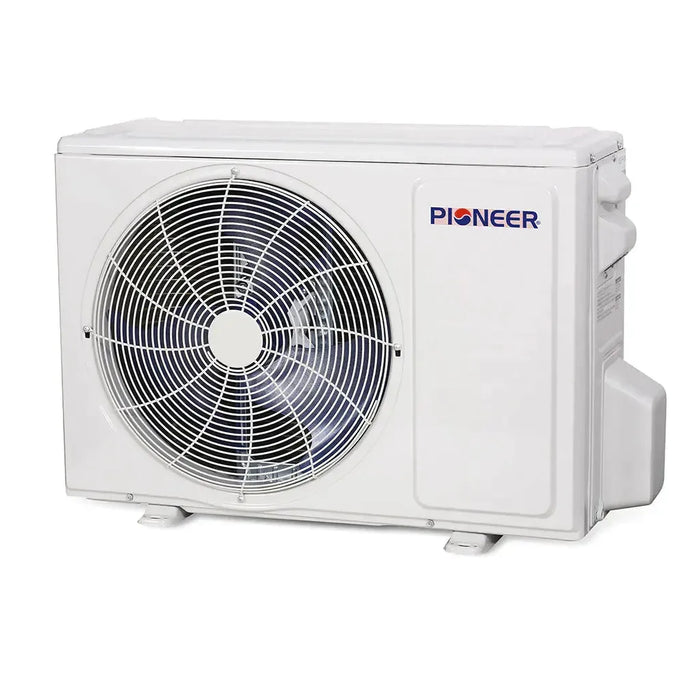

- Outdoor Unit

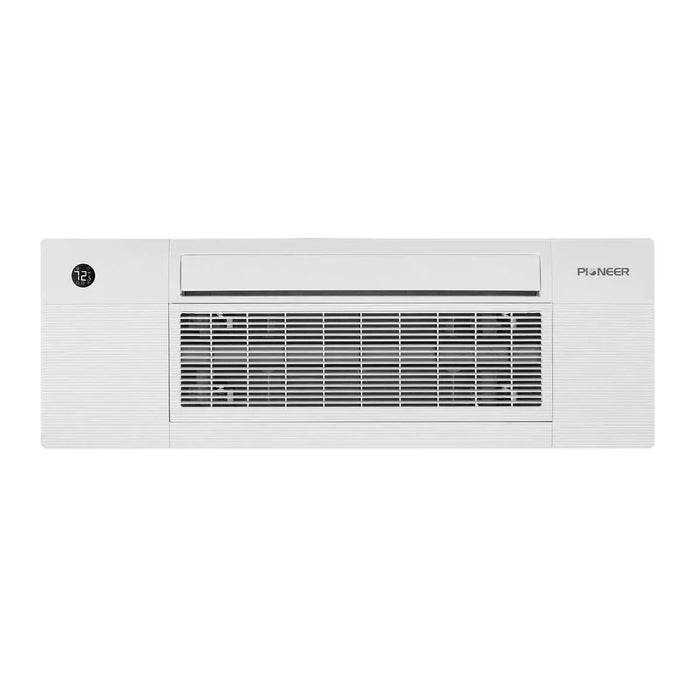

- Decorative Panel

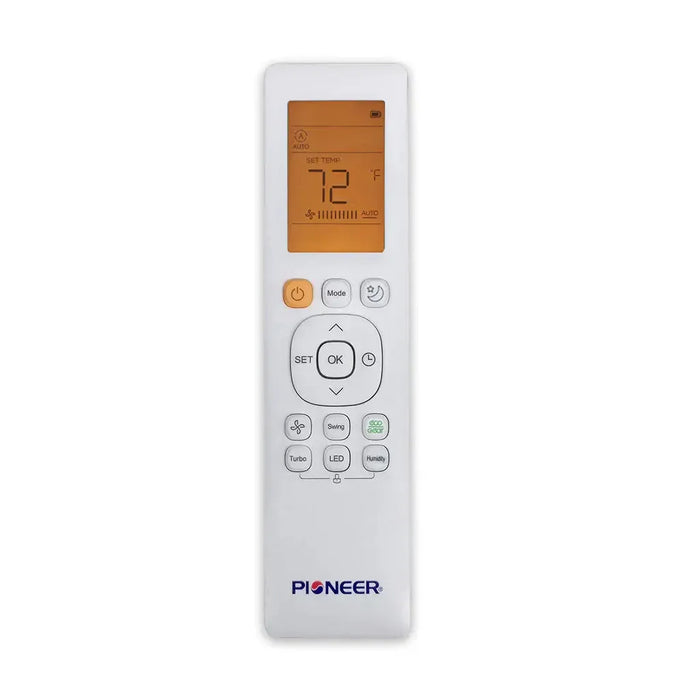

- Wireless Remote Control
- Various Installation Kit Options Available
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
Our Guarantee
- 5 year parts limited warranty
- 5 year compressor limited warranty
Technical Information
Certifications
Performance Data
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 18,000 BTU/h
- Cooling Capacity Range: 3,200~18,100 BTU/h
- Cooling SEER2: 21.8 BTU/W.h
- Cooling EER2: 12.5 BTU/W.h
- Heating Rated Capacity: 19,000 BTU/h
- Heating Capacity Range: 5,300~21,500 BTU/h
- Heating HSPF2: 10.7 BTU/W.h
- Heating C.O.P.2: 3.30 W/W
- Refrigerant Type: R410a
- Suitable Area: 400~650 Sq.F
Indoor Unit Data
- Model: CK018GMFILCFHD
- Air Flow (Turbo/Hi/Med/Lo): 680 / 598 / 510 / 352 CFM
- Sound Level (Hi/Med/Lo): 44 / 41 / 34 dB(A)
- Net Dimensions (WDH): 13-1/4 x 50-1/4 x 9 Inches
- Carton Dimensions (WDH): 22-1/2 x 57-5/8 x 22-5/8 Inches
- Net / Carton Weight: 45.2 / 82.9 Lbs
Panel Data
- Panel Net Dimensions (WDH): 18-3/4 x 53-1/2 x 1 Inches
- Panel Carton Dimensions (WDH): 21 x 56-1/2 x 7 Inches
- Panel Net / Gross Weight: 24 / 29 Lbs
Outdoor Unit Data
- Model: YN018GMFI22RPE
- Sound Level: 58 dB(A)
- Net Dimensions (WDH): 35 x 13.5 x 26.5 Inches
- Carton Dimensions (WDH): 39.2 x 15.7 x 29.1 Inches
- Net / Gross Weight: 94.4 / 101 Lbs
- Breaker Needed: 20A (double-pole)
Manuals & Downloads
- Series Technical Brochure
- Series User Manual
- Series Installation Manual
- Series Service Manual
- Series Disassembly Guide
-
CYK018GMFILCAD Submittal Sheet
- AHRI Certificate
- Energy Guide
