Pioneer®

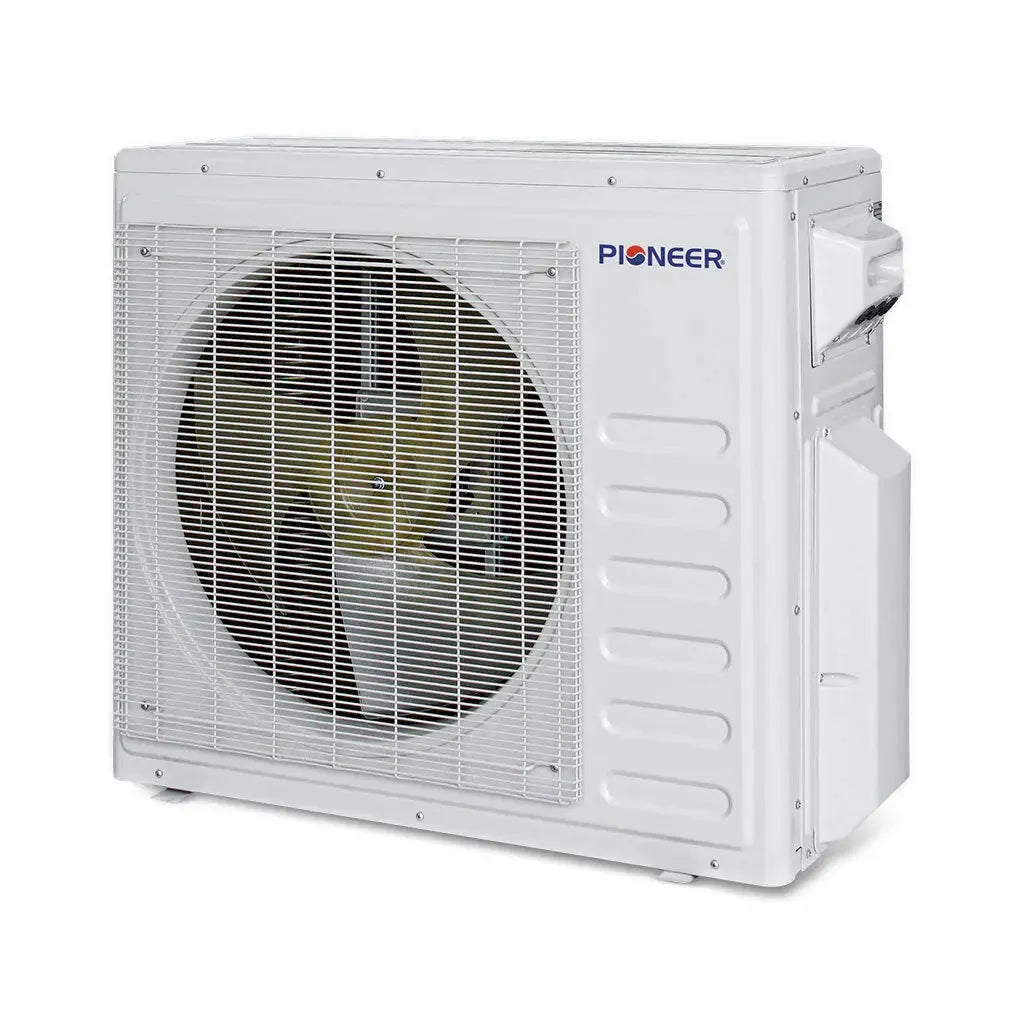

Pioneer® Multi (3) Circuit Diamante Ultra Series 22 SEER2 Triple Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V
$1,698.00$2,199.00
Call for best pricing before large-system orders.
Guaranteed safe and secure checkout
Financing options available for qualified shoppers.
Pioneer® Multi (3) Circuit Diamante Ultra Series 22 SEER2 Triple Zone Outdoor Section Inverter++ Energy-Star Air Conditioner Heat Pump 230V
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Communication Protocol: Current Loop
- Min-Max Load Attached: 18,000~36,000 BTU/h
- Cooling Rated Capacity: 24,000 BTU/h
- Cooling SEER2 (Ductless): 22.0 BTU/W.h
- Cooling EER2 (Ductless): 12.0 BTU/W.h
- Heating Rated Capacity: 26,000 BTU/h
- Heating HSPF2 (Ductless): 9.0 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.54 / 2.27 W/W
- Refrigerant Type: R410a
- Suitable Area: 400~1,000 Sq.F
- Sound Level: 58.0 dB(A)
- Circuit Breaker Utilized: 20A (double-pole)
- Net Dimensions (WDH): 35"-1/8 x 14" x 31"-3/8
- Carton Dimensions (WDH): 40"-1/2 x 18" x 34"
- Net / Gross Weight: 123.2 / 133.1 Lbs
