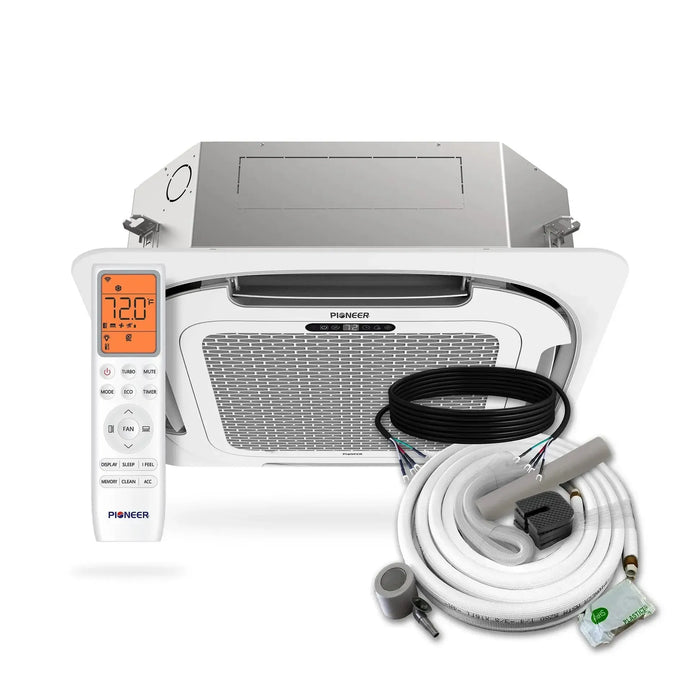

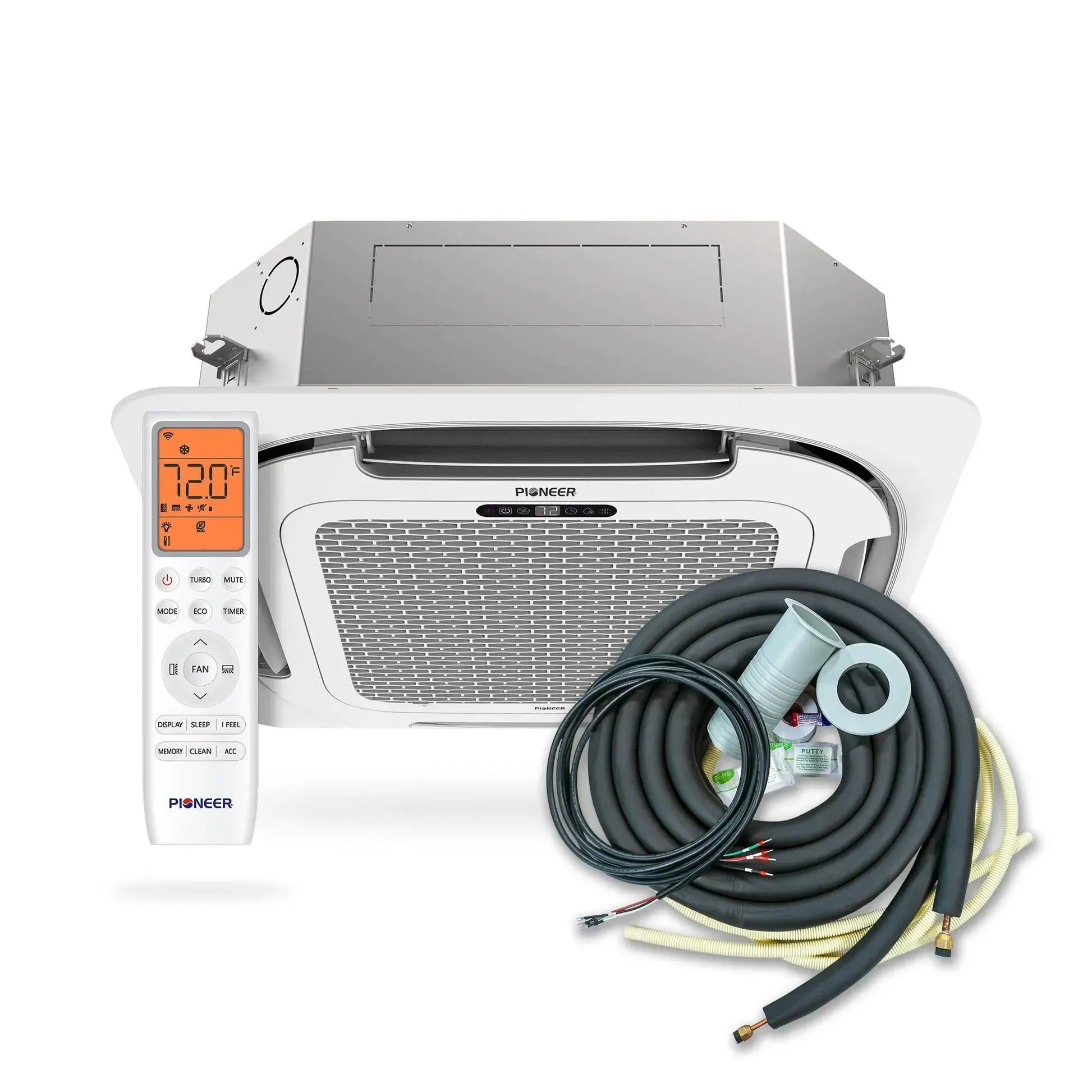

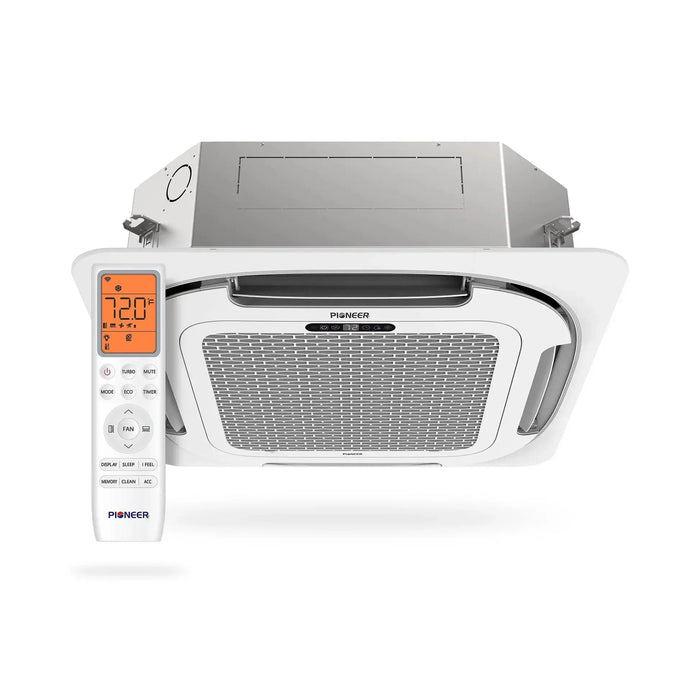

Pioneer® Multi Zone 24,000 BTU Quantum Ultra Ceiling Cassette Indoor Section Ductless Mini-Split Wi-Fi Inverter++ Air Conditioner Heat Pump 230V
Performance
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Capacity: 24,000 BTU/h
- Heating Capacity: 24,000 BTU/h
- Suitable Area: 750~1,000 Sq.F
Indoor Unit
- Air Flow (Turbo/Hi/Med/Lo/Mute): 735/676/529/423/394 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 50/47/43/38/34 dB(A)
- Product Dimensions (WDH): 33"-1/8 x 33"-3/4 x 10"-3/4 Inches
- Carton Dimensions (WDH): 36"-7/8 x 36"-7/8 x 11"-1/2 Inches
- Net / Gross Weight: 51.8 / 59.5 lbs
Decorative Panel
- Part Number: CT2460DPNL
- Product Dimensions (WDH): 37-3/8" x 37-3/8" x 2-7/8"
- Carton Dimensions (WDH): 41-1/2" x 41-1/2" x 3"-1/2
- Net / Gross Weight: 13.2 / 19.8 lbs
Compatibility
- Triple (3) Zone Condenser: YN030GLSI24M3G
- Quad (4) Zone Condenser: YN040GLSI24M4G
- Quint (5) Zone Condenser: YN050GLSI24M5G
Manuals & Document
- Technical Brochure
- Installation and User's Manual
What's Included
- Indoor Unit
- Wireless Remote Control
- Wi-Fi Module w/ Free App
- Full Installation Kit (unless "No Installation Kit" is selected)
- Flare Connection Leak Guard Sealer
- Installation Manual
- User’s Manual
- Manufacturer Warranty
