Pioneer® Multi Zone 9,000 BTU Quantum Series Wall Mount Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V

SKU: WS009GMFI22HLE-16
  • END OF THE YEAR FLASH SALE GOING ON NOW! Save An Extra 5% OFF with Code: FLASH5 (Applies at checkout)
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source

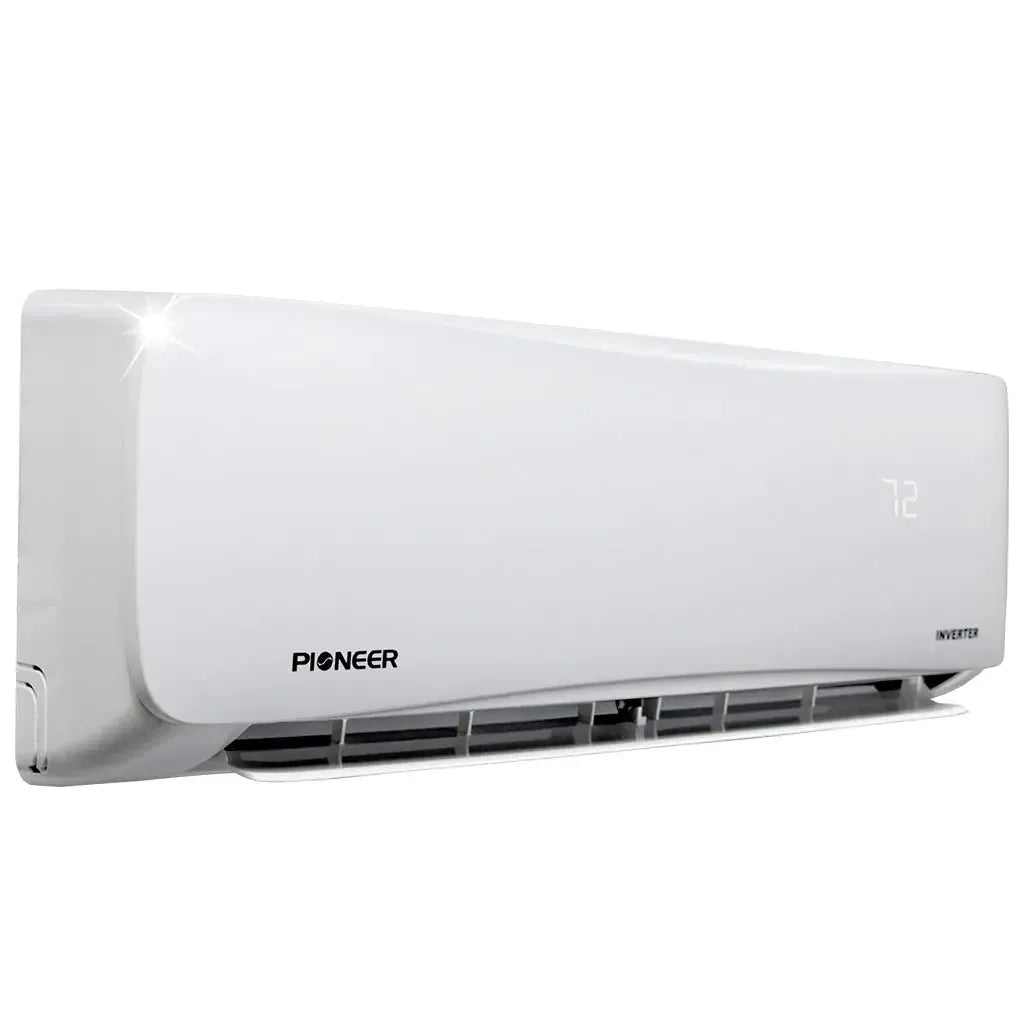

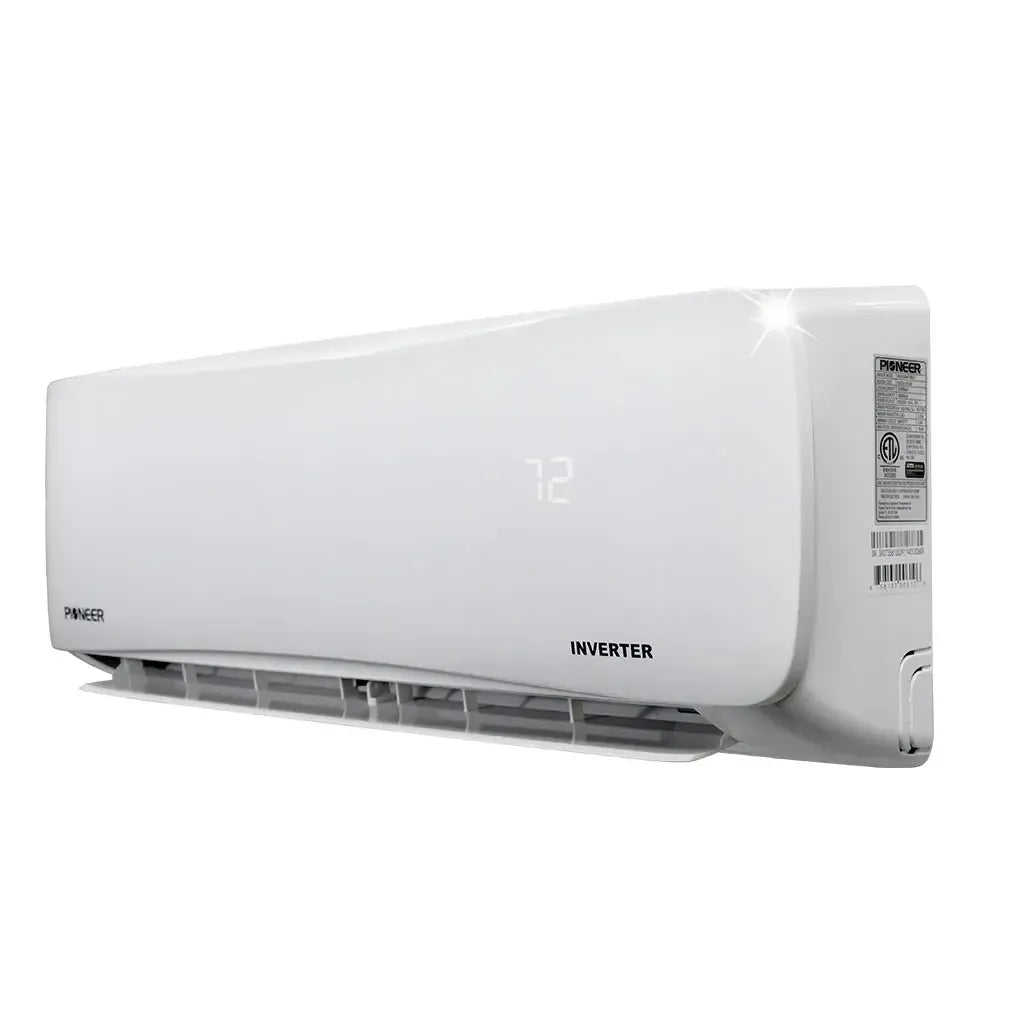

Pioneer® Multi Zone 9,000 BTU Quantum Series Wall Mount Indoor Section Split Inverter++ Air Conditioner Heat Pump 230V

Please note, that this is not a complete system, this is the indoor air handler only.

Summary

Quantum Series Inverter++ Variable Speed Multi Split Systems we offer are available in a mix and match fashion and fully user selectable and customizable. Multi Zone Wall Mount Type Split Air Conditioning and Heating System (Indoor Section Only). Variable Speed DC Inverter Operation Mode: Cooling and Heating. Capacity: 9,000 BTU/Hr. (3/4 Ton). Total capacity of the matched indoor units may exceed the available outdoor unit capacity by up to 35% Efficiency Rating: 24 S.E.E.R. Electrical Specification: 208-230 VAC, 1 Phase, 60 Hertz. Customizable length copper line set with flare connections come with this indoor unit.

IMPORTANT

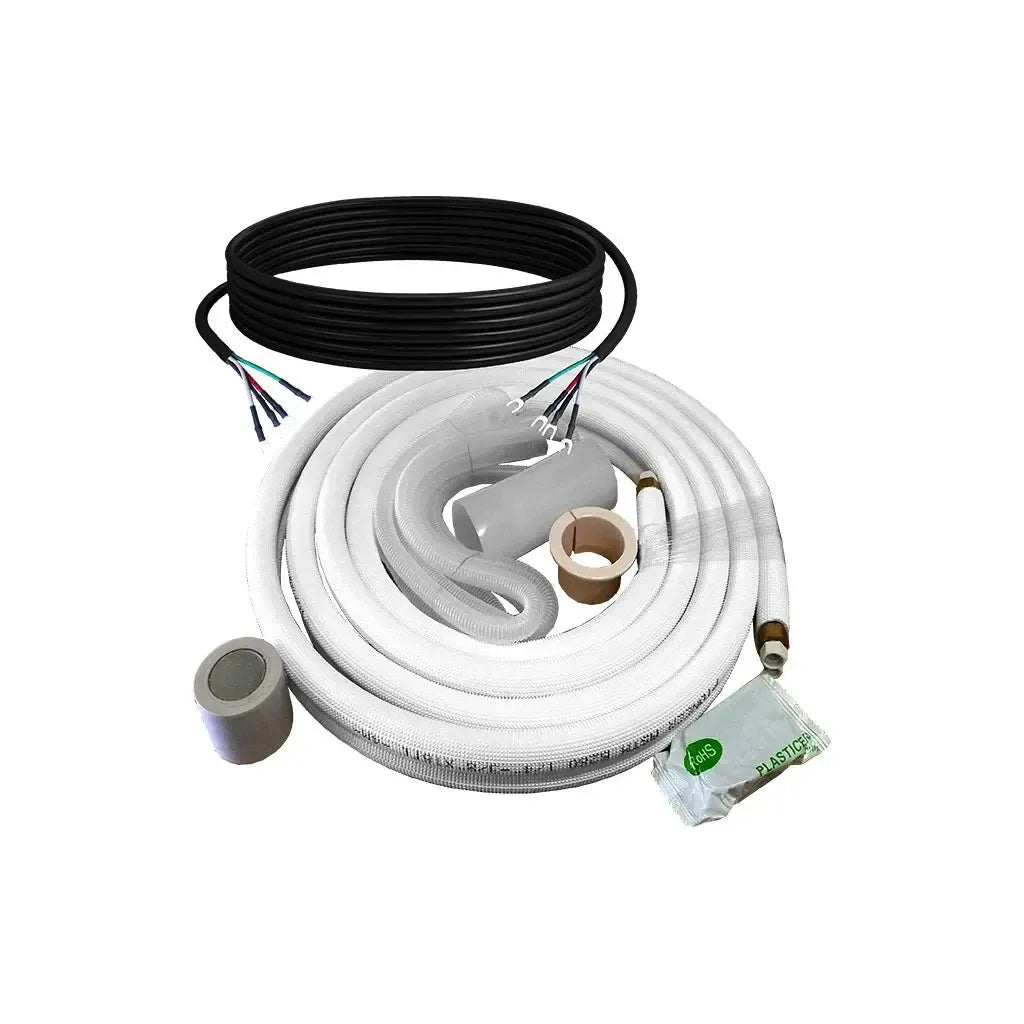

The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option from the dropdown unless you are providing one yourself. The installation kit is: copper refrigeration lines, communication wire between indoor and outdoor unit, 10 ft drain hose, wall cap, sleeve, and putty.

Compatible Outdoor Units

Matching outdoor units need to be selected and purchased separately. To purchase a multi split system, first determine the outdoor unit required among the 4 kinds of outdoor units we offer as follows:

Notes

1. Total capacity of all indoor units attached should be within the Min. and Max Loading range of the outdoor unit selected.

2. Not all circuits available on an outdoor units need to be utilized entirely. Some may be kept sealed without an attached indoor unit.

3. Every order placed is first checked by our engineering and if there are any errors we will contact you and work with you to reselect for a correct matchup.

4. Please call us or use the Matching Chart document in the Manuals & Downloads tab to help you select the right grouping of indoor units.

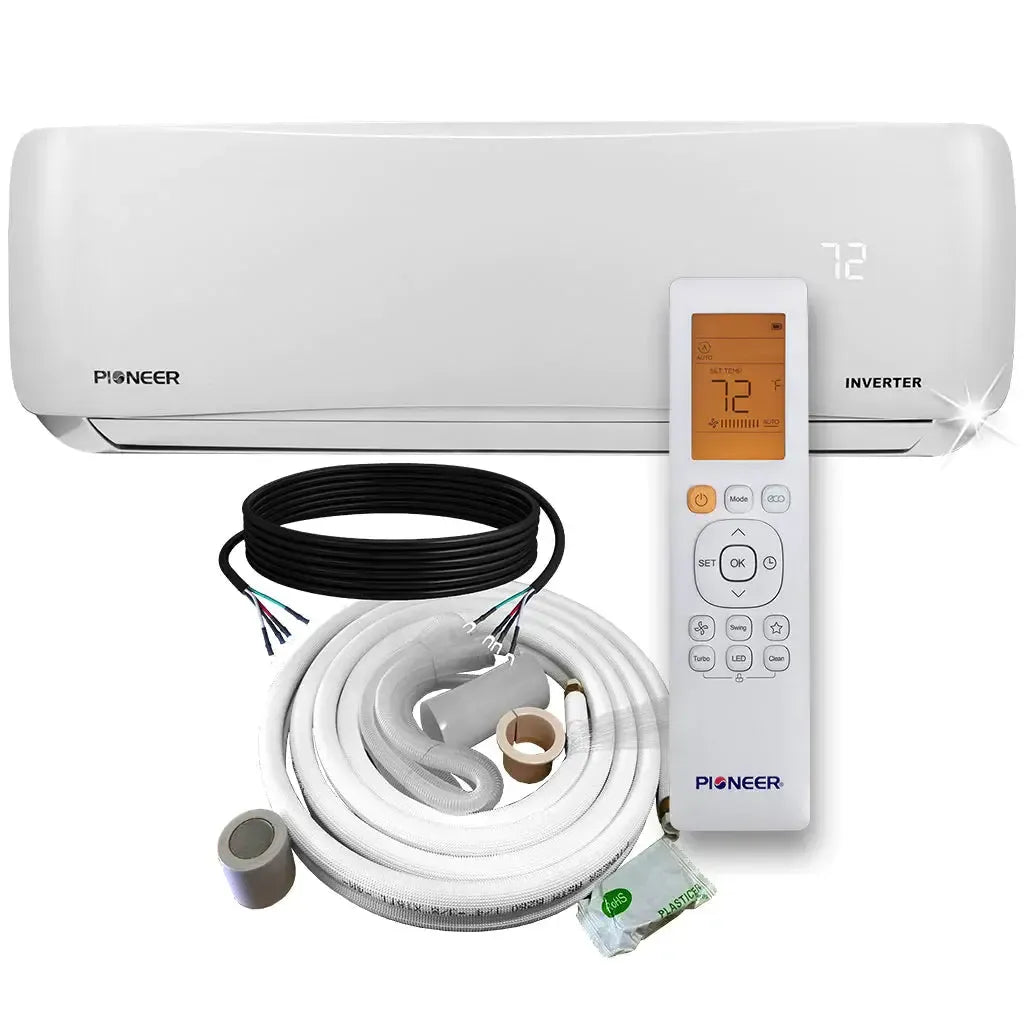

    What's Included

    • Indoor Unit

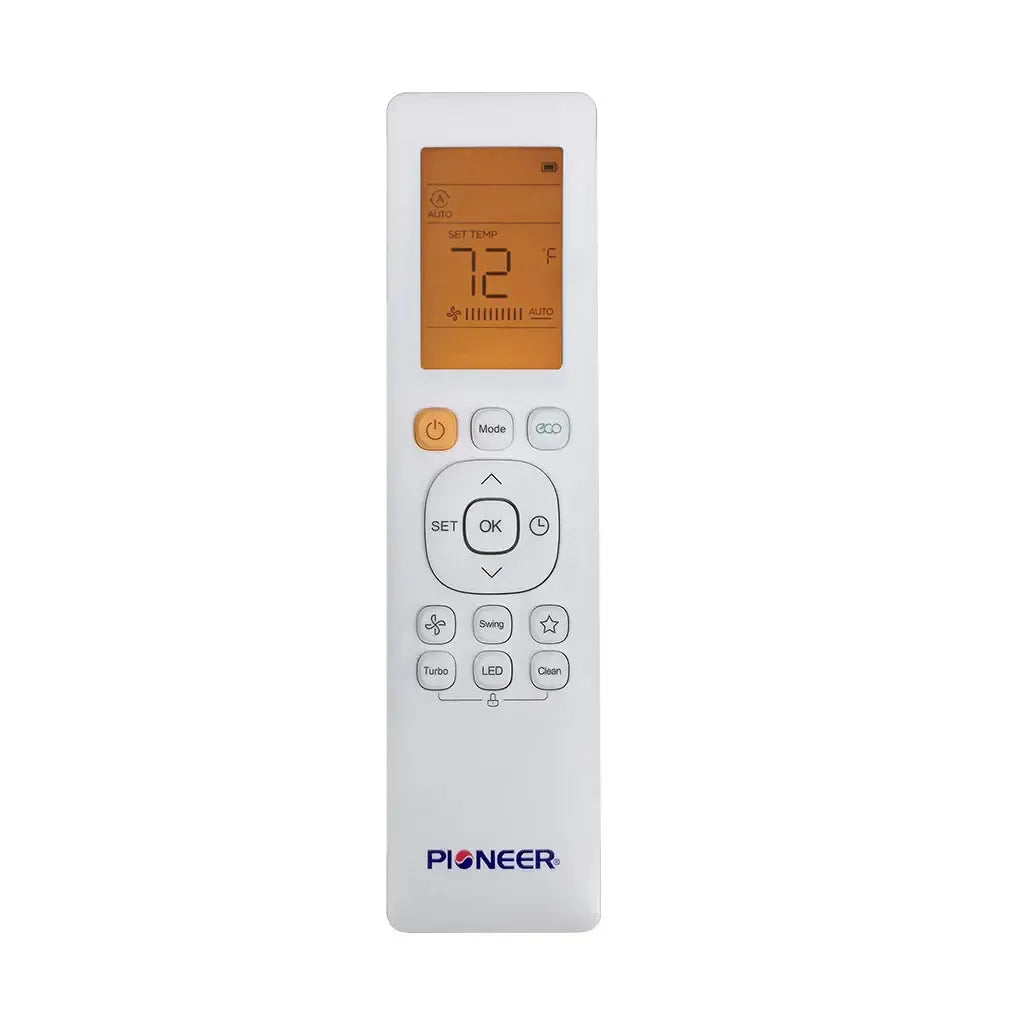

    • Wireless Remote Control
    • Various Installation Kit Options Available
    • Flare Connection Leak Guard Sealer
    • Installation Manual
    • User’s Manual
    • Manufacturer Warranty

    Our Guarantee

    • 5 year parts limited warranty
    • 5 year compressor limited warranty

    Technical Information

    Certifications

    Pioneer Mini Split Certifications

    Performance Data

    • Power Supply: 208~230V, 60Hz, 1Ph
    • Cooling Capacity: 9,000 BTU/h
    • Cooling SEER: 24
    • Heating Capacity: 10,000 BTU/h
    • Heating HSPF: 11.3
    • Suitable Area: 200~350 Sq.F
    • Air Flow (Hi/Med/Lo): 265 / 205 / 141 CFM
    • Sound Level (Hi/Lo): 39 / 24.5 dB(A)
    • Net Dimensions (WDH): 31"-1/2 x 7"-3/8 x 11"-5/8
    • Carton Dimensions (WDH): 34"-1/2 x 11"-1/4 x 15"
    • Net / Gross Weight: 18 / 22 Lbs

    Manuals & Downloads
