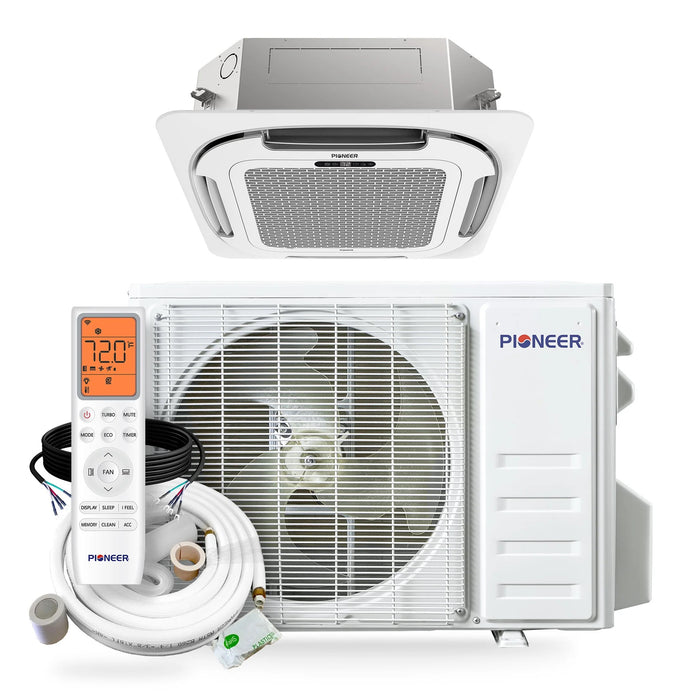

Pioneer® Quantum Ultra™ 12,000 BTU 22 SEER2 230V Ceiling Cassette Ductless Mini-Split Air Conditioner Inverter Heat Pump Full Set
Pioneer® Product Series
Quantum Ultra™ Ceiling Cassette

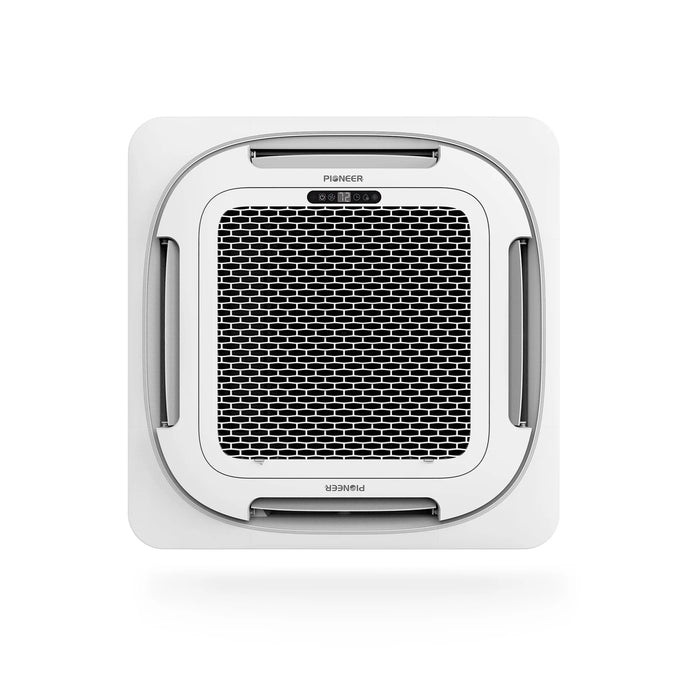

Indoor units of this type of ceiling-mounted ductless mini split system are designed to be mounted as recessed into the ceiling, where only a decorative air exchange panel is visible. Our ceiling cassette mini splits are equipped with digital frequency control for automatic capacity adjustments, a convenient remote controller, automatic air-sweeping louvers, and cooling, heating, dehumidification, and ventilation modes. Ceiling mini split systems also come with remote supply ducting and fresh air intake options.
Control from the Couch, or Halfway Across the World - Wi-Fi Controlled Out of the Box
Control your new Pioneer CYT cassette system by the remote, or remotely, via your iOS or Android smartphone. Set schedules, turn the system on or off, and monitor current indoor and outdoor temperatures from across the world, all conveniently from the free Pioneer Airlink app.
Uniform Cooling Experience All Throughout the Room - 8-Way 360° Airflow
Enjoy omni-directional air output that ensures the conditioned air proportionally reaches all 4 corners of the installed area, thanks to an innovative design featuring 4 sides and 4 corners of airflow.
Eliminate Stale Air and Feel the Freshness - Fresh Air Intake
The Pioneer CYT series cassette offers a provision of fresh-air intake via an optional reserved port. New outdoor air can be easily brought inside to replace stale room air.
Adaptive Directional Distribution Based on Operation Mode - Intelligent Air Throw
With the wide operating angle of the airflow louver, the Pioneer CYT series cassette is able to drape the room with a satisfying breeze in cooling mode, and wrap the area with cozy warmth in heating mode.
Keep Your Room Air Healthy and Dust-Free - Easy-Clean Air Filter
Not only are the air filters washable and re-usable, they are super easy to access. Simply detach the center grille and slide out the filter when it's time to wash. Re-insert the same way when done, so that your cassette can continue removing pollen, dust, and other allergens from the air in the room.
Important
The outdoor unit is pre-charged with R454b Refrigerant, allowing refrigerant line lengths of up to 25 ft. per circuit. The installation kit is necessary for the system to function. Do not select the "Without Installation Kit" option unless you are providing one yourself.

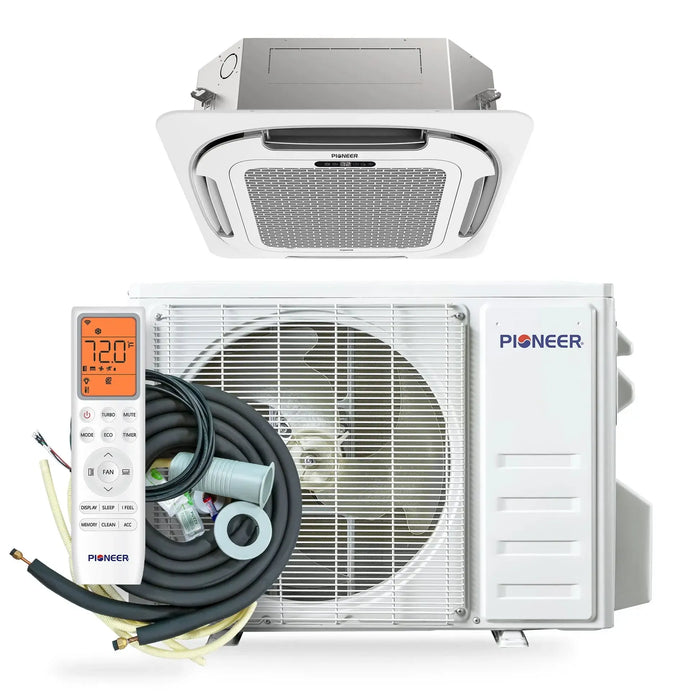

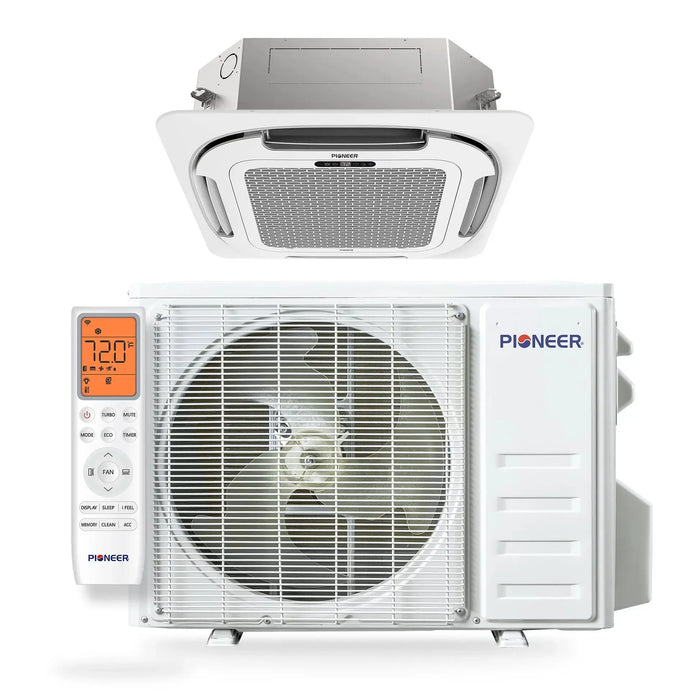

What's Included in Your Purchase
- Indoor Unit
- Outdoor Unit
- Indoor Panel
- Wireless Remote Control
- Remote Control Wall Holder
- Remote Control Batteries

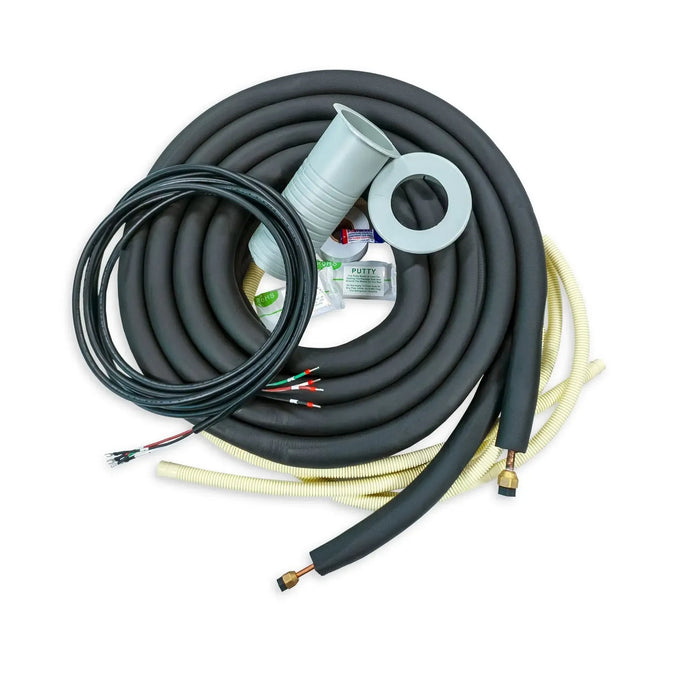

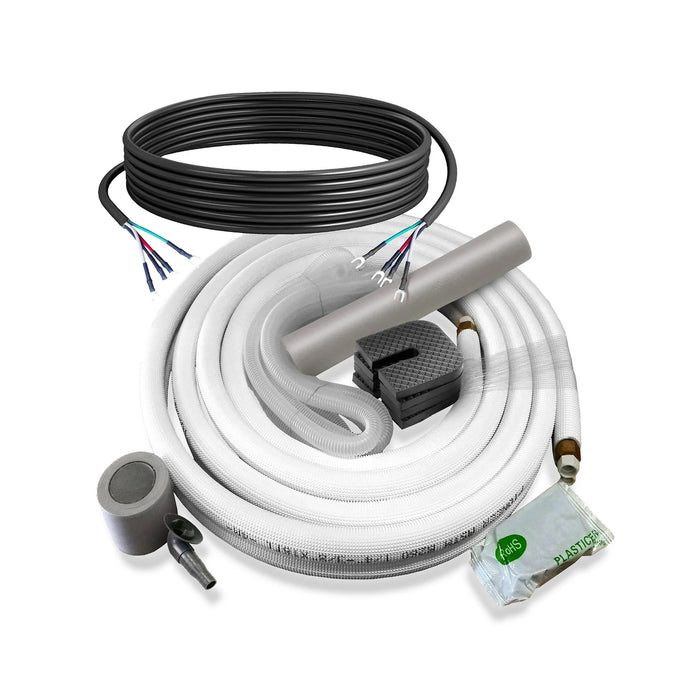

- Customizable Length Copper Lines
- Customizable Length Electrical Wire
- 10 Ft. Drain for indoor/outdoor
- Wall Passage Sleeve
- Putty for Wall Hole
- Leak Guard Sealer
- Wrapping Tape
- Installation Manual
- User’s Manual
Product Warranty
Warranty Registration is required within 90 days of purchase. Please, check our Warranty Policy
- Up to 5 years Warranty for Parts
- Up to 5 years Warranty for Compressor
Summary
- High Efficiency Quantum Ultra Ceiling Cassette Split Heat Pump System
- Cooling capacity: 12,000 BTU/H with 22 SEER2 / 11.7 EER2 efficiency
- Heating capacity: 12,500 BTU/H with 9.5 HSPF2 / 3.6 COP2 efficiency
- Voltage: 208/230V, 60Hz, 1Ph
- Ceiling Cassette Mounted Ductless Air Conditioning & Heating System
- Variable-Speed DC Inverter Driven Performance
- Factory-Precharged with Environmentally Friendly R454b Refrigerant
- Ultra Low Ambient Range Operation (As low as -13°F in Heating / As high as 131°F in Cooling)
Features
- Heat Pump with Cooling, Heating, Dry, and Ventilation Modes
- Dual-Drainage Ports
- Washable, Reusable Air Filters
- Dual-Axis Airflow (Motorized Up-Down and Left-Right Louvers

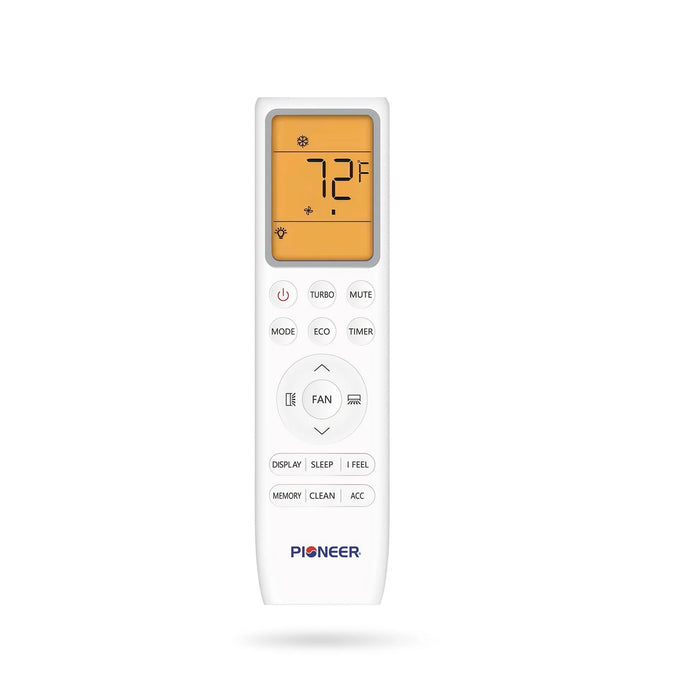

- Functional Remote with:
- ECO and SLEEP Modes, for Energy-Conservation
- Timer On/Off Control
- TURBO, for Times of High-Demand
- Self-Clean Cycle
- MEMORY, to Recall Favorite Settings
- IFEEL, to Detect and Adjust to Local Temperature
Technical Information & Performance
- AHRI Certificate
- Energy Guide
- Technical Brochure
- User & Installation Manual
- Service Manual
- Disassembly Manual
System Kit
- Power Supply: 208~230V, 60Hz, 1Ph
- Cooling Rated Capacity: 12,000 BTU/h
- Cooling Capacity Range: 2,000~13,600 BTU/h
- Cooling SEER2: 22.0 BTU/W.h
- Cooling EER2: 11.7 BTU/W.h
- Heating Rated Capacity: 12,500 BTU/h
- Heating Capacity Range: 3,100~12,700 BTU/h
- Heating HSPF2 (Region IV): 9.5 / 8.5 BTU/W.h
- Heating C.O.P.2 (47°F/5°F): 3.6 / 1.9 W/W
- Refrigerant Type: R454b
- Suitable Area: 350~500 Sq.F
- AHRI Reference: 217048759

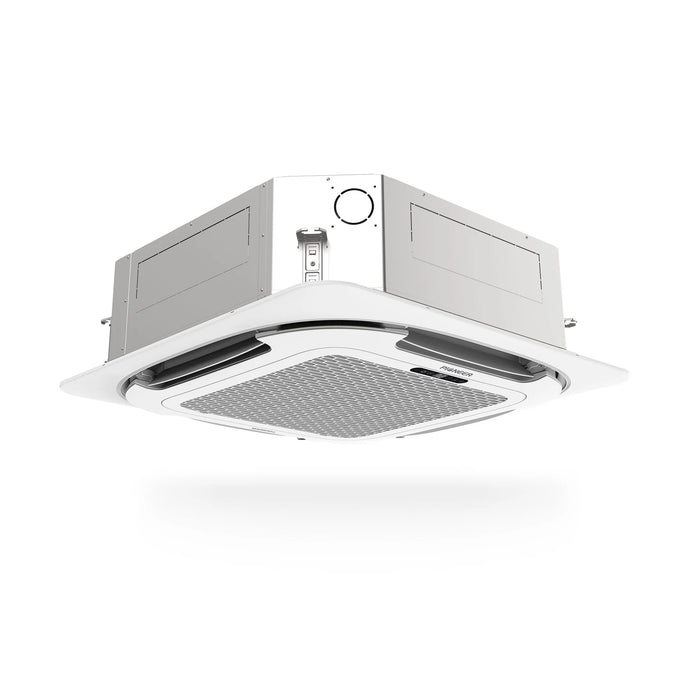

Indoor Unit
- Part Number: CT012GLSILCFHG
- Air Flow (Turbo/Hi/Med/Lo/Mute): 500/470/411/323/205 CFM
- Sound Level (Turbo/Hi/Med/Lo/Mute): 46/44/36/32/30 dB(A)
- Product Dimensions (WDH): 22"-1/2 x 22"-1/2 x 9"-5/8 Inches
- Carton Dimensions (WDH): 28"-1/4 x 25"-7/8 x 11"-7/8 Inches
- Net / Gross Weight: 32.0 / 38.6 lbs
Decorative Panel
- Part Number: CT0918DPNL
- Product Dimensions (WDH): 25"-5/8 x 25"-5/8 x 2"-3/8
- Carton Dimensions (WDH): 28"-7/8 x 28"-7/8 x 4"-3/8
- Net / Gross Weight: 6.0 / 9.5 lbs

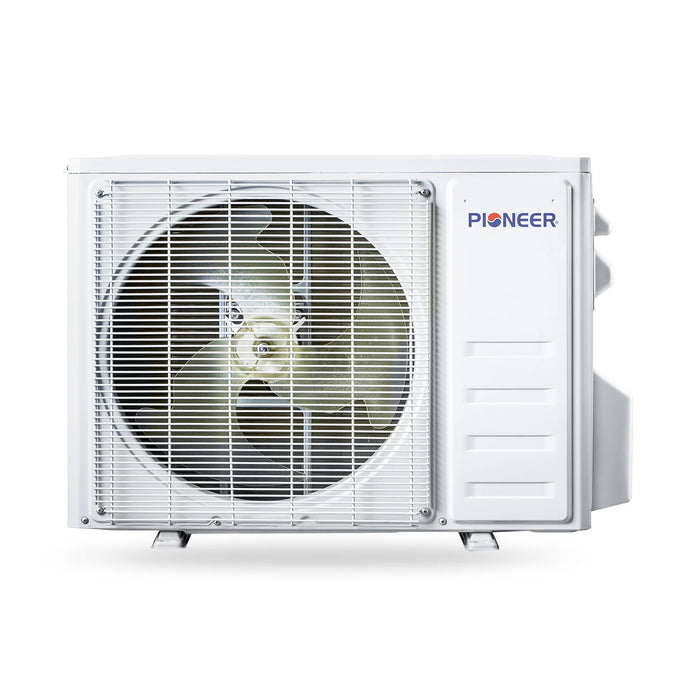

Outdoor Unit
- Part Number: YN012GLSI24RPG
- Breaker Needed: 15A (double-pole)
- Sound Level: 52 dB(A)
- Net Dimensions (WDH): 31"-7/8 x 12" x 21"-5/8 Inches
- Carton Dimensions (WDH): 32"-7/8 x 13" x 22"-5/8 Inches
- Net / Gross Weight: 58.4 / 65.0 lbs.
