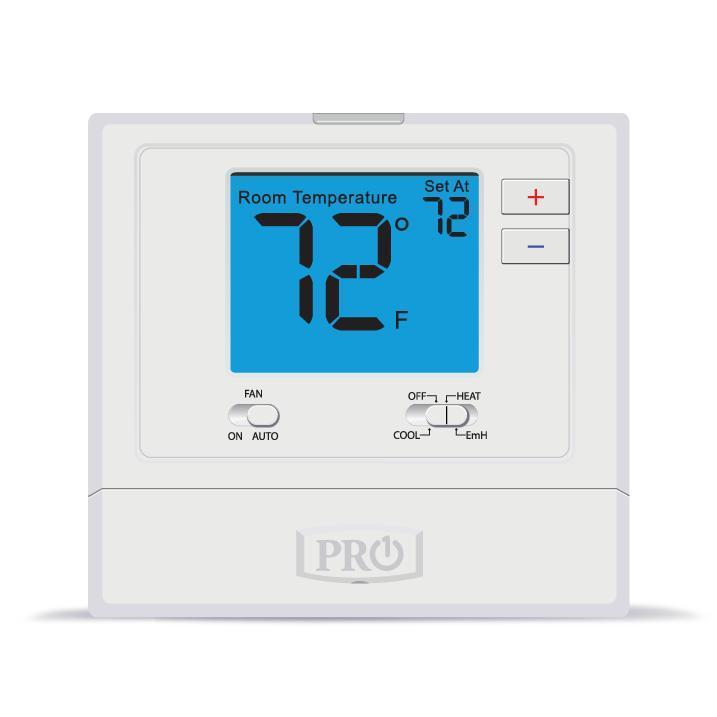

Pro1 IAQ T721 2 Heat / 1 Cool Non-Programmable Thermostat
The Pro1 IAQ 700 family of thermostats offers the most commonly desired features at a great value. These models are easy to use and will provide years of reliable service
Features:
- 4 sq. inch display
- Blue backlight
- Glow in the dark light button
- Easy access battery compartment
- Electric or Gas configurable
- Separate heating cooling swing (cycle rate) adjustments including 2nd stage adjustments
- Filter change indicator (select-able on or off)
- 5 minute compressor delay protection (select-able on or off)
- Room temperature calibration adjustments
- Easy wire color coded terminal blocks
- Universal sub-base
- Mounts on wall or junction box
- Battery or 24V power
- 5 year warranty
Specifications:
| Brand | PRO1 IAQ |
| Model | T721 |
| Application | 1 heat, 1 cool / 2 Heat, 1 Cool Conventional |
| Programmability | Non-Programmable |
| Changeover | System Switch |
| Display Range | 41˚F to 95˚F (5˚C to 35˚C) |
| Control Range | 44˚F to 90˚F (7˚C to 32˚C) |
| Display Accuracy | +/- 1˚F |
| Heat Swing | Adjustable from 0.2˚F to 2.0˚F |
| Cool Swing | Adjustable from 0.2˚F to 2.0˚F |
| Terminals | R, C, Y, W2 , W/E, G, B, O |
| Load Rating | 1 amp per terminal, 1.5 amp maximum all terminals combined |
| Power Source |
18 to 30 VAC, NEC Class II, 50/60 Hz for hardwire (common wire) Battery power from 2 AA Alkaline batteries |
| Operating Ambient | 32˚F to +105˚F (0˚C to +41˚C) |
| Operating Humidity | 90% non-condensing maximum |
| Mounting | Wall or Junction Box |
| Dimensions | 4.7”W x 4.4”H x 0.8”D (119mm W x 112mm H x 20mm D) |
| Warranty | 5 year warranty |
| Resources | |
| Proposition 65 Warning | Yes |
