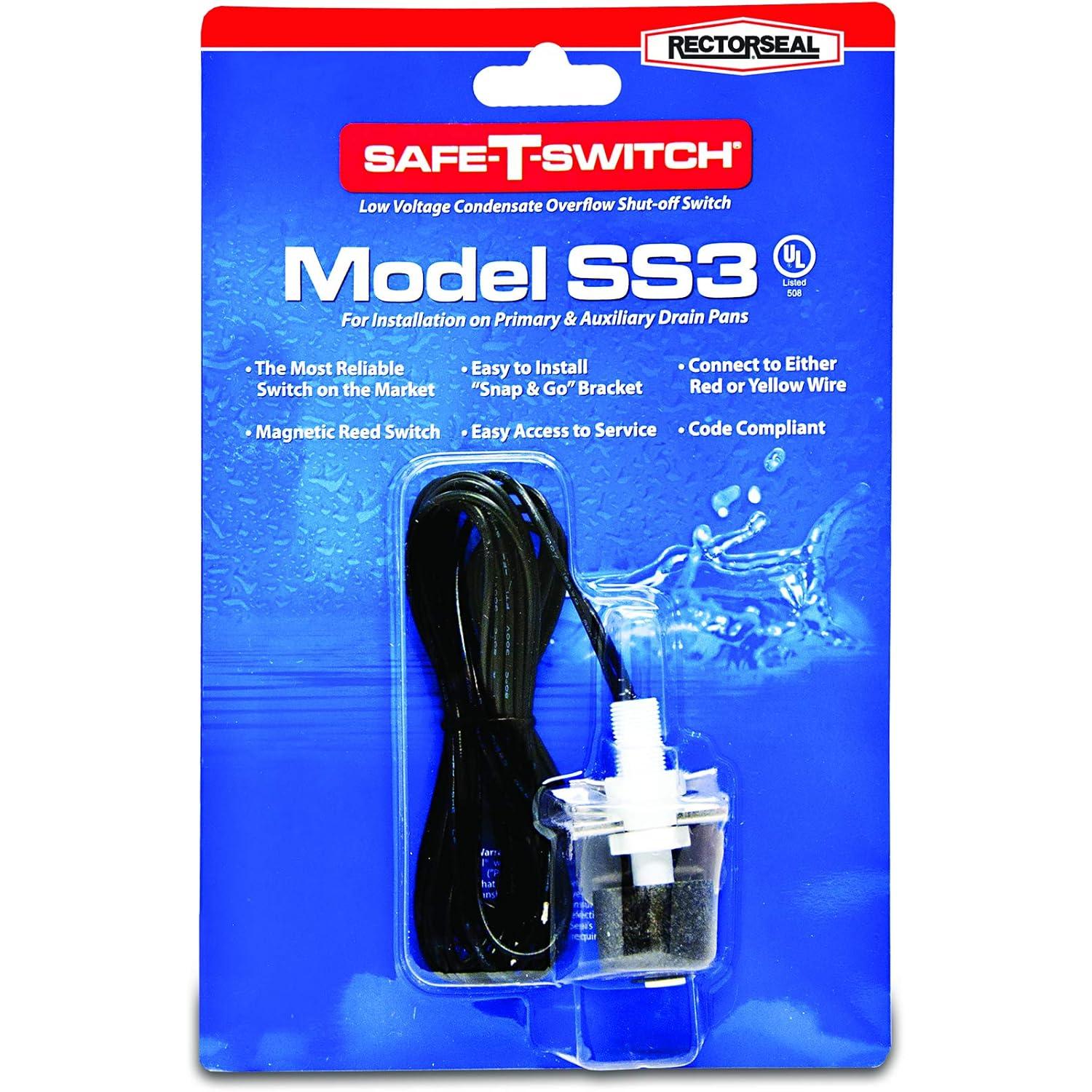

Rectorseal 97647 Safe-T-Switch SS3

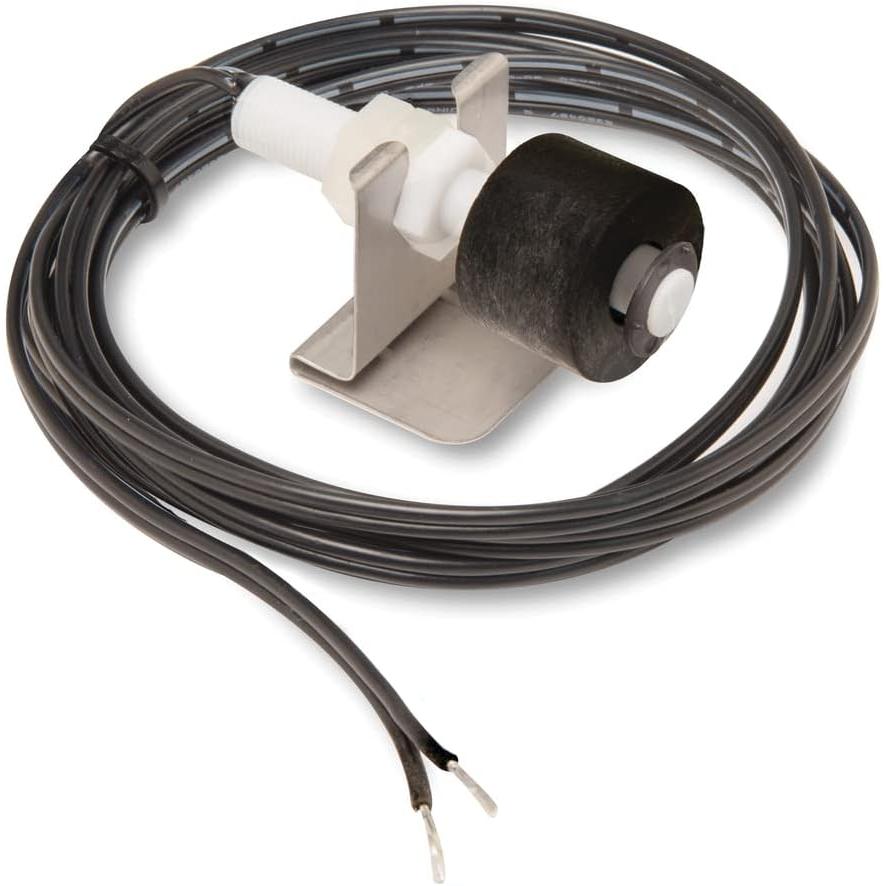

Safe-t-switch Ss3 is for installation on safety drain pans. Features a special metal clip, designed for quick secure installation on pan rims. (24-Piece).
Features:
- This product is highly durable
- Easy to use
- This product is manufactured in United States
- Patented, water sealed reed/magnet switch design
- UL 508 Compliant
- Schedule 40 PVC1 plastic components
- 25 Amp Carry capacity
- 125 Amp Switching Capacity
Technical Details:
| Brand | Rectorseal |
| Part Number | 97647 |
| Warranty | 3 Years |
| Operation Mode | ON-OFF |
| Current Rating | 1.25 Amps |
| Operating Voltage | 24 Volts |
| Contact Type | Normally Closed |
| Connector Type | Plug In |
| Terminal | Physical |
| Item dimensions L x W x H | 5.5 x 1.75 x 8.25 inches |
| Mounting Type | Surface Mount |
| Actuator Type | Magnetic Reed Switch |
| Contact Material | Copper |
| International Protection Rating | IP00 |
| Number of Positions | 2 |
| Lower Temperature Rating | 32 Degrees Fahrenheit |
| Upper Temperature Rating | 90 Degrees Fahrenheit |
| Control Method | Touch |
| Connectivity Protocol | X-10 |
| Color | White |
| Wattage | 3E+1 |
| Unit Count | 46.08 Ounce |
| Included Components | Condensate switch, connections |
| Batteries Included? | No |
| Batteries Required? | No |
| Resources | User Guide |
