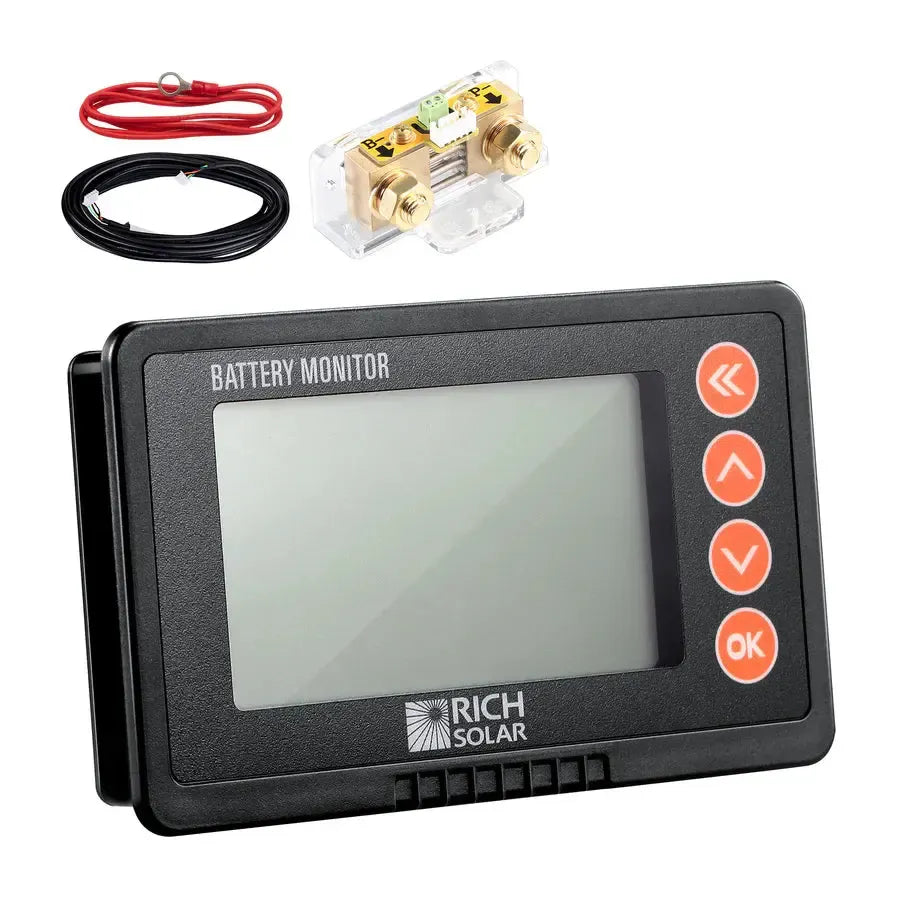

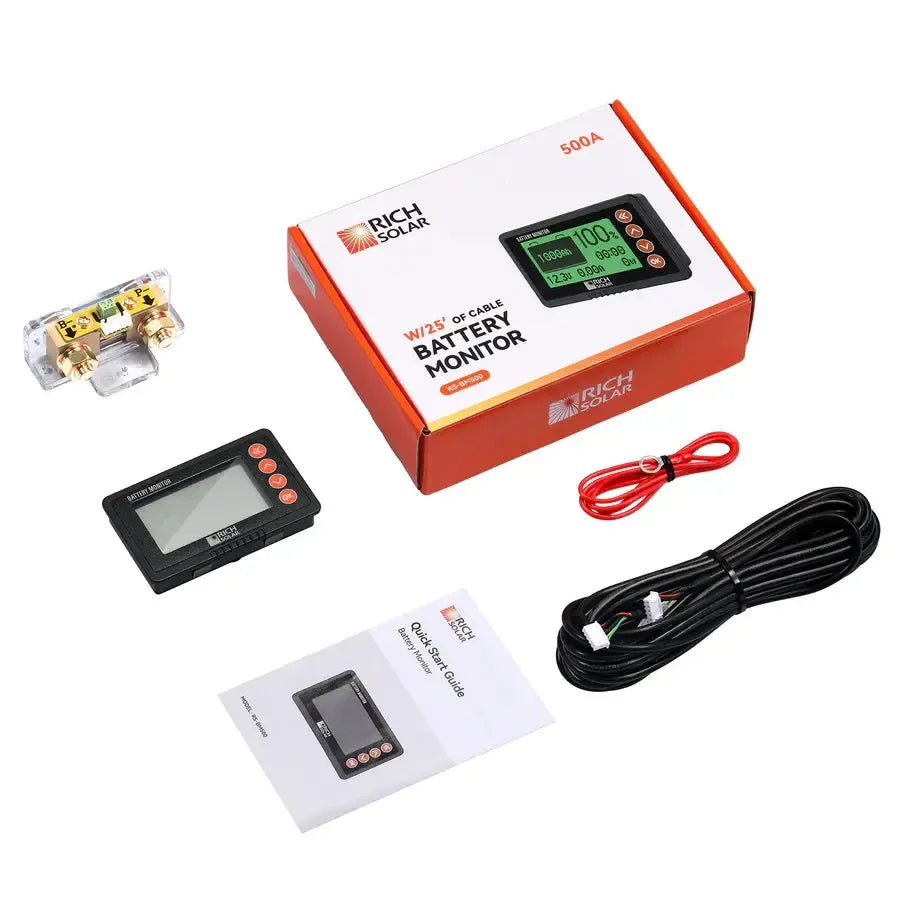

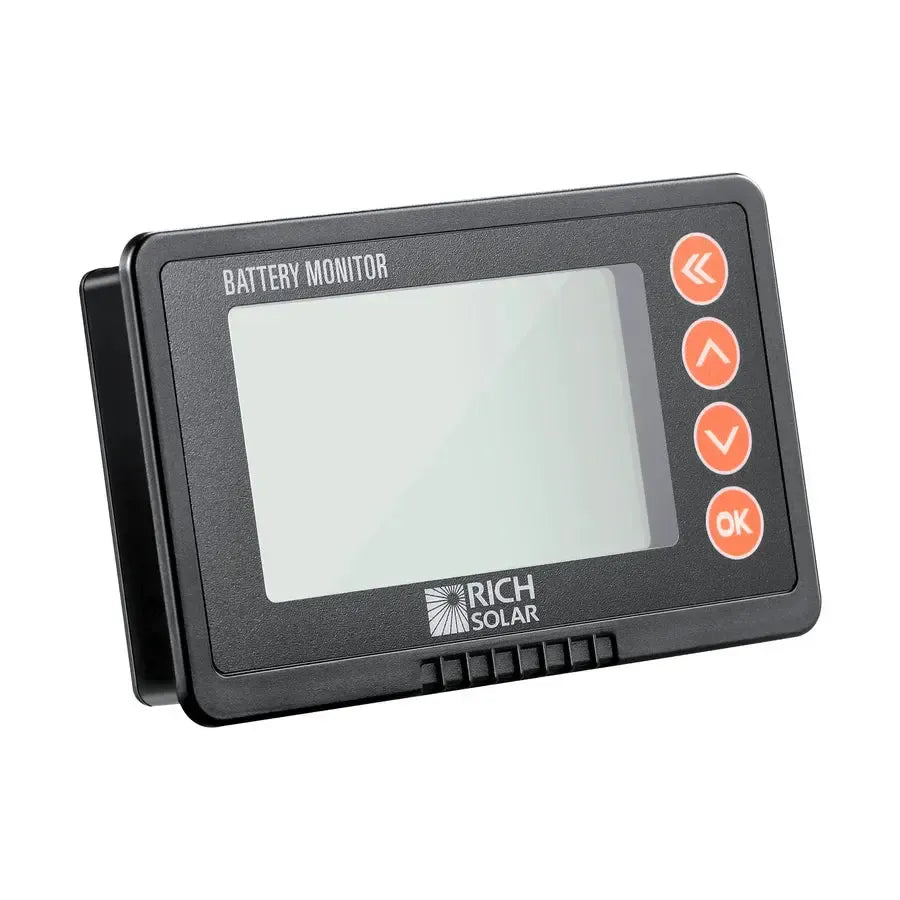

Rich Solar 500 Amp Battery Monitor with Shunt | 8~120V 500A Battery Monitor with Shunt | Accurate Battery Status Monitor | Easy to Use

SKU: RS-BM500
Your Price:
$129.99 $175.48
You Save: $45.49 26%
  • END OF THE YEAR FLASH SALE GOING ON NOW! Save An Extra 5% OFF with Code: FLASH5 (Applies at checkout)
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source
Checkout Secure

Quantity Remaining:

Only 10 Left in Stock.
Order in the next to get it by

Get Extra 5% Off With Code: FLASH5 - Flash Sale Ends:

Days
Hours
Minutes
Seconds

Rich Solar 500 Amp Battery Monitor with Shunt | 8~120V 500A Battery Monitor with Shunt | Accurate Battery Status Monitor | Easy to Use

Installation and Wiring-Overview

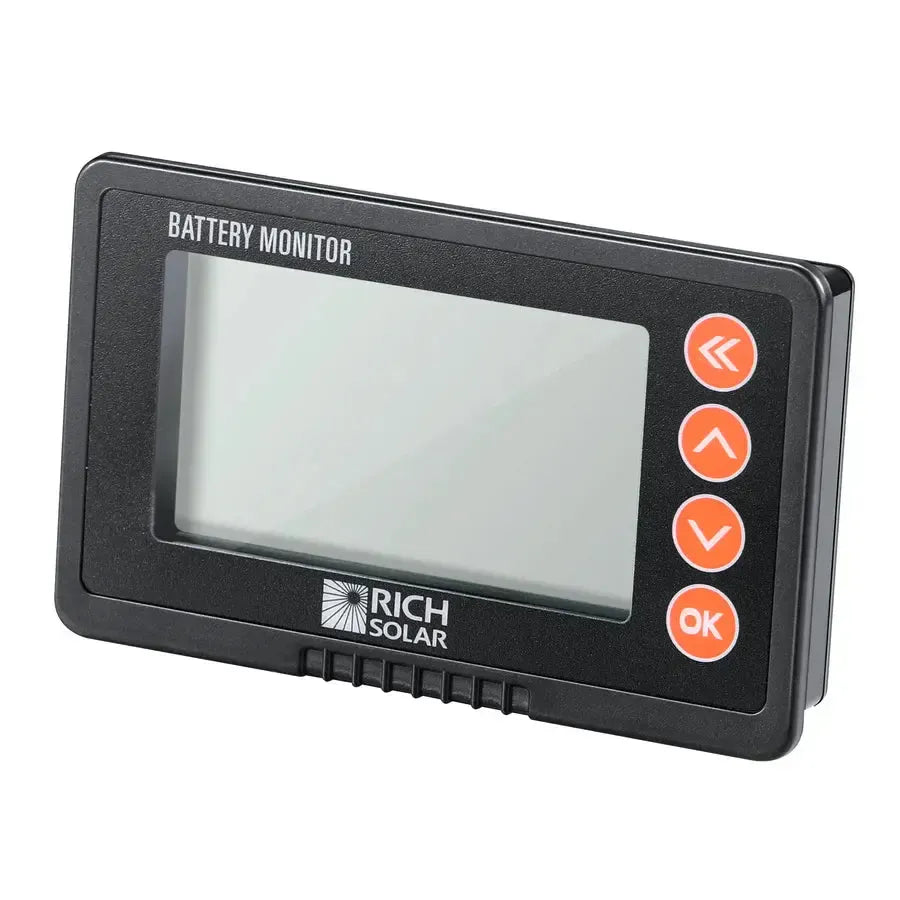

The RS-BM500 shunt should be mounted as close to the battery as possible, and the remote display is intended to be mounted on a wall.

Recommended Tools

  • Wrench
  • Drill
  • Jig saw
  • 2 ring terminals of appropriate size for battery cable
  • Crimp tool for ring terminals

Wiring Diagram

The following wiring diagram will be referenced in the next section.

Rich Solar 500 Amp Battery Monitor with Shunt | 8~120V 500A Battery Monitor with Shunt | Accurate Battery Status Monitor | Easy to Use

Installation

  1. Before doing anything, disconnect all wires from the negative side of the battery.
  2. Cut the negative cable for the battery and crimp on new ring terminals. Alternatively, use a new wire of appropriate gauge to carry the full current demand of your system.
  3. Install the shunt as shown in the wiring diagram above. Note: The negative terminal of the battery must connect directly to the“B-" side of the shunt, and there should be no other connections to the negative terminal of the battery for accurate measurements.
  4. Use the B+ wire included in the package to connect the B+ terminal of the shunt to the positive side of the battery. Note: Do not stack smaller terminals under large ones.
  5. Connect the shunt to the remote display using the included shielded cable.

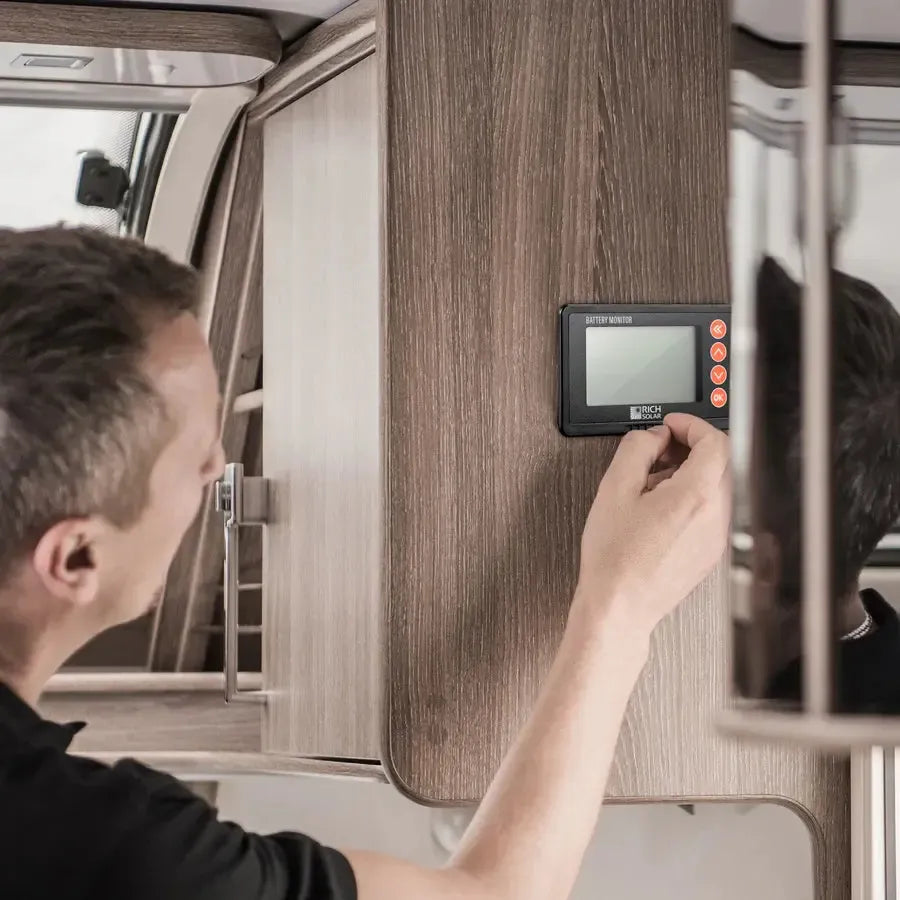

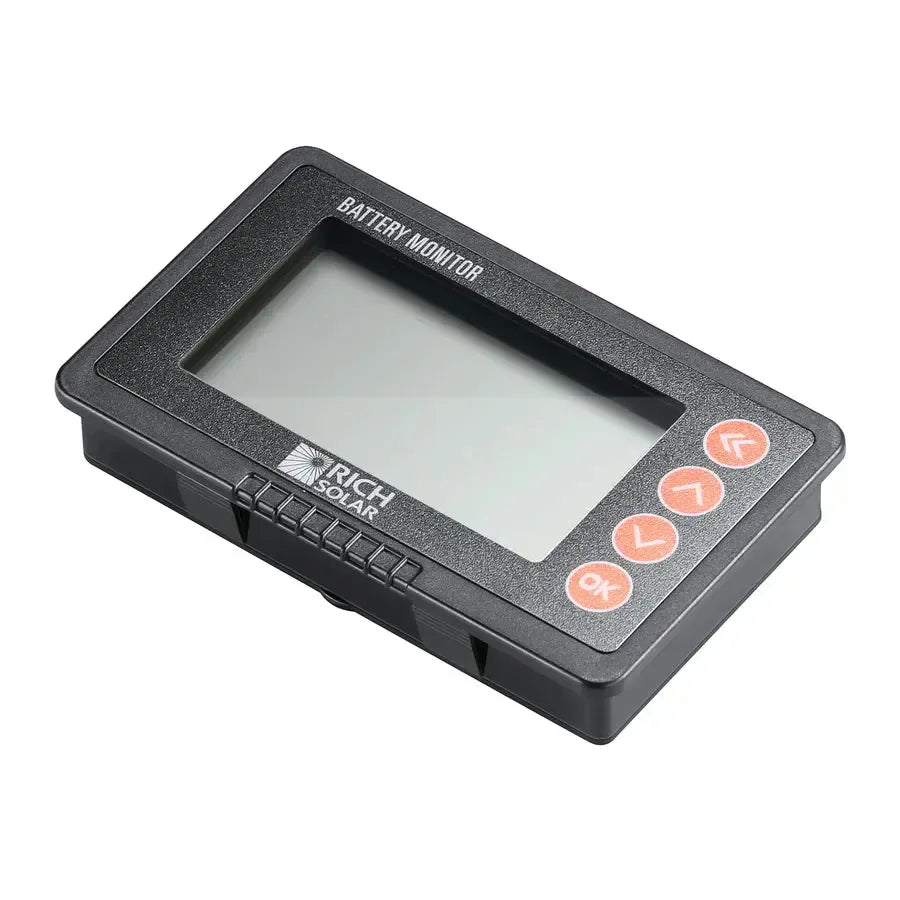

Mounting the Remote Display

Rich Solar 500 Amp Battery Monitor with Shunt | 8~120V 500A Battery Monitor with Shunt | Accurate Battery Status Monitor | Easy to Use

  1. Plan the location of your remote display and keep in mind there is a cable that needs to route all the way to the shunt.
  2. Drill a hole in the center of the planned location and use the jig saw to cut a hole according to the following picture.
  3. Connect the shielded cable to the shunt and route it such that you can bring it through the hole.
  4. Connect the shielded cable to the remote and snap the remote into place.

Basic Setup

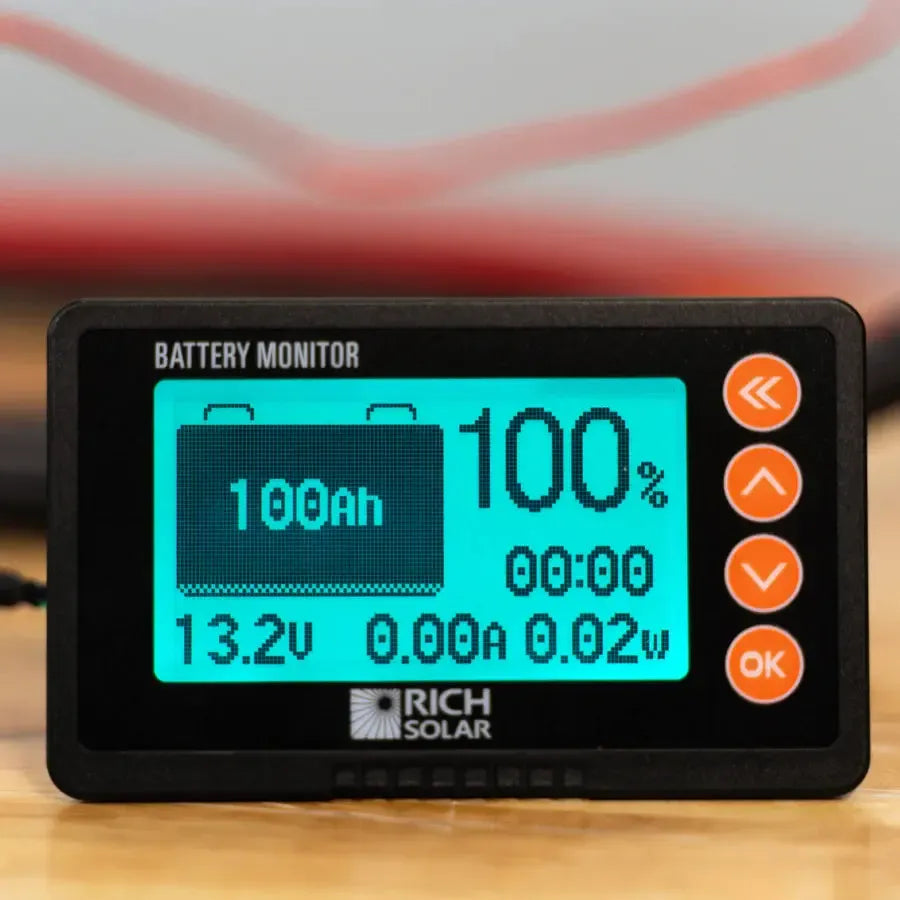

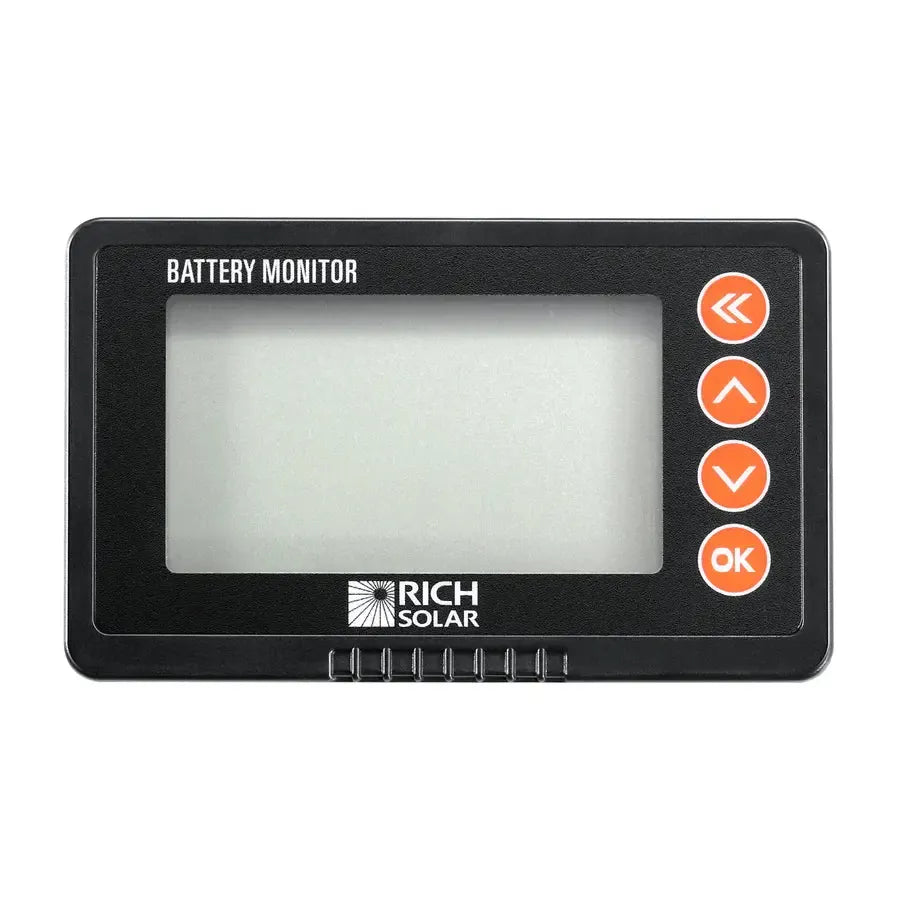

  1. Hold the "Ok" button for 3 seconds to enter the settings screen. The up and down arrows are used to navigate as well as change parameters. The "Ok" and "<<" button are used to enter and exit a setting.
  2. Set the "CAP" setting to match the capacity of your battery or battery bank.
  3. Optionally set the "HIGH V" and "LOW V" values to the voltages at which you want remaining capacity/percentage to reset to 100% and 0% respectively.
  4. Alarm is the minimum Ah value that will trigger an audible alarm.
  5. Once all of these settings are complete, hit "<<" and your BMK is set up.

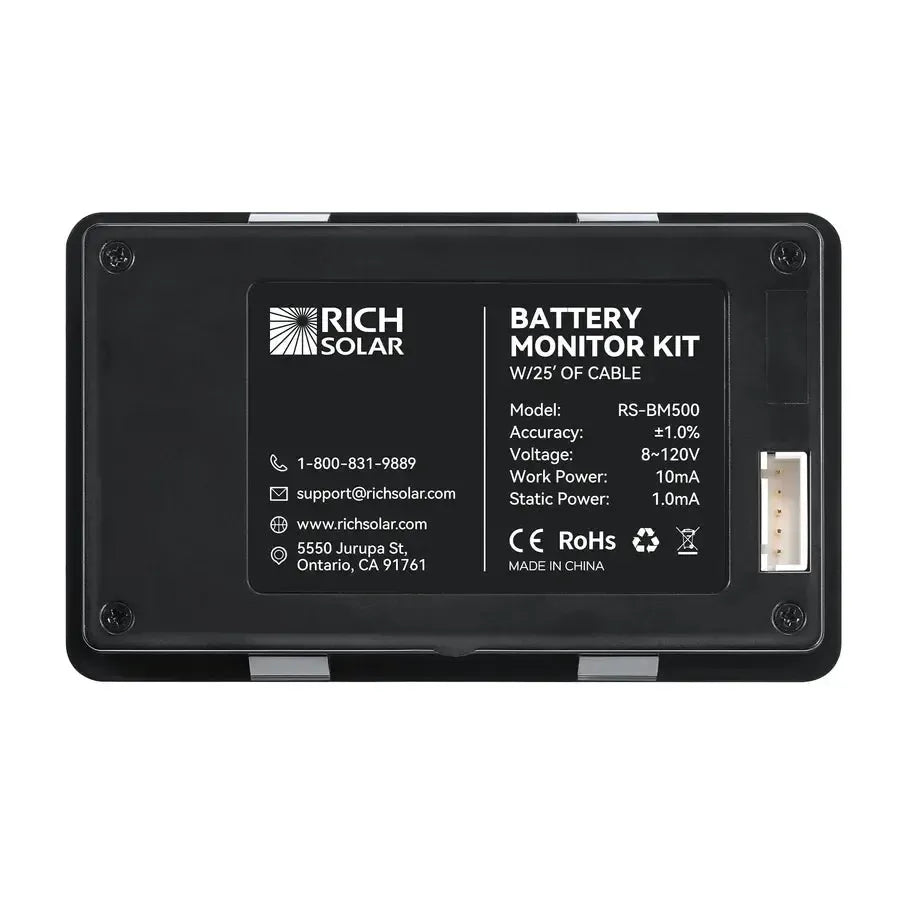

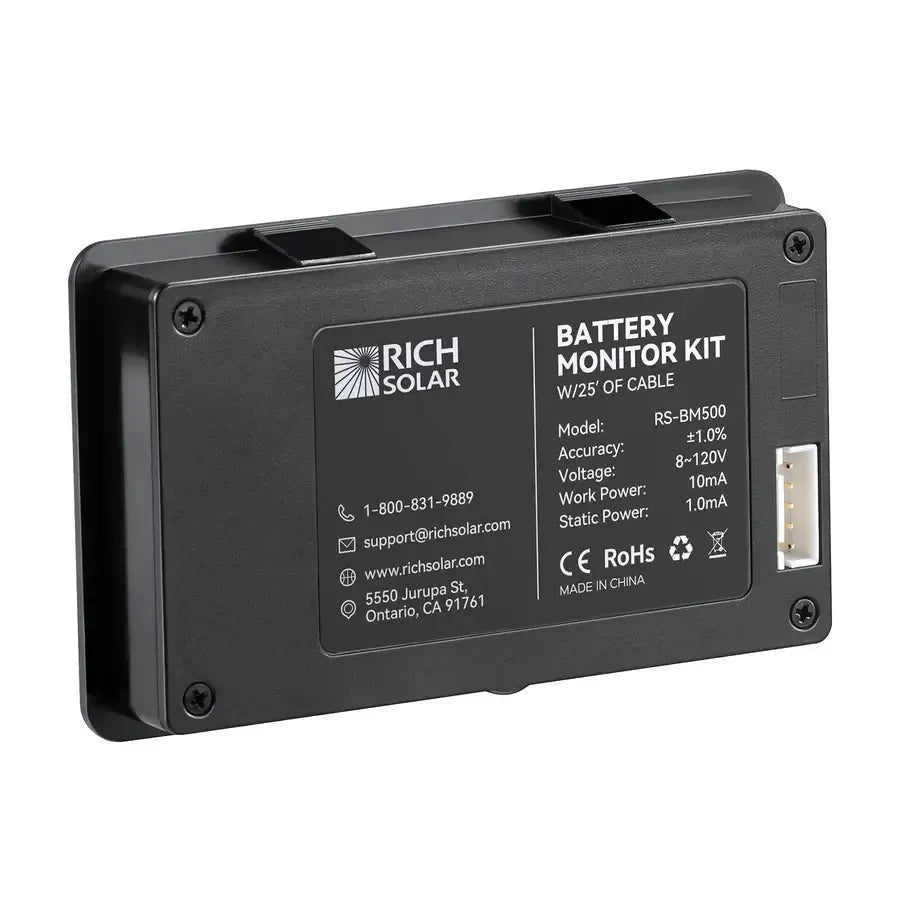

Specifications:

Brand Rich Solar
Model RS-BM500

Battery Voltage Range

8-120V

Working Dissipation

10mA

Standby Dissipation

1mA

Capacity Accuracy

±1.0%

Voltage Accuracy

±1.0%

Current Accuracy

±1.0%

Backlight On Current

80mA

Capacity Setting Value

0-500A

Current Range

0.1-9999Ah
