Rich Solar Complete Off-Grid Solar Kit RS-H6548 | 8000W PV Input 48V 120VAC Output + 6560(16x410) Watt Solar PV [KIT-SR0001]

SKU: SRx3-H6548x1-M410x16
Your Price:
$10,999.99 $12,699.99
You Save: $1,700.00 14%
  • END OF THE YEAR FLASH SALE GOING ON NOW! Save An Extra 5% OFF with Code: FLASH5 (Applies at checkout)
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source
Checkout Secure

Quantity Remaining:

Only 10 Left in Stock.
Order in the next to get it by

Get Extra 5% Off With Code: FLASH5 - Flash Sale Ends:

Days
Hours
Minutes
Seconds

Rich Solar Complete Off-Grid Solar Kit RS-H6548 | 8000W PV Input 48V 120VAC Output + 6560(16x410) Watt Solar PV [KIT-SR0001]

Everything you need to go completely Off-Grid!

This travel trailer solar system includes flexible solar panels for RV and tiny homes, so you can jumpstart your off-grid solar trailer adventure today.

Best value on the market! Call us for any questions! Free technical support!

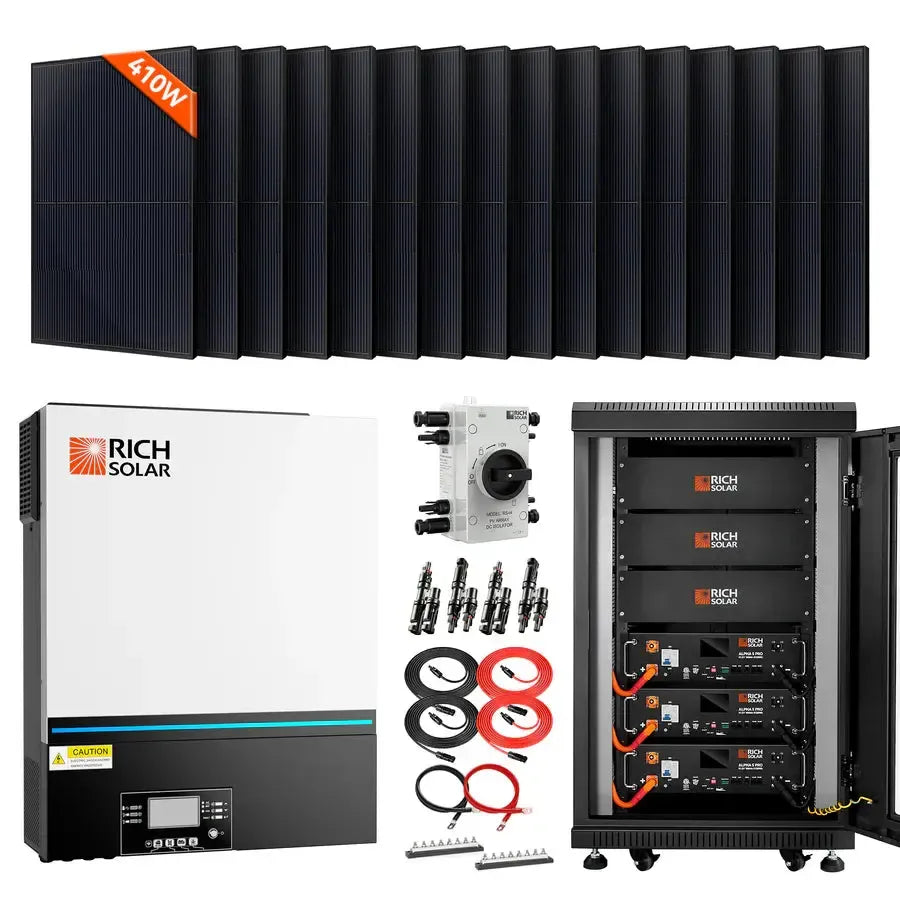

This Kit Includes:

  • 16 x MEGA 410 Watt Monocrystalline Solar Panel (RS-M410)
  • 1 x 6500 Watt (6.5kW) 48 Volt Off-grid Hybrid Solar Inverter (RS-H6548)
  • 3 x 5.12kWh ALPHA 5 PRO Server Lithium Iron Phosphate Battery (RS-B5121P1)
  • 1 x Free Battery Rack (RS-RK)
  • 1 x Solar PV DC Quick Disconnect Switch (RS-i4)

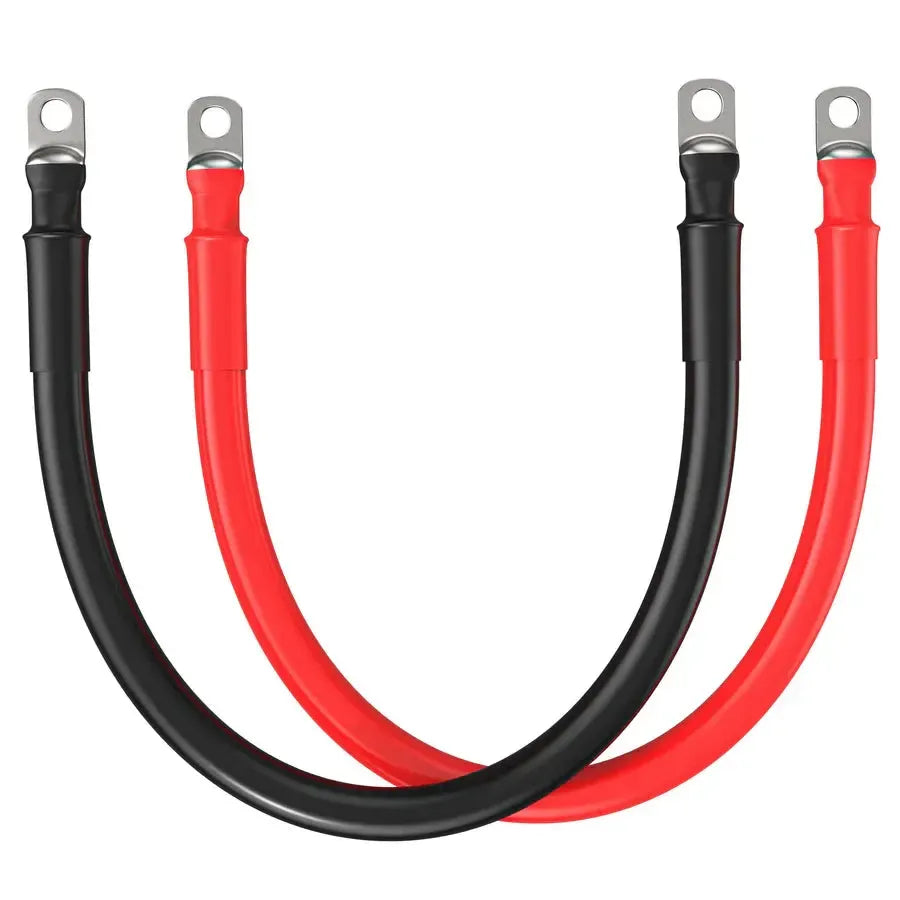

  • 2 x 4 Foot 2/0 Gauge AWG Wire Set 3/8" (RS-2/0A4F3)

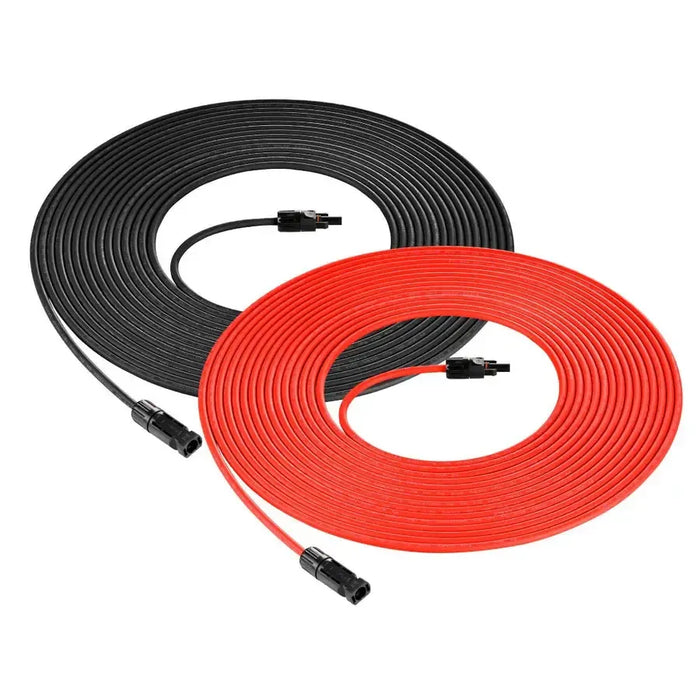

  • 4 x 10 Gauge 50 Feet Solar Extension Cable (RS-50102)

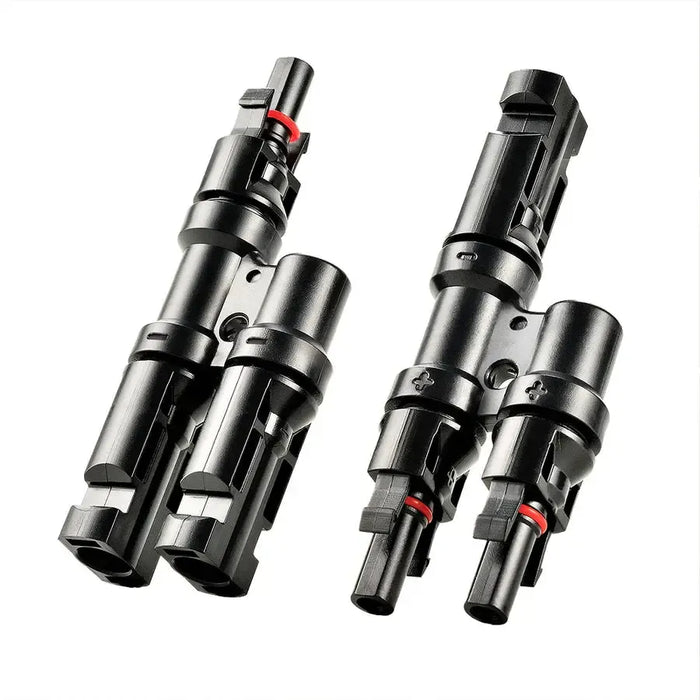

  • 2 x Y Branch Parallel Connectors 2 to 1 (RS-T2)
  • 2 x Busbar 600 AMP

Videos:

How to Setup 6548 Hybrid Inverter in Split-Phase or Parallel Operations - Rich Solar Talk


When Not to Update the Firmware on the 6548 Hybrid Inverter | Quick Tip | RS Talk


ALPHA 5 PRO | Overview, Unboxing, & Parallel Setup | RICH SOLAR TALK

Tech Specs:

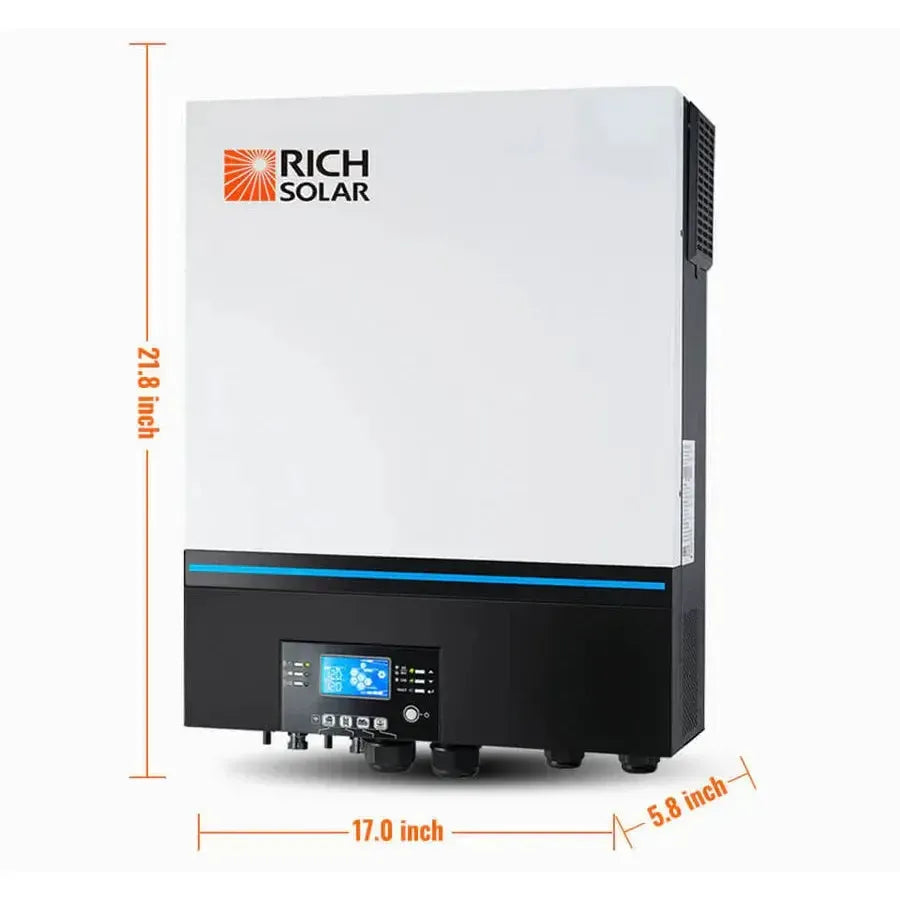

6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)

  • Rated Inverter Power: 6500VA/6500W
  • Parallel Capability: Yes, 6 Units
  • Input Voltage: 120 VAC
  • Frequency Range: 50 Hz/60 Hz (Auto Sensing)
  • Efficiency (Peak): 90% ~ 93%
  • Waveform: Pure Sine Wave
  • Battery Voltage: 48 VDC
  • Solar Charger Type: MPPT
  • Maximum PV Array Power: 8000W (4000W x 2)
  • MPPT Operating Voltage Range: 90 ~ 230 VDC
  • Maximum PV Array Open Circuit Voltage: 250 VDC
  • Maximum Charge Current: 120A
  • Dimension (DxWxH): 5.8 x 17.0 x 21.8 in
  • Net Weight: 40.6 lb
  • Communication Interface: USB/RS232/RS485/Wi-Fi/Dry-contact
  • Compliance Safety: UL
  • Warranty: 5 Years

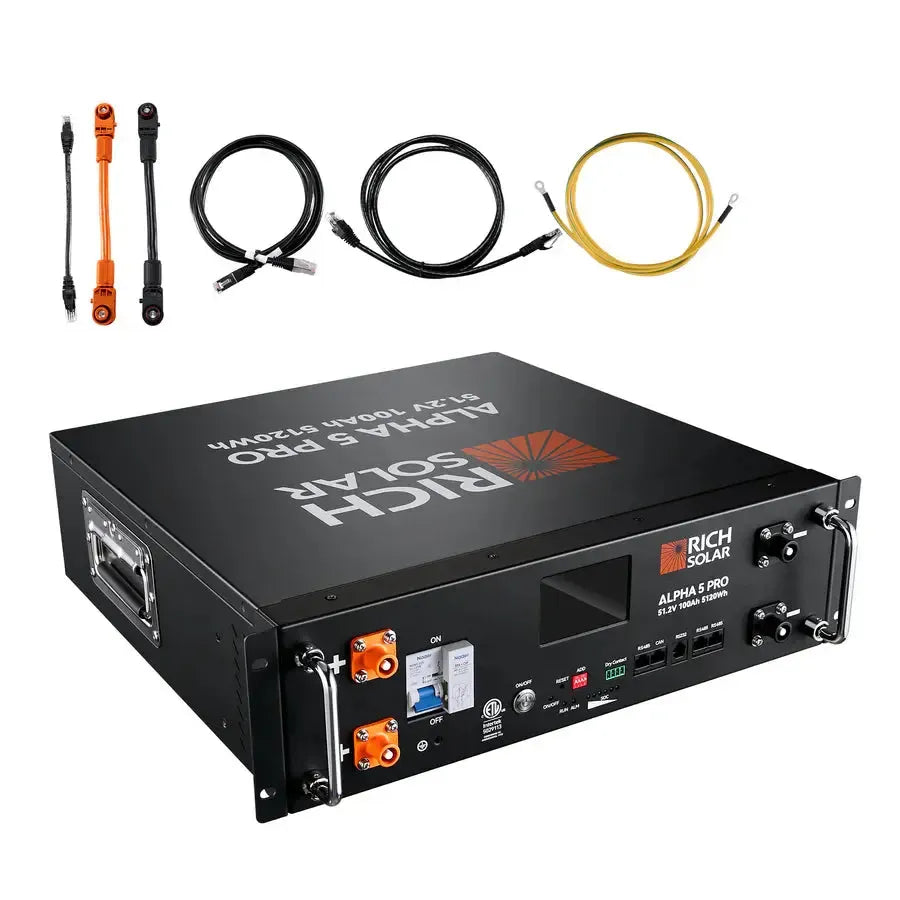

ALPHA 5 | 51.2V 100Ah Server Rack Lithium Iron Phosphate Battery (RS-B5121P1)

  • Nominal Voltage: 51.2V
  • Nominal Capacity: 100Ah
  • Expected Cycle Life: >7000 Cycles
  • Energy: 5.12kWh
  • Continuous Charge Current: 100A
  • Continuous Discharge Current: 100A
  • Waterproof: IP65
  • Dimensions: 17.7″L x 17.8″W x 5.2″H
  • Net Weight: 99.2 lb
  • Warranty: 10 Years Manufacturer Defect

MEGA 410 Watt  Monocrystalline Solar Panel (RS-M410)

  • Maximum Power(Pmax): 410W
  • Maximum Power Voltage(Vmp): 31.3V
  • Maximum Power Current(Imp): 13.1A
  • Maximum System Voltage(Vmax): 1500VDC
  • Module Efficiency: 20.97%
  • Net Weight: 45.2 lb
  • Dimensions: 67.9 x 44.6 x 1.2 in
  • Warranty: 25 Years

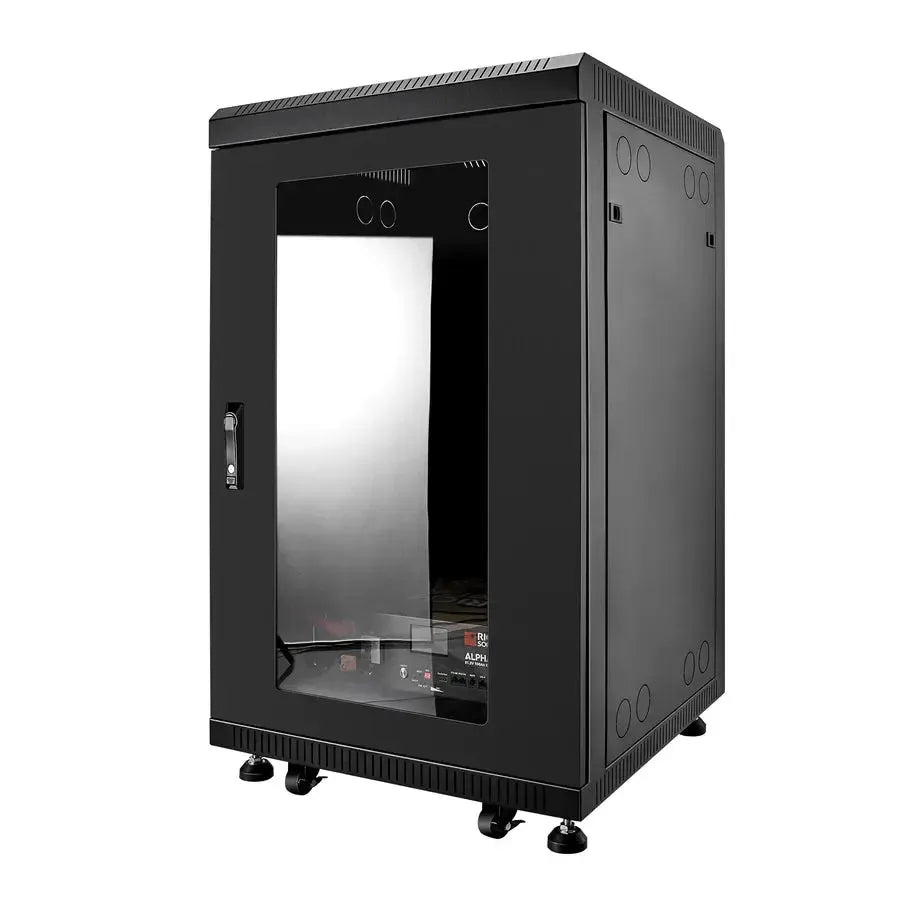

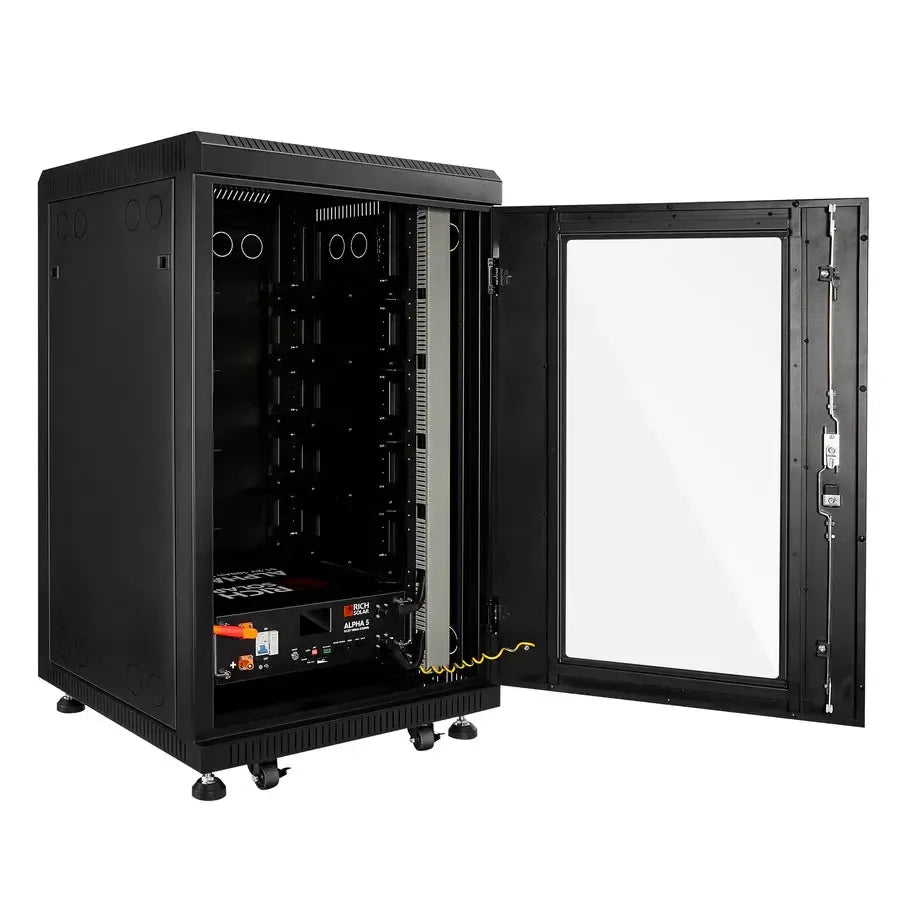

Battery Server Rack

  • Dimensions (LxWxH): 27.6 x 27.6 x 44 in
  • Net Weight: 196 lb

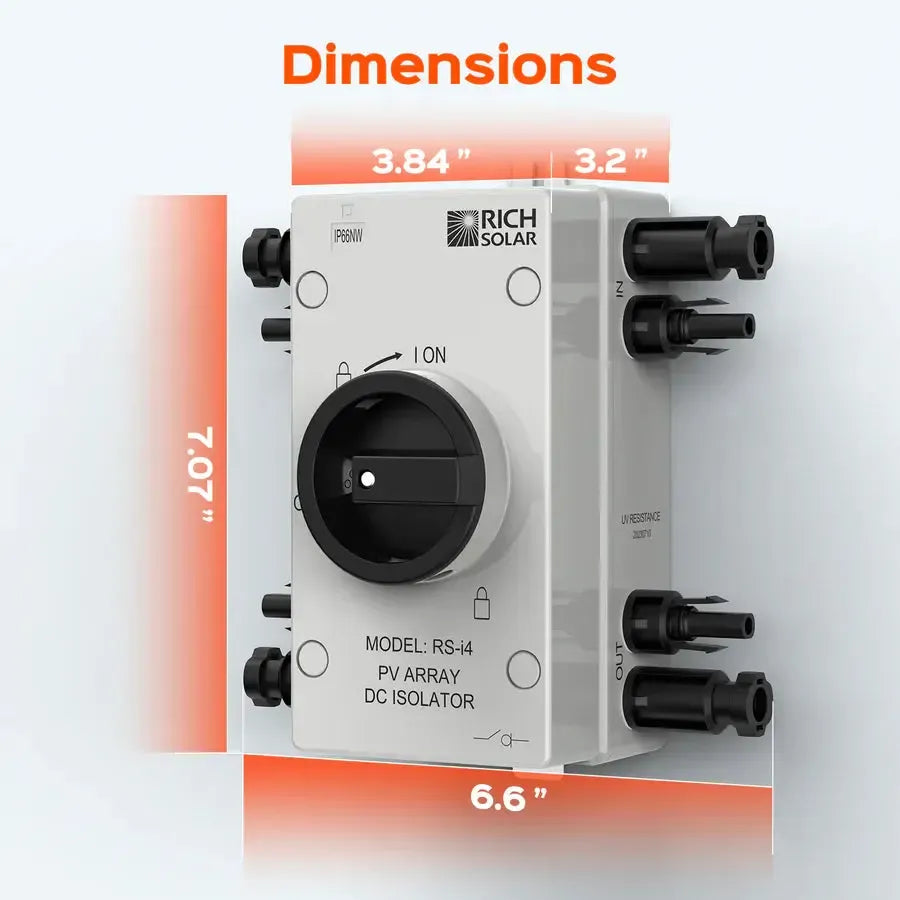

SOLAR PV DC Quick Disconnect Switch (RS-i4)

  • 1500 Volts @ 32 Amps
  • Waterproof: IP66NW
  • Dimensions (HxWxD): 7.1 x 6.8 x 4.3 in
  • Net Weight: 1.7lb
  • Warranty:  10 Years

User Manual & Specification:

6500W 48V Off-Grid Hybrid Solar Inverter (RS-H6548)

ALPHA 5 PRO | 51.2V 100Ah Server Rack Lithium Iron Phosphate Battery (RS-B5121P1)

SOLAR PV DC Quick Disconnect Switch (RS-i4)
