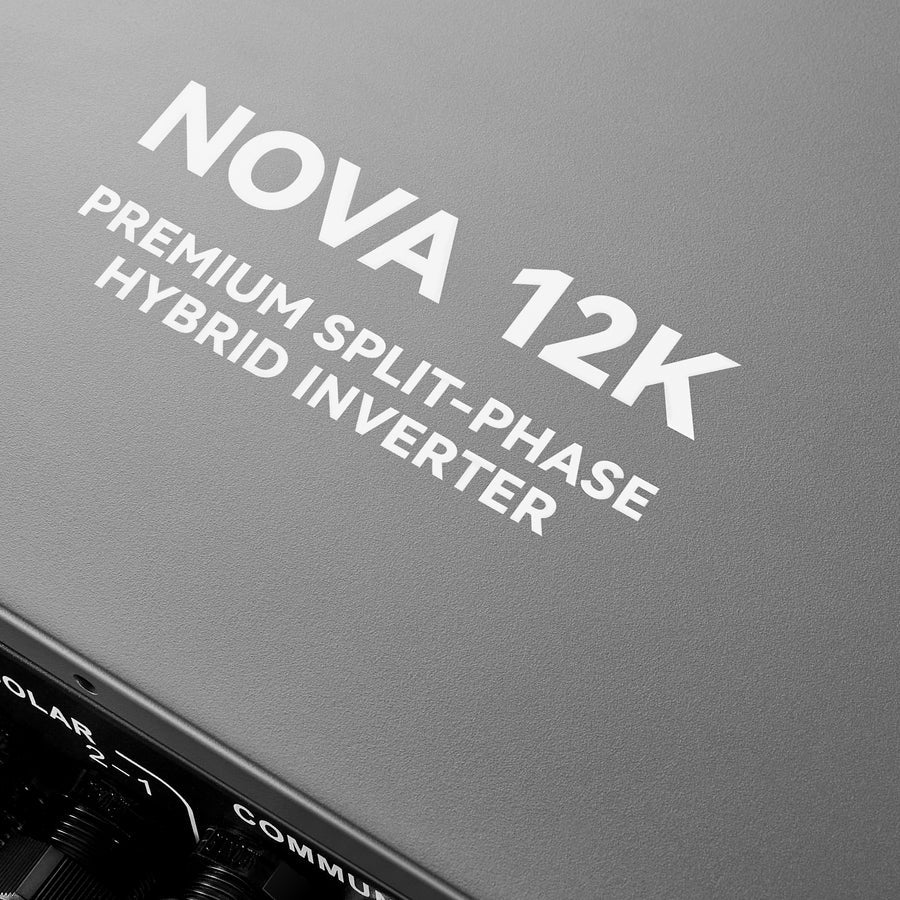

Rich Solar NOVA 12K Hybrid Inverter | 12000W Power for Off-Grid Homes

SKU: RS-H12K
Your Price:
$2,999.99 $4,049.98
You Save: $1,049.99 26%
  • END OF THE YEAR FLASH SALE GOING ON NOW! Save An Extra 5% OFF with Code: FLASH5 (Applies at checkout)
  • NO SALES TAX OUTSIDE ARIZONA CALIFORNIA FLORIDA MICHIGAN NEW YORK NORTH CAROLINA PENNSYLVANIA TENNESSEE VIRGINIA
  • EASY RETURNS: 30 Days Money Back Guaranteed
  • FREE SHIPPING: Ships in 2 - 3 Business Days
  • FAST DELIVERY: Arrives in 3 - 7 Days
  • HASSLE FREE DELIVERY: Free Liftgate Delivery + Freight Insurance
  • NEED HELP?: Call 1-800-315-4345
  • AUTHORIZED DEALER: Best Products and Equipment from a Reliable and Knowledgeable Source
Checkout Secure

Quantity Remaining:

Only 10 Left in Stock.
Order in the next to get it by

Get Extra 5% Off With Code: FLASH5 - Flash Sale Ends:

Days
Hours
Minutes
Seconds

Rich Solar NOVA 12K | 12000 Watt 48V Split Phase Hybrid Inverter | 12000W PV Input, 10000W Continuous Output 120/240V | Premium 12000W 48V Hybrid Inverter for Cabins, ADUs, Tiny Homes, Residential, Agriculture, Off-Grid, On-Grid | UL Certified

Features:

  • Support multiple input & output - Split phase 208/240VAC or single phase 230VAC.

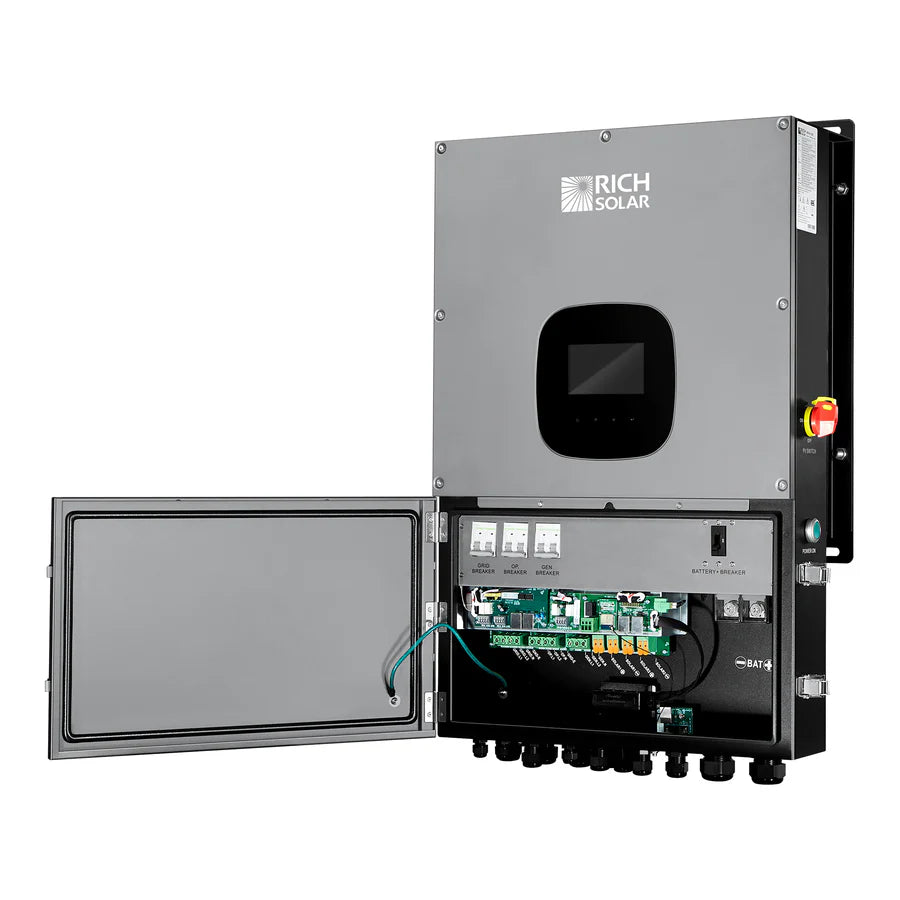

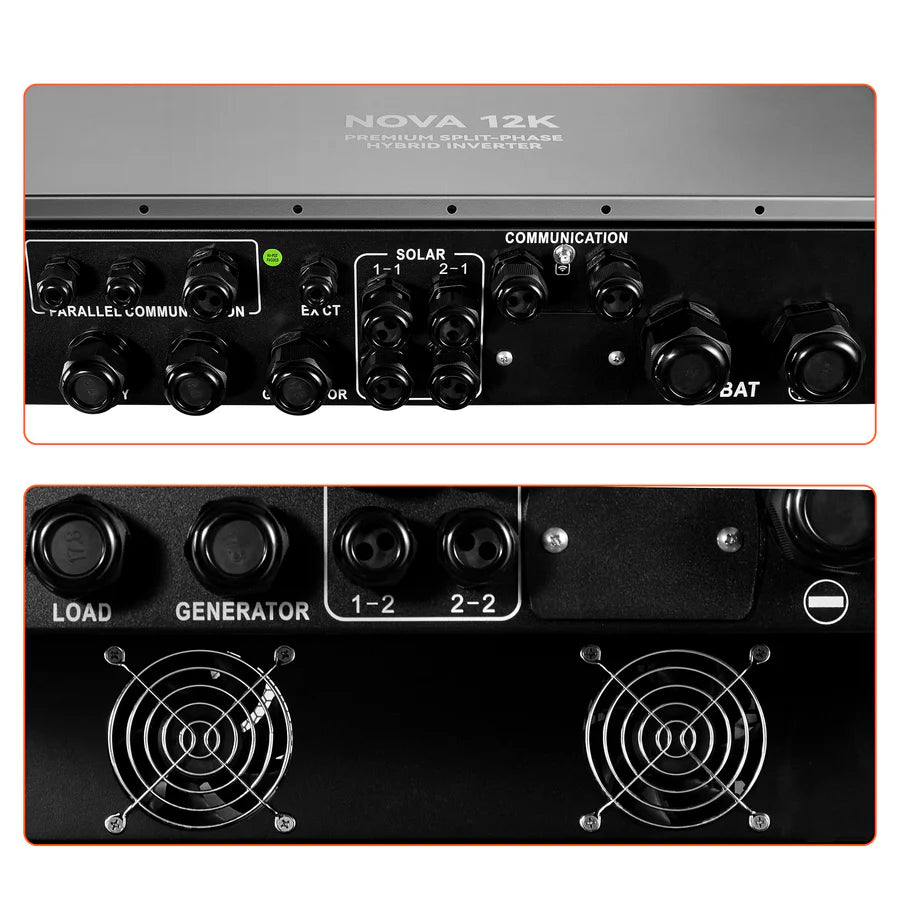

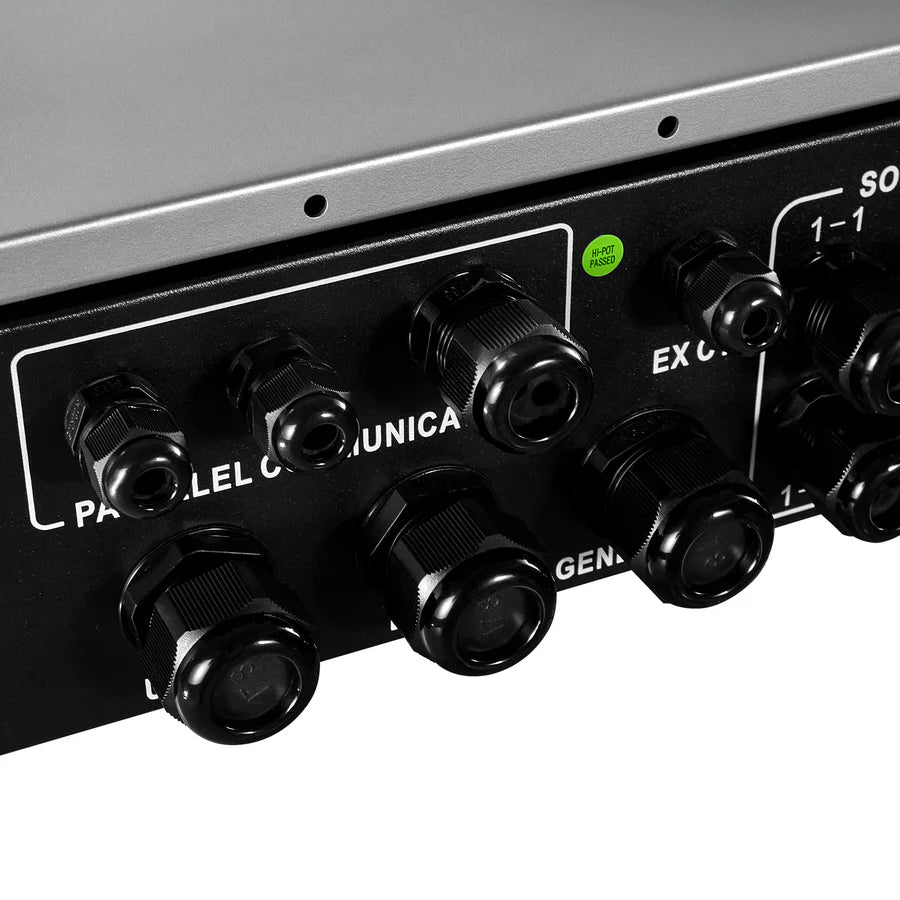

  • Door-type cable compartment.
  • Built-in 300A DC breaker and 60A AC breaker.
  • Built-in AC coupled function.
  • Built-in Wi-Fi for mobile monitoring (APP is available).
  • Accepts second input power source, generator input compatible.
  • Built-in arc fault detection (AFD) and rapid shutdown (RSD).
  • External CT sensor to guarantee 100% self-consumption.
  • Built-in communication port for BMS (RS485).
  • User-adjustable charging current and voltage.
  • Parallel operation up to 6 units.

Specifications:

Brand
Rich Solar
Model
RS-H12K
Parallel Capability
6 units
Input
  • Maximum PV input Power: 12000W
  • Maximum DC Voltage: 600VDC
  • Start-up Voltage/initial Feeding Voltage: 125VDC/160VDC
  • MPP Voltage Range: 120VDC-550VDC
  • Number of MPPT Trackers/Maximum Input Current: 2/18A
Output
  • Rated Output Power: 10000VA/10000W
  • Nominal Output Voltage: 120VAC(P-N)/208VAC(P-P)/240VAC(P-P)
  • Output Voltage Range: 105.5-132VAC per phase
  • Nominal Output Current: 41.5A per phase
Battery
  • Battery DC Voltage Range: 40-62VDC / 48VDC
  • Maximum Solar Charging Current: 200A
  • Maximum AC Charging Current: 200A
  • Maximum Charging Current: 200A
Operating Environment
  • Operating Temperature Range: -25°C to 60°C(>45°C derating)
  • Protection Degree: IP 65
  • Communication Port: RS232, RS485, WI-FI, USB
Physical
  • Dimension (DxWxH): 8.5x20.3x28.1in / 215.5x515x715mm
  • Net Weight: 99.2lb / 45kg
Certificates
UL 1741SA, UL 1741SB, CSA 22.2.107.1, CEC
