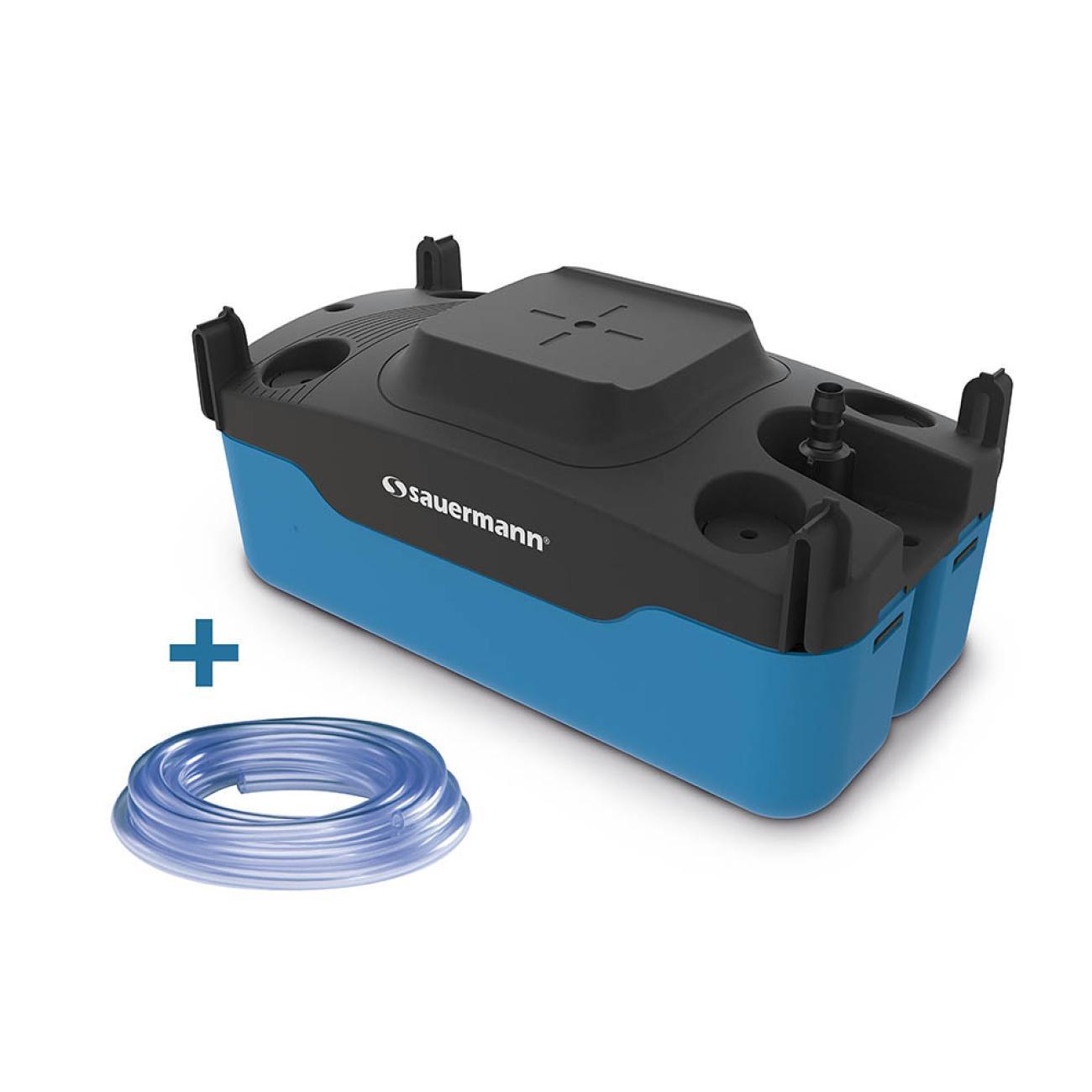

Sauermann Si-83 Centrifugal Condensate Removal Pump with Tubing - 120V
Sauermann engineers have redesigned the tank pump from the inside-out, making the Si-83 more compact than any other tank pump in its class, all while redefining just how easy tank pump installation and maintenance can be in the field. The Si-83 even comes with a customized Smartphone App that makes installation both simple and intuitive.
The Si-83 is constructed from rugged materials and components for exceptional durability and reliability. The Si-83 tank pump from Sauermann is perfect for residential A/C (up to 20 kW / 60,000 BTU) and heating units (73 kW / 250,000 BTU).
Features:
- Exceptional Durability and Reliability
- Quick & Easy Installation in any place
- Quick & Easy Maintenance
- Regular Duty
What's Included:
- 1 One-piece centrifugal pump with ½ gallon (2 l) tank
- 1 Integrated barb end check valve, Ø ext. 3/8” (10 mm)
- 1 6’ (1.8 m) power cord, US plug
- 1 Built-in safety switch, 3’ (1 m) wires, bare ends
- 1 Roll of tubing 20’ (6 m), int. Ø 3/8”
- 1 Adaptor int. Ø 5/8”- 3/4”- 1” - 1 1/4”- 1 1/2” (15/17 mm - 20 mm - 24/25 mm - 32 mm - 40 mm)
- 2 screws, 2 plugs
Specifications:
| Brand | Sauermann |
| Model | SI83UL03UN12 |
| Max discharge head |
21 ft |
| Mains supply |
120 V~ 60 Hz - 84 W - 1.7 A (SI83UL03UN12). 230 V~ 60 Hz - 110 W - 1.25 A (SI83UL03UN23) |
|
Operation conditions
|
7%: 16s ON - 212s OFF |
| Max condensate temperature |
130 °F |
| Max condensate acidity |
pH > 2.5 (Gas condensing boilers) |
| Color | Black, blue |
| Tank volume |
0.5 ft³ |
| Weight | 5 5/16 pounds |
| Safety switch |
NC 5A - 42 V peak |
| Pump Dimensions (L x W x H) |
Pump: 11-5/16 x 5-3/4 x 5-15/16 inches Packaging: 12-3/8 x 5-15/16 inches x 8-15/16 inches |
| Sound Levels - at 3,3ft or 1m in application (dBA) |
≤ 45 dBA |
| Safety Standards | UL/CSA by Intertek |
| Resources | |
| Compliance |
