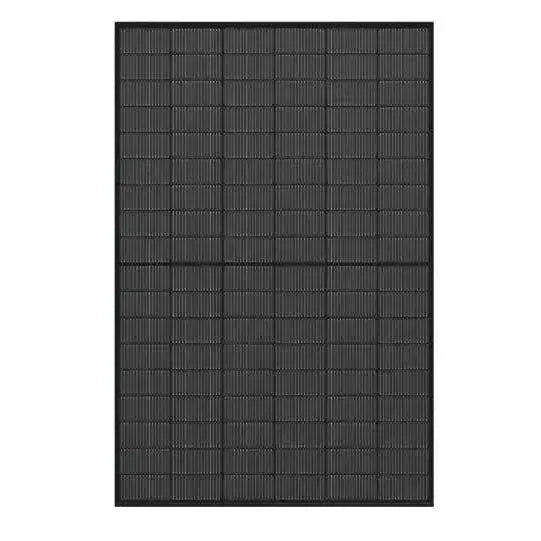

SolarSpace 405W (Pallet of 36) Lumina I All Black Mono PERC Solar Panel SS8-54HSB-405M
The SS8-54HSB-405M is a 405 W, all-black 108 half-cell module built on high-efficiency mono PERC technology (p-type). With 20.74% module efficiency, 1,500 V DC system rating, and a compact 1722 × 1134 mm footprint, it’s tailored for premium residential and C&I rooftops.
Key Benefits
High Power in Compact Size: 405 W STC with 20.74% module efficiency for tighter rooftops.
All-Black Aesthetics: Black frame and uniform face for clean curb appeal.
Reliable Performance: Gallium-doped wafers reduce degradation; robust testing for harsh environments.
Special Technology
Half-Cell + MBB: 108 (6×18) mono PERC half-cells with multi-busbar and high-density encapsulation boost output and shade tolerance.
Warranty
25-Year Product Warranty · 25-Year Linear Power Warranty (≤2% first year; ≤0.55%/yr thereafter).
Best Uses
Residential & Light C&I Rooftops: Where high power, sleek appearance, and long-life reliability are required.
Specifications Table
| Specification | Data |
|---|---|
| Model | SS8-54HSB-405M (All Black) |
| Cell Type | Monocrystalline p-type PERC, half-cell |
| Cell / Layout | 108 half-cells (6 × 18) |
| Rated Power (STC) | 405 W |
| Module Efficiency | 20.74% |
| STC Electrical | Voc 37.23 V · Vmp 31.21 V · Isc 13.87 A · Imp 12.98 A |
| NMOT Electrical | Pmax 306 W · Voc 35.12 V · Vmp 29.49 V · Isc 11.10 A · Imp 10.38 A |
| Power Tolerance | 0 ~ +3% |
| Max System Voltage | 1500 V DC (UL) |
| Max Series Fuse | 25 A |
| Mechanical Dimensions | 67.8 × 44.6 × 1.2 in |
| Weight | 46.3 lb |
| Front Glass | Single glass, 3.2 mm AR-coated tempered |
| Frame | Black, anodized aluminum alloy |
| Junction Box / Diodes | IP68 / 3 diodes |
| Connectors / Cables | MC4-EVO2 or MC4-compatible; 4 mm² (IEC) / 12 AWG (UL); 300 mm leads (std, customizable) |
| Operating Temperature | −40°C to +85°C |
| Mechanical Loads | Front 5400 Pa · Rear 2400 Pa |
| Temperature Coefficients | Isc +0.045%/°C · Voc −0.265%/°C · Pmax −0.335%/°C |
| NMOT | 45 ± 2°C |
| Certifications | UL 61215 / UL 61730; IEC 61215 / 61730; IEC 61701 (salt mist); IEC 62716 (ammonia); IEC 60068 (dust & sand); ISO 9001/14001/45001 |
| Packing | 36 pcs/pallet; 828 pcs/40′ container |
About SolarSpace:
SolarSpace is a leading Chinese solar cell and module manufacturer founded in 2010/2011. It operates six factories across China, Cambodia, Laos and achieved ~60 GW annual cell capacity and ~10 GW module capacity. Specializing in high-efficiency technologies like PERC, N-Type, TOPCon, HJT and bifacial modules, it ranks among top global Tier 1 PV suppliers.
FAQs
Q: What is the power output of the SolarSpace SS8-54HSB-405M panel?
The SolarSpace SS8-54HSB-405M panel delivers a maximum output of 405 watts, offering high efficiency and excellent performance in a compact 54-cell format.
Q: Are SolarSpace panels suitable for areas with low sunlight?
Yes, SolarSpace panels utilize advanced PERC monocrystalline technology, allowing them to perform well in low-light conditions such as mornings, evenings, and cloudy environments.
Q: What kind of warranty does SolarSpace offer for the SS8-54HSB-405M panel?
SolarSpace provides a 25-year product warranty and a 25-year linear power output warranty, ensuring consistent performance and long-term peace of mind.
Q: Are these panels compatible with different mounting systems?
Yes, the SS8-54HSB-405M panel supports a variety of industry-standard mounting systems, making it suitable for rooftop, ground-mount, or commercial racking solutions.
Q: How durable are SolarSpace panels in harsh weather conditions?
Designed for durability, these panels can withstand 5400 Pa front load (snow) and 2400 Pa rear load (wind), and feature tempered glass with anti-reflective coating for enhanced protection and efficiency.
Q: Can SolarSpace panels help me save on energy costs?
Absolutely. With 405W of output and high module efficiency, SolarSpace panels can help lower your electricity bills and speed up your return on investment.
Q: How many panels do I need for my home?
For a household using around 10,000 kWh per year, you would need approximately 25 to 28 SolarSpace SS8-54HSB-405M panels. A certified installer can provide a more accurate estimate based on your specific energy needs and available space.
Q: How many panels are in each pallet?
Each pallet contains 36 SolarSpace SS8-54HSB-405M panels, ideal for residential and small commercial installations.
