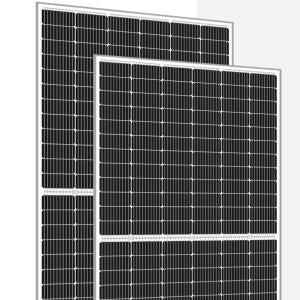

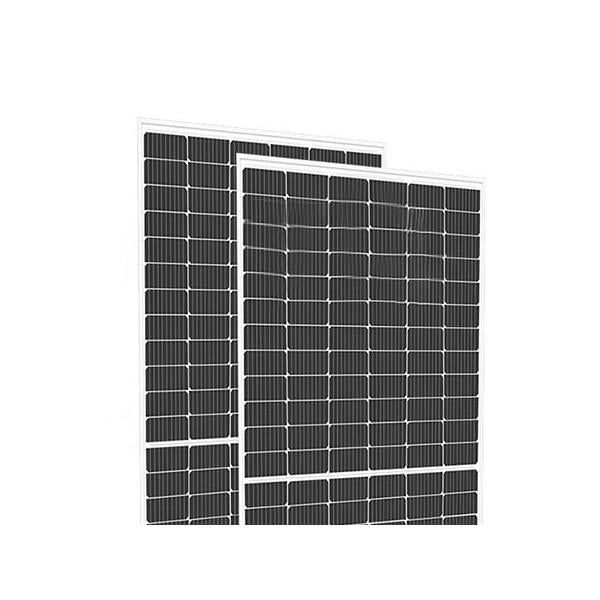

SolarSpace 545W SS8-72HD Bifacial Dual Glass 144 Cells
Special Features
- High Power Output: Delivers up to 455W with 21.48% module efficiency.
- Bifacial Technology: Generates up to 25% additional energy from the rear side.
- Durability: Designed to withstand front loads of 5400 Pa and rear loads of 2400 Pa.
- Long-Term Performance: Backed by a 12-year product warranty and a 30-year linear power warranty with only 0.45% annual degradation.
Technology Overview
The Lumina 1 SS8-72HD-M utilizes mono PERC (M10) cells with half-cell and multi-busbar (MBB) technology, ensuring high energy output, better shading tolerance, and lower power degradation. Its dual-glass construction increases reliability and long-term performance.
Installation
The module is designed for ease of installation, compatible with standard mounting systems, and includes MC4 connectors. It’s ideal for both utility-scale and commercial solar projects.
Installation Tips
- Ensure proper spacing for optimal bifacial energy gains.
- Use MC4 or MC4-EVO2 connectors for secure connections.
Applications
- Utility-scale solar farms
- Commercial rooftop installations
- Ground-mounted solar arrays
Product Specifications
| Specification | Details |
|---|---|
| Power Range | 545W |
| Module Efficiency | Up to 21.48% |
| Cell Type | Mono PERC (M10), 144 half-cut cells |
| Dimensions | 44.65 x 89.69 x 1.18 in |
| Weight | 71 lbs |
| Open Circuit Voltage (Voc) | 49.44V - 50.03V |
| Short Circuit Current (Isc) | 13.78A - 14.07A |
| Maximum System Voltage | 1500V DC |
| Front/Back Load | 5400 Pa / 2400 Pa |
| Bifacial Gain | Up to 25% |
| Warranty | 12 years product |
FAQs
Q: What is the power output of the SolarSpace SS8-72HD panel?
The SolarSpace SS8-72HD panel delivers 545 watts of power, making it a high-performance choice for residential, commercial, and utility-scale solar applications.
Q: Are SolarSpace SS8-72HD panels suitable for areas with low sunlight?
Yes, the SS8-72HD panels are designed for optimal performance in low-light conditions, including overcast skies, hazy weather, and during early morning or late afternoon hours.
Q: What kind of warranty does SolarSpace offer for the SS8-72HD panel?
SolarSpace provides a 12-year product warranty and a 30-year linear power output warranty, ensuring dependable performance and durability over the panel’s lifetime.
Q: Are these panels compatible with different mounting systems?
Yes, SolarSpace SS8-72HD panels are compatible with a variety of standard mounting systems, suitable for both roof-mounted and ground-mounted installations.
Q: How durable are SolarSpace SS8-72HD panels in harsh weather conditions?
The SS8-72HD panels are engineered to withstand extreme weather, including heavy snow, strong winds, and high temperatures. Their bifacial dual-glass construction adds strength and enhances energy production, even in challenging conditions.
Q: Can SolarSpace SS8-72HD panels help me save on energy costs?
Absolutely! The high efficiency and bifacial technology of the SS8-72HD panels enable increased energy generation, reducing energy costs and shortening the return on investment for your solar system.
Q: How many panels do I need for my home?
The number of panels required depends on your energy usage and available space. For a household or business consuming around 10,000 kWh/year, you would need approximately 18 to 19 SolarSpace SS8-72HD panels. Consult a certified installer for a precise estimate.
Q: How many panels are in each pallet?
Each pallet includes 31 SolarSpace SS8-72HD panels, providing an efficient solution for larger-scale projects.
Q: Can I order less than a full pallet?
Contact US Solar Supplier for details on ordering individual panels or smaller quantities.
