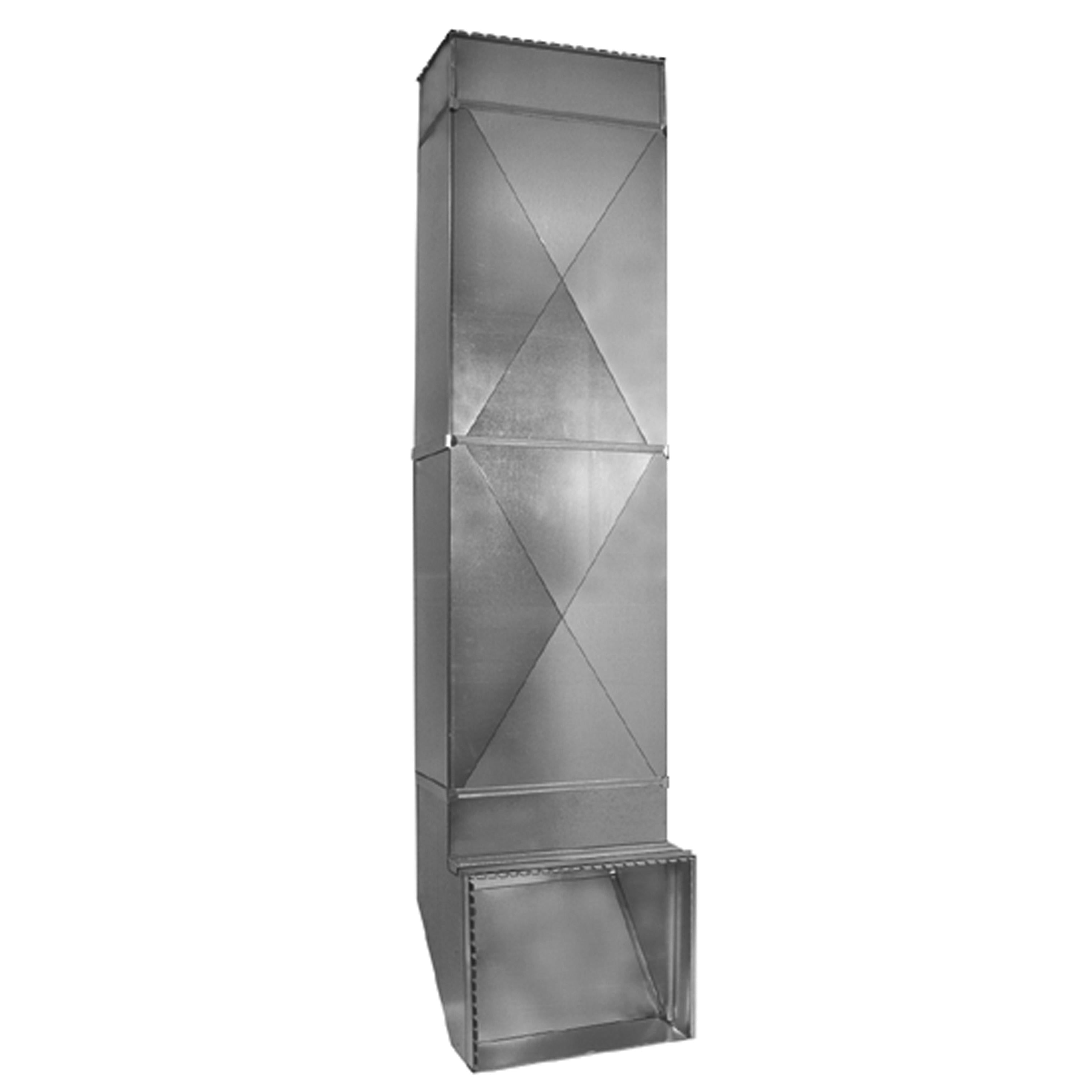

Southwark Metal Manufacturing Return Air Package - 25 in x 10 to 25 in x 16 in Duct
The Southwark Metal Manufacturing Return Air Package features the return air plenum with 1" filter rack and ships knocked down in one carton. The package includes a starting collar, 2 30" duct sections, return air plenum, and 1" filter rack. The filter rack is located right above the return's elbow. The return duct size is 25" x 10".
Features:
- Material: Hot Dipped Galvanized Steel per ASTM A653 CS Type B
- Includes starting collar (#20), two 30” duct sections, one return air boot, and six 10” drive straps
- Ships knocked down in one carton
- S-cleats attached
- Starting collar height 2½” (811EC extended collar version 6½”)
- 86” overall height when assembled (90” for #811EC)
- Duct dimensions 25x10; Return air opening 25x16
- Uses 16x25 1” filters
Specifications:
| Brand | Southwark Metal Manufacturing |
| Model | 811 |
| Weight (in lbs) | 43.000000 |
| Additional Information | Uses 16" x 25" x 1" filters (not included) |
| Material | 26 Gauge Galvanized Steel |
| Height | 86" |
| Width | Duct: 25" Filter: 25" |
| Depth | Duct: 10" Filter: 16" |
| Resources | Submittal Sheet |
| Proposition 65 Warning | Yes |
