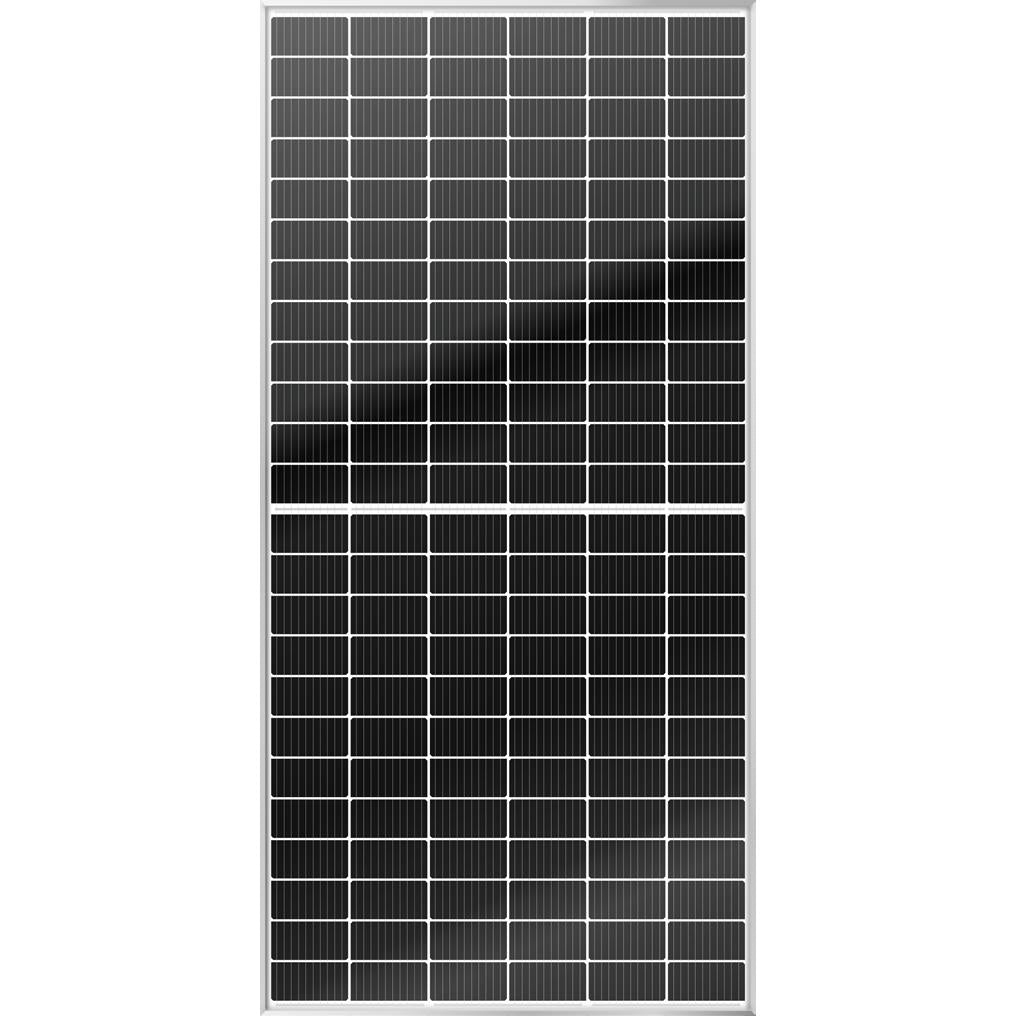

Thornova 550W (Pallet of 31) Zosma M Pro Bifacial PERC Dual Glass Solar Panel TS-BG72
The Thornova TS-BG72(550) is a 550 W bifacial, dual-glass mono PERC module built on a 144 half-cell (2×72) platform. With 21.3% module efficiency, 1,500 V DC system rating, robust 2.0/2.0 mm glass construction, and bifaciality of 70% ±5%, it’s optimized for long life, high energy yield, and low LCOE on C&I rooftops and ground mounts.
Key Benefits
High Output & Efficiency: 550 W STC at 21.3% efficiency for dense layouts.
Bifacial Gain: Rear-side harvest can add up to ~25% more energy in reflective sites.
Durable Dual-Glass: 2.0 mm AR front + 2.0 mm heat-strengthened rear glass for weathering and PID resistance.
Low Temperature Losses: Pmax temp coeff −0.33%/°C improves hot-weather performance.
Reliability: Triple EL testing, IP68 junction box, 5400 Pa wind / 2400 Pa snow load ratings.
Special Technology
PERC Mono Half-Cells: 144 half-cells enhance shade tolerance and current collection.
Bifacial Dual-Glass Stack: 70% ±5% bifaciality with AR-coated front glass. :
Warranty
15-Year Product Warranty · 30-Year Linear Power Warranty.
Best Uses
C&I Rooftops & Ground Mounts: Carports, flat roofs, ballast or fixed-tilt arrays seeking low LCOE and long service life.
Specifications Table
| Specification | Data |
|---|---|
| Model | TS-BG72(550) |
| Cell / Layout | PERC Monocrystalline · 144 half-cells (2×72) |
| Rated Power (STC) | 550 W |
| Module Efficiency | 21.3% |
| Open-Circuit Voltage (Voc) | 49.60 V |
| Short-Circuit Current (Isc) | 14.04 A |
| Voltage at Pmax (Vmp) | 40.83 V |
| Current at Pmax (Imp) | 13.48 A |
| Power Tolerance | 0 to +5 W |
| Maximum System Voltage | 1500 V DC |
| Max Series Fuse | 30 A |
| Bifaciality | 70% ±5% |
| Operating Temperature | −40 to +85 °C |
| NOCT | 45 ± 2 °C |
| Temperature Coefficients | Pmax −0.33%/°K · Voc −0.26%/°K · Isc +0.06%/°K |
| Dimensions (L × W × H) | 89.69 × 44.65 × 1.38 in |
| Weight | 68.78 lb |
| Front / Rear Glass | 2.0 mm AR-coated / 2.0 mm heat-strengthened glass |
| Frame | Anodized aluminum alloy |
| Junction Box | IP68 |
| Connector | MC4 Compatible |
| Cables | 4.0 mm²; 300 mm / 1200 mm (customizable) |
| Mechanical Loads | Front 5400 Pa · Rear 2400 Pa · Hail 35 mm |
| Packing | 31 pcs/pallet · 558 pcs/40′HQ |
| Warranty | 15-Year Product · 30-Year Linear Power |
| Resources | Data Sheet |
About Thornova:
Thornova Solar, founded in the US in 2022 under Yungeng Solar Group, designs and manufactures high‑efficiency photovoltaic modules (400–720 Wp; PERC, bifacial, TOPCon, N‑type). It has a 2.5 GW production facility in Vietnam and global sales offices.
FAQs
Q: What is the power output of the Thornova 550W TS-BG72 panel?
The Thornova TS-BG72 delivers 550 watts of power, making it a high-efficiency choice for large residential, commercial, and utility-scale installations.
Q: Are Thornova panels suitable for areas with low sunlight?
Yes, Thornova panels are engineered to perform efficiently even in low-light conditions such as hazy or cloudy skies and during early mornings or late afternoons.
Q: What kind of warranty does Thornova offer for the TS-BG72 panel?
Thornova provides a 15-year product warranty and a 30-year linear power output warranty, ensuring reliable long-term performance.
Q: Are these panels compatible with different mounting systems?
Yes, Thornova panels are designed to be compatible with a wide variety of standard mounting systems, making installation straightforward for both rooftop and ground-mount applications.
Q: How durable are Thornova panels in harsh weather conditions?
The TS-BG72 panels are built to withstand extreme weather, including heavy snow loads, high winds, and intense heat. Their durable glass and frame design provide both strength and longevity.
Q: Can Thornova panels help me save on energy costs?
Absolutely! With their high efficiency and large power output, Thornova 550W panels allow you to generate more electricity per square foot, lowering your energy bills and reducing the payback period on your solar investment.
Q: How many panels do I need for my home?
This depends on your energy usage and available space. As a general guide, a household or business consuming about 10,000 kWh/year would need around 18–20 Thornova 550W panels. For an accurate estimate, consult a certified installer.
Q: How many panels are in each pallet?
Each pallet contains 31 Thornova 550W TS-BG72 panels, making bulk purchases convenient for larger projects.
