Triple Split 36000 BTU 3-Ton Quantum Ultra Wi-Fi 22.5 SEER2 Energy-Star Multi (3) Zone Wall Mount Air Conditioner Heat Pump 230-Volt
Summary

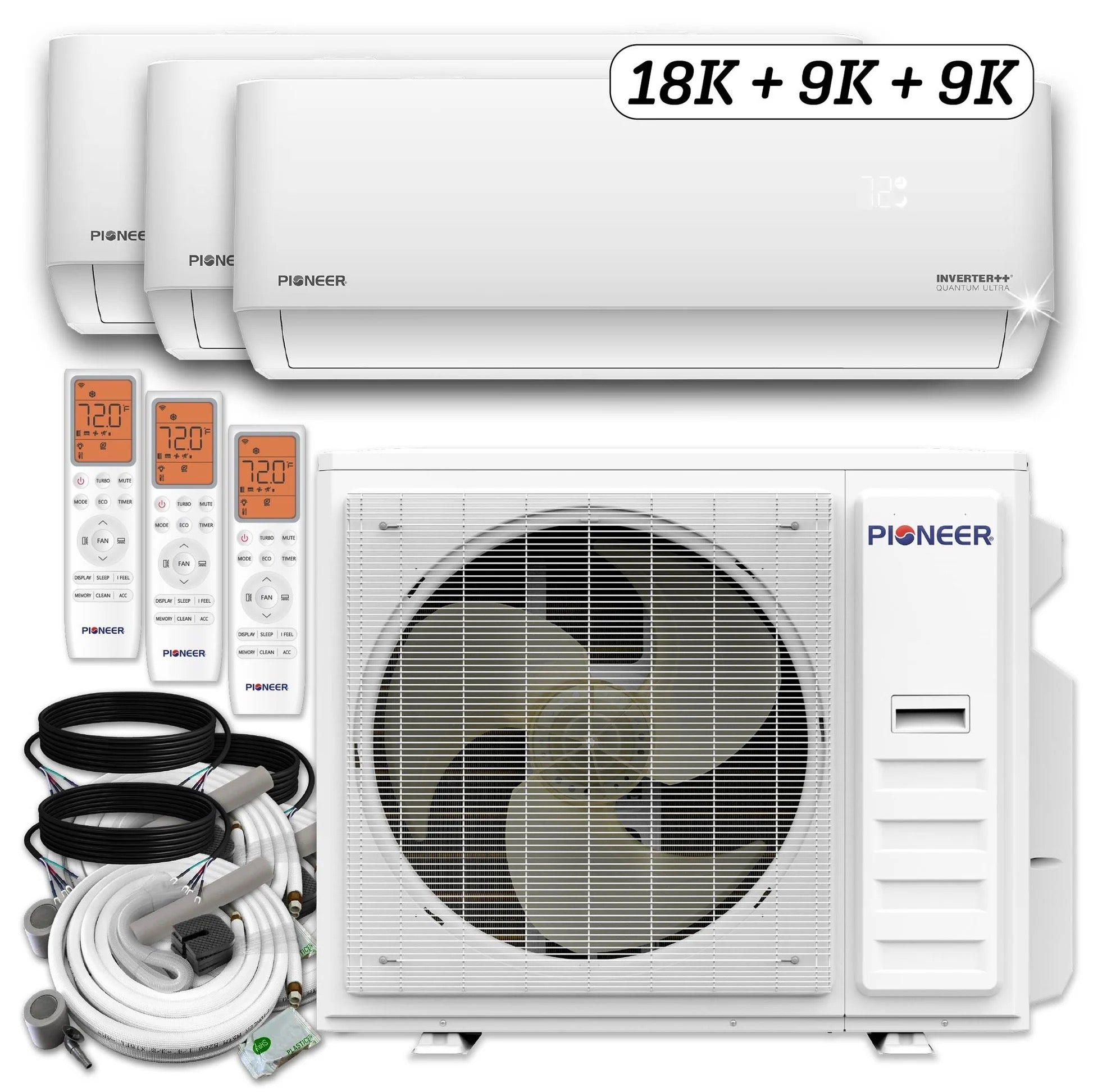

Pioneer brand multi split heat pump system, complete set. System components include: one multi zone outdoor unit, matching multiple wall mount indoor units, piping and accessory kits and remote controllers. Pioneer Quantum Ultra multi split systems are available in 5 versions; for 2, 3, 4, and 5 zones.
- Ultra-high efficiency inverter++ ductless multi split quad (4) circuit heat pump system (paired with 3x indoor units to function effectively as a stronger 3-zone system)
- (x1) inside unit cooling capacity: 18,000 BTU/H nominal capacity + (x2) inside unit cooling capacity: 9,000 BTU/H nominal capacity, condensing system 35,000 BTU/H (Range: 5,500 minimum - 41,000 maximum) with 22.5 SEER2/12.0 EER2 efficiency
- Heating capacity: 36,000 BTU/H nominal (range 5,500 minimum - 41,000 maximum) with 9.5 HSPF2/3.5 COP2 efficiency
- Voltage: 208 - 230-Volt, 60 hertz, 1 phase (standard household 2 line power, l1-l2-g)
- Energy-Star Certified and Wi-Fi Enabled

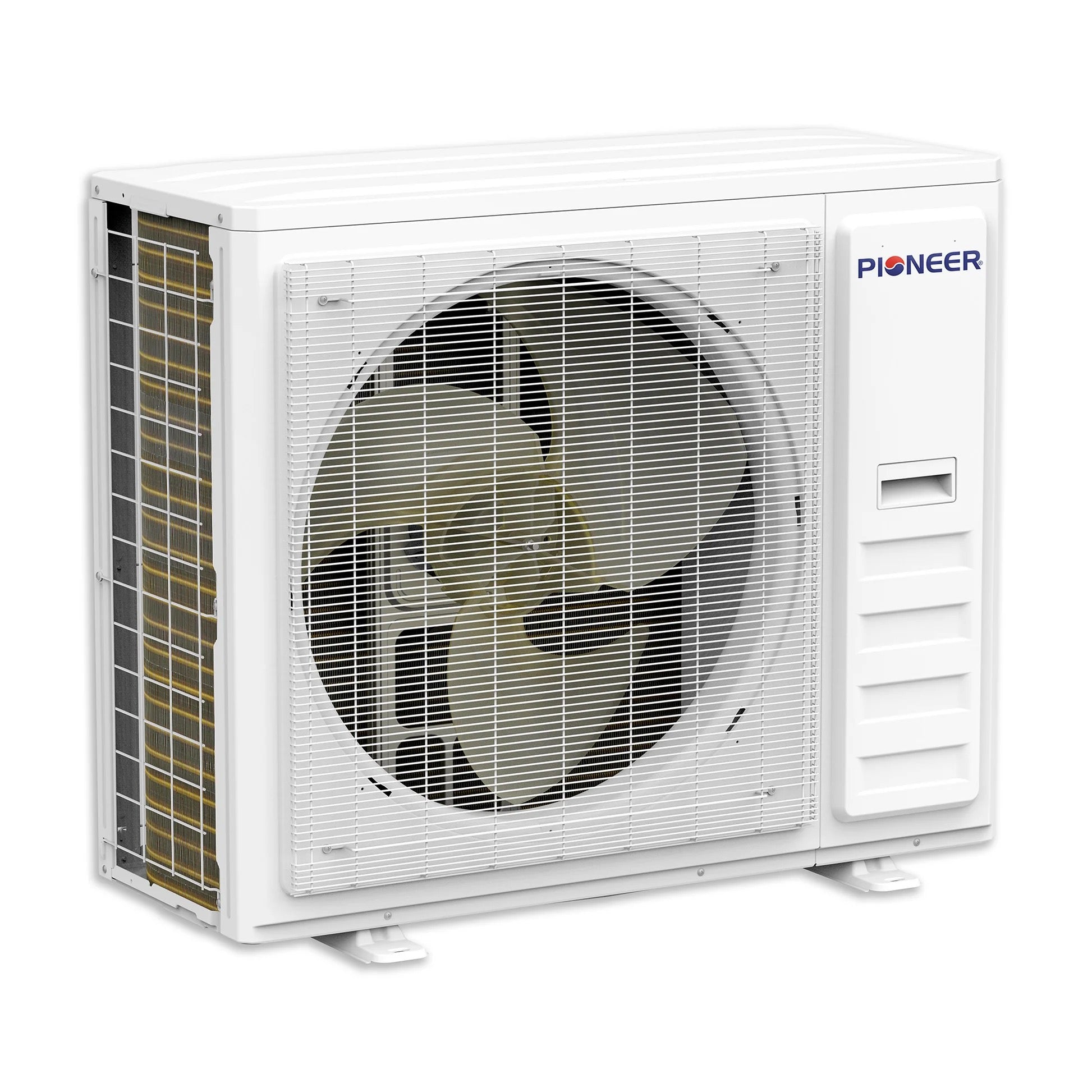

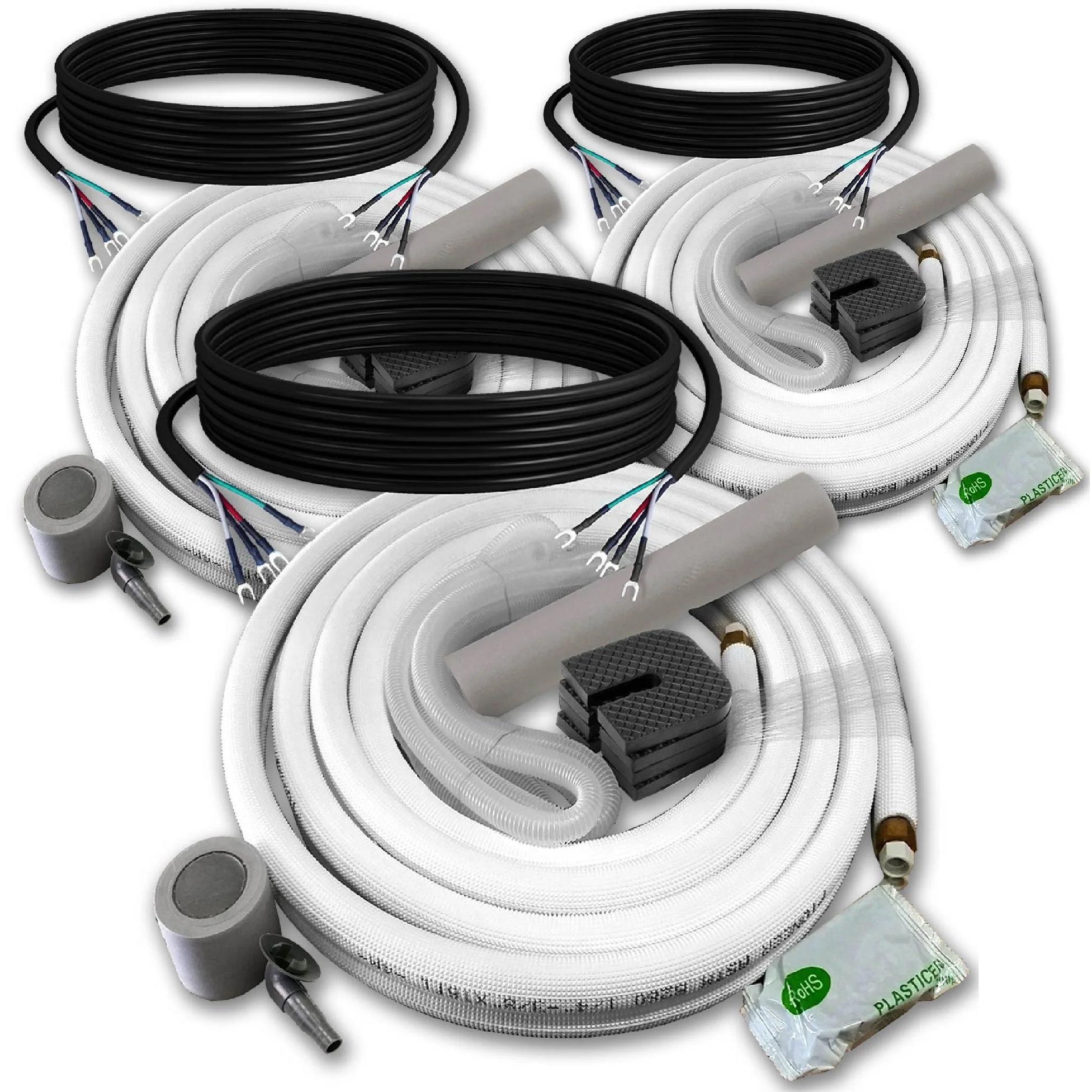

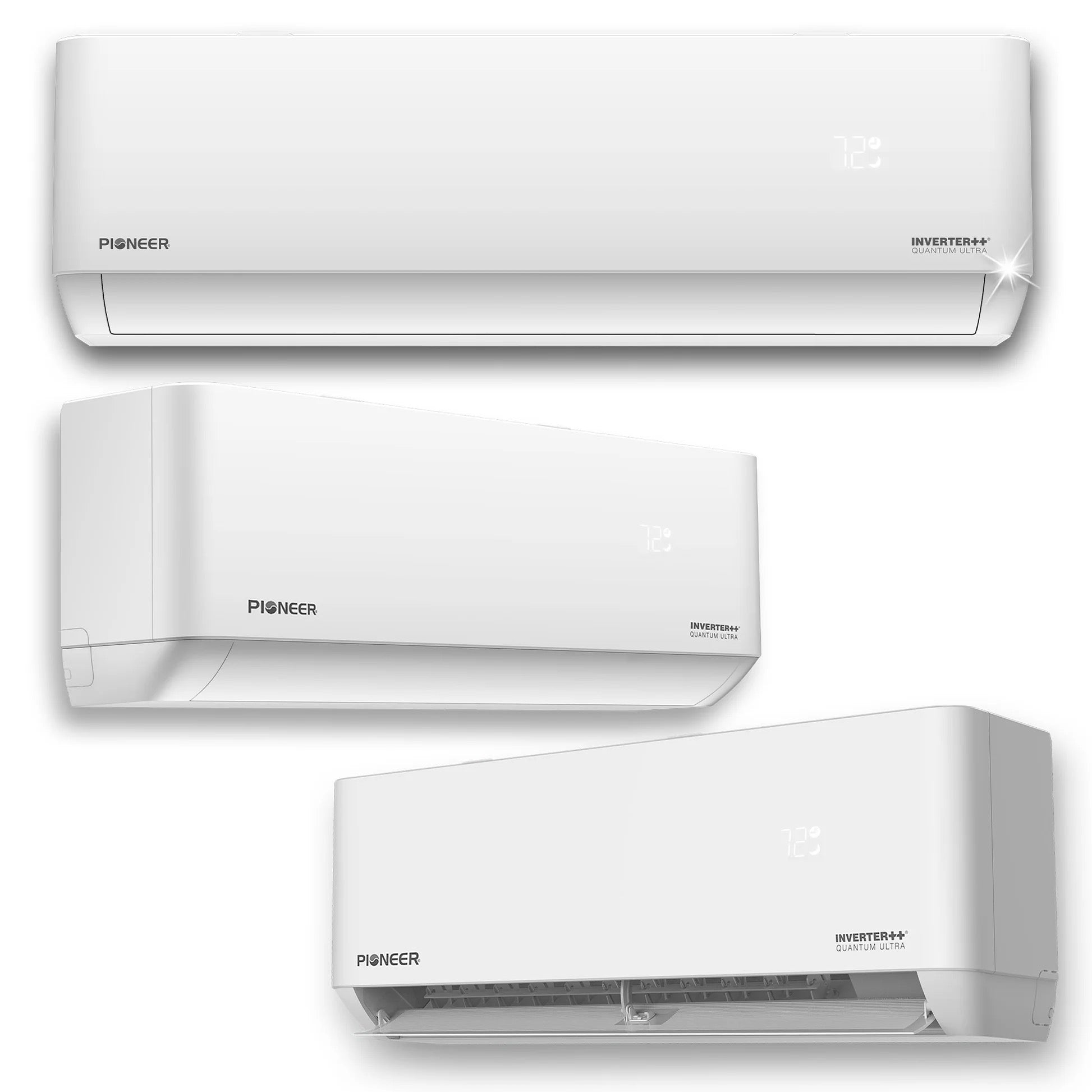

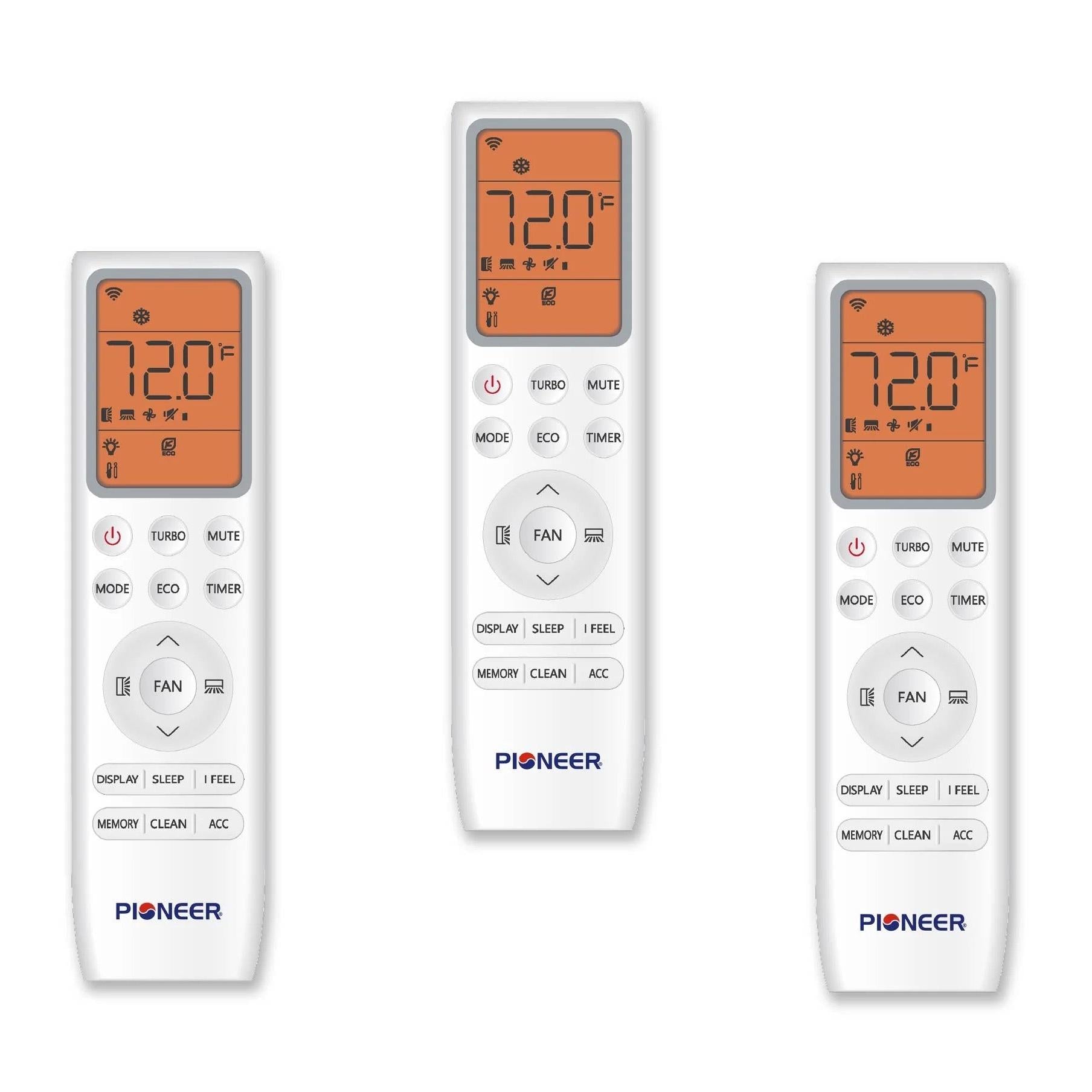

- Complete system set including: indoor (fan coil) section, outdoor (condenser) section, wireless remote controller with wi-fi, insulated flared line set with other installation accessories
- Unsurpassed support hotline covering installation, use, troubleshooting, warranty and parts issues
- Ultra low ambient system can heat with high capacity at -13°F ambient outdoor temperatures
- Pre-charged with eco-friendly R454-B refrigerant to support total combined attached lineset lengths up to 100 ft long
- Pioneer is the best choice for pros and homeowners with the highest ratings for consumer satisfaction
- Certified by: ETL, AHRI, DOE for safety, performance and efficiency
- Built with the latest technologies using pulse width modulation driven DC inverter compressor and variable speed DC inverter fan motors for high performance and low power consumption
System Manuals
- Technical Brochure
- Submittal Sheet
- Installation Manual (Multi-Split Addendum)
- Service Manual
- AHRI Certificate
- Energy Guide
