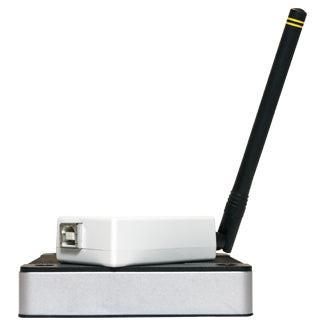

Verdant Online Connection Kit - ZX-OL-U
Verdant’s Online Connection Kit enables wireless mesh networking of up to 1,024 ZX or VX3 Series thermostats per device. Additional Online Connection Kits can be networked together for large properties, or where a property is comprised of multiple buildings spread over a large area.
The Online Connection Kit communicates with Verdant thermostats using Verdant’s proprietary 900MHz communication protocol, negating the need for WIFI. Data collected from each thermostat is uploaded to the cloud at five minute intervals, allowing for remote management of all Verdant thermostats from any internet-connected device.
The Online Connection Kit must be plugged into an internet port with a static IP address with DHCP active. The Online Connection Kit must be whitelisted using its MAC address with unrestricted internet access. Ports 80, 443, and 22 must be open to communication.
Features:
EFFORTLESS INSTALLATION
The Online Connection Kit installs in minutes. Simply connect the antenna module, ethernet cable and a power supply to the server and you are done.
INTERNET CONNECTION
The server connects to the internet through an open ethernet port in the property’s server room. Once connected to the internet, the server automatically starts communicating with Verdant’s online management portal using a secure internet connection.
WIRELESS NETWORK
The antenna module creates a wireless network in order to communicate with Verdant thermostats. The wireless mesh network allows thermostats to communicate with the server without the need for any additional networking equipment.
NETWORK PROGRAMMER
A Network programmer assigns a unique network ID to every Verdant thermostat at the property to ensure secure and reliable network communication. Every Verdant thermostat programmed with the network programmer automatically joins the wireless network for the property.
Gateway Specifications:
| Brand | Verdant |
| Model | ZX-OL-U |
| Wireless Frequency | N/A |
| Case Dimensions (Imperial) | 4.72” x 3.15” x 1.18” |
| Case Dimensions (Metric) | 120mm x 80mm x 30mm |
| Operating Voltage | 12VDC 1.5A |
| Temperature Accuracy | N/A |
| Enclosure Material | Extruded Aluminum |
| Ambient Operating Temp | 32°F -105°F | 0 - 41°C |
| Internet Connectivity | 100M/1000M Base-T Ethernet |
Root Node Specifications
| Brand | Verdant |
| Model | ZX-RN |
| Wireless Frequency | 902-928MHz (NA) |
| Case Dimensions (Imperial) | 2.4” x 1.54” x 0.78” |
| Case Dimensions (Metric) | 46mm x 61mm x 19mm |
| Operating Voltage | +5VDC (nom.) |
| Temperature Accuracy | ±1°F |
| Enclosure Material | ABS (AF312C(LG CHEM)) |
| Ambient Operating Temp | 32°F -105°F | 0 - 41°C |
| Internet Connectivity | N/A |
| FCC ID | XEY-ZX-RN |
| IC | 8410A-ZXRN |
Product Information and Guides:
