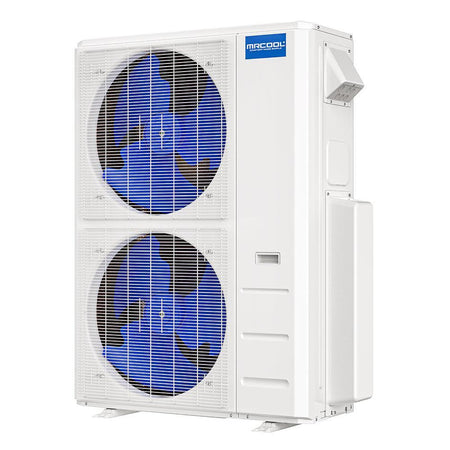

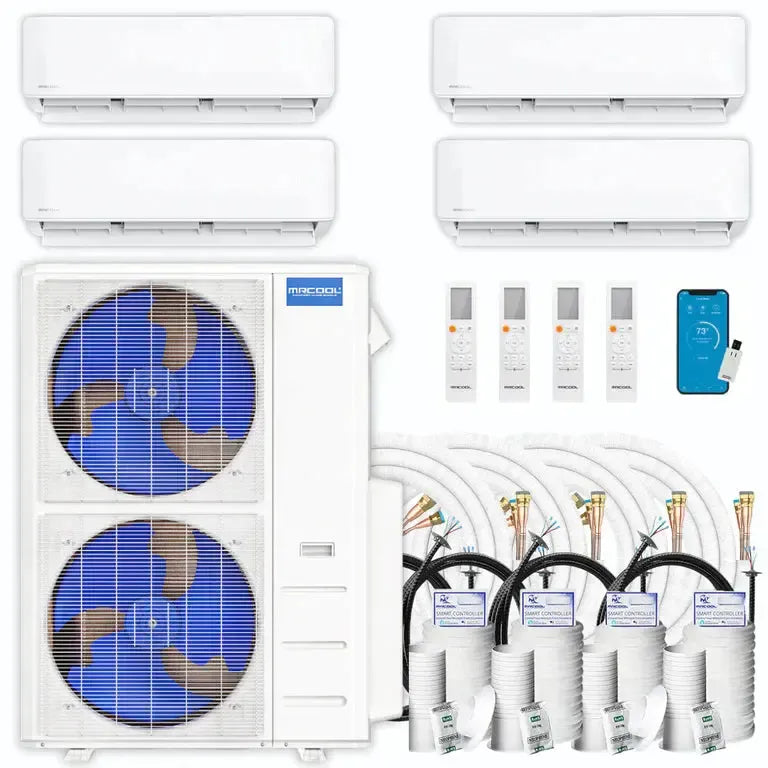

The MRCOOL® DIY Mini Split 45,000 BTU 20.5 SEER 4 Zone Ductless Air Conditioner and Heat Pump 9K + 12K + 12K + 12K offers a complete solution to your home’s heating and cooling needs. This system can heat & cool three different areas up to 600 square feet with the 12K air handlers, and one area up to 450 square feet with the 9k air handler, all while capable of an Energy Star-certified, 20.5 SEER high-efficiency rating. However, the best feature of this system is the ease of installation it provides to the homeowner. With the included pre-charged line sets, some hand tools, and a few hours of time this entire system can be completely installed. This system comes equipped with many functions that separate it from the rest. It has multiple operating modes, which include AUTO, HEAT, COOL, FAN-ONLY, DRY (dehumidification) and SLEEP. It also features the Follow Me function, which allows the system to continually adjust the room temperature based on where the hand-held remote controller is. Need to operate the system when you’re not at home? No problem. The MCOOL® system also has the capability of being operated with your smartphone with the use of the Smart HVAC app. MCOOL® stands behind the quality and workmanship of this system by being the only manufacturer to offer a limited lifetime compressor warranty.

Introducing the latest in home comfort solutions with the new 4th Generation MRCOOL® DIY 48K BTU Ductless Heat Pump Condenser that can support up to 5 zones. When paired with select MrCool air handlers, it has the ability to achieve a SEER efficiency rating of up to 20.5. This condenser also has the capability to continue to deliver heating performance when temperatures reach -5°F. It has also been constructed to hold up against the weather and resist corrosion with its durable Gold Fin Condenser coating. MrCool also offers this condenser with a limited lifetime compressor warranty for additional peace of mind. Even with all of these features and performance, this Do-It-Yourself condenser still has the ability to be installed by a homeowner without needing a certified technician. It is designed to be installed using MrCool’s patented Pre-Charged Quick Connect Line Sets. These line sets come pre-charged with R-410A refrigerant and can be connected by using simple hand tools. So, no vacuuming of the system is required once installed. Let the MrCool 4th Generation DIY 48K BTU 5 Zone Ductless Heat Pump Condenser be the answer to your multi-zone heating and cooling home comfort.

As part of a MRCOOL® DIY system, the MRCOOL® DIY 9K BTU Ductless Wall Mounted Air Handler is one of the most efficient air handlers available. Not only can it produce a 22 SEER efficiency rating it can also cover an area up to 450 sq. ft. It is also incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate. To take the simplicity of the installation even further, this air handler is designed to be used with MrCool’s patented Pre-Charged Quick Connect Line Set. The line set is equipped with quick connectors which give a DIY installer the ability to connect the refrigerant piping with wrenches. The line set comes from the factory pre-charged with the correct amount of R-410A refrigerant, so no vacuuming is necessary. Let the MrCool 4th Generation 9K BTU Ductless Wall Mounted Air Handler all of the heating and cooling necessities of your home.

The MRCOOL® 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler is an essential component of a MRCOOL® DIY system. When paired with a MrCool Condenser, it is capable of achieving a 22 SEER efficiency rating and has the ability to heat and cool an area of up to 600 sq ft. It features multiple modes of operation such as COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP so it is sure to suit your needs. It can also be conveniently operated from anywhere using your Apple or Android smartphone with the Smart HVAC app. This air handler can be easily mounted with the included and easy-to-use wall mounting plate. It is also very compact, especially when compared to the components of a traditional ducted system, so it can be easily maneuvered into place. It was also designed to be used with MrCool’s patented Pre-Charged Quick Connect Line Set. So, installing the refrigerant piping is as simple as turning a few wrenches. Since the line set comes pre-charged with the precise amount of R-410A refrigerant, no vacuuming or charging is required once connected. Select the MrCool 4th Generation DIY 12K BTU Ductless Wall Mounted Air Handler to be your home comfort solution.

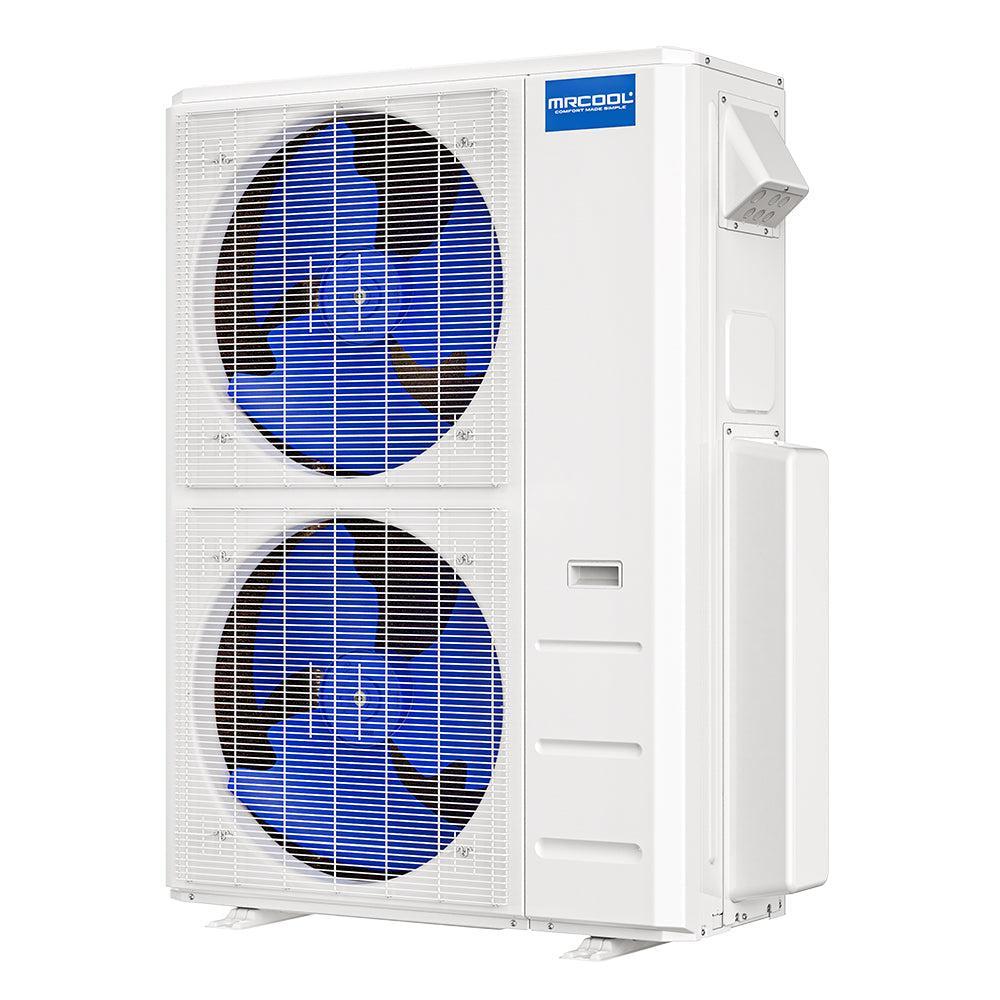

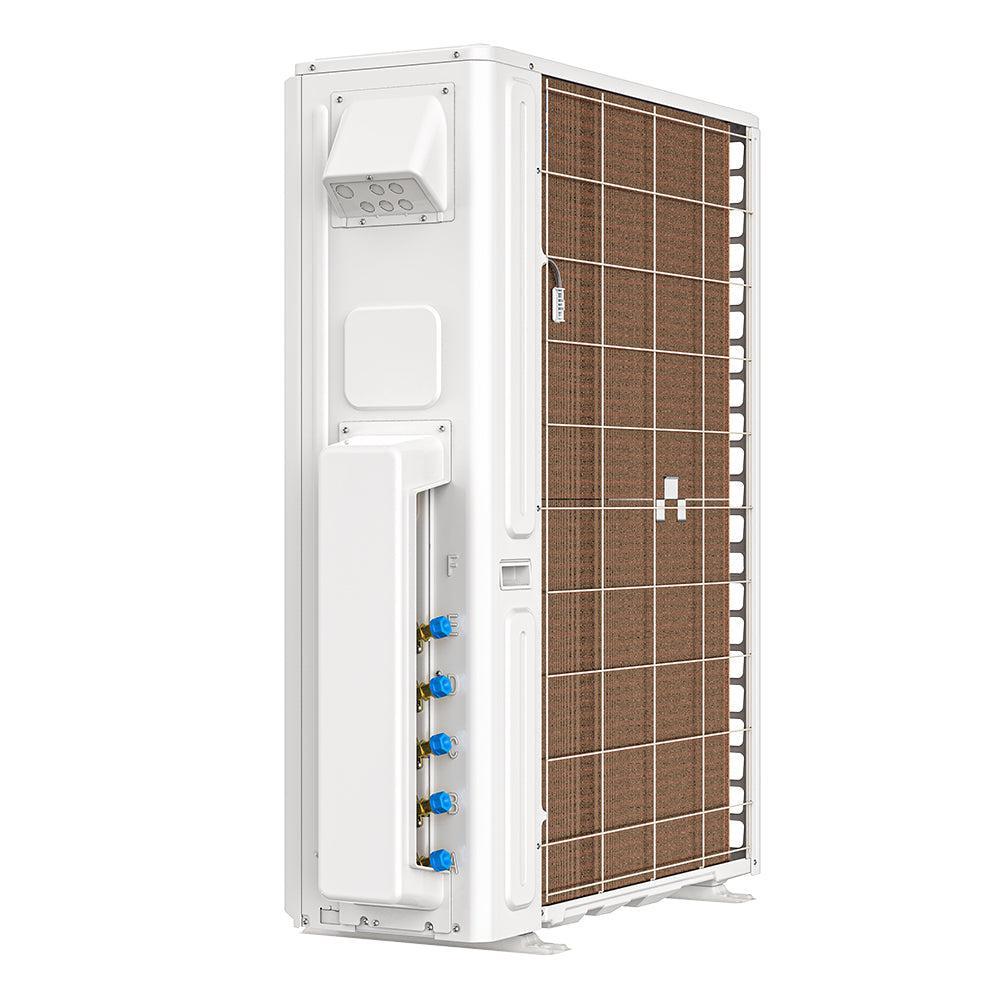

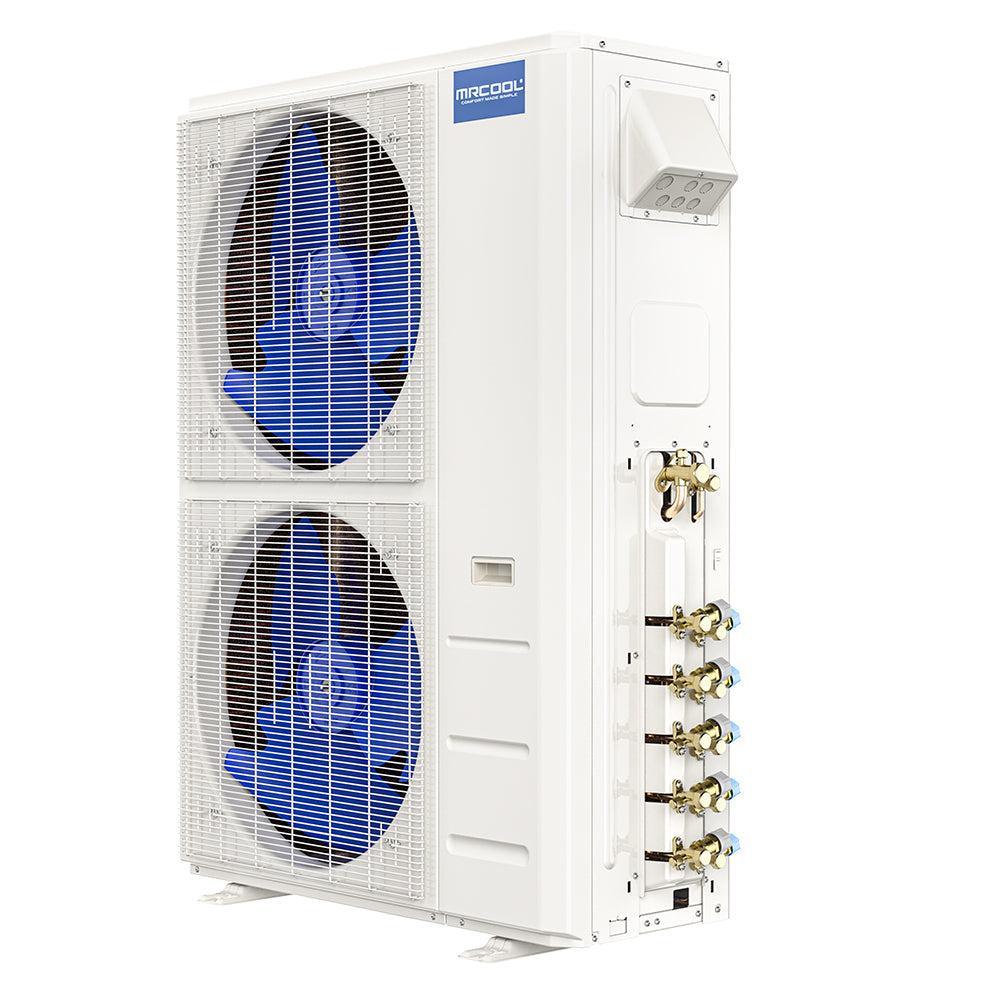

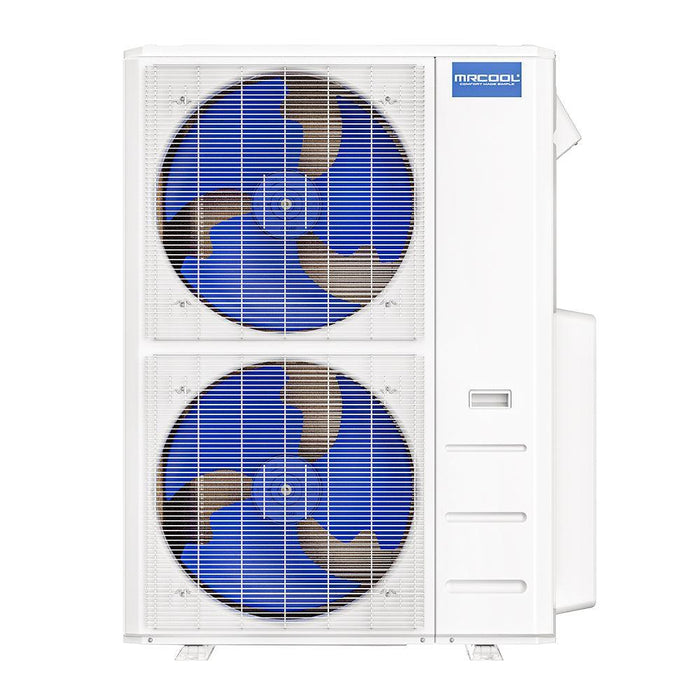

| MODEL | DIY-MULTI5-48HP230C |
| SEER | 20.5 |
| EER | 11 |
| HSPF | hspf4/hspf5 : 11/8.5 |
| CFM | 4500 |
|
COOLING CAPACITY |
48000 BTU |
|
HEATING CAPACITY |
48000 BTU |
|
VOLTAGE |
208-230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
|
MAX FUSE BREAKER |
60A |
|
MIN CIRCUIT AMPACITY |
40 A |
| COLOR | White |
|
COLOR FAMILY |
White |
|
ZONE CAPACITY |
Up to 5 |
|
REFRIGERANT TYPE |
R-410A |
|
REFRIGERANT VOLUME |
162 oz |
|
DECIBEL RATING |
61.5 dBA |
| INVERTER | Yes |
|
MIN AMBIENT COOL |
5F ~ 122F |
|
MIN AMBIENT HEAT |
-5F ~ 75.2F |
|
MAX LINESET LENGTH |
221 ft TOTAL |
|
LIQUID LINE SIZE |
1/4in (3/8in w/ adapter) |
|
SUCTION LINE SIZE |
1/2in (5/8in w/ adapter) |
|
COMPRESSOR MOTOR TYPE |
Rotary |
|
CONDENSER FAN MOTOR RPM |
900/850/800/750 |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-year Parts/7-year Compressor |
|
BASE PARTS WARRANTY |
5-year Parts |
|
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
|
BASE COMPRESSOR WARRANTY |
7-year Compressor |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
NET DEPTH |
16.34 in |
|
NET HEIGHT |
52.48 in |
|
NET WIDTH |
37.48 in |
|
NET WEIGHT |
222.89 lbs |
|
GROSS DEPTH |
19.49 in |
|
GROSS HEIGHT |
54.33 in |
|
GROSS WIDTH |
43.11 in |
|
GROSS WEIGHT |
254.41 lbs |

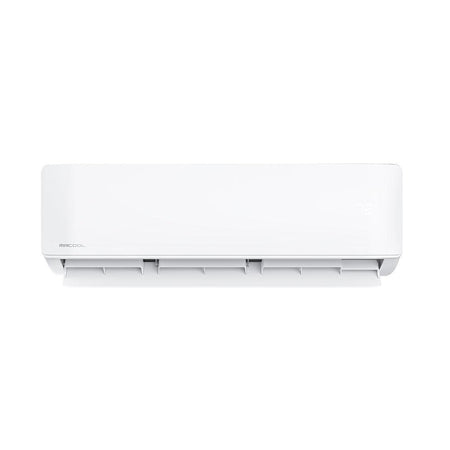

| MODEL | DIY-09-HP-WMAH-230C25 |
|
COOLING CAPACITY |
9000 BTU |
|
HEATING CAPACITY |
9000 BTU |
|
VOLTAGE |
208-230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
|
MAX FUSE BREAKER |
15 A |
|
MIN CIRCUIT AMPACITY |
3 A |
| MOUNT TYPE |
Wall |
| COLOR | White |
|
COLOR FAMILY |
White |
|
MAX COVERAGE AREA |
Up to 450 sqft |
|
REFRIGERANT TYPE |
R-410A |
|
DECIBEL RATING |
35 dBA |
|
DECIBEL RATING LOW |
25 dBA |
|
DECIBEL RATING HIGH |
40 dBA |
| INVERTER | Yes |
|
LIQUID LINE SIZE |
1/4 in |
|
SUCTION LINE SIZE |
1/2 in |
|
BLOWER MOTOR RPM |
1050/850/650 |
| FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-year Parts/7-year Compressor |
|
BASE PARTS WARRANTY |
5-year Parts |
|
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
|
BASE COMPRESSOR WARRANTY |
7-year Compressor |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
GU;PR;VI |
|
NET DEPTH |
7.44 in |
|
NET HEIGHT |
11.69 in |
|
NET WIDTH |
31.57 in |
|
NET WEIGHT |
23.81 lbs |
|
GROSS DEPTH |
16.34 in |
|
GROSS HEIGHT |
13.98 in |
|
GROSS WIDTH |
36.02 in |
|
GROSS WEIGHT |
34.39 lbs |
| MODEL | DIY-12-HP-WMAH-230C25 |
|
COOLING CAPACITY |
12000 BTU |
|
HEATING CAPACITY |
12000 BTU |
|
VOLTAGE |
208-230 V |
| PHASE | 1 |
| CYCLE | 60 Hz |
|
MAX FUSE BREAKER |
15 A |
|
MIN CIRCUIT AMPACITY |
3 A |
| MOUNT TYPE |
Wall |
| COLOR | White |
|
COLOR FAMILY |
White |
|
MAX COVERAGE AREA |
Up to 600 sqft |
|
REFRIGERANT TYPE |
R-410A |
|
DECIBEL RATING |
35 dBA |
|
DECIBEL RATING LOW |
25 dBA |
|
DECIBEL RATING HIGH |
40 dBA |
| INVERTER | Yes |
|
LIQUID LINE SIZE |
1/4 in |
|
SUCTION LINE SIZE |
1/2 in |
|
BLOWER MOTOR RPM |
1050/850/650 |
| FAN ONLY OPTION |
Yes |
|
QUIET MODE |
Yes |
|
AUTO COOL |
Yes |
|
WIFI COMPATIBILITY |
Yes |
|
APP COMPATIBILITY |
Yes |
|
WORKS WITH IOS |
Yes |
|
WORKS WITH ANDROID |
Yes |
|
REMOTE CONTROL INCLUDED |
Yes |
|
ENERGY STAR CERTIFIED |
Yes |
|
AHRI CERTIFIED |
Yes |
|
REGISTERED WARRANTY |
Limited Lifetime Compressor |
|
BASE WARRANTY |
5-year Parts/7-year Compressor |
|
BASE PARTS WARRANTY |
5-year Parts |
|
REGISTERED COMPRESSOR WARRANTY |
Limited Lifetime Compressor |
|
BASE COMPRESSOR WARRANTY |
7-year Compressor |
|
HAS BATTERIES |
Yes |
|
CONTAINS ELECTRONICS |
Yes |
|
CONTAINS CHEMICALS |
Yes |
|
CONTAINS AEROSOL |
Yes |
|
CONTAINS COMPRESSED GAS |
Yes |
|
PROPOSITION 65 WARNING |
Yes |
|
RESTRICTED STATES |
GU;PR;VI |
|
NET DEPTH |
7.44 in |
|
NET HEIGHT |
11.69 in |
|
NET WIDTH |
31.57 in |
|
NET WEIGHT |
23.81 lbs |
|
GROSS DEPTH |
16.34 in |
|
GROSS HEIGHT |
13.98 in |
|
GROSS WIDTH |
36.02 in |
|
GROSS WEIGHT |
34.39 lbs |

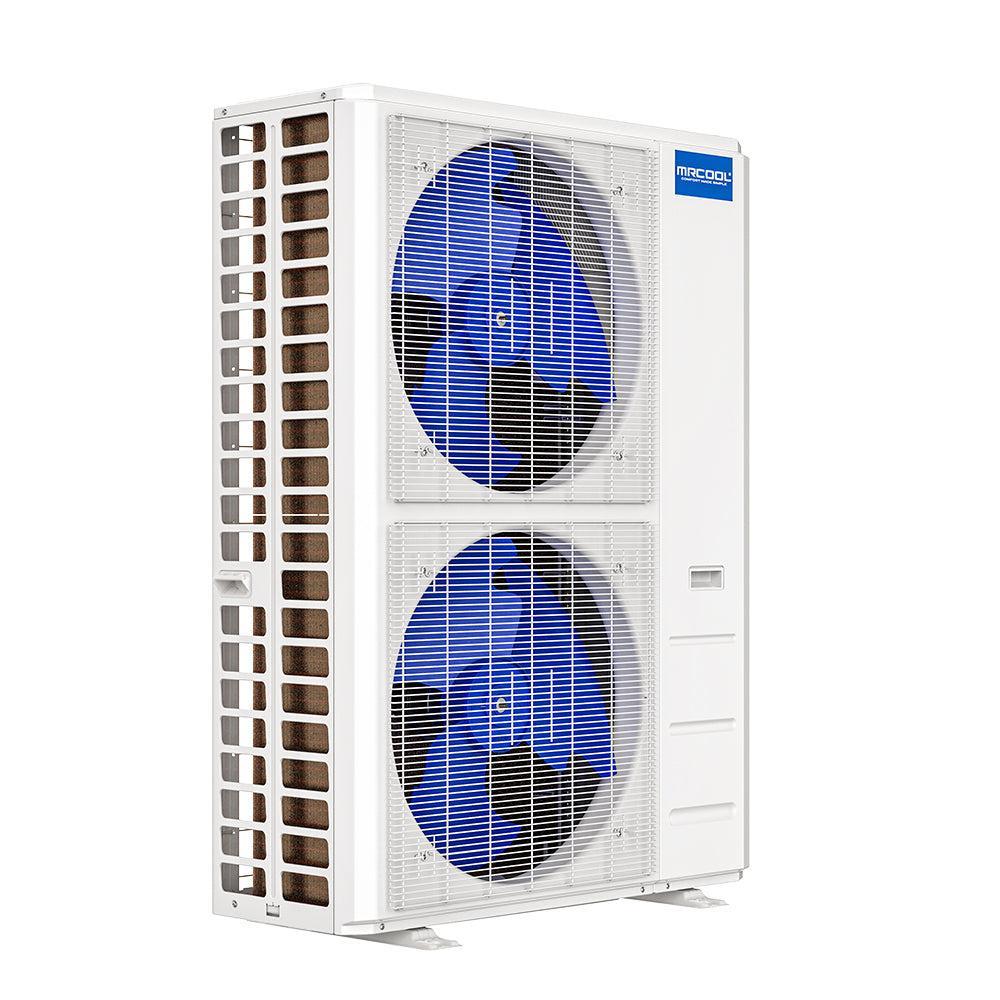

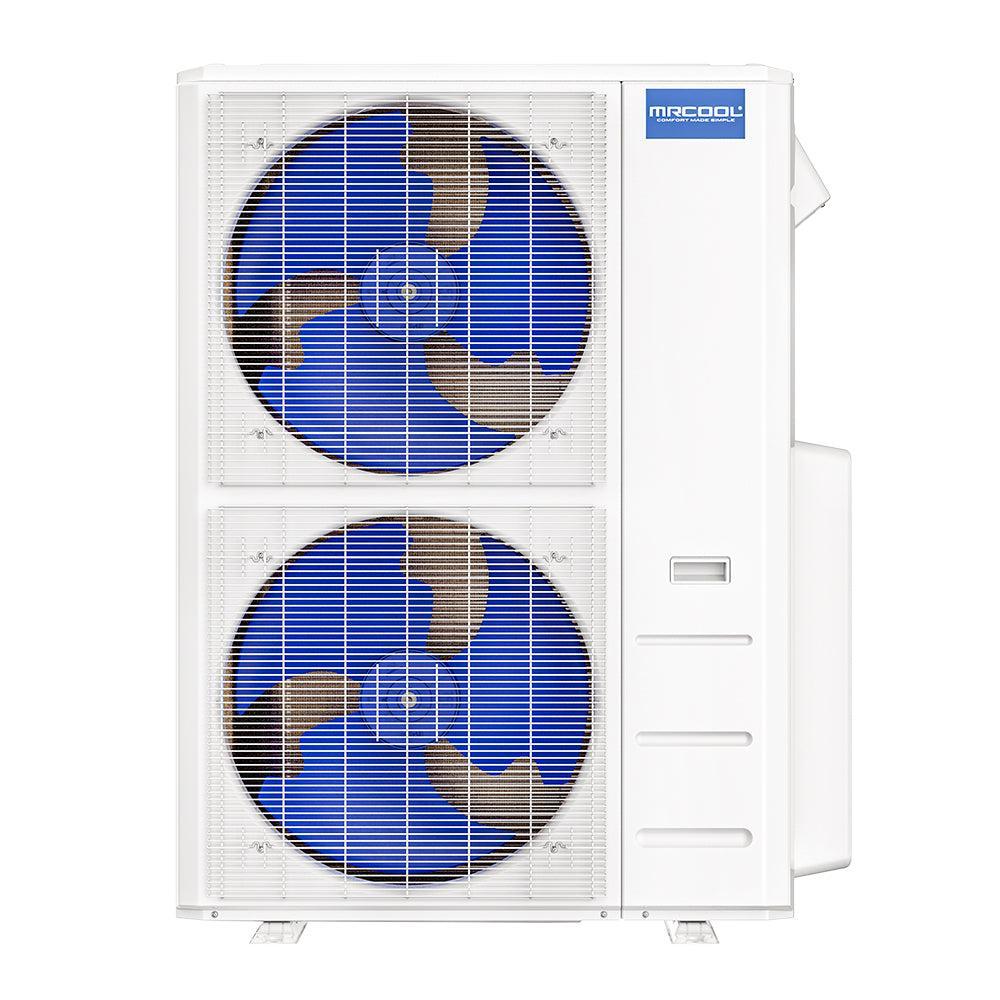

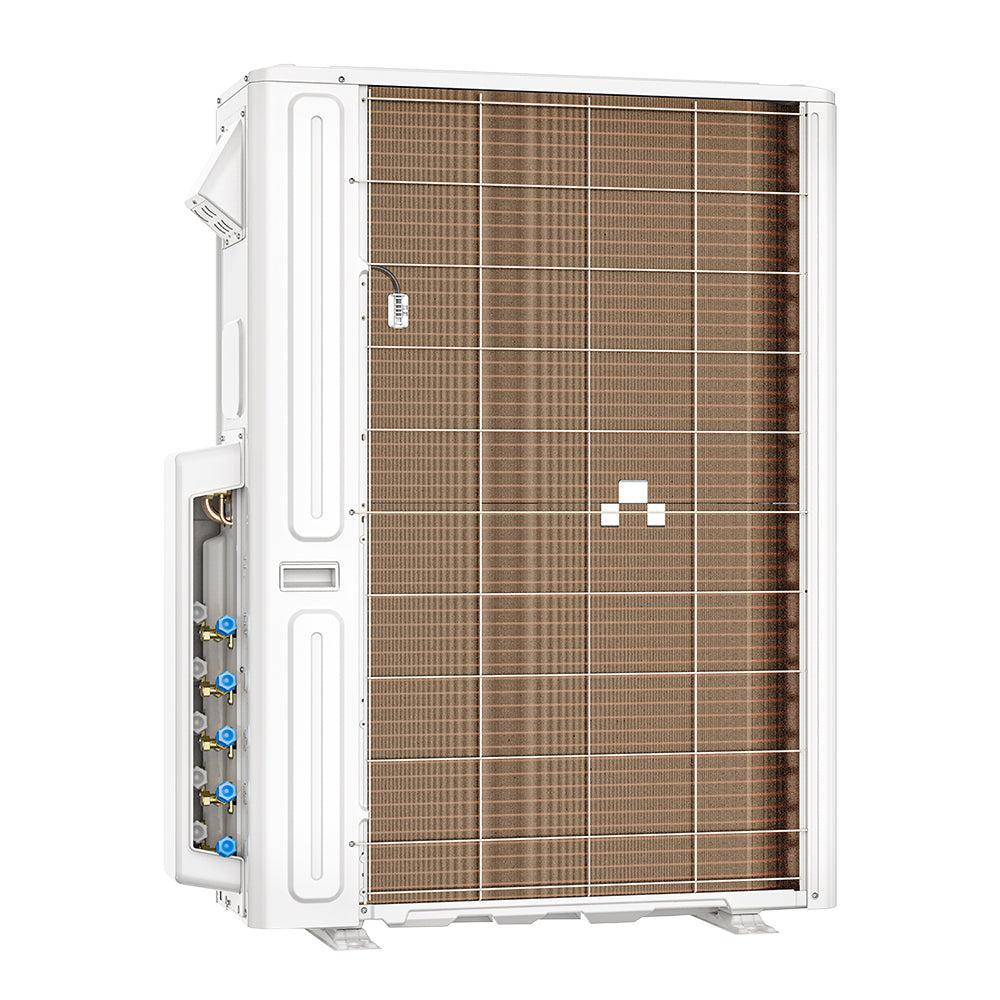

Condenser

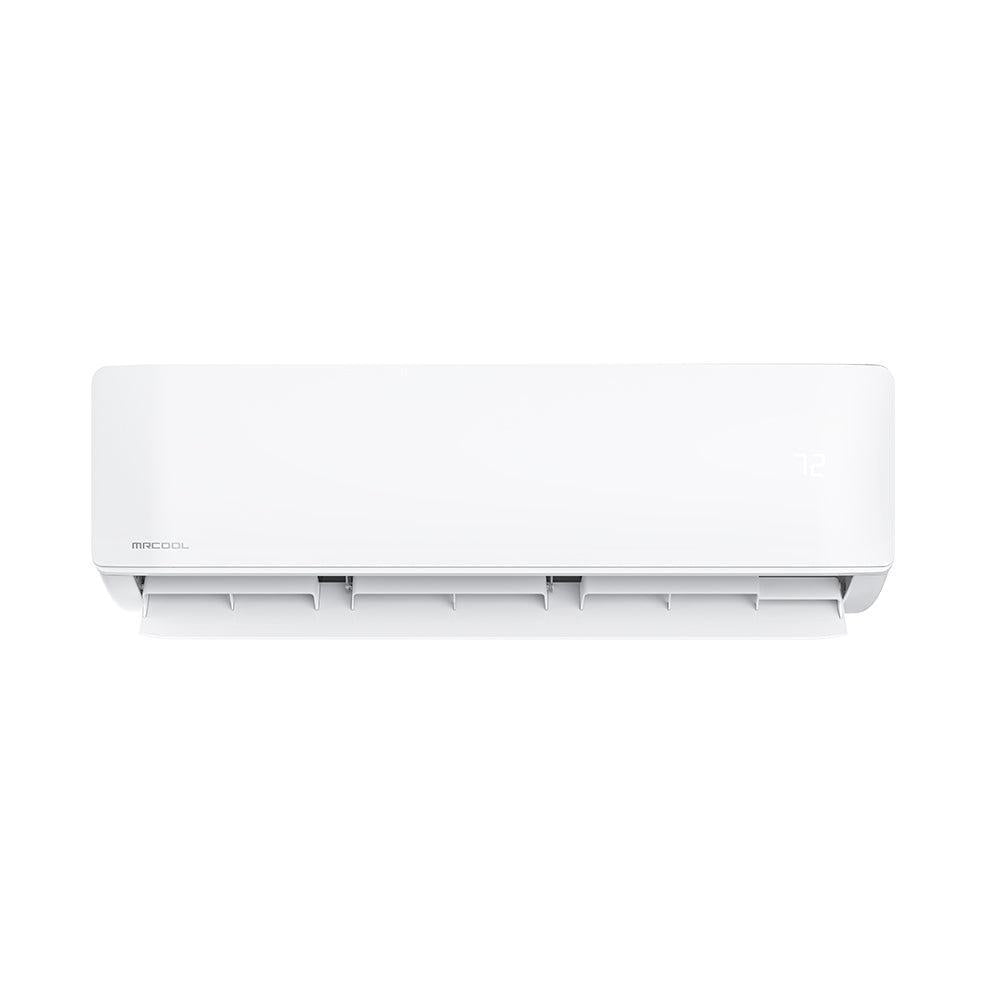

Wall Mounted Air Handlers
