BigBattery 12kW 20.4kWh ETHOS Energy Storage System (ESS)
REVOLUTIONIZING RESIDENTIAL ESS! BigBattery’s 48V ETHOS systems are here, and this 20kWh indoor configuration is the ideal solution for grid-tied power in your family home, cabin, or mansion, supported by comprehensive safety, reliability, and state-of-the-art features.
The ETHOS System was built to be a versatile home power solution, with a stackable, modular design for easy expandability, and all hardware included to mount your ETHOS to your wall with an effortless installation. The ETHOS comes equipped with an IP65-rated casing, an internal fire suppression system, as well as an advanced BMS with auto cell-balancing to ensure long-lasting safety and reliability. Plus, its control box features an interactive LED display, along with CANBus and RS485 communication protocols, so you can always monitor the status and performance of your power.
But that’s not all. We pair our ETHOS with a cutting-edge 12000W Lux inverter, which features its own LCD touch screen display, 3 MPPT inputs, an integrated UPS module for seamless on and off-grid switching, and the ability to handle PV arrays of up to 18000W. Plus, through its smart load control, AC coupling abilities, and peak shaving function, you can meet your power needs and protect your home against unstable grids or rolling blackouts, while seeing huge savings each month on your electric bill.
Whether you’re looking to ensure emergency backup power is always available, or you’re looking to outfit your home with a powerful solar system, the ETHOS ensures reliable, efficient power delivery day in and day out, allowing you to save on utilities, or get rewarded for giving back to the grid through net metering programs and other tax incentives. Take control of your home’s power and shop the 48V ETHOS today!
30% Federal Tax Credit Available
- This system qualifies for federal rebates. Learn more here.
Warranty:
- BigBattery: 12-Year Full Coverage Warranty
- LUXPower: 10-Year Limited Warranty
Benefits:
- 300% 10-Year Savings vs Lead-Acid
- 1/3 the weight and space
- 4x cycle life
- 100% safe and reliable
Designed For 48V Applications:
- Residential Power Systems
- Home Solar Systems
- Cabins & Tiny Homes
- Family Homes & Mansions
- Off-Grid Homesteads
- Emergency Power
- Whole Home Backup
- Lead Acid Replacement
Videos:
BigBattery's UL-Certified Lithium Power Solution featuring the ALL NEW 48V ETHOS!!!
48V ETHOS Installation Guide

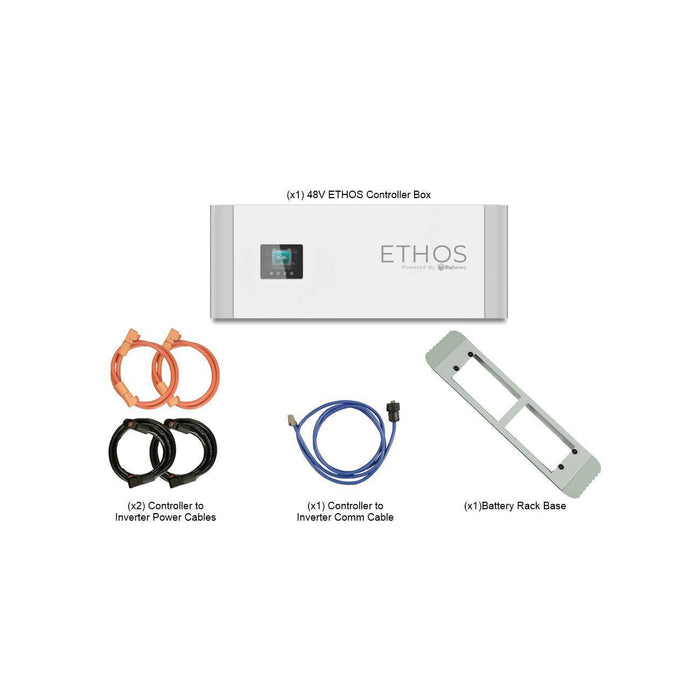

Included Components:

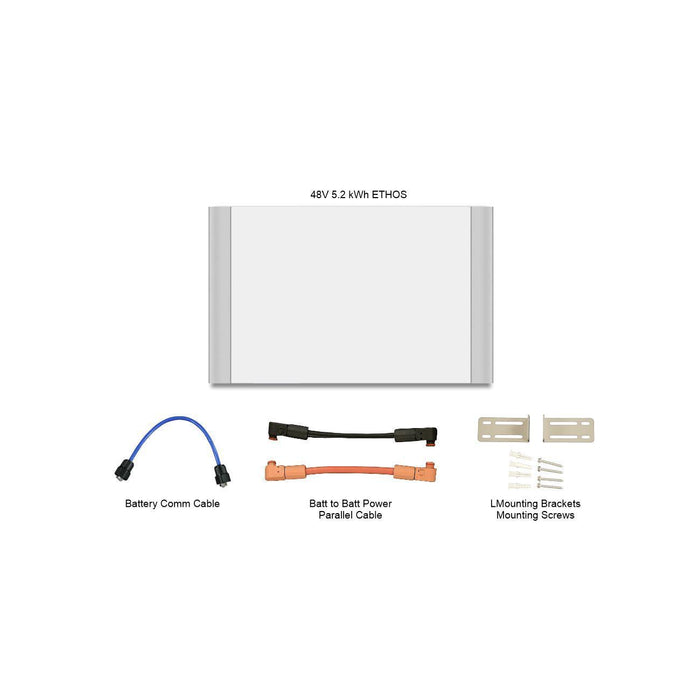

- 4 × 48V ETHOS 5.12kWh Stackable Battery Module
- 1 × ETHOS Control Box
- 1 × ETHOS RACK BASE
- 1 × LUXPower 12kW Hybrid Inverter

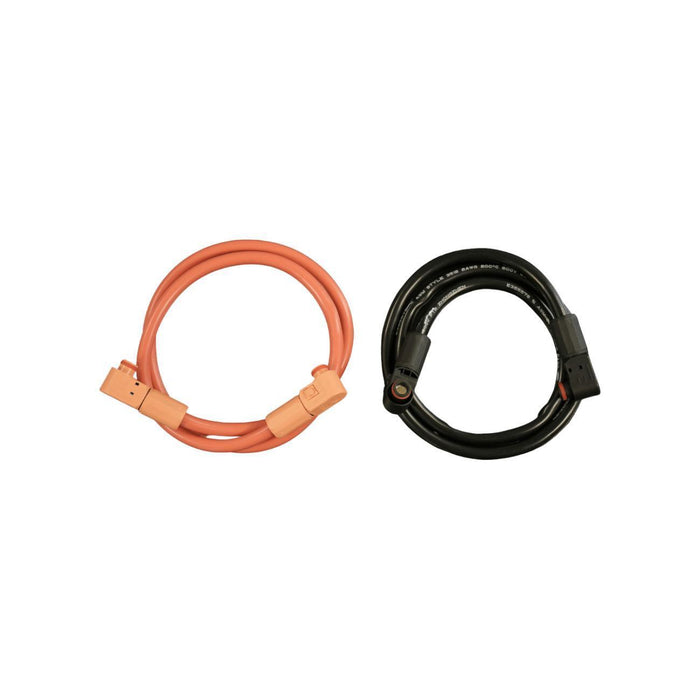

- 2 × Ethos Parallel Power Cable 4.9 ft (1500mm)

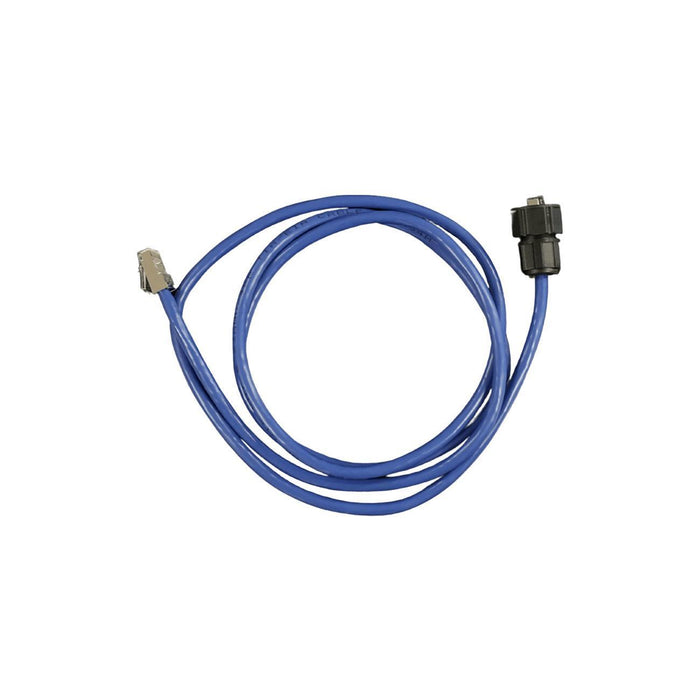

- 1 × Ethos Parallel Comm Cable 4.9 ft (1500mm)
Single Stack Tech Specs:
| Brand | BigBattery |
| SKU |
K0956 |
| GTIN-12 (U.P.C.) |
850061252111 |
| System Voltage |
48V |
| Nominal Voltage |
51.2V |
| Chemistry | LiFePO4 |
| kWh Capacity |
10.24kWh |
| Ah Capacity |
200Ah |
| Charging Voltage Range |
55.6 - 57V |
| Max Charge Voltage |
57V |
| Operating Voltage Range |
48 – 57V |
| Suggested Low Voltage Cutoff |
48 – 50.8V |
| BMS Cutoff Range |
42 - 47V |
| Cell Configuration |
16S 2P |
| Max Continuous Discharge Current |
250A |
| Max Continuous Power |
12800W |
| Max Discharge Peak Current |
300A (Max 5 seconds) |
| Max Charge Current |
200A |
| Charge Temperature Range |
32°F - 113°F (0°C - 45°C) |
| Discharge Temperature Range |
-4°F - 140°F (-20°C - 60°C) |
| Optimal Discharge Temperature Range |
59°F - 95°F (15°C - 35°C) |
| Storage Temperature Range (SoC >50%) |
-4°F - 113°F (-20°C - 45°C) (Max 6 months) |
| Weight | 273 lb (123.8 kg) |
| Depth | 6.7 in (170 mm) |
| Width | 26.5 in (674 mm) |
| Height | 43.3 in (1100 mm) |
| Max Connections |
Up to (16) parallel connections per control box |
| Protection Rating |
IP65 / NEMA 4X |
| Communications | CANBus / RS485 |
| Certifications | UL9540, UL9540A, UL1973, & UN38.3 |
| Resources | |
| Inverter Downloads |
