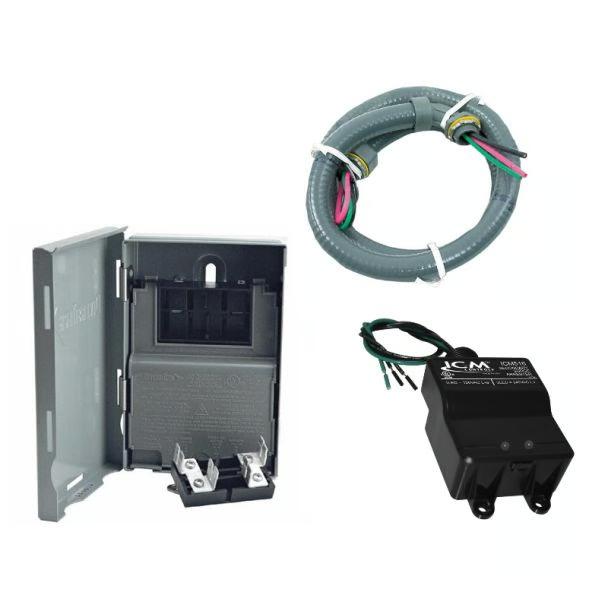

Ductless Mini Split Condensers Electric Component Installation Kit
This DIY ductless mini-split installation kit for condensers includes a whip, surge protector, and disconnect safety switch. This installation kit has all of the accessories that you will need to have your DIY mini split condenser professionally installed.
Includes:
- 1/2" x 4' electrical whip - PN 6-12-6
- 60A non fused disconnect - PN 83315
- Surge Protector - PN ICM517

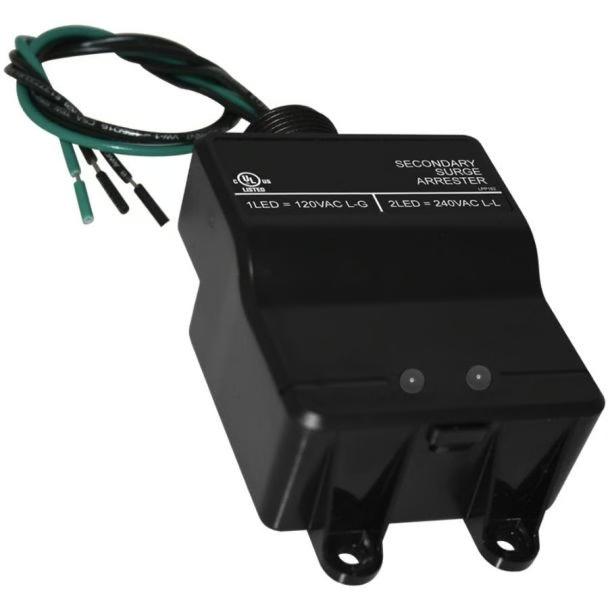

Single-Phase Surge Protector – 120/240 VAC, 100,000 Amp, 1020 Joules
Protect your valuable equipment from lightning power surges and voltage spikes with this high-performance Single-Phase Surge Protector. Designed to provide reliable protection for HVAC systems, air conditioners, motors, and generators, this unit safeguards against damaging electrical surges at 120/240 VAC.
Key Features:
- UL Listed, Type II Device: Ensures compliance with industry safety standards.
- Easy Installation: Simple and quick to integrate into your system.
- High Surge Capacity: Handles up to 100,000 amps for maximum protection.
- Superior Energy Dissipation: Absorbs surges up to 1,020 joules.
- Versatile Protection: Shields against surges from lightning, A/C units, motors, and generators.
- Rugged & Reliable: Built for long-term durability and consistent performance.
Specifications:
- Service Voltage: 120/240 VAC, Single Phase
- Maximum Surge Current: 100,000 amps
- Maximum Energy Dissipation: 1,020 joules
Ideal for residential and commercial HVAC applications, this Single-Phase Surge Protector delivers affordable, high-performance protection to keep your system running safely and efficiently.

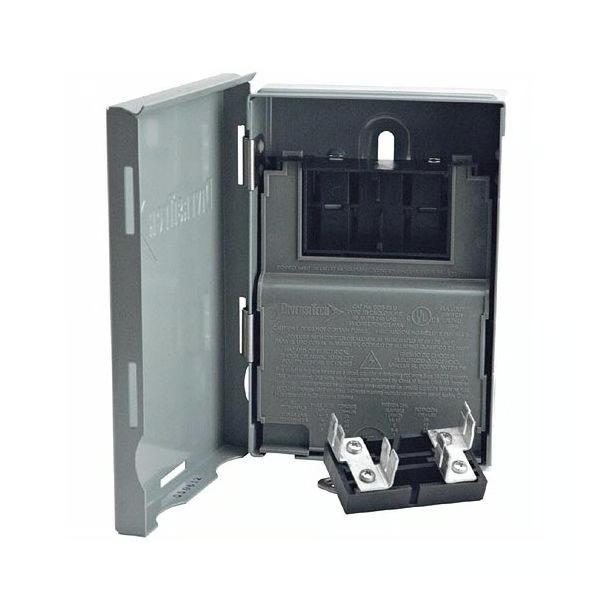

Disconnect Switch 60A Non-Fuse
The disconnect switch is used to ensure that an electrical circuit is completely shut off for service or maintenance.

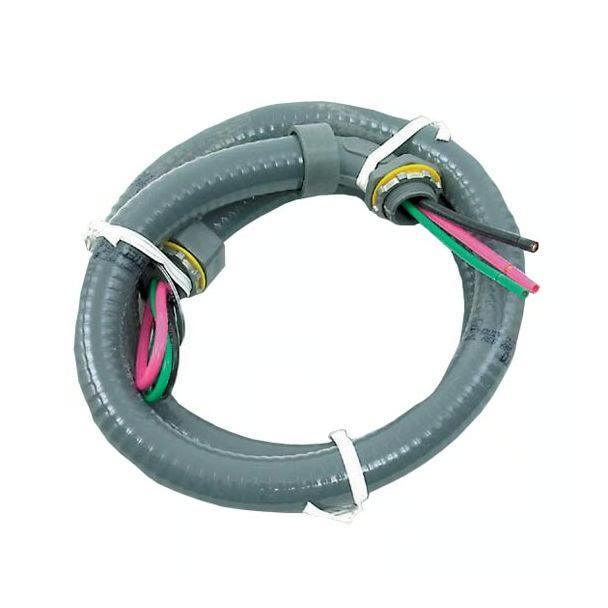

Electrical Whip 1/2" X 4' 10 Gauge Metallic
This 1/2" x 4' 10-Gauge Metallic Electrical Whip is a pre-assembled, ready-to-install solution for powering HVAC units, mini splits, and other outdoor equipment. Built with durable liquid-tight conduit and color-coded THHN/THWN conductors, it provides safe and secure electrical connections in demanding environments.
Key Features:
- Heavy-Duty Construction: 10-gauge conductors housed in liquid-tight metallic conduit for rugged protection.
- Pre-Assembled for Convenience: Saves time with factory-installed connectors and conductors.
- Color-Coded Wires: Includes black, red, and green THHN/THWN conductors for easy identification.
- Flexible Connections: Comes with (1) straight and (1) 90-degree non-metallic liquid-tight connector for versatile installation.
- Ideal for HVAC Systems: Commonly used to connect condensers, mini splits, and other outdoor electrical equipment.
Specifications:
- Conduit Size: 1/2" trade size
- Length: 4 feet
- Wire Gauge: 10 AWG
- Conductors: Black, Red, Green (THHN/THWN)
- Connectors: (1) Straight, (1) 90° Liquid-Tight Non-Metallic
Perfect for professional installers and DIYers alike, this Electrical Whip delivers a safe, flexible, and code-compliant power connection for your HVAC setup.
ICM Controls Surge Protector - 120/240 VAC, Single Phase, Max Current 100,000 Amp, Max Energy 1020 Joules Specifications:
| SKU | ICM517 |
| Weight (in lbs) | 0.650000 |
| Brand/Manufacturer | ICM Controls |
| Size Range | 38" Wide & Up |
| Length | 8.2" |
| Height | 3" |
| Width | 6.25" |
| Resources |
|
| Safety Information | PROPOSITION 65 WARNING |
Disconnect Switch 60A Non Fuse Specifications:
| SKU | 83335 |
| Weight (in lbs) | 2.500000 |
| Brand/Manufacturer | Online Supply |
| Additional Information | Knockout Dimensions: 1/2"x3/4"x1" |
| Length | 2 3/8" |
| Height | 7 1/2" |
| Width | 5" |
| Safety Information | PROPOSITION 65 WARNING |
Electrical Whip 1/2" X 4' 10 Gauge Metallic Specifications:
| SKU | 84132 |
| Weight (in lbs) | 5.000000 |
| Brand/Manufacturer | Diversitech |
| Length | 4 Feet |
| Safety Information | PROPOSITION 65 WARNING |
