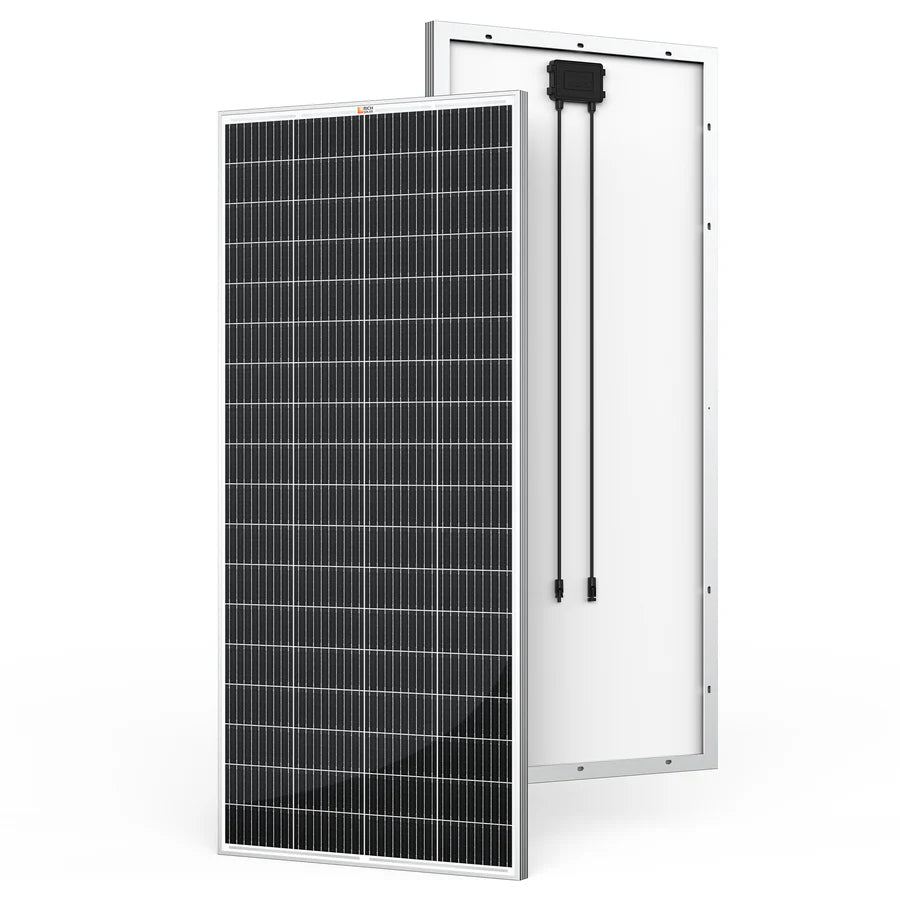

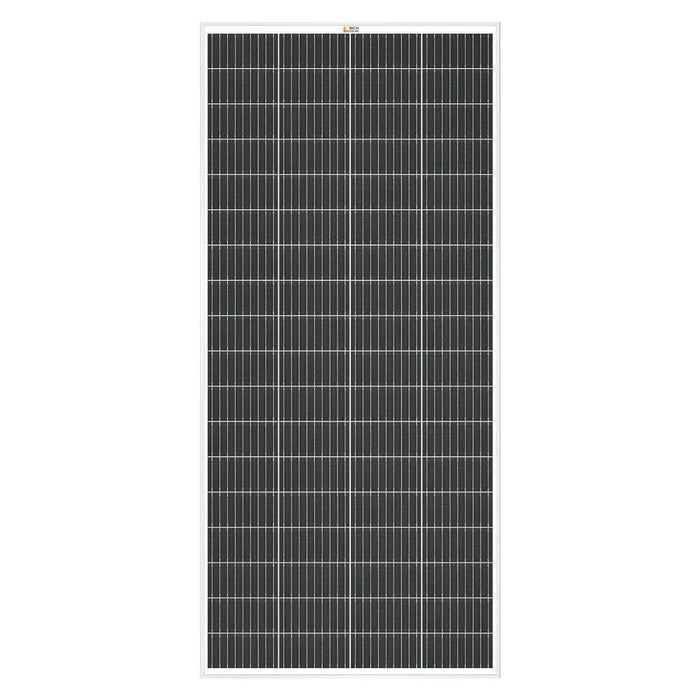

Rich Solar MEGA 200 MAX | 200 Watt 24 Volt Solar Panel | Premium 24V Off-Grid Solar Panel for RVs, Trailers, Cabins | 25-Year Output Warranty | UL Certified

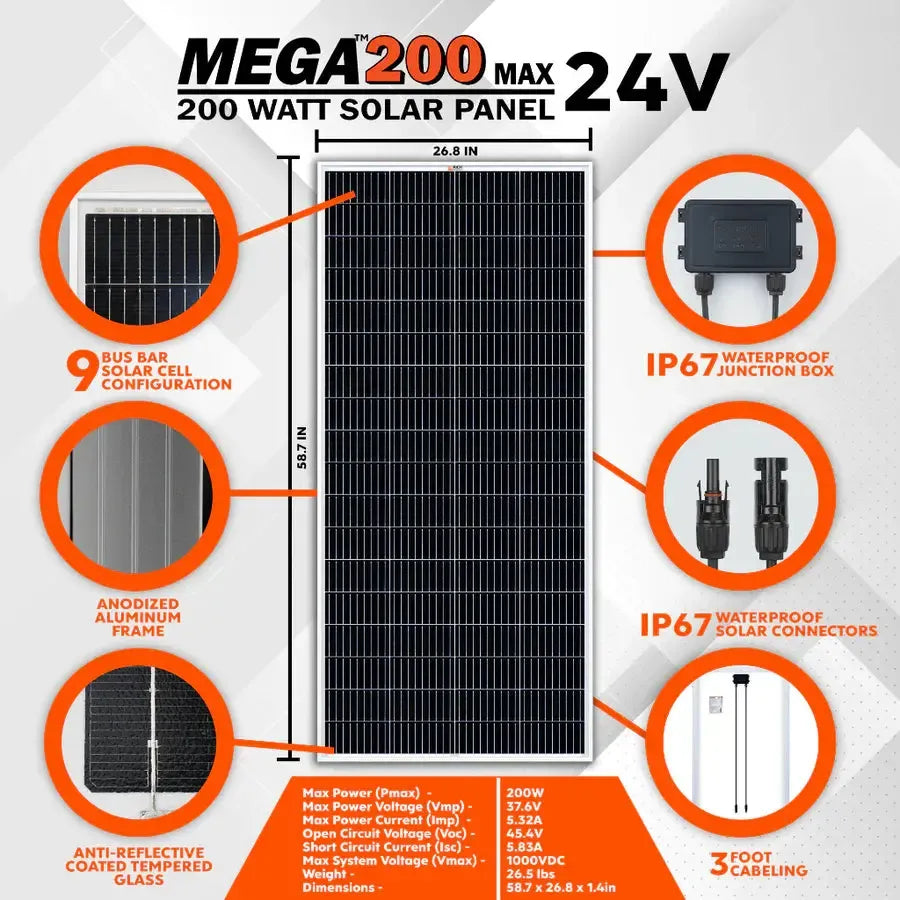

Features:
-

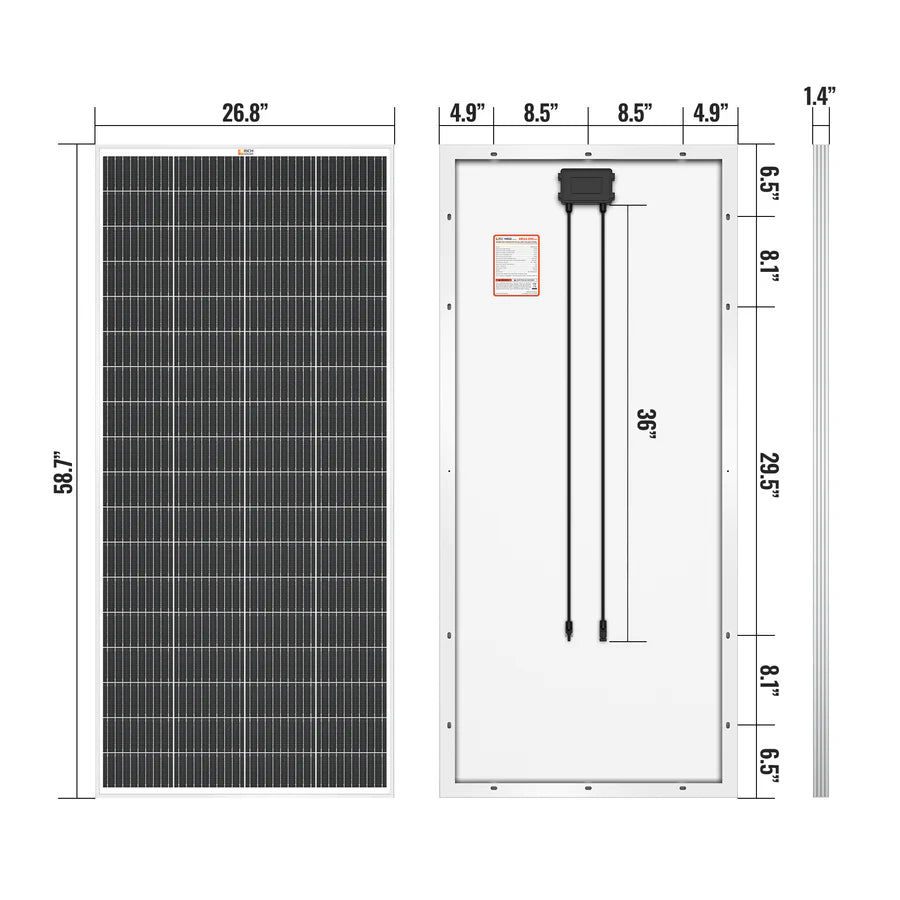

Standard - Size: 58.7'' x 26.8'' x 1.4'', 3' cable with connectors, generate 5.32 amp power, charge 12 volt or 24 volt battery. Industry standard, quick connect cables, work in series or in parallel.
-
Performance - Excellent low light performance on cloudy days, mornings and evenings. Certified to withstand challenging environmental conditions.
-

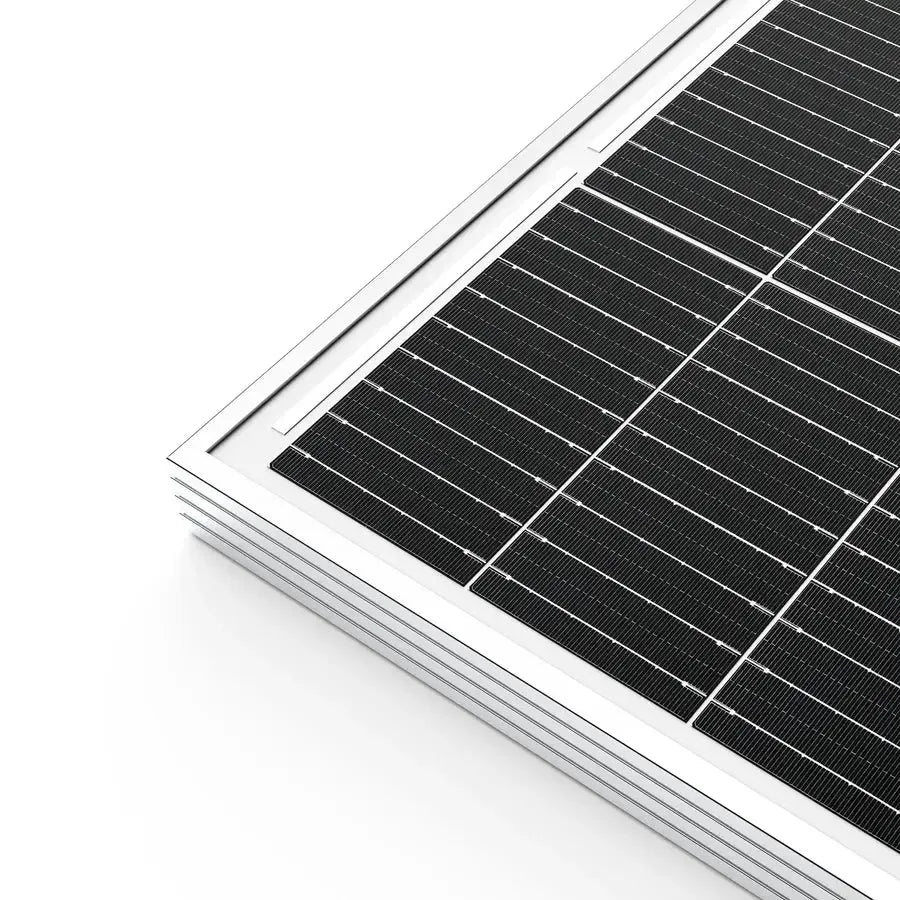

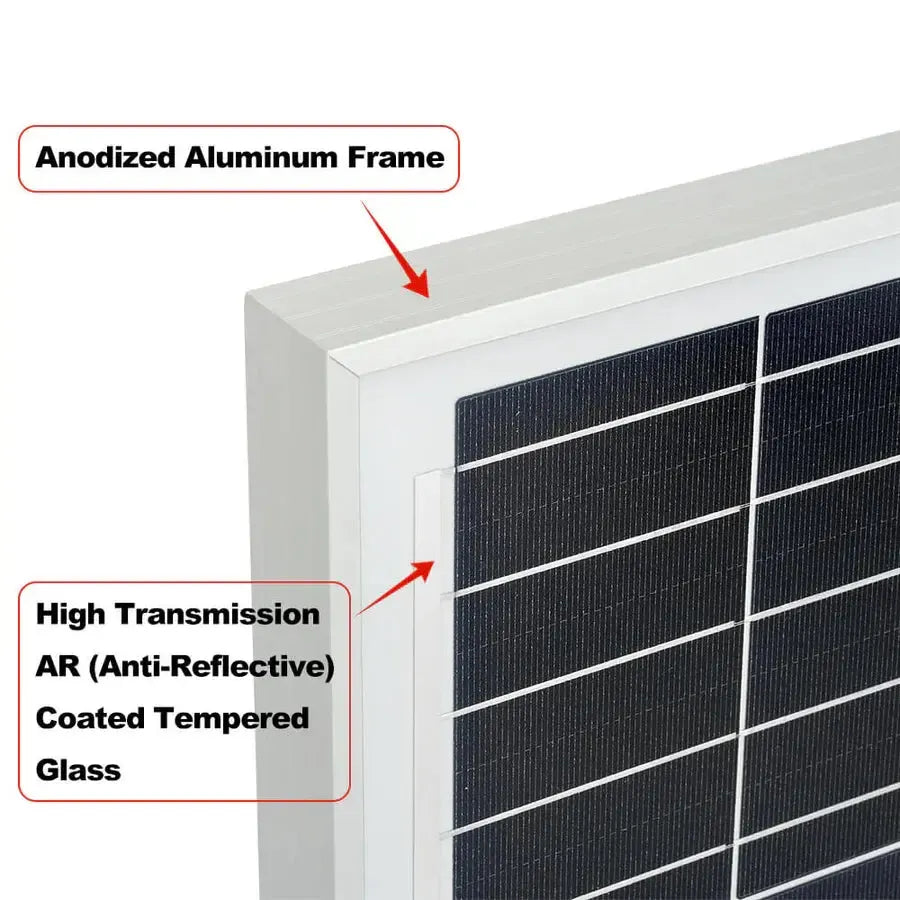

Durable - Built with strong high transmission anti-reflective coated tempered glass and anodized aluminum frame.
-

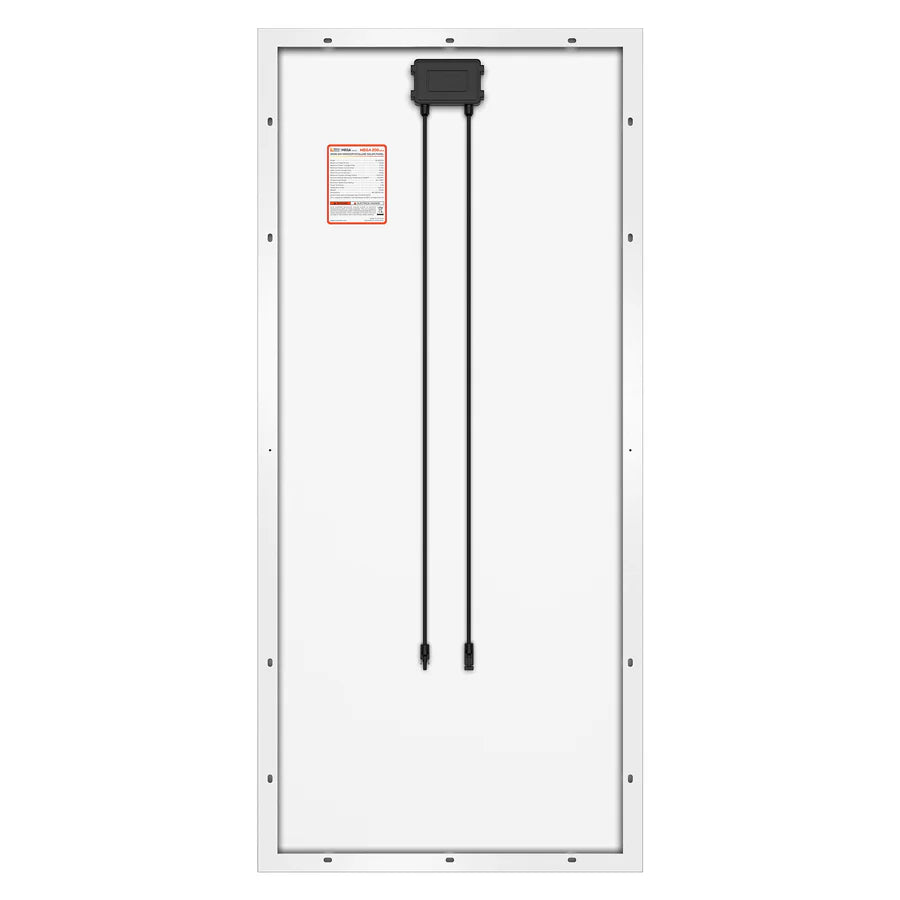

Installation - Fast and easy installation. 14 pre-drilled holes compatible with ground mounts, Z-brackets, side pole mounts and tilt mounts.
-
Warranty - 25-year limited warranty for power output; and 5-year limited warranty for material and craftsmanship.

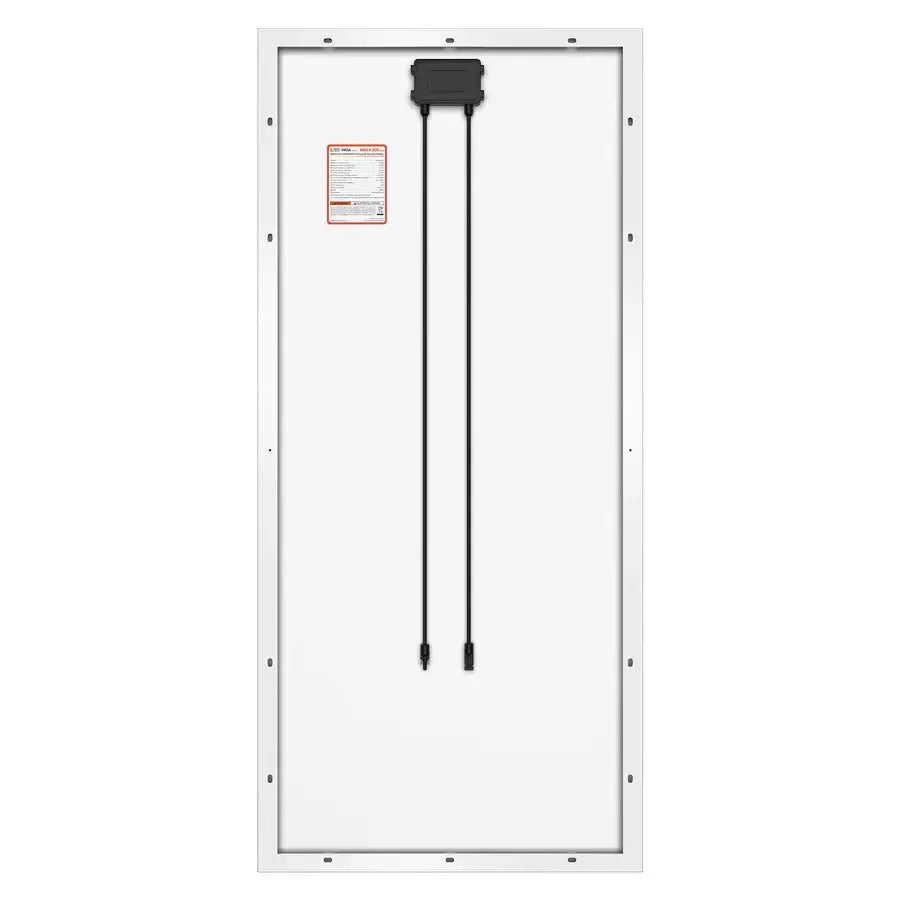

Built-in Components:

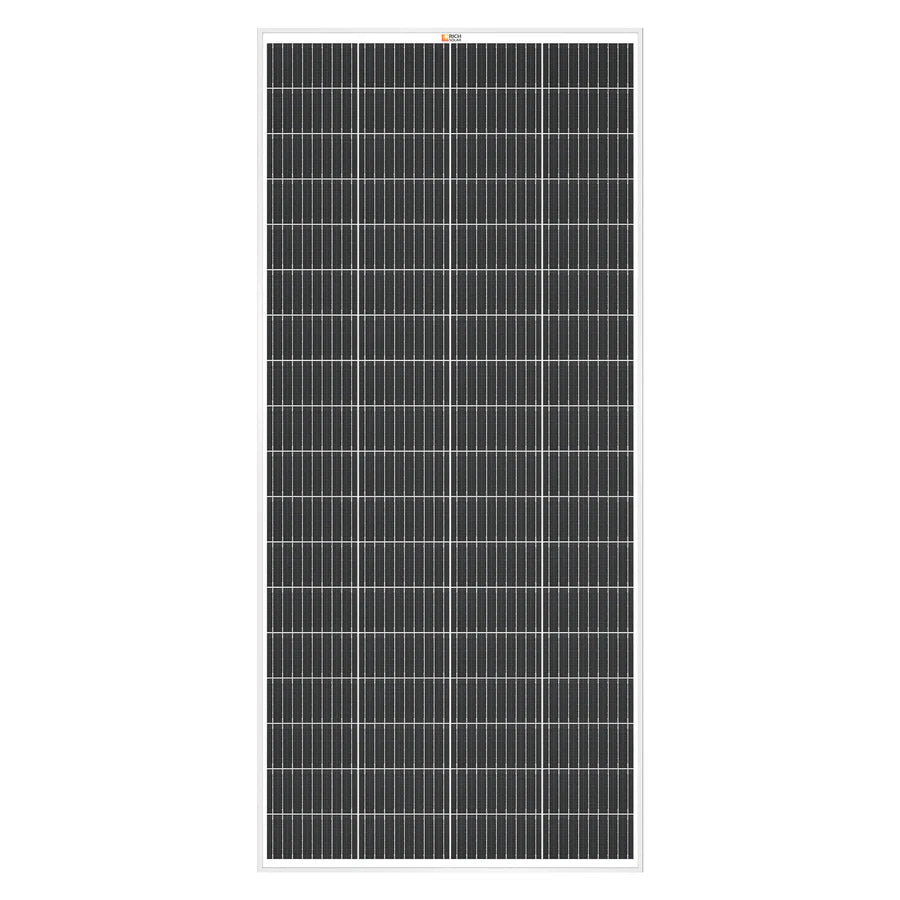

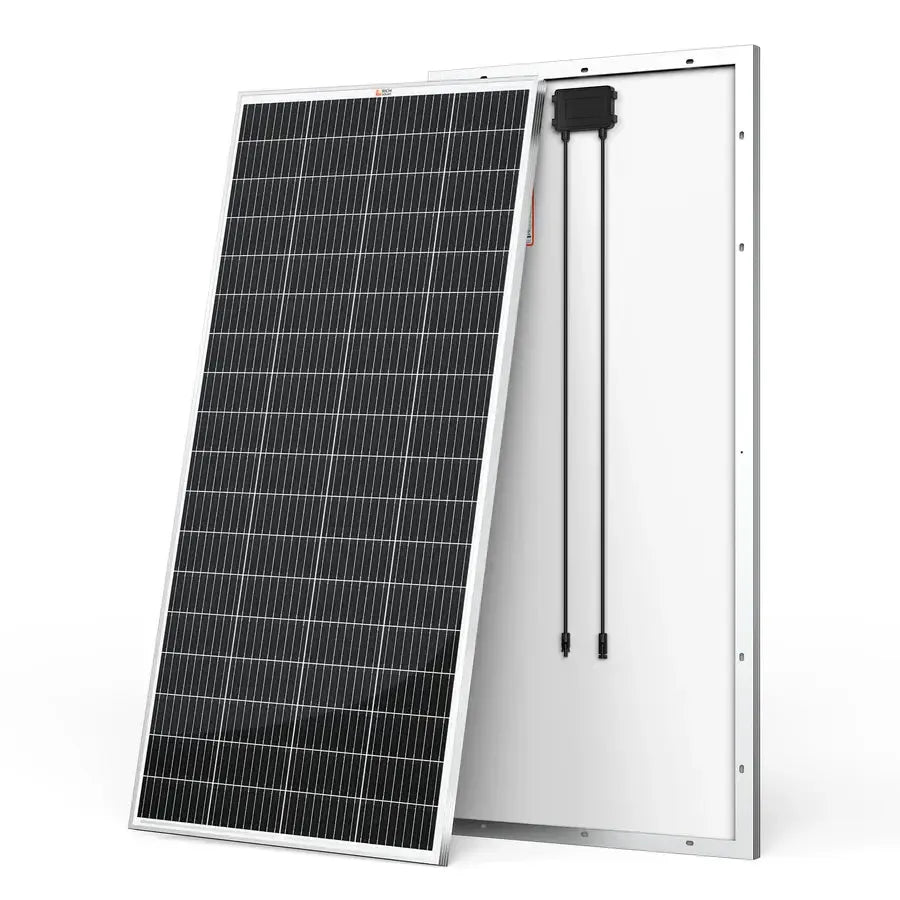

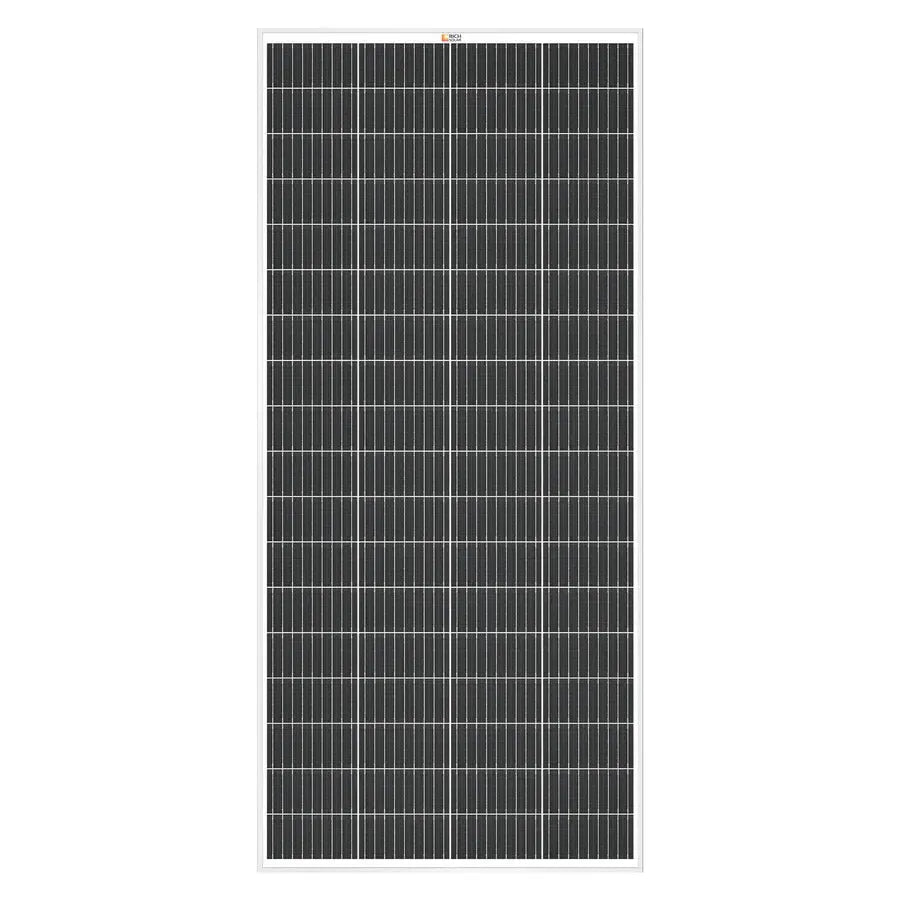

- 200 watt solar panel
- Panel leads (pair): 3 feet each

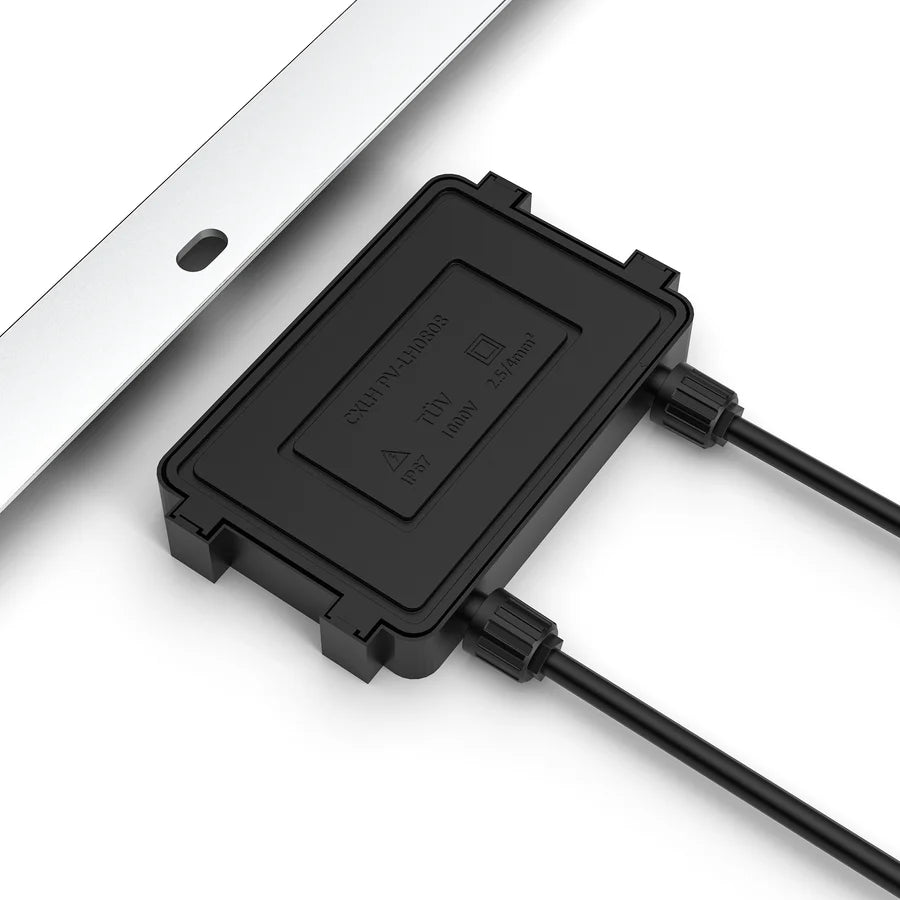

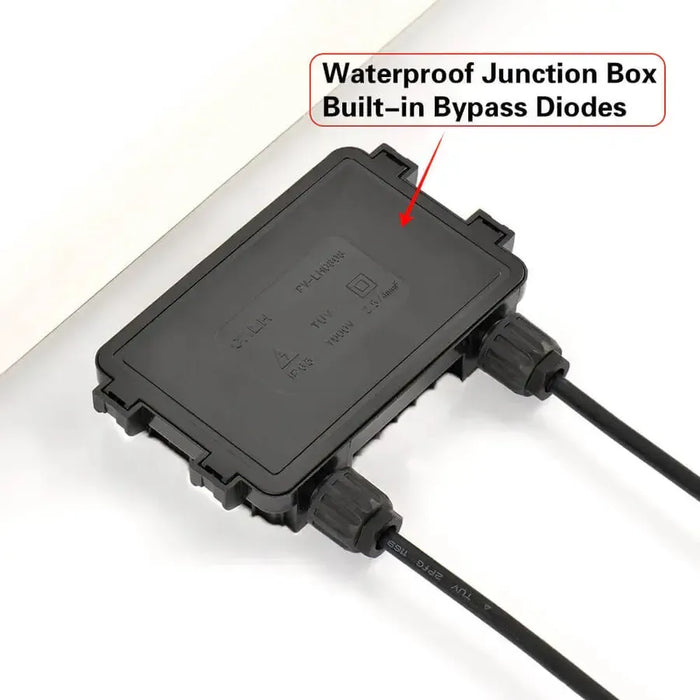

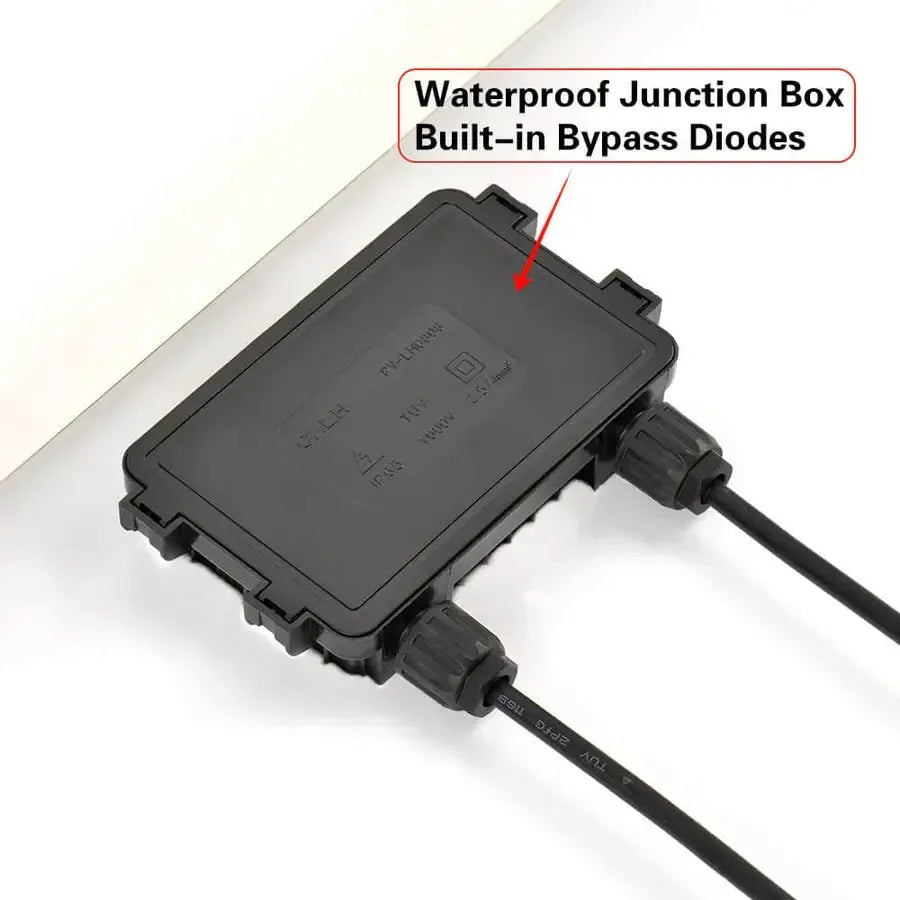

- IP65-rated waterproof junction box

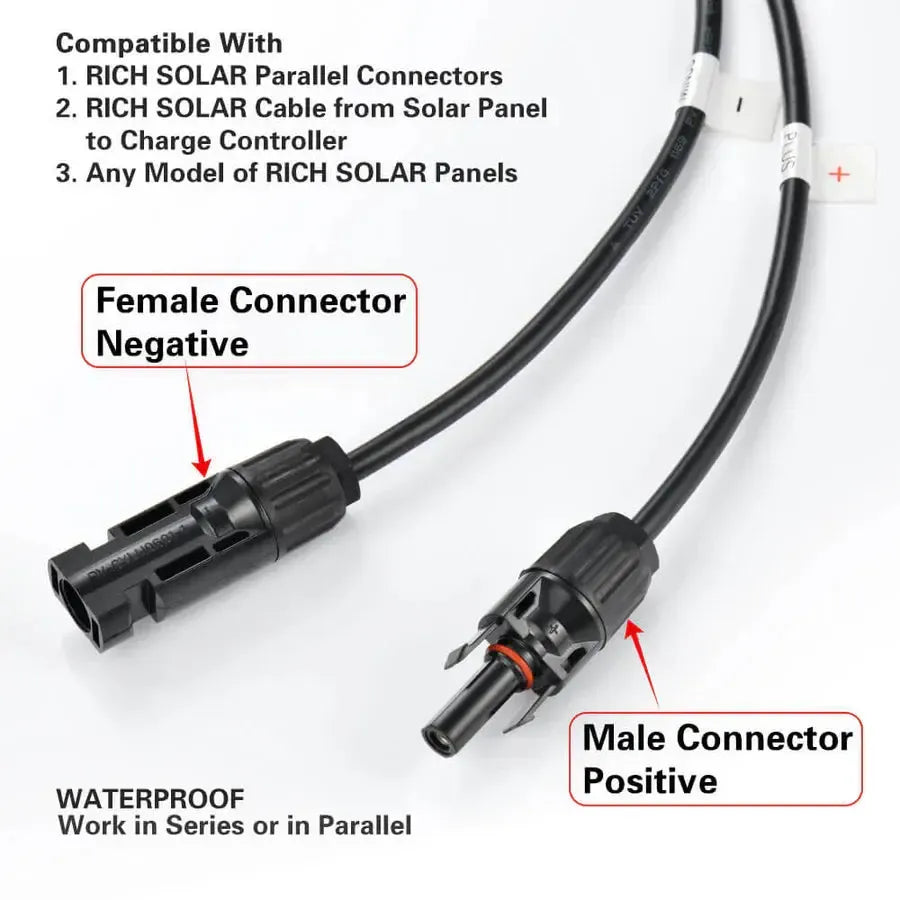

- IP67-rated waterproof solar connectors
- Bypass diodes built into the junction box

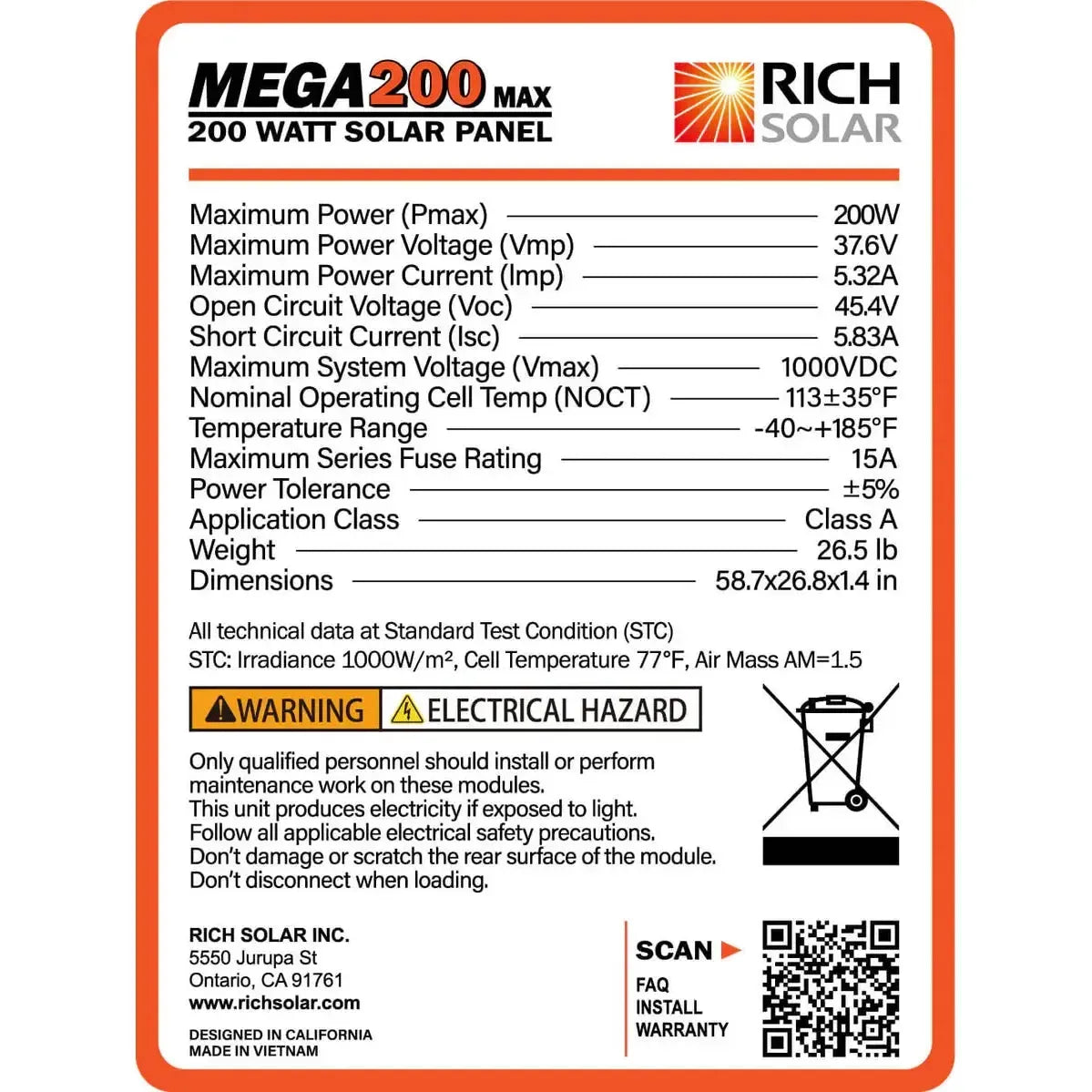

Specifications:
Brand |
Rich Solar |
Model |
RS-M200D |
On Panel Cable Length |
≈ 35 in |
Dimensions |
58.7 x 26.8 x 1.4 in |
Weight |
26.5 Pounds |
Material |

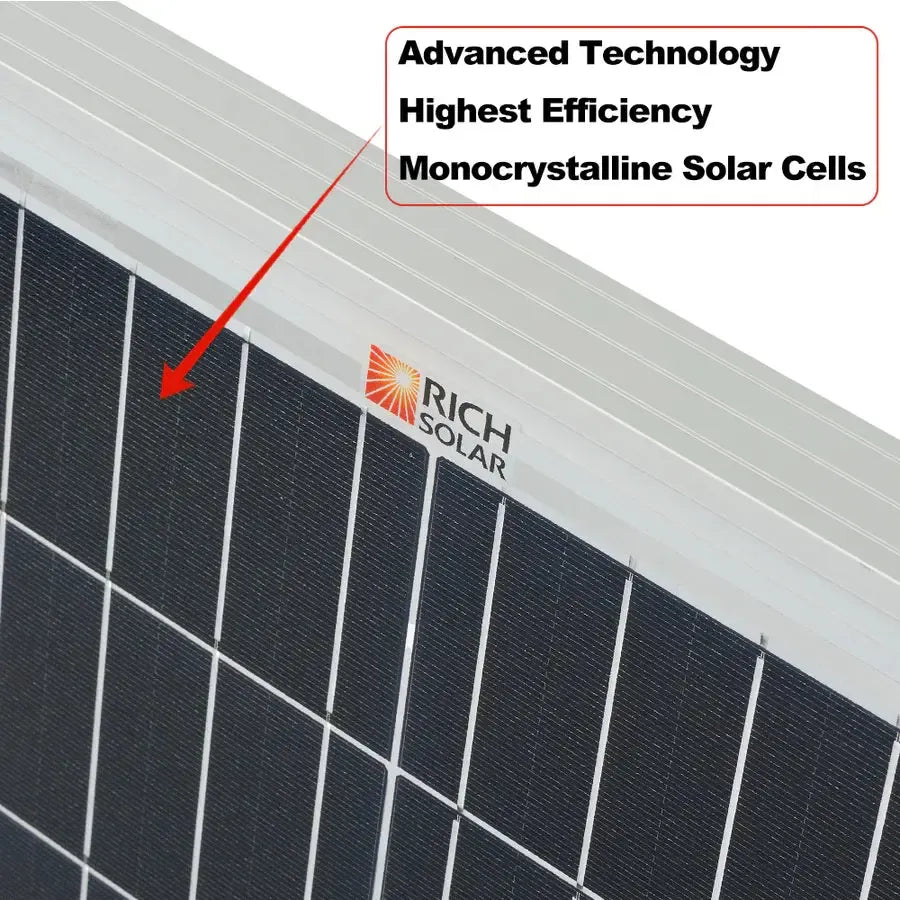

Tempered Glass, Aluminum, Monocrystalline Silicon |
Maximum Power(Pmax) |
200W |
Maximum Power Voltage(Vmp) |
37.6V |
Maximum Power Current(Imp) |
5.32A |
Open Circuit Voltage(Voc) |
45.4V |
Short Circuit Current(Isc) |
5.83A |
Maximum System Voltage(Vmax) |
1000VDC |
Max Series Fuse Rating |
15A |
Temperature Range |
-40°F~+185°F |
