RUiXU Battery Optional Installation Method -Bracket Rack-Flexibility & Stackable
RUiXU Server Rack Battery Optional Installation Method -Bracket Racks
1). Flexibility & Stackable
2). 10kWH-45kWH,Max 9 Stacks
3). A rack can be added as needed it
4). RUiXU Busbar included

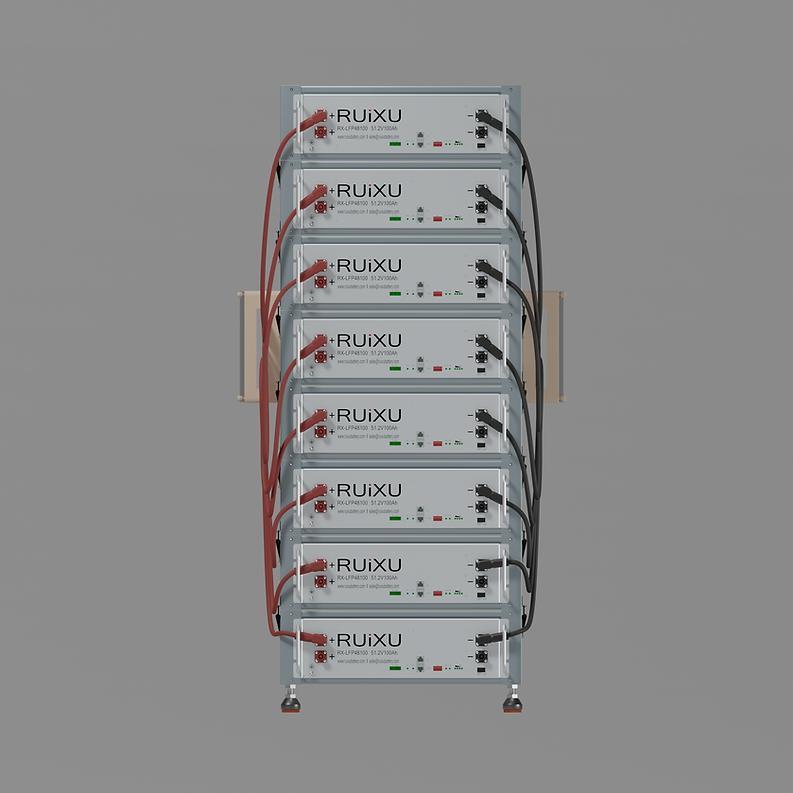

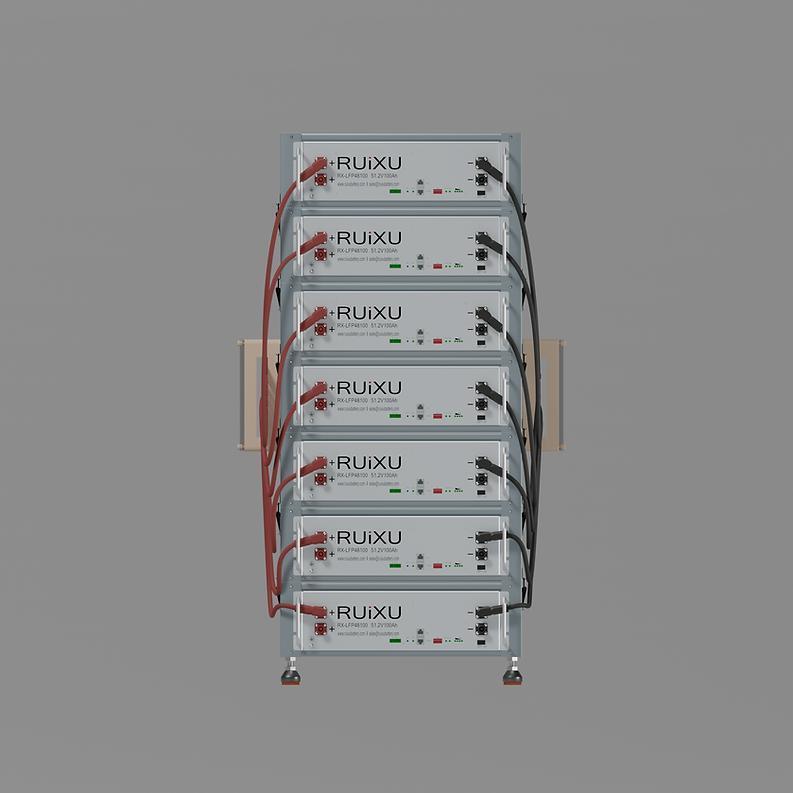

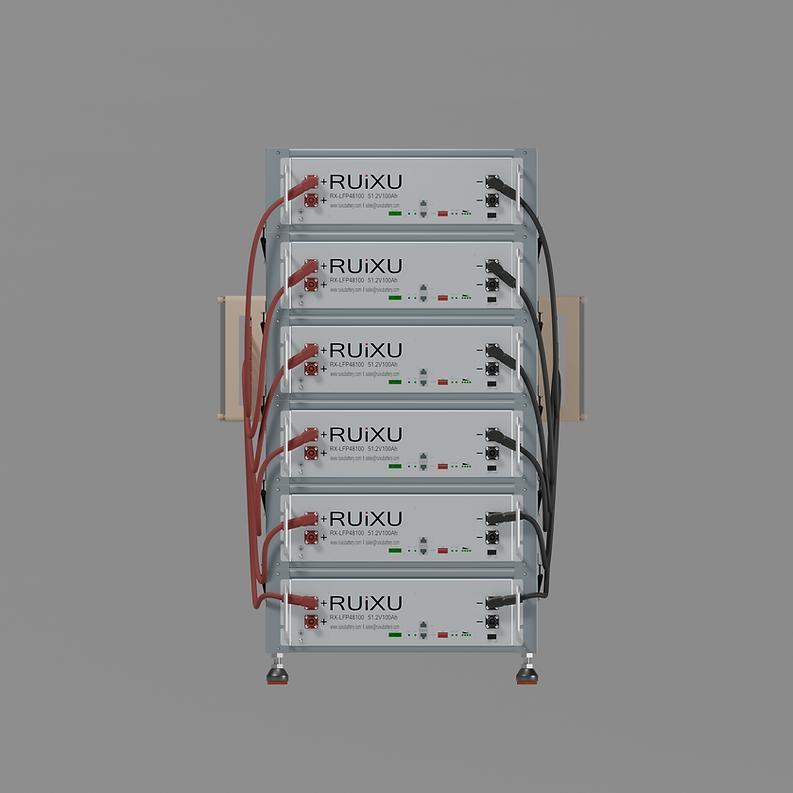

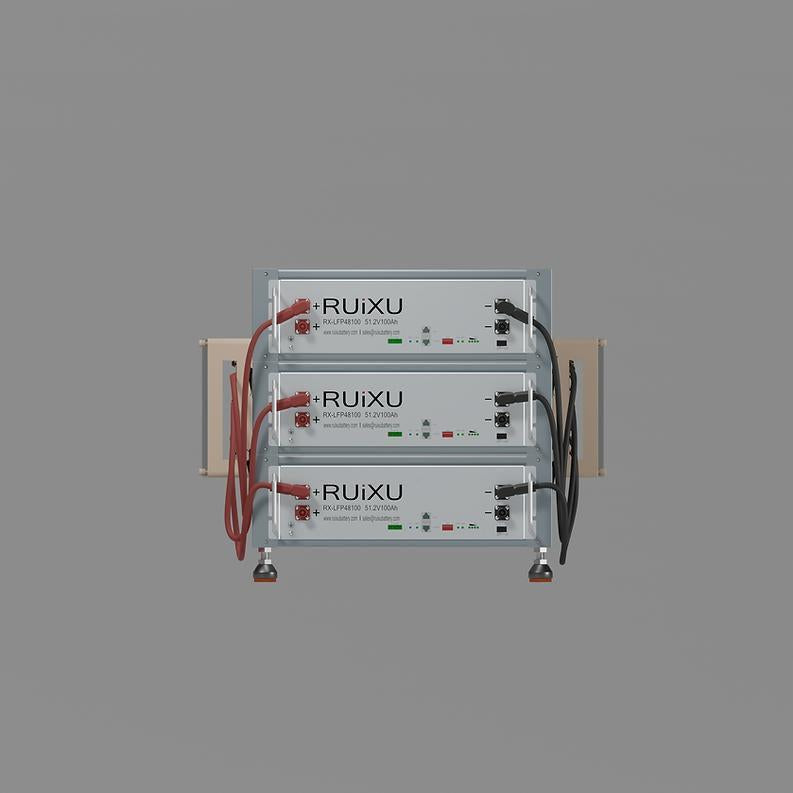

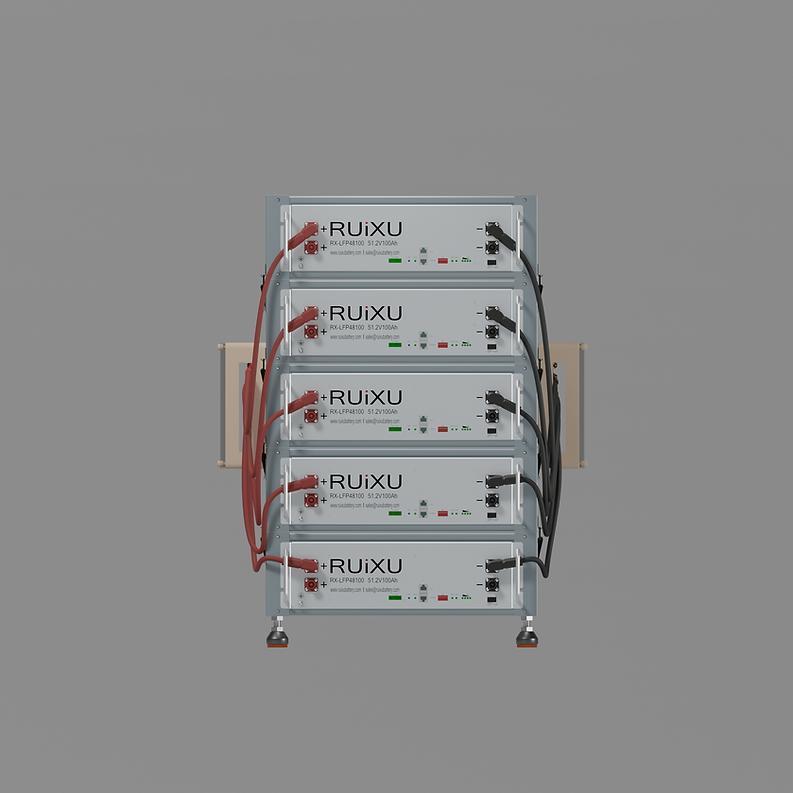

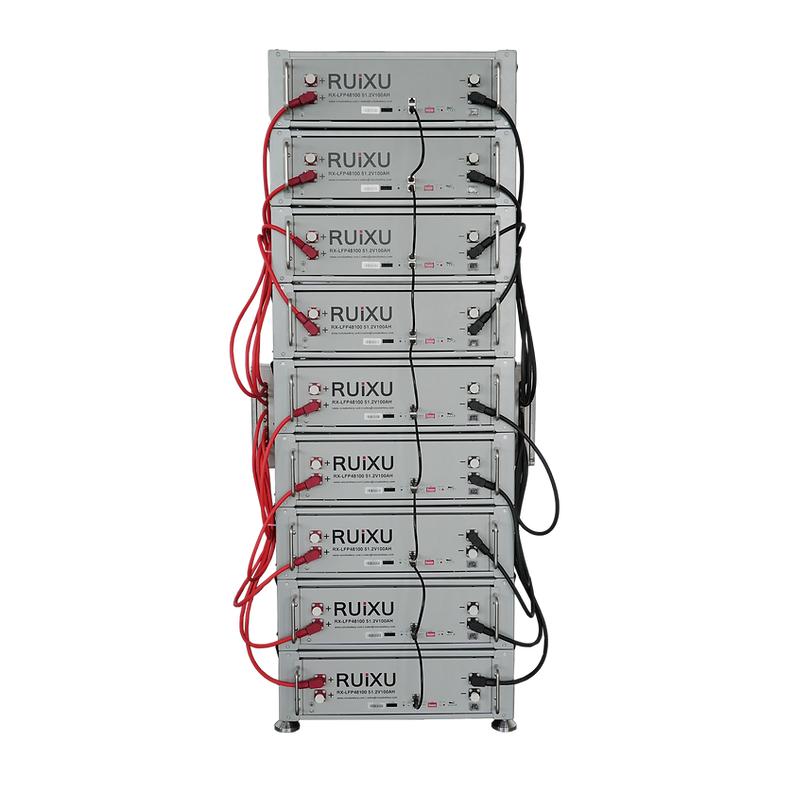

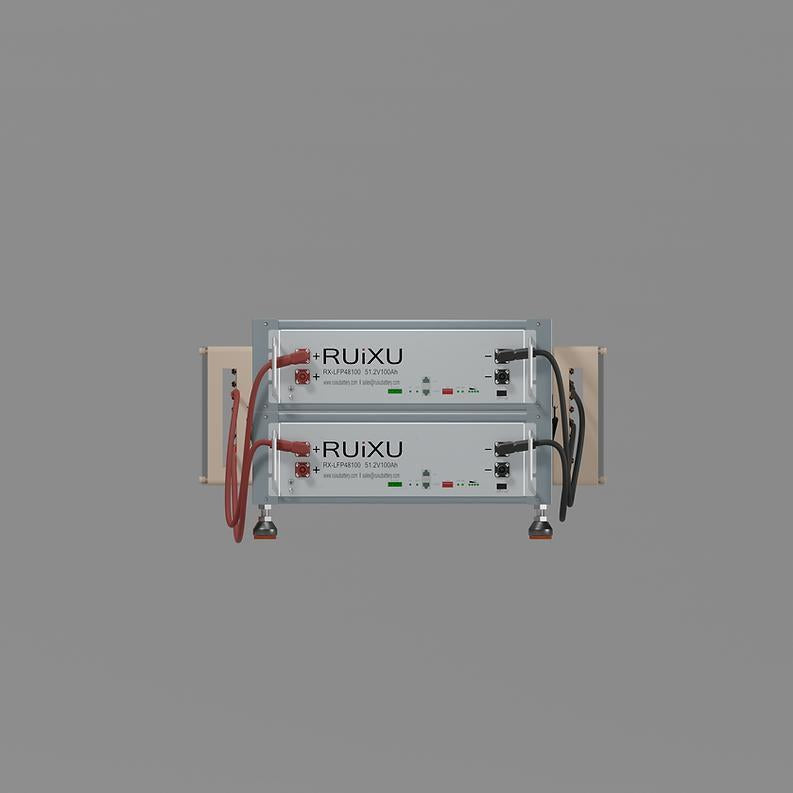

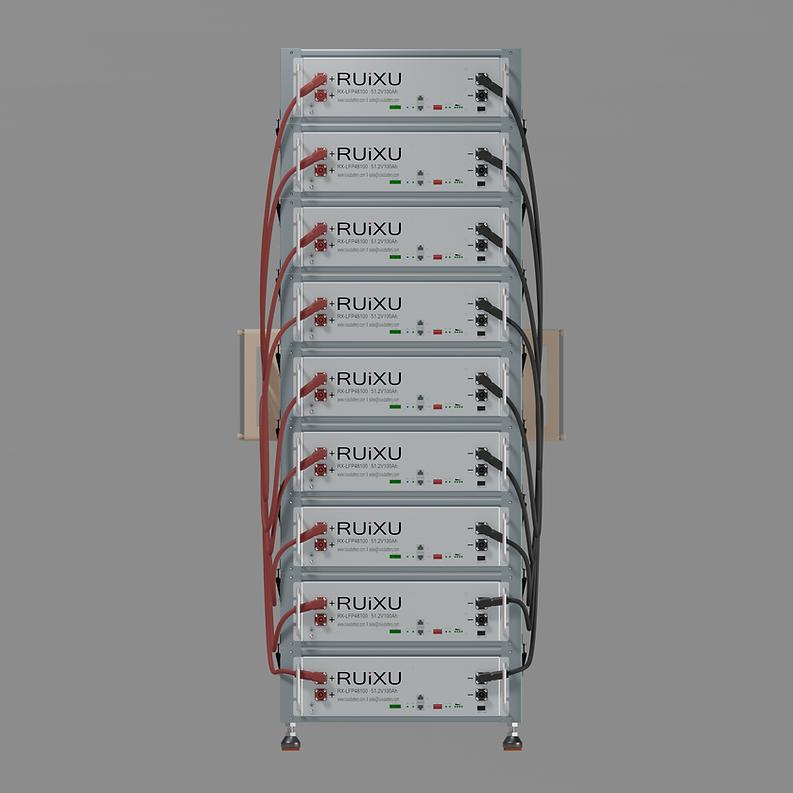

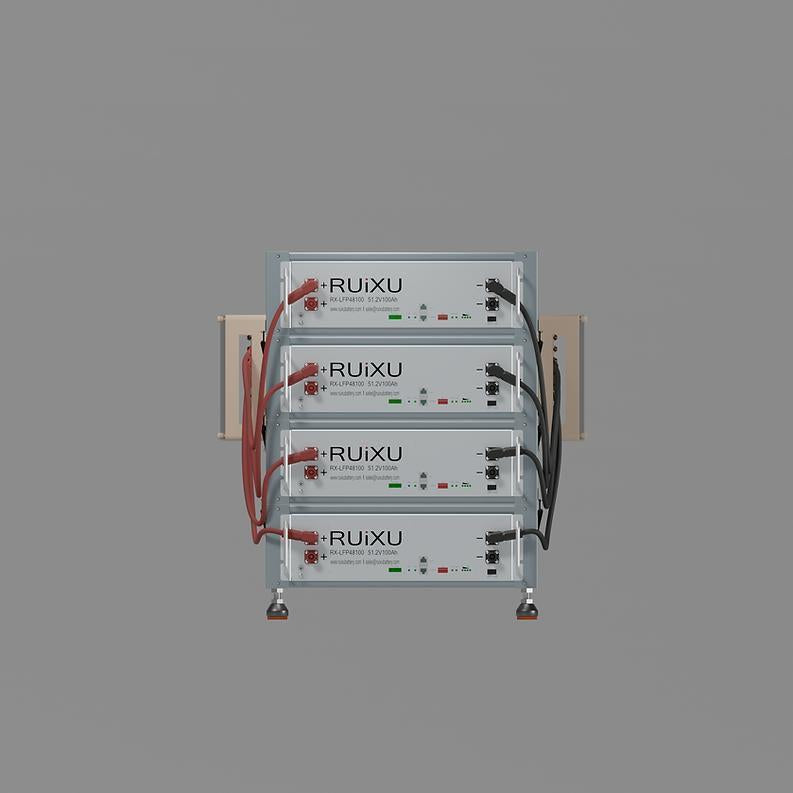

RUiXU bracket rack is a specially designed accessory that allows you to stack up to nine Ruixu RX-LFP48100 lithium batteries vertically in a compact and stable configuration. The RUiXU bracket rack is the perfect solution for homeowners and businesses who want to enjoy the benefits of a reliable, scalable, and cost-effective energy storage system.
RX-LFP48100
- Nominal voltage:51.2V
- Nominal capacity@0.2C:100 Ah
- Min. capacity@0.2C:100 Ah
- Nominal energy :5120Wh
- Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
- Weight: ~47kg (103.6lb)
Modular
- Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Inverter Protocol Choosing
- Use DIP address to set the RS485 baud rate and inverter protocol choosing
Communications
- Canbus: Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
- RS485: MPP, Voltronic, RCT, Alpha outback

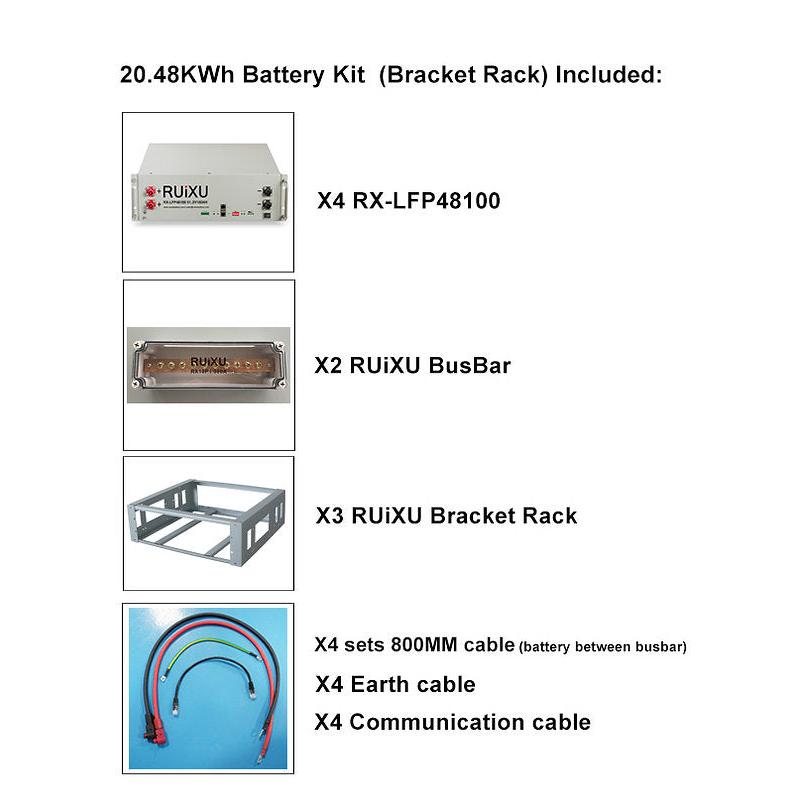

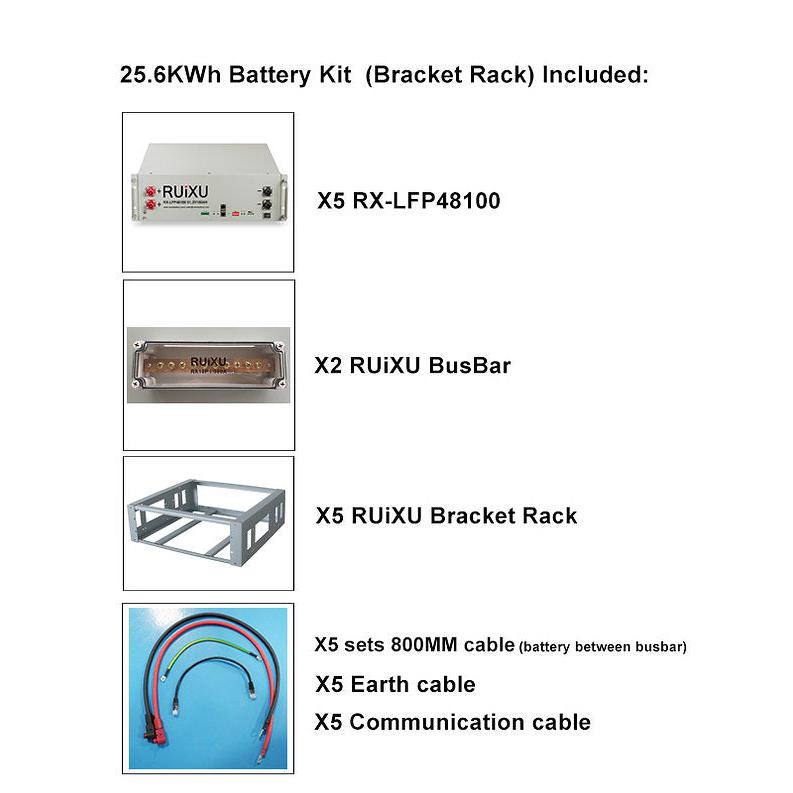

Standard Included
- (1) RUiXU 48V Server Rack battery (RX-LFP48100)
- (1) RJ45/CAT5e Patch Cables
- (1) Ground Cable
- (1) Set of Parallel 4AWG Cables per battery
Warranty
- 10 years covering product replacement or repair (Click here for more details)
Resources:
Compatible with all leading inverters:
- Voltronic or MPP Inverter
- Sol-ark Inverter
- Deye Inverter
- Victron Inverter
- Growatt Inverter
- Schneider Inverter
Why Choose RUiXU Server Rack Battery?
| RUiXU | Other Brand |
|
| Size (Ultra-thin) | 3U Size(482x460x133.5mm),133mm height will save more space,compact & flexible | 4U(482x420x161mm) or 4.5U |
| Installation | Rack Mounted,Floor Mounted,Wall Mounted,Stack Mounted | Rack mounted |
| Inverter Protocol Choosing | Use DIP address to set the RS485 baud rate and inverter protocol choosing | need to connect with computer to choose protocol |
| Modular | Support up to 32units in parallel,extend to 160KWh system without additional controller | only support 16units in parallel |
| Certification | UL1973 &IEC62619 for whole battery pack ,UN38.3,MSDS | / |
| Pre-charge ability(single battery) | 1000000uF,capable of precharging higher power inverters | 20000uF |
| Working Temperature |
Charge:-5°C-59°C Discharge:-10°C-59°C,built-in heater is optional |
Charge:-5°C -59°C Discharge:-10°C -59°C |
