RUiXU RX-LFP48100-H | 19" Rack Mounted 3U Module | UL1973 Certified | Self-heating
48V 100Ah 5.12kWh - Self-Heating Server Rack Lithium Battery
RX-LFP48100-H

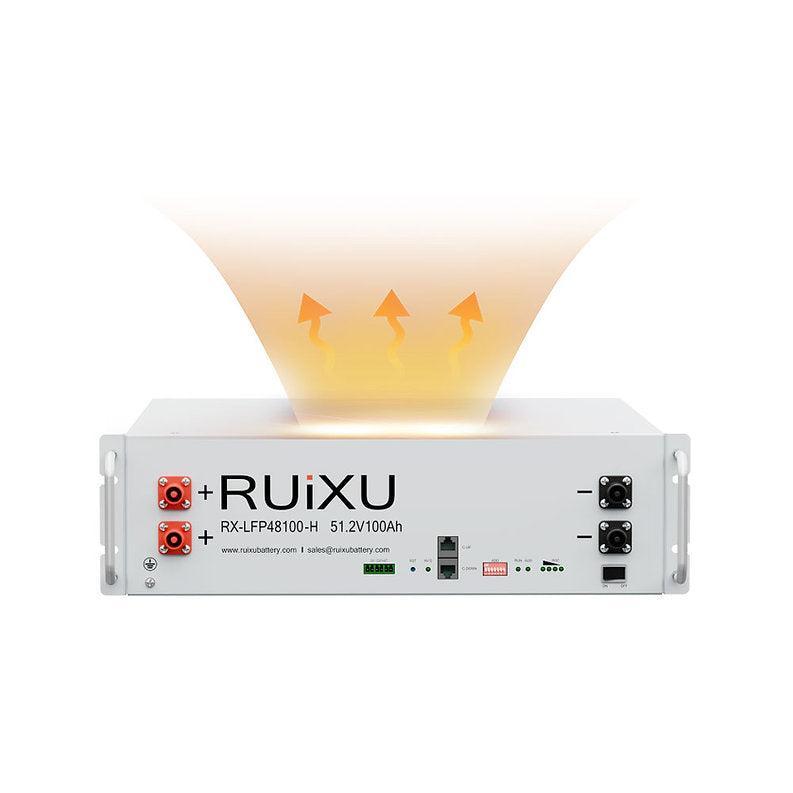

- Self-heating 48V server rack battery is designed for cold weather using!
- Can safely charge at temperatures down to -20°C (-4°F) by a standard charger or solar charger.
- The heater pads which draws power from the charger itself.
RX-LFP48100-H
- Nominal voltage :51.2V
- Nominal capacity@0.2C :100 Ah
- Min. capacity@0.2C:100 Ah
- Nominal energy :5120Wh

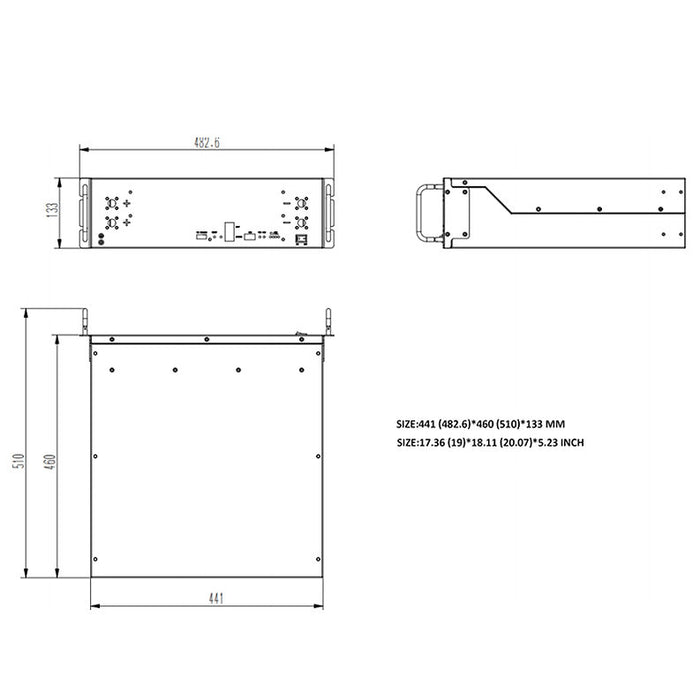

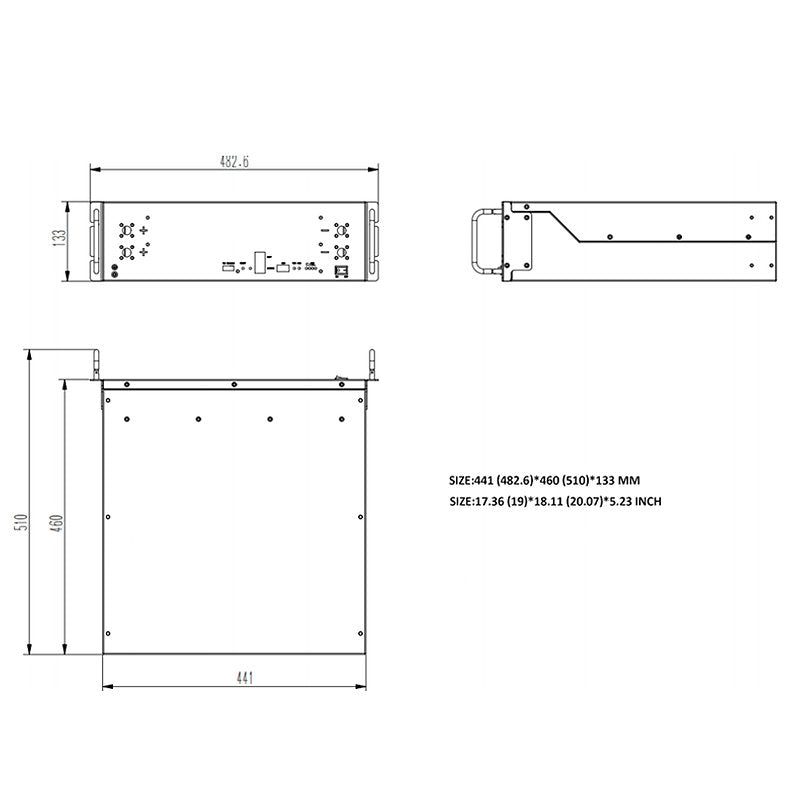

- Dimesion(W*D*H):482.6x460x133mm | 19 x 18.1 x 5.23 inch
- Weight: ~47kg (103.6lb)
Modular
- Support up to 32 units in parallel, scale from 5 kWh to 160 kWh configuration without external controller.
Inverter Protocol Choosing
- Use DIP address to set the RS485 baud rate and inverter protocol choosing
Communications
- Canbus: Victron, SMA, Studer Innotec, Sofar, Solark, Solis, Goodwe, Deye, Growatt, SAJ, LUXPOWER, Megarevo, INVT, Sermatec, TBB, MUST, Sunsynk, Schneider
- RS485: MPP, Voltronic, RCT, Alpha outback
Standard Included
- (1) RUiXU 48V Server Rack battery (RX-LFP48100)
- (1) RJ45/CAT5e Patch Cable
- (1) Ground Cable
- (1) Set of Parallel 4AWG Cables per battery
Cables
- 1. 6 slot cabinet installation,300MM cable (battery to cabinet busbar) included.
- No busbar connection,250MM cable (battery to battery) included,only available for 48V system 2000W-5000W.
Warranty
- 10 years covering product replacement or repair (Click here for more details)
Resources:
Compatible with all leading inverters:
- Voltronic or MPP Inverter
- Sol-ark Inverter
- Deye Inverter
- Victron Inverter
- Growatt Inverter
- Schneider Inverter
Why Choose RUiXU Server Rack Battery?
| RUiXU | Other Brand |
|
| Size (Ultra-thin) | 3U Size(482x460x133.5mm),133mm height will save more space,compact & flexible | 4U(482x420x161mm) or 4.5U |
| Installation | Rack Mounted,Floor Mounted,Wall Mounted,Stack Mounted | Rack mounted |
| Inverter Protocol Choosing | Use DIP address to set the RS485 baud rate and inverter protocol choosing | need to connect with computer to choose protocol |
| Modular | Support up to 32units in parallel,extend to 160KWh system without additional controller | only support 16units in parallel |

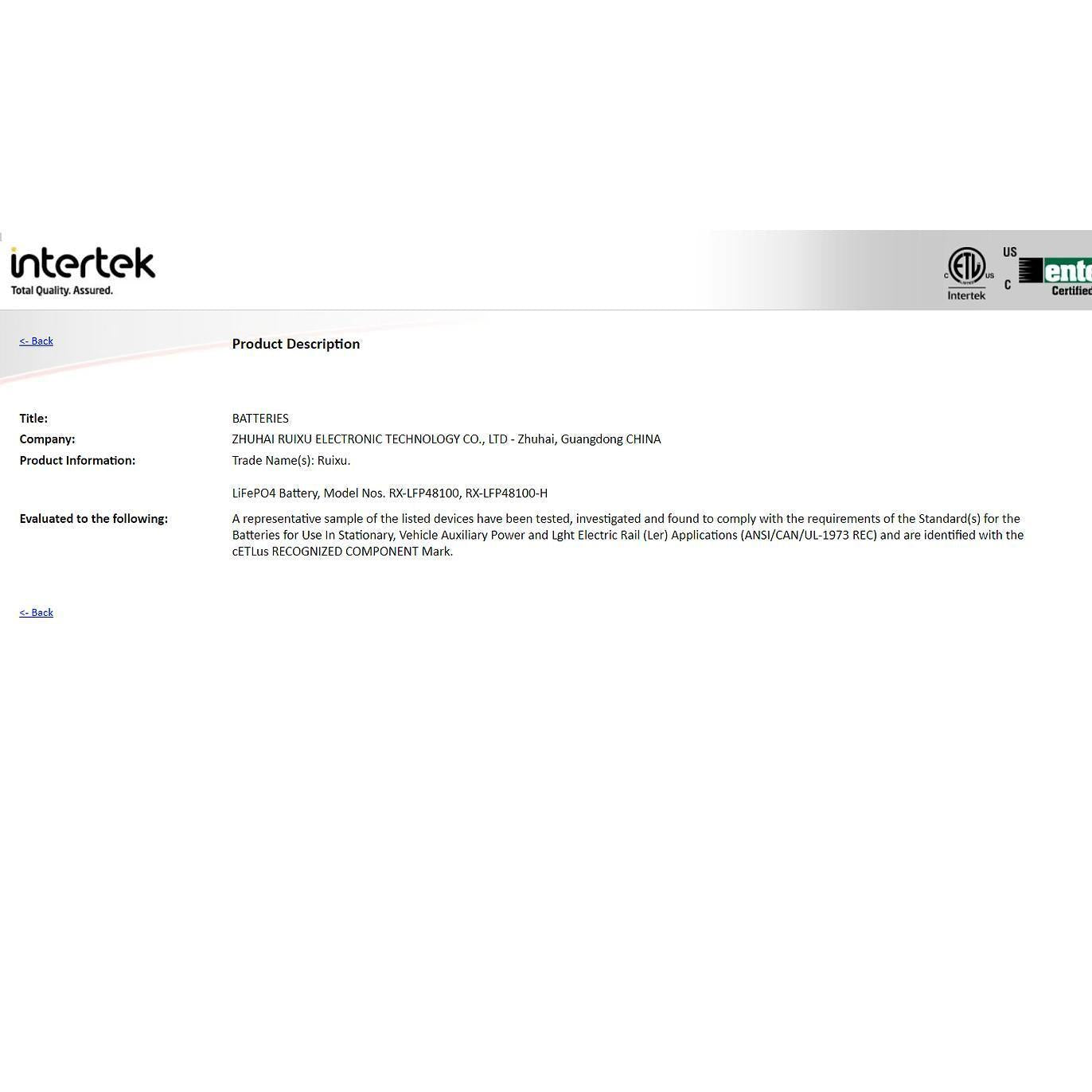

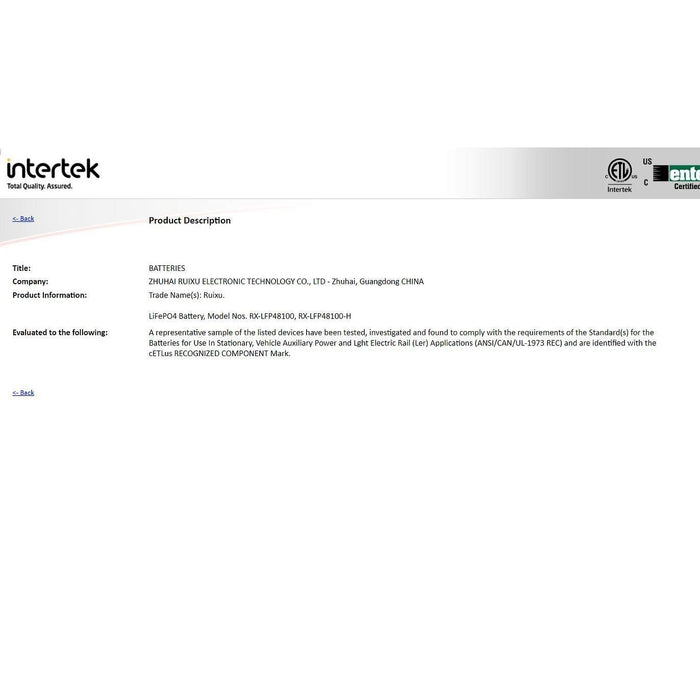

| Certification | UL1973 &IEC62619 for whole battery pack ,UN38.3,MSDS | / |
| Pre-charge ability(single battery) | 1000000uF,capable of precharging higher power inverters | 20000uF |
| Working Temperature |
Charge:-5°C-59°C Discharge:-10°C-59°C,built-in heater is optional |
Charge:-5°C -59°C Discharge:-10°C -59°C |
