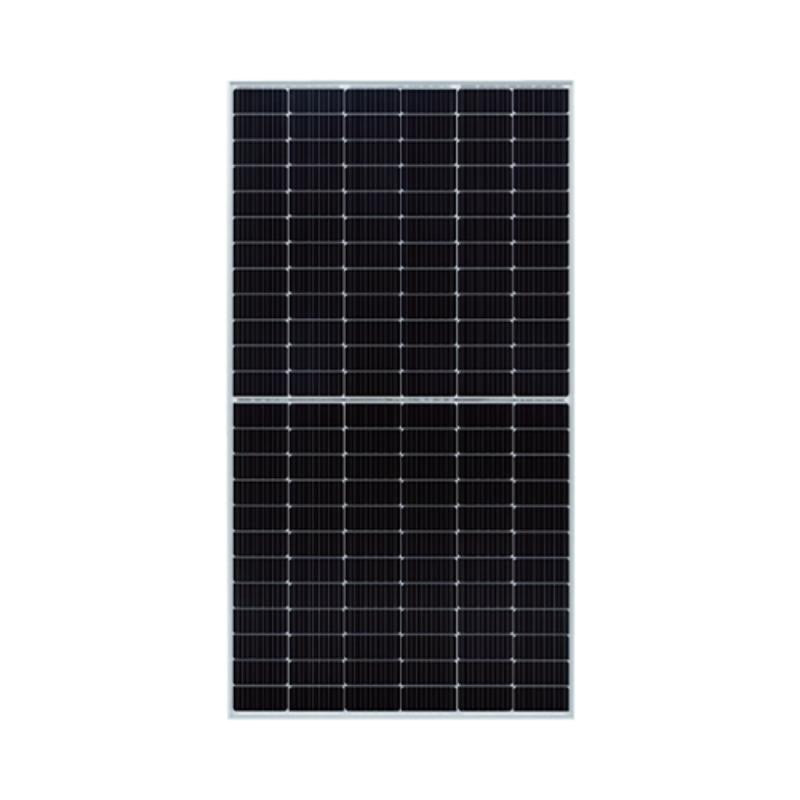

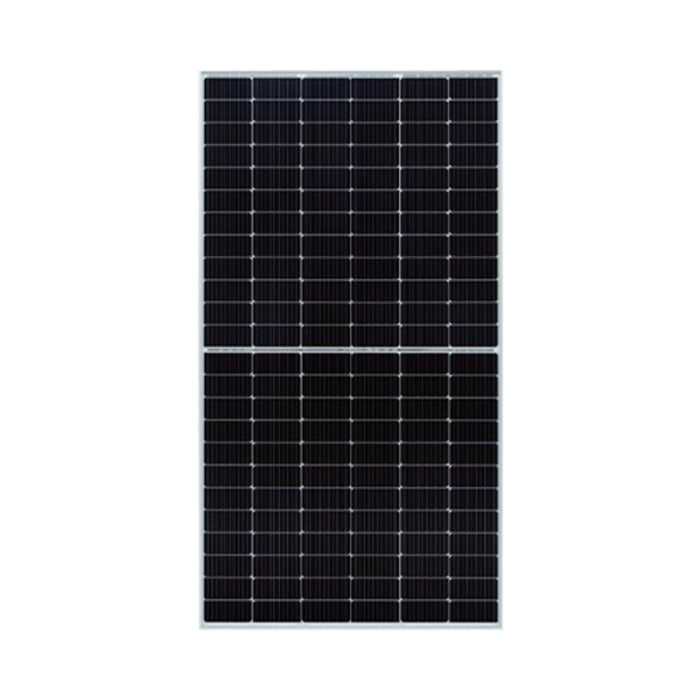

Talesun Solar 545W BIPRO Mono PERC Bifacial TD7G72M-545
Pallet Only: 31 Panels/Pallet
Key Features
- 10BB Half-Cut Cell Technology: Innovative design with lower internal current and reduced resistive losses for enhanced efficiency.
- Bifacial PERC Technology: Offers 5%-25% additional energy yield depending on environmental conditions.
- Durable Design: IP68-rated junction box and wear-resistant dual-glass construction for reliable operation in harsh environments.
- PID Resistance: Twice the industry standard for anti-PID performance as tested by TÜV SÜD.
- Global Certification: Complies with IEC 61215/61730 and ISO standards for quality, environmental, and occupational safety management systems.
Applications
- High-efficiency power generation in residential, commercial, and utility-scale installations.
- Designed for use in high-humidity, windy, and dusty environments.
- Ideal for bifacial setups requiring increased energy output.
Installation
- Mounting: Standard mounting holes for easy installation.
- Operating Conditions: Temperature range from -40°C to +85°C, with a maximum system voltage of 1500 V/DC.
- Mechanical Load: Front-side withstands 5400 Pa and backside 2400 Pa.
Specifications
| Parameter | Value |
|---|---|
| Model | TD7G72M/545W |
| Maximum Power (Pmax) | 545 W |
| Operating Voltage (Vmpp) | 41.2 V |
| Operating Current (Impp) | 13.11 A |
| Open-Circuit Voltage (Voc) | 49.4 V |
| Short-Circuit Current (Isc) | 13.87 A |
| Module Efficiency | 20.7% |
| Cell Type | Monocrystalline (182×182 mm) |
| Number of Cells | 144 (6×24) |
| Weight | 70.5 lbs |
| Dimensions | 90.55×44.68×1.38 in |
| Glass Type | 2.0 mm AR-coated, heat-strengthened |
| Frame Material | Anodized Aluminum Alloy |
| Junction Box | IP68-rated, 3 Bypass Diodes |
| Maximum System Voltage | 1500 V/DC |
| Nominal Operating Temp. | 43°C ± 2°C |
| Temperature Coefficients | -0.36%/°C (Pmax), +0.043%/°C (Isc) |
| Packing | 31 pieces/carton, 620 pieces/container |
| Resources | Data Sheet |
Why Choose Talesun Solar Panels?
Talesun solar panels rank near the top of the Bloomberg Tier 1 list.
With a steadfast dedication to excellence and an emphasis on quality, Talesun has reliably provided innovative solar solutions to address the increasing global energy demand.
