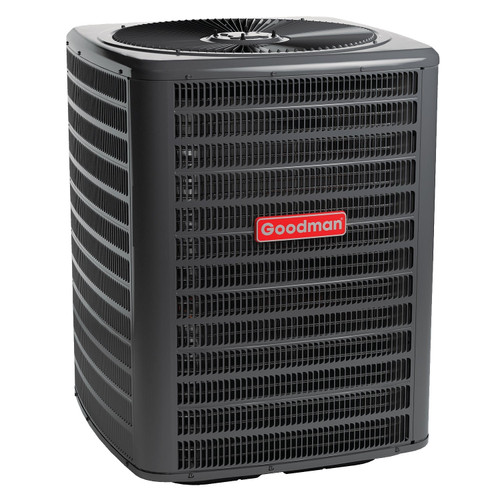

Goodman 1.5 Ton 14.3 SEER2 Heat Pump Condenser (R-32) - GLZS4BA1810 - GLZS4BA1810 Mini Split Systems Direct

Goodman 1.5 Ton 14.3 SEER2 Heat Pump Condenser (R-32) - GLZS4BA1810

Goodman

MSRP: $3,048.30
$2,258.00
(You save $790.30 )
(No reviews yet) Write a Review
SKU:
GLZS4BA1810
Adding to cart… The item has been added

Goodman 1.5 Ton 14.3 SEER2 Heat Pump Condenser (R-32) - GLZS4BA1810

The Goodman 1.5 Ton 14.3 SEER2 Heat Pump Condenser (R-32) - GLZS4BA1810 will provide you with reliable cooling and heating at money-saving energy efficiency levels as compared to lower SEER heat pump units. Your Goodman heat pump condenser starts with an energy-efficient compressor, which operates in tandem with our high-efficiency coil. These high-quality components together cool and heat your home.

Standard Features:

  • High-efficiency compressor
  • SmartShift® technology to ensure quiet reliable defrost
  • Enhanced aluminum fin coil- 5 mm diameter on 1.5T-3.5 Ton
  • Enhanced aluminum fin coil with 7mm diameter copper tubes in 4.0- to 5.0-ton
  • Single-speed PSC condenser fan motor
  • Factory-installed bi-flow liquid-line filter drier
  • Factory-installed suction-line accumulator
  • Factory-installed compressor crankcase heater
  • Factory-installed high-capacity muffler
  • High- and low-pressure switches
  • Service valves with sweat connections and easy access to gauge ports
  • Fully charged for 15’ of tubing length
  • Fully enclosed contactor with lug connection
  • Ground lug connection
  • Capacitors with extended life
  • AHRI Certified; ETL Listed

    Cabinet Features:

    • Removable grille-style top design compliant with UL 60335-2-40
    • Steel louver coil guard
    • Heavy-gauge galvanized-steel cabinet
    • Attractive Architectural Gray powder-paint finish with 500-hour salt-spray approval
    • Top and side maintenance access
    • When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)

    Specifications:

    Brand Goodman®
    Model GLZS4BA1810
    Warranty

    10 Years Parts Warranty

    10 Years Compressor Warranty
    SEER2 14.3
    HSPF2

    7.8
    Nominal Capacities

    Cooling (BTU/h): 18,000

    Heating (BTU/h): 18,000

    Decibels: 74
    Compressor

    RLA: 8.2

    LRA: 41.2

    Stage: Single

    Type: Rotary
    Condenser Fan Motor

    Motor Type: PSC

    Horsepower: 1/6

    FLA: 0.95
    Refrigeration System

    Refrigerant Line Size

    • Liquid Line Size (“O.D.): 3/8"
    • Suction Line Size (“O.D.): 3/4"

    Refrigerant Connection Size

    • Liquid Valve Size (“O.D.): 3/8"
    • Suction Valve Size (“O.D.): 3/4"

    Refrigerant Type: R-32

    Valve Connection Type: Sweat

    Refrigerant Charge (oz.): 70
    Electrical Data

    Volts/Phase (60 Hz): 208/230-1-60

    Minimum Circuit Ampacity: 11.2

    Max. Overcurrent Protection: 15

    Min / Max Volts: 197/253

    Electrical Conduit Size: 1/2" or 3/4"
    Equipment Weight (lbs.) 150
    Ship Weight (lbs) 165
    Dimensions (W x D x H) 29 x 29 x 32-1/2 inches
