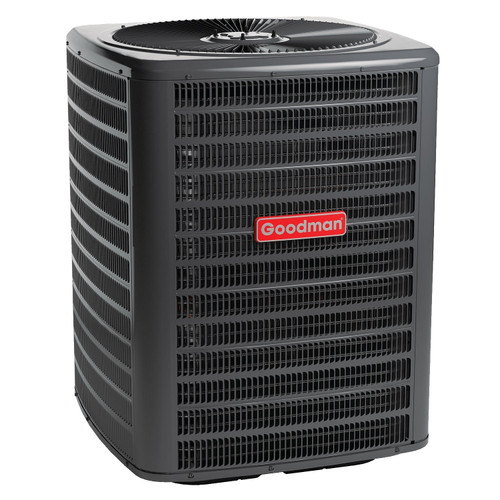

Goodman GLXT7CA6010 5 Ton 17.2 SEER2 Two Stage High Efficiency Split System Air Conditioner Condenser - R-32 Refrigerant
The Goodman GLXT7C R-32 High-Efficiency 2-Stage Scroll Compressor Split System Air Conditioner is a dual-stage condenser built for modern R-32 refrigerant systems, offering up to 17.2 SEER2 cooling performance. It features a two-stage Copeland Ultra-Tech scroll compressor, a quiet two-speed ECM outdoor fan motor, and integrated ComfortBridge™ communicating controls for smarter diagnostics and system coordination. The unit is factory-charged for typical line sets and includes color-coded wiring, a high-density foam sound blanket for quieter operation, and enhanced coil construction for improved heat exchange.
Standard Features
- Two-Stage Copeland Ultra-Tech scroll compressor
- Quiet two-speed ECM outdoor fan motor
- Integrated communicating ComfortBridge™ Technology
- Commissioning and diagnostics via Bluetooth indoor board via CoolCloud™ App
- Copeland® ComfortAlert™ built in diagnostics
- Copper tube/enhanced aluminum fin coil - 5mm on 2.0-3.0T
- Color-coded terminal strip for non-communicating set-up
- Only two low-voltage wires required in communication mode
- Factory-installed filter drier
- Factory-installed transformer
- Factory-installed high and low-pressure switches
- High-density foam compressor sound blanket
- Fully charged for 15’ of tubing length
- Ambient temperature sensors
- Ground lug connection
- AHRI Certified - ETL Listed
Cabinet Features
- Removable grille-style top design compliant with UL 60335-2-40
- Venturi for increased velocity of airflow
- Heavy-gauge galvanized steel cabinet
- Baked-on powder-paint finish with 500-hour salt-spray approval
- Steel louver coil guard with rust-resistant screws.
- Top and side maintenance access
- Single-panel access to controls with space for field-installed accessories
- Service valves with sweat connections and easy-access gauge ports
- When properly anchored, meets the 2023 Florida Building Code unit integrity requirements for hurricane-type winds (Anchor bracket kits available.)
Warranty:
- 10-Year Unit Replacement Limited Warranty
- 10-Year Parts Limited Warranty
- See the warranty document here for full warranty details
Goodman GLXT7CA6010 5 Ton 17.2 SEER2 Two Stage High Efficiency Split System Air Conditioner Condenser - R-32 Refrigerant Specifications:
| Brand | Goodman | Goodman | Goodman | Goodman |
|---|---|---|---|---|
| Model | GLXT7CA2410 | GLXT7CA3610 | GLXT7CA4810 | GLXT7CA6010 |
| Refrigerant Type | R-32 | R-32 | R-32 | R-32 |
| Pre-Charged Length | Pre-charged for 15 ft of line set length | Pre-charged for 15 ft of line set length | Pre-charged for 15 ft of line set length | Pre-charged for 15 ft of line set length |
| Cooling Capacity |
Nominal Cooling (BTU/h): 24,000 Decibels (High/Low): 69.0 |
Nominal Cooling (BTU/h): 36,000 Decibels (High/Low): 70.0 |
Nominal Cooling (BTU/h): 48,000 Decibels (High/Low): 73.0 |
Nominal Cooling (BTU/h): 60,000 Decibels (High/Low): 75.0 |
| Compressor |
RLA: 9.9 LRA: 68 Stage: Two Type: Scroll |
RLA: 14.5 LRA: 91 Stage: Two Type: Scroll |
RLA: 23.2 LRA: 128 Stage: Two Type: Scroll |
RLA: 27.1 LRA: 178 Stage: Two Type: Scroll |
| Condenser Fan Motor |
Motor Type: ECM Horsepower (RPM): ⅓ FLA: 2.60 |
Motor Type: ECM Horsepower (RPM): ⅓ FLA: 2.60 |
Motor Type: ECM Horsepower (RPM): ⅓ FLA: 2.60 |
Motor Type: ECM Horsepower (RPM): ⅓ FLA: 2.60 |
| Refrigeration System |
Refrigerant Line Size¹:
Refrigerant Connection Size:
Valve Connection Type: Sweat Refrigerant Charge⁴: 104 |
Refrigerant Line Size¹:
Refrigerant Connection Size:
Valve Connection Type: Sweat Refrigerant Charge⁴: 92 |
Refrigerant Line Size¹:
Refrigerant Connection Size:
Valve Connection Type: Sweat Refrigerant Charge⁴: 180 |
Refrigerant Line Size¹:
Refrigerant Connection Size:
Valve Connection Type: Sweat Refrigerant Charge⁴: 167 |
| Electrical Data |
Voltage-Phase-Hz: 208/230–1 Minimum Circuit Ampacity⁵: 15.0 Max. Overcurrent Protection⁶: 20 Min / Max Volts: 197/253 Electrical Conduit Size: ½" or ¾" |
Voltage-Phase-Hz: 208/230–1 Minimum Circuit Ampacity⁵: 20.8 Max. Overcurrent Protection⁶: 35 Min / Max Volts: 197/253 Electrical Conduit Size: ½" or ¾" |
Voltage-Phase-Hz: 208/230–1 Minimum Circuit Ampacity⁵: 31.6 Max. Overcurrent Protection⁶: 50 Min / Max Volts: 197/253 Electrical Conduit Size: ½" or ¾" |
Voltage-Phase-Hz: 208/230–1 Minimum Circuit Ampacity⁵: 36.4 Max. Overcurrent Protection⁶: 60 Min / Max Volts: 197/253 Electrical Conduit Size: ½" or ¾" |
| Dimensions |
35½" x 35½" x 39½" (W x D x H) |
35½" x 35½" x 39½" (W x D x H) |
35½" x 35½" x 41⅝" (W x D x H) |
35½" x 35½" x 41⅝" (W x D x H) |
| Equipment Weight |
Equipment Weight (lbs): 214 |
Equipment Weight (lbs): 216 |
Equipment Weight (lbs): 276 |
Equipment Weight (lbs): 283 |
| Ship Weight |
Ship Weight (lbs): 219 |
Ship Weight (lbs): 221 |
Ship Weight (lbs): 281 |
Ship Weight (lbs): 288 |
