This is a wall-sleeve air conditioner and heater for hotel rooms, apartments, additions, or any room where central ductwork isn't available. It's built for property managers and homeowners who need self-contained, per-room climate control with electric-resistance backup heat.

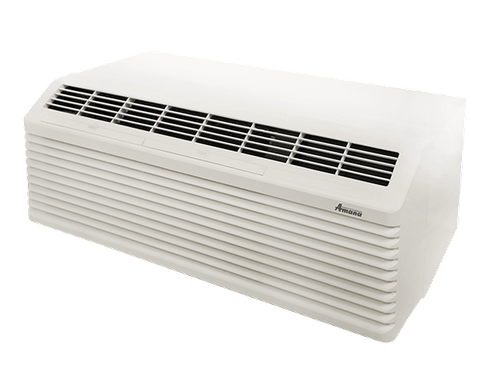

The PTC173J25AXXX is a standard-model PTAC built for hospitality rooms, multifamily housing, and room additions where ductwork isn't practical. It combines a 16,700/16,400 BTU cooling chassis with a 2.5/2.1 kW electric heat strip on a single 230/208V circuit, and it meets or exceeds ASHRAE 90.1 efficiency requirements. Note: If you would like to review the manufacturer Product Specifications, Warranty, Brochure, etc., for this system, please refer to the "Resources (System Manuals and Warranty)" Tab above on this page.
- Wall sleeve opening required: industry-standard 42 in wide x 16-1/16 in high (standard depth 14 in) — Wall Sleeve NOT included, sold separately (e.g., WS900E, WS900QW).
- Exterior Architectural Grille NOT included — sold separately (SGK, AGK, or PGK series).
- Voltage: 230/208V. Amperage with heater: 11.2/10.1A total; MCA 14.1A; MOP 15A.
- Power cord: factory-installed NEMA 6-15P plug with LCDI device per UL 484 (standard on all units under 250V).
- Not compatible with 115V circuits.
- Not for 265V hardwire or sub-base applications — this is a 230/208V chassis and does not use the Amana PTSB4**E sub-base or PTPWHWK4 hard-wire kit.
- Not a drop-in replacement for non-standard sleeve openings — verify existing sleeve dimensions before ordering.
Condensate drainage is the most common callback on PTAC sleeve installs. If a sleeve sits perfectly level, water pools inside and eventually finds its way into the drywall or subfloor below the opening. Pitch the sleeve 1/4 bubble toward the exterior wall using a torpedo level set on the sleeve's base rail — this directs condensate outboard through the factory weep path instead of backward into the room. Confirm the sleeve extends a minimum of 1/4 in beyond the exterior wall face per the framing diagram before securing it, and re-check the pitch after fasteners are set, since torquing the flanges can pull a level sleeve out of pitch. This is standard property-management practice for hospitality retrofits and prevents warranty disputes tied to water damage rather than unit failure.
Key Benefits
- 16,700/16,400 BTU cooling output rated at 10.4/10.6 EER (230V/208V).
- 4.4 pints/hour dehumidification for humid-climate comfort control.
- 65 CFM fresh air vent for make-up air in tightly sealed rooms.
- Single-stage 2.5/2.1 kW electric heat strip supplies 8,500/6,800 BTU of supplemental heat.
- R-32 refrigerant chassis meeting or exceeding ASHRAE 90.1 efficiency standards.
- Factory-installed LCDI power cord (UL 484) simplifies plug-and-play install on a dedicated 15A circuit.
| Spec | Value | Unit |
|---|---|---|
| Cooling Capacity (230V/208V) | 16,700/16,400 | BTU/h |
| Heating Capacity (230V) | 8,500 | BTU/h |
| Heating Capacity (208V) | 6,800 | BTU/h |
| Electric Heat Strip | 2.5/2.1 | kW |
| Heater Stages | 1 | stage |
| EER | 10.4/10.6 | BTU/W |
| Voltage | 230/208 | V |
| Compressor Amps | 7.8 | A |
| Compressor Watts (230V/208V) | 1,575/1,575 | W |
| Total Amps w/ Heat (230V/208V) | 11.2/10.1 | A |
| Total Watts w/ Heat (230V/208V) | 2,570/2,115 | W |
| MCA (with heater) | 14.1 | A |
| MOP (with heater) | 15 | A |
| NEMA Plug Type | 6-15P | — |
| CFM Wet (High/Low) | 400/314 | CFM |
| CFM Dry (High/Low) | 412/390 | CFM |
| Fresh Air Vent | 65 | CFM |
| Dehumidification | 4.4 | pints/hr |
| Net Weight | 113 | lb |
| Shipping Weight | 130 | lb |
| Wall Sleeve Dimensions | 42 x 16-1/16 (14 in depth) | in |
| Wall Sleeve Included | Not Included | — |
| Exterior Grille Included | Not Included | — |
Note: See "Resources (System Manuals and Warranty)" Tab above for full specifications.
Compatibility & Fitment
- Compatible with 230/208V circuits via NEMA 6-15P plug.
- Fits standard 42 in x 16-1/16 in wall sleeve openings (standard 14 in depth), such as Amana WS900E or WS900QW sleeves.
- Wall Sleeve NOT included — must be ordered separately.
- Exterior Architectural Grille NOT included — must be ordered separately.
- Not compatible with 115V circuits.
- Not suitable for 265V hardwire-only applications — this chassis does not use or require the Amana PTSB4**E sub-base or PTPWHWK4/PSHW04A hard-wire kit.
- Not a drop-in replacement for non-standard sleeve openings — measure existing rough opening before ordering.
| Compliance Item | Value |
|---|---|
| Refrigerant Type | R-32 |
| Efficiency Standard | Meets or exceeds ASHRAE 90.1 |
| Power Cord Compliance | Factory-installed LCDI power cord per UL 484 (units under 250V) |
| Voltage Operating Range | Min 197V / Max 253V (230/208V models) |
| Overcurrent Protection | 15A MOP (with heater installed) |
FAQ
Is the wall sleeve included with this unit?
No. The wall sleeve is sold separately. This unit is designed to fit the industry-standard 42 in wide x 16-1/16 in high sleeve opening, such as Amana's WS900E or WS900QW sleeves (standard 14 in depth).
What breaker size and plug type does this unit require?
This configuration (230/208V with 2.5/2.1 kW electric heat) has a Minimum Circuit Ampacity (MCA) of 14.1A, a Maximum Overcurrent Protection (MOP) of 15A, and ships with a factory-installed NEMA 6-15P power cord.
Can this be hardwired for 265V commercial applications?
No. This unit is rated 230/208V only and is not compatible with 265V circuits. 265V Amana models require a dedicated Amana sub-base (PTSB4**E series) or the PTPWHWK4 hard-wire kit with PSHW04A disconnect switch (sold separately) — this configuration does not use or require that hardware.
Does this require a licensed electrician or HVAC professional to install and keep the warranty valid?
[NEEDS VERIFICATION] — exact installer/licensing requirements for warranty validity are detailed in the manufacturer warranty document. Refer to the Resources tab for full terms.
Will this fit a standard 42-inch by 16-inch wall sleeve opening?
Yes. This chassis fits the industry-standard 42 in wide x 16-1/16 in high wall sleeve opening. It is not a drop-in fit for non-standard or custom sleeve openings.
Warranty & Registration
This unit carries a 1-Year Repair/Replace warranty and a 5-Year Parts Limited Warranty, per manufacturer badge documentation. Exact terms — including any distinctions between commercial hospitality use and residential use — are defined in the warranty PDF located in the "Resources (System Manuals and Warranty)" Tab above. We recommend reviewing that document before install, and you're welcome to ask us before you order if anything is unclear.
