This is a wall-sleeve heat pump and backup-heat system for hotel rooms, apartments, or additions where central ductwork isn't available. It's built for property managers and electricians who need a 265V, self-contained per-room unit with heat pump efficiency plus electric heat backup for cold snaps.

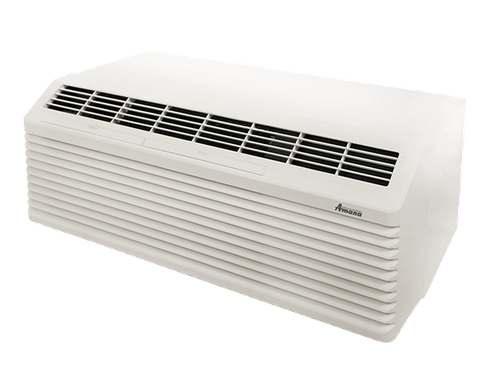

This Amana PTH154J50AXXX is a 265V packaged terminal heat pump built for hospitality and multi-family properties, using heat pump operation for primary heating and a 5.0 kW electric heat strip as backup during colder outdoor temperatures. AHRI-rated cooling and heating capacities are listed in the Technical Table below. Note: If you would like to review the manufacturer Product Specifications, Warranty, Brochure, etc., for this system, please refer to the "Resources (System Manuals and Warranty)" Tab above on this page.
Critical Fit & Power Requirements
- Wall Sleeve opening: Standard 42 in x 16-1/16 in (industry-standard PTAC/PTHP chassis sizing)
- Voltage: 265V commercial circuit (operating range 239V-292V)
- Amperage with 5.0 kW heat installed: 19.2A total heater amps, 23.9A MCA, 25A MOP
- Power Cord / Plug: 7-30P NEMA configuration, factory-installed
- Wall Sleeve is NOT included — must be ordered separately (e.g., WS900E, WS900QW, or matching architectural variant)
- Exterior Architectural Grille is NOT included — must be ordered separately (SGK, AGK, or PGK series)
- Not compatible with 115V circuits
- Not compatible with 230/208V circuits — if you need that voltage, see the sibling chassis PTH153J instead
- 265V installs require an Amana PTSB4**E sub-base or PTPWHWK4 hard-wire kit with PSHW04A disconnect (sold separately) — this unit does not connect via a standard hardwire-free plug-and-play setup without one
- This unit does NOT ship with an LCDI power cord — LCDI cords apply only to units rated under 250V per UL 484
The technical friction on this chassis is twofold: condensate drainage and voltage-specific wiring. First, on the sleeve pitch — a 265V PTHP still produces condensate during cooling mode, and if the sleeve sits level or pitches inward, that water tracks back into the drywall and subfloor instead of draining outside. Set the sleeve level side-to-side and pitch it 1/4 bubble toward the outside wall, confirmed with a torpedo level, before securing it in the rough opening. Second, because this is a 265V unit, it will not accept a standard 230/208V sub-base — you must confirm the sub-base model matches the PTSB4**E series (or install the PTPWHWK4 hard-wire kit with PSHW04A disconnect) before energizing the circuit. Cross-check the receptacle or hardwire terminal against a NEMA Receptacle Chart to avoid arcing from a mismatched connection. This two-part check — drainage pitch plus voltage-correct sub-base — is standard property management practice for hospitality PTHP turnovers and helps the installation stay compliant with NEC receptacle and overcurrent protection requirements.
Key Benefits
- Heat pump operation (COP 3.0) reduces reliance on electric resistance heat in moderate outdoor temperatures
- 5.0 kW backup electric heat strip maintains comfort when outdoor temperatures drop below heat pump efficiency range
- 4.4 pints/hr dehumidification helps manage humidity in guest rooms and living spaces
- Fresh air ventilation CFM range of 65-95 supports make-up air needs in occupied rooms
- EER of 10.4 provides a documented cooling efficiency baseline for AHRI comparison
- R-32 refrigerant used in this chassis (per manufacturer catalog note)
Technical Table
| Spec | Value | Unit |
|---|---|---|
| System Type | PTHP (Packaged Terminal Heat Pump) | - |
| Cooling Capacity | 14,600 | BTU/h |
| Cooling Amps | 6.6 | A |
| Cooling Watts | 1,405 | W |
| EER | 10.4 | - |
| Heating Capacity (Heat Pump Mode) | 14,100 | BTU/h |
| Heating Amps | 6.6 | A |
| Heating Watts | 1,375 | W |
| COP | 3.0 | - |
| Heating Capacity (265V Electric Heat) | 17,100 | BTU/h |
| Electric Heat Strip Size | 5.0 | kW |
| Electric Heat Stages | 1 | - |
| Electric Heat Total Watts | 5,070 | W |
| Electric Heat Total Amps | 19.2 | A |
| MCA | 23.9 | A |
| MOP | 25 | A |
| Power Cord / NEMA Plug Type | 7-30P | - |
| Voltage | 265 | V |
| Voltage Operating Range | 239-292 | V |
| CFM Wet (High/Low) | 400/314 | CFM |
| CFM Dry (High/Low) | 381/381 | CFM |
| Fresh Air Vent CFM | 65-95 | CFM |
| Dehumidification | 4.4 | pints/hr |
| Net Weight | 113 | lb |
| Shipping Weight | 130 | lb |
| Refrigerant Type | R-32 | - |
| Wall Sleeve Dimensions | Standard 42 x 16-1/16 | in |
| Sleeve Included | Not Included | - |
| Exterior Architectural Grille Included | Not Included | - |
Note: See "Resources (System Manuals and Warranty)" Tab above for full specifications.
Compatibility & Fitment
- Fits standard 42 in x 16-1/16 in PTAC/PTHP wall sleeve openings
- Compatible with 265V commercial circuits (239V-292V operating range) via 7-30P power cord
- Requires an Amana PTSB4**E sub-base or PTPWHWK4 hard-wire kit with PSHW04A disconnect (sold separately) — not optional for 265V installs
- Not compatible with 115V circuits
- Not compatible with 230/208V circuits — that voltage is served by the sibling chassis PTH153J
- Wall Sleeve NOT included — order separately
- Exterior Architectural Grille NOT included — order separately
- Not a drop-in replacement for non-standard or custom sleeve openings
Compliance & Environment
| Attribute | Detail |
|---|---|
| Refrigerant Type | R-32 |
| NEC Overcurrent Protection (with heater) | 25A MOP, cartridge-style time-delay fuses required, factory-installed for 265V models |
| Voltage Operating Range | 239V-292V (265V models) |
| Efficiency Standard | Meets or exceeds ASHRAE 90.1 |
FAQ
Is the wall sleeve included with this unit?
No. The wall sleeve is sold separately. This unit is designed to fit a standard 42 in x 16-1/16 in PTAC/PTHP sleeve opening, such as the Amana WS900E or WS900QW series.
What breaker size and plug type does this unit require?
With the 5.0 kW electric heat strip installed, this unit has a Minimum Circuit Ampacity (MCA) of 23.9A and requires a Maximum Overcurrent Protection (MOP) of 25A. It ships with a 7-30P power cord for connection to a 265V circuit.
Can this be hardwired for 265V commercial applications?
Yes. All 265V Amana PTHP models must use either an Amana PTSB4**E series sub-base or the PTPWHWK4 hard-wire kit with the PSHW04A disconnect switch. These are sold separately and are required, not optional, for 265V installs.
Does this require a licensed electrician or HVAC professional to install and keep the warranty valid?
265V circuits, sub-base wiring, and cartridge-style time-delay fuse installation fall under NEC electrical code requirements and should be handled by a licensed electrician. Refer to the Resources tab for the manufacturer's exact installation and warranty terms.
Will this fit a standard 42-inch by 16-inch wall sleeve opening?
Yes, this chassis is built to the industry-standard 42 in wide x 16-1/16 in high sleeve opening. It is not a drop-in fit for non-standard or custom sleeve openings.
Warranty & Registration
This unit carries a 1-Year Repair/Replace warranty and a 5-Year Parts Limited Warranty per manufacturer badge documentation. Exact terms, including any distinctions between residential and commercial hospitality usage, are detailed in the warranty PDF in the Resources tab — we recommend reviewing that document before install, particularly if this unit will see heavy hospitality-cycle use. Ask us before you order if you're unsure which sleeve, sub-base, or grille pairing matches your rough opening — we always reply back.
