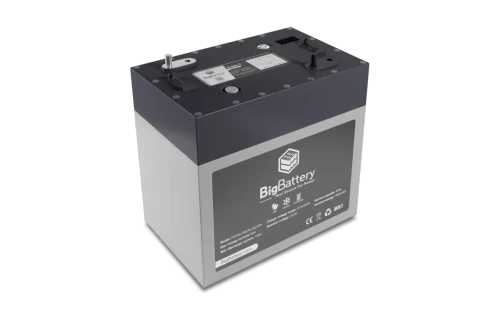

The 24V Eagle 2 is a LiFePO4 battery built in the GC2 (T-105) form factor. It's sized to drop into equipment and vehicles currently running 24V lead-acid golf-cart-style batteries, without modifying the battery tray or cabling.
Note: If you would like to review the manufacturer Product Specifications, Warranty, Brochure, etc., for this system, please refer to the "Resources (System Manuals and Warranty)" Tab above on this page.
Why This Matters
Chemistry is the first thing to check when replacing a lead-acid battery, and this one is LiFePO4 (Lithium Iron Phosphate) — not AGM, Gel, or Flooded. That distinction affects charger compatibility, cycle life, and depth of discharge, all covered below. BigBattery packages this cell chemistry in a GC2-sized case so it can serve as a mirror-image swap for a stock T-105 lead-acid battery, in applications like RVs, scissor lifts, floor sweepers, pallet jacks, and marine setups.
Battery Characteristics
Chemistry: LiFePO4 (Lithium Iron Phosphate). Form factor: GC2, matching the physical footprint of a T-105 lead-acid battery. Rated capacity: 64Ah at 24V, equal to 1.63kWh of stored energy.
Wiring & Configuration Limits
[NEEDS VERIFICATION] — DATA does not specify maximum series or parallel string counts, BMS communication protocol (e.g., CAN/RS485), or a manufacturer-stated series/parallel limit for this model. Do not assume this battery can be series-strung above 24V or paralleled without confirming BMS compatibility first; contact BigBattery or MSSD before wiring multiple units together.
Pro-Installer Tip
Swapping a single lead-acid T-105 for a single Eagle 2 is straightforward, but multi-battery banks are where mistakes happen. Mixing this lithium battery with older lead-acid batteries in the same bank causes charge and discharge mismatches, because the two chemistries have different voltage curves — this leads to premature cell imbalance and can trip the BMS into lockout on the lithium unit. Prevent this by keeping battery chemistries segregated in any bank, and verify pack voltage and balance with a shunt-based battery monitor before and after installation. As a professional standard, plan usable capacity around an 80-100% depth of discharge for LiFePO4, rather than the 50% DoD ceiling used for lead-acid — that's the core efficiency gain of the swap.
Key Benefits
- LiFePO4 chemistry — no lead-acid maintenance (no watering, no equalization charging)
- GC2 form factor — mirror-image replacement for stock T-105 lead-acid batteries
- 1.63kWh of usable energy per 64Ah battery at 24V
- Suitable for RVs (Class A, B, & C), camper vans, marine use, scissor lifts, light towers, floor sweepers, floor scrubbers, pallet jacks, and emergency backup
Technical Table
| Spec | Value |
|---|---|
| Voltage | 24V |
| Capacity | 64Ah |
| Energy | 1.63kWh |
| Chemistry | LiFePO4 |
| Form Factor | GC2 (T-105 replacement) |
| Max Continuous Discharge (A) | [NEEDS VERIFICATION] |
| Max Continuous Charge (A) | [NEEDS VERIFICATION] |
| Peak Discharge (A) | [NEEDS VERIFICATION] |
| Cycle Life | [NEEDS VERIFICATION] |
| Operating Temp Range | [NEEDS VERIFICATION] |
| Low-Temp Charging Protection | [NEEDS VERIFICATION] |
| Dimensions | [NEEDS VERIFICATION] |
| Weight | [NEEDS VERIFICATION] |
| Terminal Type | [NEEDS VERIFICATION] |
Note: See "Resources (System Manuals and Warranty)" Tab above for full specifications.
Compatibility & Fitment
Positive fitment: Designed as a direct, mirror-image replacement for a T-105 lead-acid battery in a GC2 tray. Compatible with 24V applications including RVs, camper vans, marine systems, scissor lifts, light towers, floor sweepers, floor scrubbers, and pallet jacks.
Negative fitment: This battery's charger requirements are not confirmed in the source data — [NEEDS VERIFICATION] on whether a standard lead-acid charger is safe to use; do not assume compatibility. Series/parallel expansion limits are not specified — do not wire multiple units into a larger bank without confirming BMS-supported configurations first. This is not sold as a starter battery. No charger, cables, or mounting hardware are confirmed as included in this listing.
FAQ
What chemistry is the 24V Eagle 2?
It is LiFePO4 (Lithium Iron Phosphate), not AGM, Gel, or Flooded lead-acid.
Will this fit in place of my existing T-105 lead-acid battery?
Yes. It is built in the GC2 form factor as a mirror-image replacement for a stock T-105 lead-acid battery.
Can I mix this battery with my old lead-acid batteries in the same bank?
No. Mixing chemistries or ages in the same bank causes charge mismatches and premature imbalance. Use batteries of the same chemistry and age together.
What is the capacity and energy rating of this battery?
64Ah at 24V, equal to 1.63kWh of stored energy.
Does this battery include a charger or cables?
Not confirmed in current product data — [NEEDS VERIFICATION]. Check the Resources tab or ask MSSD before ordering if this is required.
Warranty & Support
Warranty terms for this model are not included in the provided data. Refer to the "Resources (System Manuals and Warranty)" Tab above for the manufacturer's warranty documentation. If you don't see what you need there, ask us before you order — we always reply back.
