This is a wall-sleeve air conditioner and electric-heat unit for hotel rooms, apartments, or additions where central ductwork isn't available. It's built for property managers and homeowners near coastal or high-corrosion environments who need self-contained, per-room climate control with extra protection against salt-air corrosion.

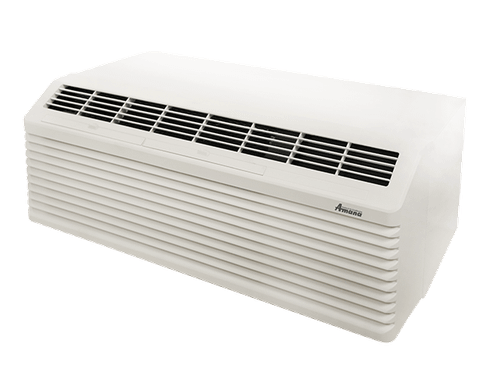

The PTC153J35CXXX is a packaged terminal air conditioner with electric heat, built on Amana's PTC chassis and finished with seacoast corrosion protection for coastal hospitality properties, marine-adjacent apartment buildings, and additions exposed to salt air. It meets or exceeds ASHRAE 90.1 efficiency standards. Note: If you would like to review the manufacturer Product Specifications, Warranty, Brochure, etc., for this system, please refer to the "Resources (System Manuals and Warranty)" Tab above on this page.
Critical Fit & Power Requirements
- Wall sleeve opening: Standard 42 in wide x 16-1/16 in high (industry standard, e.g. WS900E, WS900QW, or seacoast WS900SC sleeve line)
- Voltage: 230/208V dual-rated chassis
- Amperage: Total draw with heater is 15.5A (230V) / 14.1A (208V); Minimum Circuit Ampacity (MCA) 19.5A; Maximum Overcurrent Protection (MOP) 20A
- NEMA Plug Type: 6-20P, factory-installed power cord
- Wall Sleeve is NOT included and must be purchased separately.
- Exterior Architectural Grille is NOT included and must be purchased separately.
- Not compatible with 115V circuits.
- Not compatible with 265V hardwire-only installations; the 265V commercial sibling of this chassis is the PTC154J, which requires an Amana sub-base (PTSB4**E series) or hard-wire kit PTPWHWK4 with disconnect switch PSHW04A (sold separately) — this 230/208V unit does not use that hardware.
- Not a drop-in replacement for non-standard or custom sleeve openings — verify rough opening dimensions before ordering.
On seacoast-protected chassis like this one, condensate drainage matters even more because standing water accelerates corrosion at weld seams and fastener points before the coating has a chance to do its job. When you set the wall sleeve, pitch it 1/4 bubble toward the outside wall — check it with a torpedo level across the sleeve floor, not just at the front lip, since a sleeve that reads level at the opening can still pool water at the rear condensate pan. A sleeve installed dead level (or worse, pitched inward) drives water back into the wall cavity, which leads to drywall staining and mold long after the installer has left the property. This is standard property-management best practice for coastal hospitality units and should be verified during rough-in inspection, not after the chassis is slid in.
Key Benefits
- Seacoast corrosion protection (Feature Code C) for coastal and high-salinity environments
- 4.4 pints/hr dehumidification rate for humid-climate comfort control
- Dedicated 65 CFM fresh air ventilation setting for make-up air in tightly sealed rooms
- Dual 230V/208V voltage rating gives flexibility across building electrical configurations
- EER of 10.3 (230V) / 10.4 (208V) for per-room cooling efficiency
- R-32 refrigerant
Technical Table
| Spec | Value | Unit |
|---|---|---|
| Cooling Capacity (230V) | 14,800 | BTU/h |
| Cooling Capacity (208V) | 14,500 | BTU/h |
| Heating Capacity (230V) | 12,000 | BTU/h |
| Heating Capacity (208V) | 9,900 | BTU/h |
| Electric Heat Strip Size | 3.5/3.0 | kW |
| Heat Stages | 1 | - |
| EER | 10.3/10.4 | BTU/Wh |
| Voltage | 230/208 | V |
| Compressor Amps | 7.1/7.1 | A |
| Compressor Watts | 1,435/1,430 | W |
| Total Heater Watts | 3,570/2,935 | W |
| Total Amps (with Heater) | 15.5/14.1 | A |
| MCA | 19.5 | A |
| MOP | 20 | A |
| NEMA Plug Type | 6-20P | - |
| CFM Wet (High/Low) | 400/314 | CFM |
| CFM Dry (High/Low) | 412/390 | CFM |
| Fresh Air Vent | 65 | CFM |
| Dehumidification Rate | 4.4 | pints/hr |
| Net Weight | 113 | lb |
| Shipping Weight | 130 | lb |
| Refrigerant Type | R-32 | - |
| Wall Sleeve Dimensions | Standard 42 x 16-1/16 | in |
| Wall Sleeve Included | Not Included | - |
| Exterior Architectural Grille Included | Not Included | - |
| Corrosion Protection | Seacoast Protection | - |
Note: See "Resources (System Manuals and Warranty)" Tab above for full specifications.
Compatibility & Fitment
- Fits the industry-standard 42 in x 16-1/16 in wall sleeve opening (e.g., WS900E, WS900QW, or seacoast-rated WS900SC).
- Compatible with 230/208V circuits via NEMA 6-20P plug and factory-installed cord.
- Not compatible with 115V circuits.
- Not compatible with 265V hardwire-only setups; the 265V version of this chassis is the PTC154J, which requires a dedicated Amana sub-base or hard-wire kit (sold separately) — not applicable to this unit.
- Wall Sleeve NOT included — order separately based on your sleeve style (standard, seacoast, sound-isolation, or extra-deep variants).
- Exterior Architectural Grille NOT included — order separately (SGK stamped, AGK extruded aluminum, or PGK polymer grille options).
- Not a drop-in replacement for non-standard or custom sleeve openings — confirm rough opening dimensions (approx. 42-1/4 in wide x 16-1/4 in minimum height) before ordering.
Compliance & Environment
| Spec | Value |
|---|---|
| Refrigerant Type | R-32 |
| Efficiency Standard | Meets or exceeds ASHRAE 90.1 |
| Power Cord Compliance | LCDI power cord per UL 484 (units under 250V) |
| Voltage Operating Range | 197V min / 253V max (230/208V models) |
FAQ
Is the wall sleeve included with this unit?
No. The wall sleeve is sold separately. This chassis fits the industry-standard 42 in wide x 16-1/16 in high sleeve opening (e.g., WS900E, WS900QW, or the WS900SC seacoast-protected sleeve). The exterior architectural grille is also sold separately.
What breaker size and plug type does this unit require?
This configuration (3.5/3.0 kW heat at 230/208V) has a Minimum Circuit Ampacity of 19.5A and a Maximum Overcurrent Protection (breaker) rating of 20A. It ships with a factory-installed NEMA 6-20P power cord.
Can this be hardwired for 265V commercial applications?
No. This unit is a 230/208V model and is not rated for 265V circuits. The 265V commercial version of this chassis is the PTC154J, which requires an Amana sub-base (PTSB4**E series) or hard-wire kit PTPWHWK4 with disconnect switch PSHW04A, sold separately. Do not attempt to hardwire this 230/208V unit as a substitute.
Does this require a licensed electrician or HVAC professional to install and keep the warranty valid?
[NEEDS VERIFICATION] — installation labor requirements are not specified in the provided source files. Refer to the warranty documentation in the Resources tab for installer qualification requirements.
Will this fit a standard 42-inch by 16-inch wall sleeve opening?
Yes. This chassis fits the industry-standard 42 in x 16-1/16 in wall sleeve opening. It is not a drop-in fit for non-standard or custom sleeve openings without confirming dimensions first.
Warranty & Registration
This unit carries a 1-Year Repair/Replace warranty and a 5-Year Parts Limited Warranty, as documented on Amana's published warranty materials. Exact terms, including any distinctions between commercial hospitality use and residential use, are detailed in the warranty PDF available in the "Resources (System Manuals and Warranty)" Tab above on this page. Ask us before you order if you need help interpreting the commercial vs. residential warranty terms for your property type — we always reply back.
